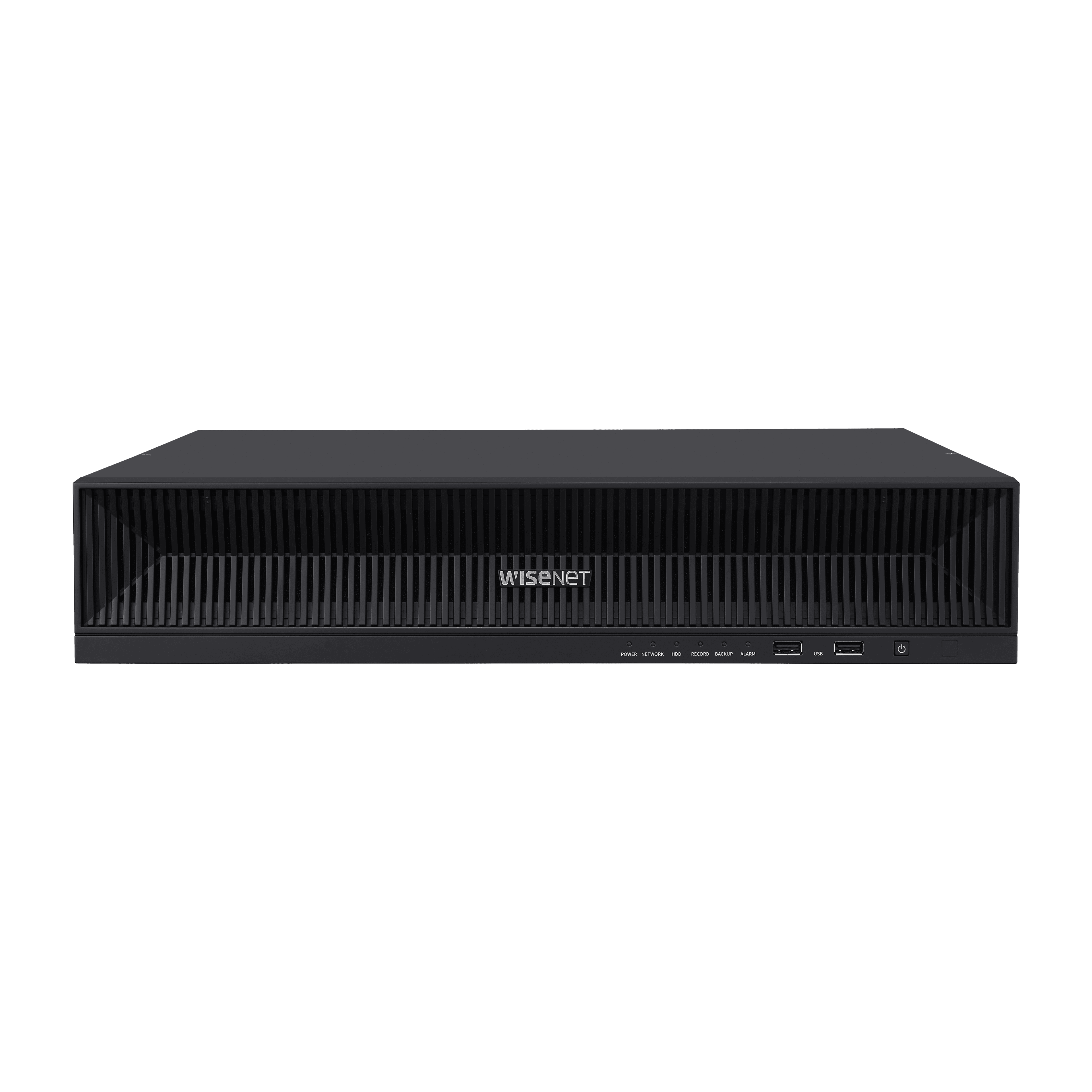

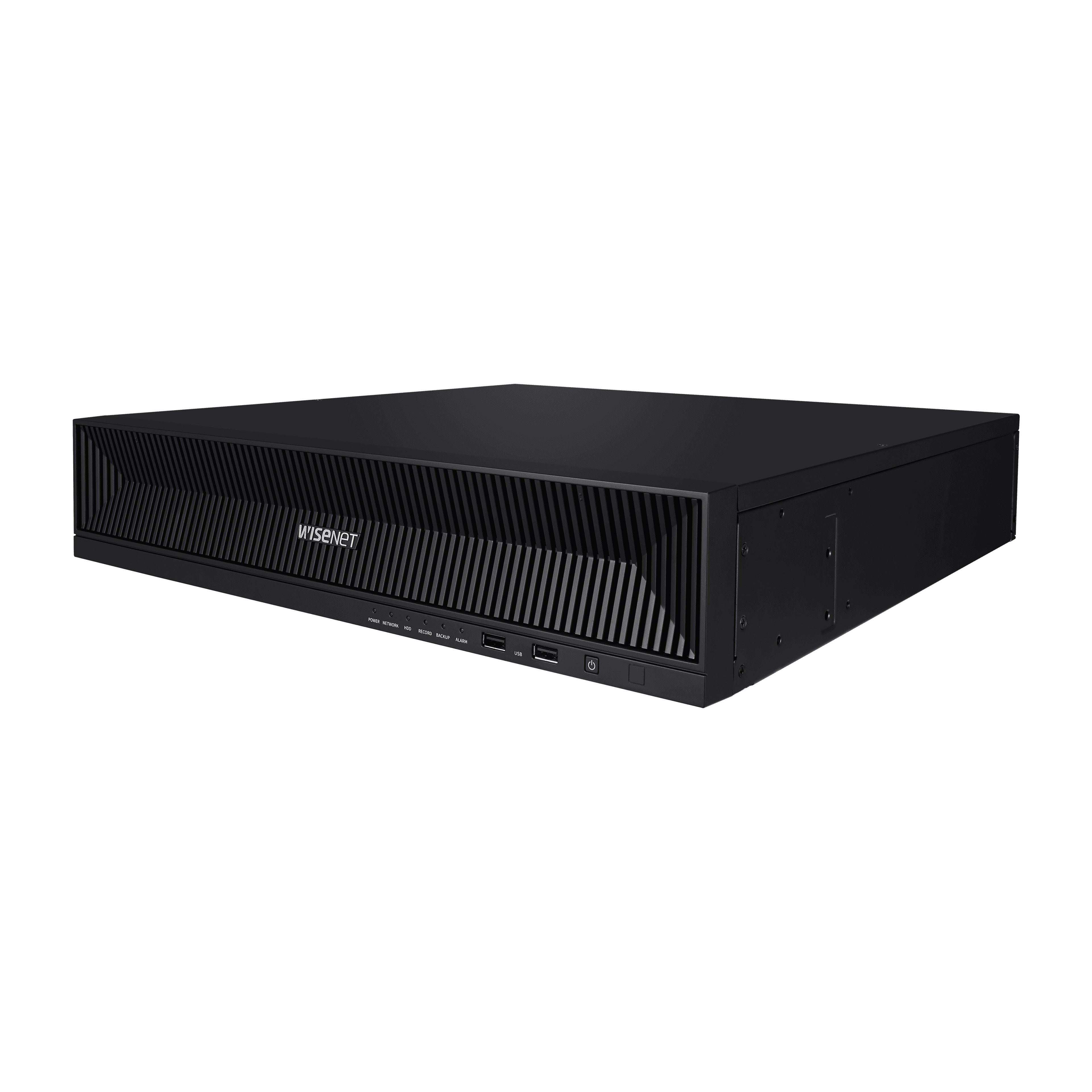

XRN-6410B2
64CH NVRKey Features
• Up to 64CH, 32MP Resolution
• Max. 400Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• Bookmark management (Up to 100 set)
• H.265, H.264, MJPEG compression support
• SATA 8ea (Up to 80TB)
For supported HDD information, please visit the HDD compatibility list.
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XRN-6410RB2,XRN-6410B2,XRN-3210RB2,XRN-3210B2_240528_DE.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-6410RB2,XRN-6410B2,XRN-3210RB2,XRN-3210B2_240528_ES.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-6410RB2,XRN-6410B2,XRN-3210RB2,XRN-3210B2_240528_NL.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-6410RB2,XRN-6410B2,XRN-3210RB2,XRN-3210B2_240528_PL.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-6410RB2,XRN-6410B2,XRN-3210RB2,XRN-3210B2_240528_PT.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-6410RB2,XRN-6410B2,XRN-3210RB2,XRN-3210B2_240528_TR.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-6410RB2,XRN-6410B2,XRN-3210RB2,XRN-3210B2_240528_ZH.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-6410RB2,XRN-6410B2,XRN-3210RB2,XRN-3210B2_241209_EN.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-6410RB2,XRN-6410B2,XRN-3210RB2,XRN-3210B2_240528_IT.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XRN-6410B2XRN-3210B2_210426_EN.dxf | 2026-04-19 | |
| CAD | CAD_XRN-6410B2XRN-3210B2_210426_EN.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XRN-6410B2_210329_EN_UL.pdf | 2026-04-19 | |
| Certification | Certification_XRN-6410B2_230224_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_XRN-6410B2_230224_EN_DoC_UKCA.pdf | 2026-04-19 | |
| Certification | Certification_XRN-6410B2_230224_EN_EMC_CE.pdf | 2026-04-19 | |
| Certification | Certification_XRN-6410B2_230224_EN_FCC&IC.pdf | 2026-04-19 | |
| Certification | Certification_XRN-6410B2_230224_EN_RCM.pdf | 2026-04-19 | |
| Certification | Certification_XRN-6410B2_230224_EN_VCCI.pdf | 2026-04-19 | |
| Certification | Certification_XRN-6410B2_230330_EN_CB.pdf | 2026-04-19 | |
| Certification | Certification_XRN-6410B2_230330_EN_REPORT_CB.pdf | 2026-04-19 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | PRN-6400DB4_5.34.52_250807163824.zip | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XRN-6410B2_210501_EN.docx | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XRN-6410B2_20260223_EN_134034.pdf | 2026-04-19 |
Quick Guide
Product Specifications
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PRN-3210B2PRN-1610B2XRN-6410RB2XRN-3210RB2XRN-6410B2XRN-3210B2_240319_EN.txt | 2026-04-19 |
Specifications
Display
| Network camera | Inputs | Max. 64CH |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz) |
| Multi Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 64 Division - Expand Mode : HDMI1 up to 32 Div. HDMI2 up to 32 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) |
Performance
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Distributed mode : Up to 400 Mbps Normal mode : Up to 150 Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 112CH(Local 64CH, Remote 16CH per user) | |
| Fisheye Dewarping | Support (Local 1CH), CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 8ea(Max. 80TB) | |
| External | iSCSI storage | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display |
Network
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | Input/Output | 64 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
Function
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) |

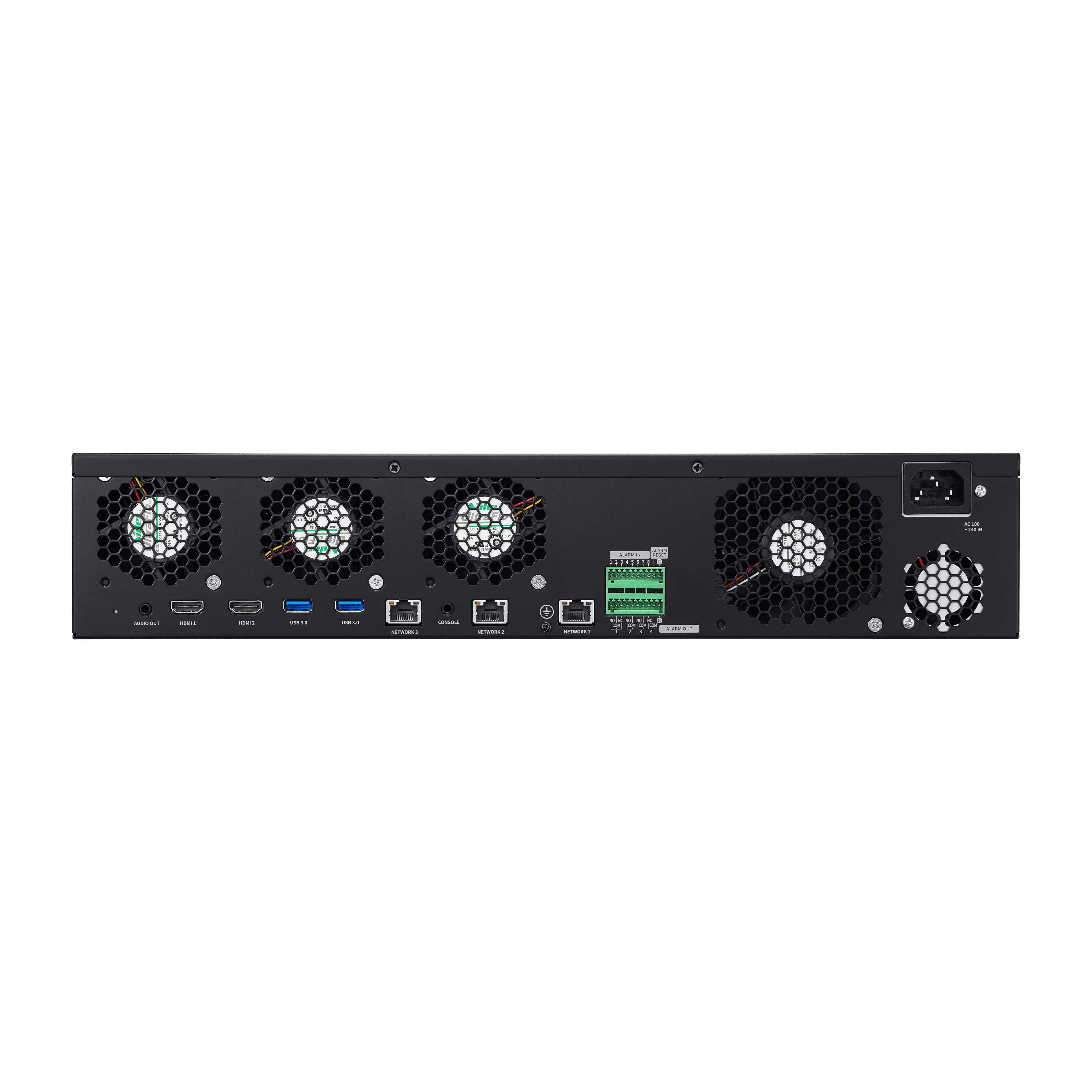

Interface
| Front | Indicator | HDD, Alarm, Power, Record, Backup, Network |
| Storage | OK | |
| Reset | OK | |
| HDD Keylock | OK | |
| HDMI | 2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz | |
| Audio | Out 1EA (3.5mm Audio Jack) | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB2.0 + Rear 2 x USB 3.0) | |
| Power inlet | AC 1EA |
System
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Environmental
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 100 ~ 240 VAC ±10%; 50/60Hz, 1.5A(Single SMPS) | |
| Power Consumption | Max. 138W(with 10TB HDD 8EA) |
Mechanical
| Color / Material | Black / Metal | |
| Dimension | 438.0 x 86.0 x 434.9 mm (17.47 x 3.39 x 17.12 inch) | |
| Weight | 7.5Kg(16.5lb, Except HDD) |
Intelligent Analysis
| AI Search | Object Attribute | Compatible with Hanwha AI Cameras |
Display
| Network camera | Inputs | Max. 64CH |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz) |
| Multi Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 64 Division - Expand Mode : HDMI1 up to 32 Div. HDMI2 up to 32 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) |
Performance
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Distributed mode : Up to 400 Mbps Normal mode : Up to 150 Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 112CH(Local 64CH, Remote 16CH per user) | |
| Fisheye Dewarping | Support (Local 1CH), CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 8ea(Max. 80TB) | |
| External | iSCSI storage | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display |
Network
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | Input/Output | 64 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
Function
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) |
Interface
| Front | Indicator | HDD, Alarm, Power, Record, Backup, Network |
| Storage | OK | |
| Reset | OK | |
| HDD Keylock | OK | |
| HDMI | 2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz | |
| Audio | Out 1EA (3.5mm Audio Jack) | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB2.0 + Rear 2 x USB 3.0) | |
| Power inlet | AC 1EA |
System
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Environmental
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 100 ~ 240 VAC ±10%; 50/60Hz, 1.5A(Single SMPS) | |
| Power Consumption | Max. 138W(with 10TB HDD 8EA) |
Mechanical
| Color / Material | Black / Metal | |
| Dimension | 438.0 x 86.0 x 434.9 mm (17.47 x 3.39 x 17.12 inch) | |
| Weight | 7.5Kg(16.5lb, Except HDD) |
Intelligent Analysis
| AI Search | Object Attribute | Compatible with Hanwha AI Cameras |
