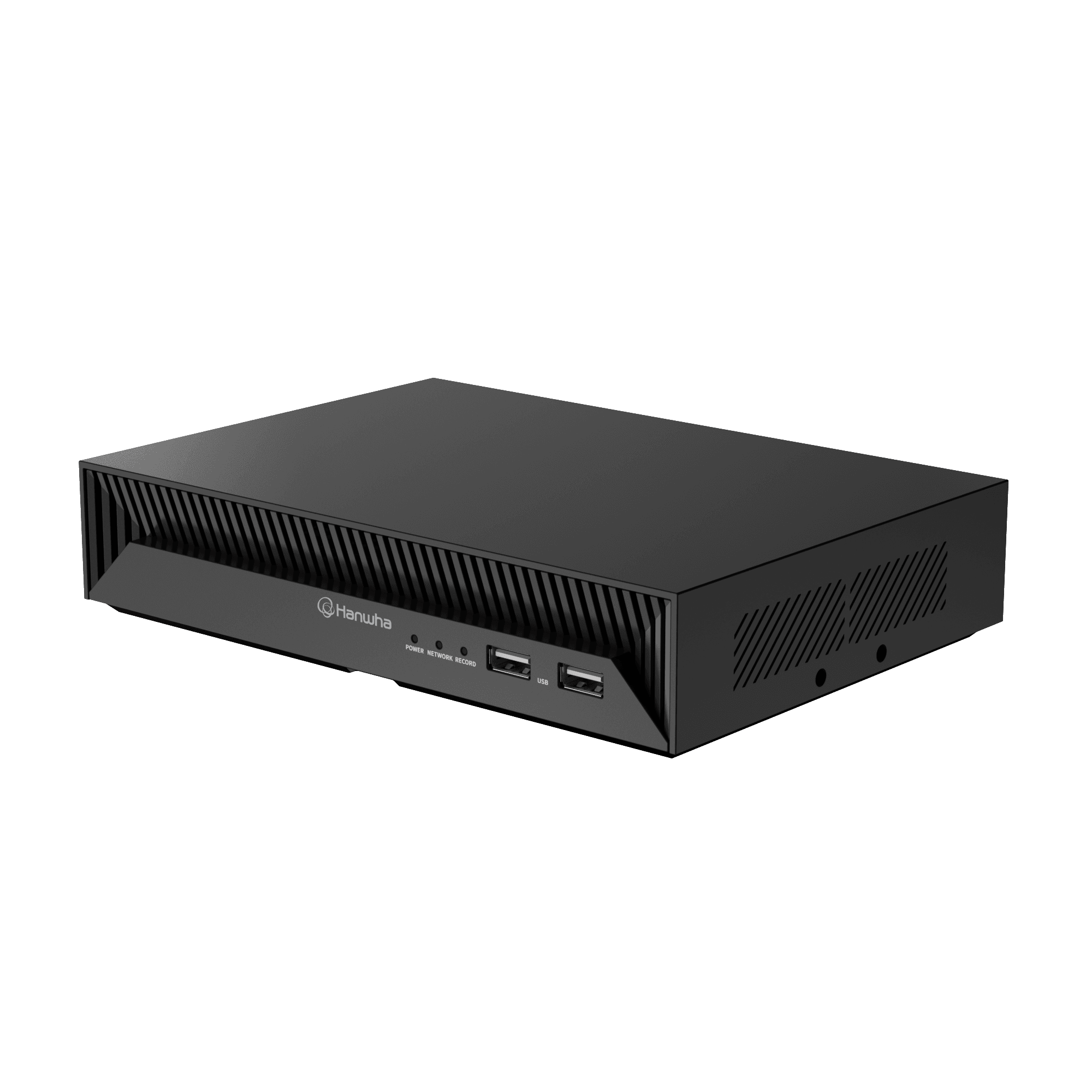

XRN-426S-1T
4CH AI NVRKey Features
- Up to 4CH, 8MP camera supported
- 4 PoE (LAN, 10/100)
- Pre-installed 1TB SSD
- AI Search: Object Attribute (When integrated with Hanwha AI Camera)
- H.265, H.264, MJPEG codec
- 40Mbps network camera recording
- HDMI local monitor
- ARB supported
- P2P service (QR code connect) support
For supported HDD information, please visit the HDD compatibility list.
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XRN-426S-1T_240620_EN.pdf | 2026-05-08 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XRN-426S-1T_231031_EN.dxf | 2026-05-08 | |
| CAD | CAD_XRN-426S-1T_231031_EN.pdf | 2026-05-08 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XRN-426S_231213_EN_VCCI.pdf | 2026-05-08 | |
| Certification | Certification_XRN-426S_240409_EN_CEUKCA.pdf | 2026-05-08 | |
| Certification | Certification_XRN-426S_240409_EN_DoC_CE.pdf | 2026-05-08 | |
| Certification | Certification_XRN-426S_240409_EN_DoC_UKCA.pdf | 2026-05-08 | |
| Certification | Certification_XRN-426S_240409_EN_FCC.pdf | 2026-05-08 | |
| Certification | Certification_XRN-426S_240409_EN_RCM.pdf | 2026-05-08 | |
| Certification | Certification_XRN-426S_240529_EN_UL.pdf | 2026-05-08 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | XRN-426S_5.35.52_260413114311.zip | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XRN-426S-1T_241203_EN.docx | 2026-05-08 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XRN-426S-1T_20250906_EN_063218.pdf | 2026-05-08 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XRN-426S-1T_240429_EN.pdf | 2026-05-08 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XRN-815SXRN-426SXRN-425SXRN-420S_250224_EN.txt | 2026-05-08 |
Specifications
Display
| Network camera | Inputs | Max. 4CH |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | HDMI1: 3840x2160 (30Hz) |
| Multi Screen Display | Dynamic layout, Virtual channel view, Up to 4 Div. [Web] 1/ 2H/ 2V/ 3V/ 4 | |
| Resolution | [Local Monitor] 8M(30fps), 1080p(4ch@30fps), 720P(4ch@30fps), D1(4ch@30fps) |
Performance
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 40Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 16CH(Local 4CH, Remote 4CH per user) | |
| Mode | Time/Event/Text/ARB/Bookmark/Smart search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Pre-installed 1TB SSD |
| HDD Slot | M.2 SSD 1EA | |
| Backup | File backup | Recorder/SEC/AVI/JPG(Local), AVI/PNG(Network) |
| Function | Multi channel(Up to 4CH) Play, Date-Time/Title display |
Network
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Audio | Input/Output | 4 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows10 or higher, macOS 13.5.2 or higher |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
Function
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) |

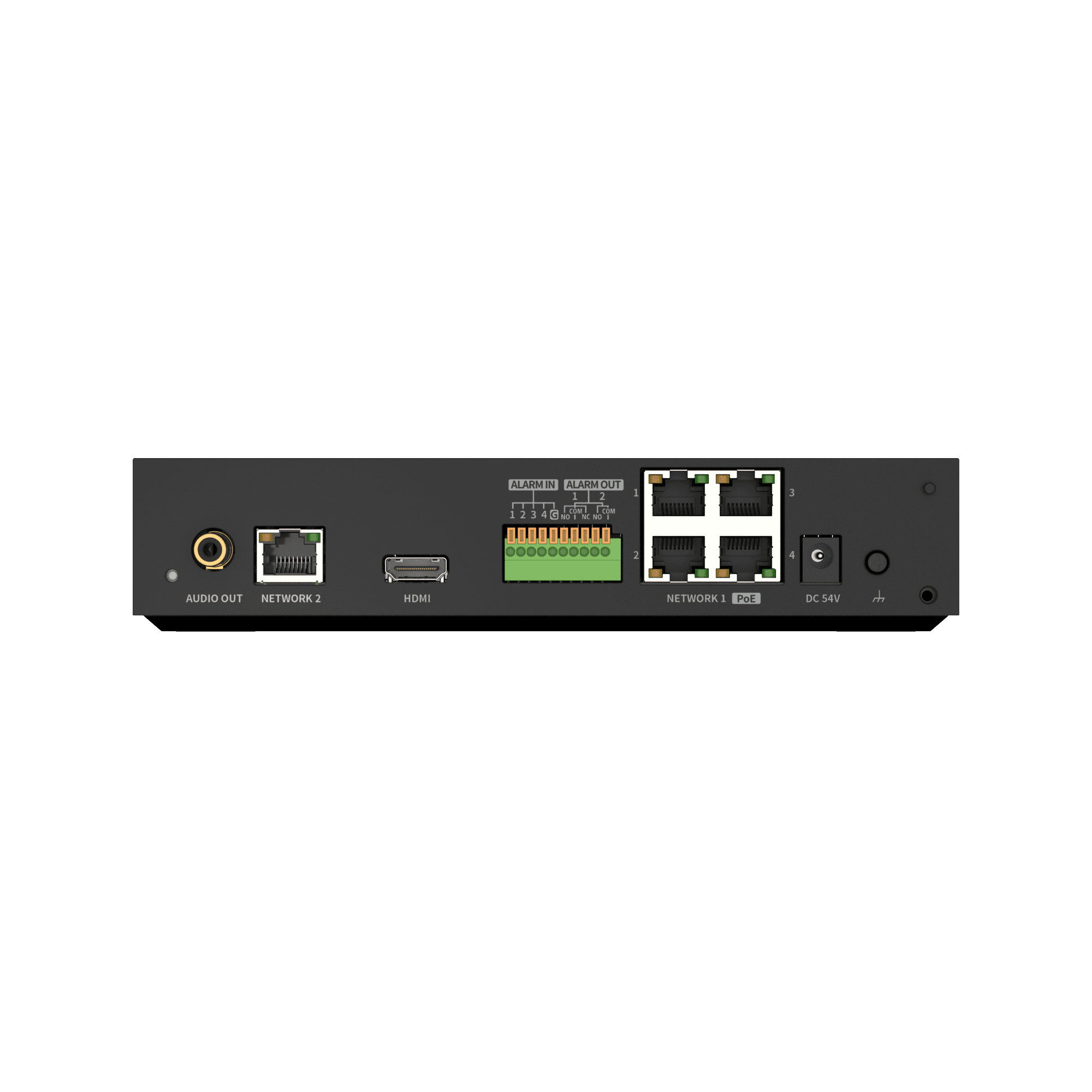

Interface
| Front | Indicator | Power, Record, Network |
| Reset | Switch(1EA, PW clear) | |
| HDMI | 1EA 3840x2160(30Hz) | |
| Audio | Out 1EA (RCA output) | |
| Ethernet | RJ-45(LAN, 10/100) 4ea (Support PoE/PoE+) ,RJ-45 1ea (WAN, 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 2EA(Front 2 x USB 2.0), Support for Wi-Fi dongle for Install | |
| Power inlet | DC Adaptor |
System
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse(include wireless), Keyboard(include wireless), Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Environmental
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 54VDC/1.67A | |
| Power Consumption | Max. 68W(PoE On) | |
| PoE Budget | 50W |
Mechanical
| Color / Material | Black / Metal | |
| Dimension | 200.0 x 140.0 x 42.0 mm (7.87 x 5.51 x 1.65 inch) | |
| Weight | 0.66Kg(1.45lb) |
Intelligent Analysis
| AI Search | Object Attribute | Compatible with Hanwha AI Cameras |
Display
| Network camera | Inputs | Max. 4CH |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | HDMI1: 3840x2160 (30Hz) |
| Multi Screen Display | Dynamic layout, Virtual channel view, Up to 4 Div. [Web] 1/ 2H/ 2V/ 3V/ 4 | |
| Resolution | [Local Monitor] 8M(30fps), 1080p(4ch@30fps), 720P(4ch@30fps), D1(4ch@30fps) |
Performance
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 40Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 16CH(Local 4CH, Remote 4CH per user) | |
| Mode | Time/Event/Text/ARB/Bookmark/Smart search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Pre-installed 1TB SSD |
| HDD Slot | M.2 SSD 1EA | |
| Backup | File backup | Recorder/SEC/AVI/JPG(Local), AVI/PNG(Network) |
| Function | Multi channel(Up to 4CH) Play, Date-Time/Title display |
Network
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Audio | Input/Output | 4 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows10 or higher, macOS 13.5.2 or higher |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
Function
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) |
Interface
| Front | Indicator | Power, Record, Network |
| Reset | Switch(1EA, PW clear) | |
| HDMI | 1EA 3840x2160(30Hz) | |
| Audio | Out 1EA (RCA output) | |
| Ethernet | RJ-45(LAN, 10/100) 4ea (Support PoE/PoE+) ,RJ-45 1ea (WAN, 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 2EA(Front 2 x USB 2.0), Support for Wi-Fi dongle for Install | |
| Power inlet | DC Adaptor |
System
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse(include wireless), Keyboard(include wireless), Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Environmental
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 54VDC/1.67A | |
| Power Consumption | Max. 68W(PoE On) | |
| PoE Budget | 50W |
Mechanical
| Color / Material | Black / Metal | |
| Dimension | 200.0 x 140.0 x 42.0 mm (7.87 x 5.51 x 1.65 inch) | |
| Weight | 0.66Kg(1.45lb) |
Intelligent Analysis
| AI Search | Object Attribute | Compatible with Hanwha AI Cameras |
