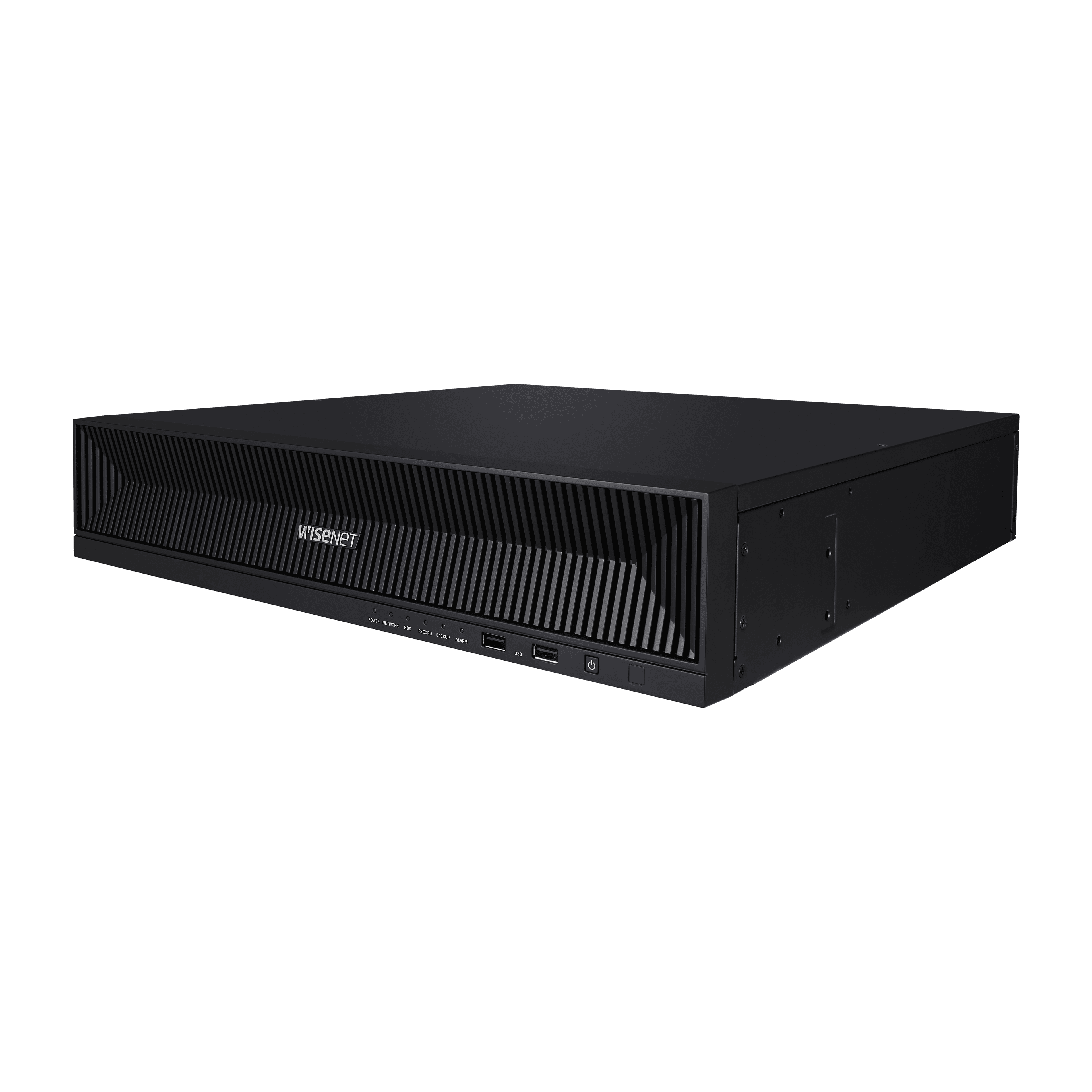

XRN-1620B2
16CH NVRKey Features
• Up to 16CH 32MP supported
• Max. 140Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• H.265, H.264, MJPEG codec supported
• Bookmark management (Up to 100 set)
• SATA 8ea (Up to 80TB)
For supported HDD information, please visit the HDD compatibility list.
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XRN-1620B2,XRN-1620SB1,XRN-820S_240528_DE.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-1620B2,XRN-1620SB1,XRN-820S_240528_ES.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-1620B2,XRN-1620SB1,XRN-820S_240528_FR.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-1620B2,XRN-1620SB1,XRN-820S_240528_IT.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-1620B2,XRN-1620SB1,XRN-820S_240528_NL.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-1620B2,XRN-1620SB1,XRN-820S_240528_PL.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-1620B2,XRN-1620SB1,XRN-820S_240528_PT.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-1620B2,XRN-1620SB1,XRN-820S_240528_TR.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-1620B2,XRN-1620SB1,XRN-820S_240528_ZH.pdf | 2026-04-19 | |
| Manuals | Manuals_XRN-1620B2,XRN-1620SB1,XRN-820S_241209_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XRN-1620B2_201201.dwg | 2026-04-19 | |
| CAD | CAD_XRN-1620B2_201201.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XRN-1620B2_210211_EN_UL.pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230224_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230224_EN_DOC_UKCA.pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230224_EN_EMC_CE.pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230224_EN_FCC&IC.pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230224_EN_RCM.pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230224_EN_VCCI.pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230315_KO_KC(SAFETY).pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230321_KO_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230405_EN_CB.pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230405_EN_REPORT_CB.pdf | 2026-04-19 | |
| Certification | Certification_XRN-1620B2_230315_KO_Report_KC%25EC%25A0%2584%25EC%259E%2590%25ED%258C%258C.pdf | 2026-04-19 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | PRN-6400DB4_5.34.72_251212115045.zip | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XRN-1620B2_210318_EN.docx | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XRN-1620B2_20250906_EN_061118.pdf | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_CS.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_DE.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_EN.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_ES.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_FR.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_IT.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_NL.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_PL.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_PT.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_TR.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_XRN-1620B2XRN-1620SB1XRN-820S_230331_ZH.pdf | 2026-04-19 |
Product Specifications
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XRN-1620SB1XRN-820SXRN-1620B2_240319_EN.txt | 2026-04-19 |
Specifications
Display
| Network camera | Inputs | Max. 16CH |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor |
| Multi Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone mode : Up to 16 Division - Expand mode : Up to 9 Division [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | [Local Monitior] FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps), FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps) Clone/Single mode : Up to 25fps when displaying more than 10CH |
Performance
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 140Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 64CH(Local 16CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 8ea(Max. 80TB) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display |
Network
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 140Mbps | |
| Audio | Input/Output | 16 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
Function
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) |
Interface
| Front | Indicator | HDD, Alarm, Power, Record, Backup, Network |
| Storage | OK | |
| HDMI | 1EA 3840x2160 30Hz | |
| VGA | 1920x1080 30Hz | |
| Audio | Out 1EA (3.5mm Audio Jack) | |
| Ethernet | RJ-45 2EA (LAN/WAN, 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0) | |
| Power inlet | AC 1EA |
System
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Environmental
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 100 ~ 240 VAC ±10%, 50/60Hz | |
| Power Consumption | 130W |
Mechanical
| Color / Material | Black / Metal | |
| Dimension | 440.0 x 89.8 x 428.4 mm (17.32 x 3.54 x 16.87 inch) | |
| Weight | 5.71Kg(12.59lb) |
Intelligent Analysis
| AI Search | Object Attribute | Compatible with Hanwha AI Cameras |
Display
| Network camera | Inputs | Max. 16CH |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor |
| Multi Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone mode : Up to 16 Division - Expand mode : Up to 9 Division [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | [Local Monitior] FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps), FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps) Clone/Single mode : Up to 25fps when displaying more than 10CH |
Performance
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 140Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 64CH(Local 16CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 8ea(Max. 80TB) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display |
Network
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 140Mbps | |
| Audio | Input/Output | 16 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
Function
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) |
Interface
| Front | Indicator | HDD, Alarm, Power, Record, Backup, Network |
| Storage | OK | |
| HDMI | 1EA 3840x2160 30Hz | |
| VGA | 1920x1080 30Hz | |
| Audio | Out 1EA (3.5mm Audio Jack) | |
| Ethernet | RJ-45 2EA (LAN/WAN, 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0) | |
| Power inlet | AC 1EA |
System
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Environmental
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 100 ~ 240 VAC ±10%, 50/60Hz | |
| Power Consumption | 130W |
Mechanical
| Color / Material | Black / Metal | |
| Dimension | 440.0 x 89.8 x 428.4 mm (17.32 x 3.54 x 16.87 inch) | |
| Weight | 5.71Kg(12.59lb) |
Intelligent Analysis
| AI Search | Object Attribute | Compatible with Hanwha AI Cameras |
