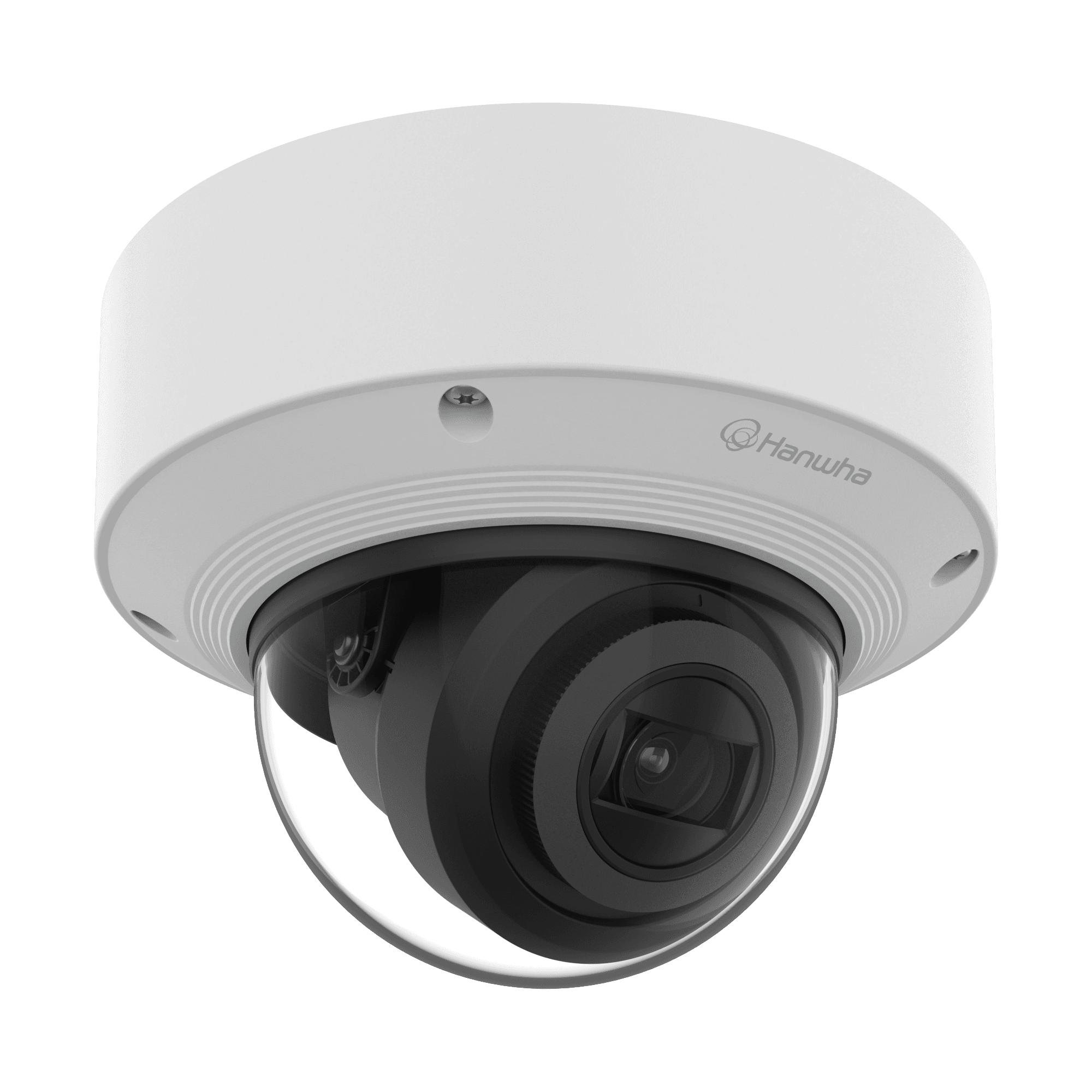

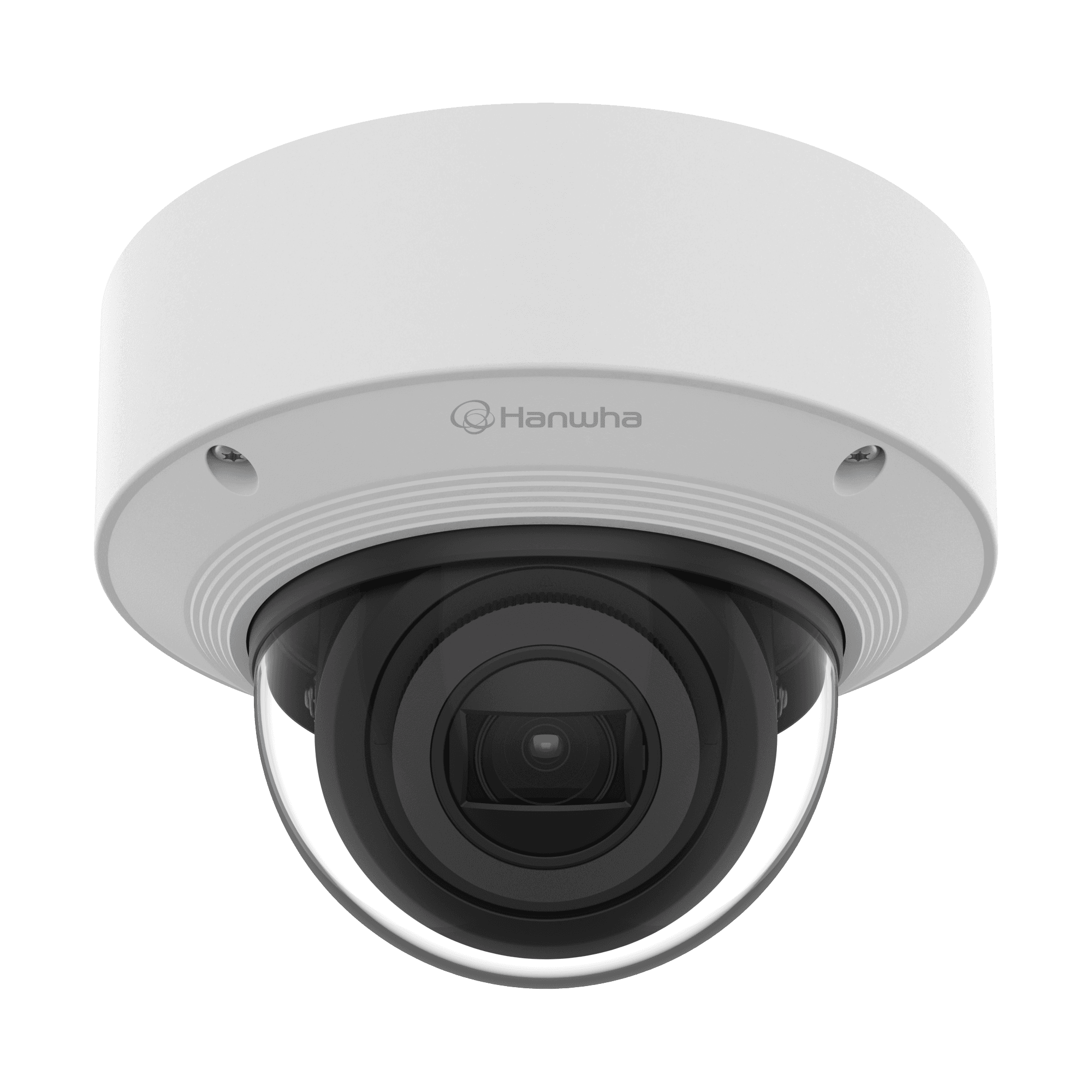

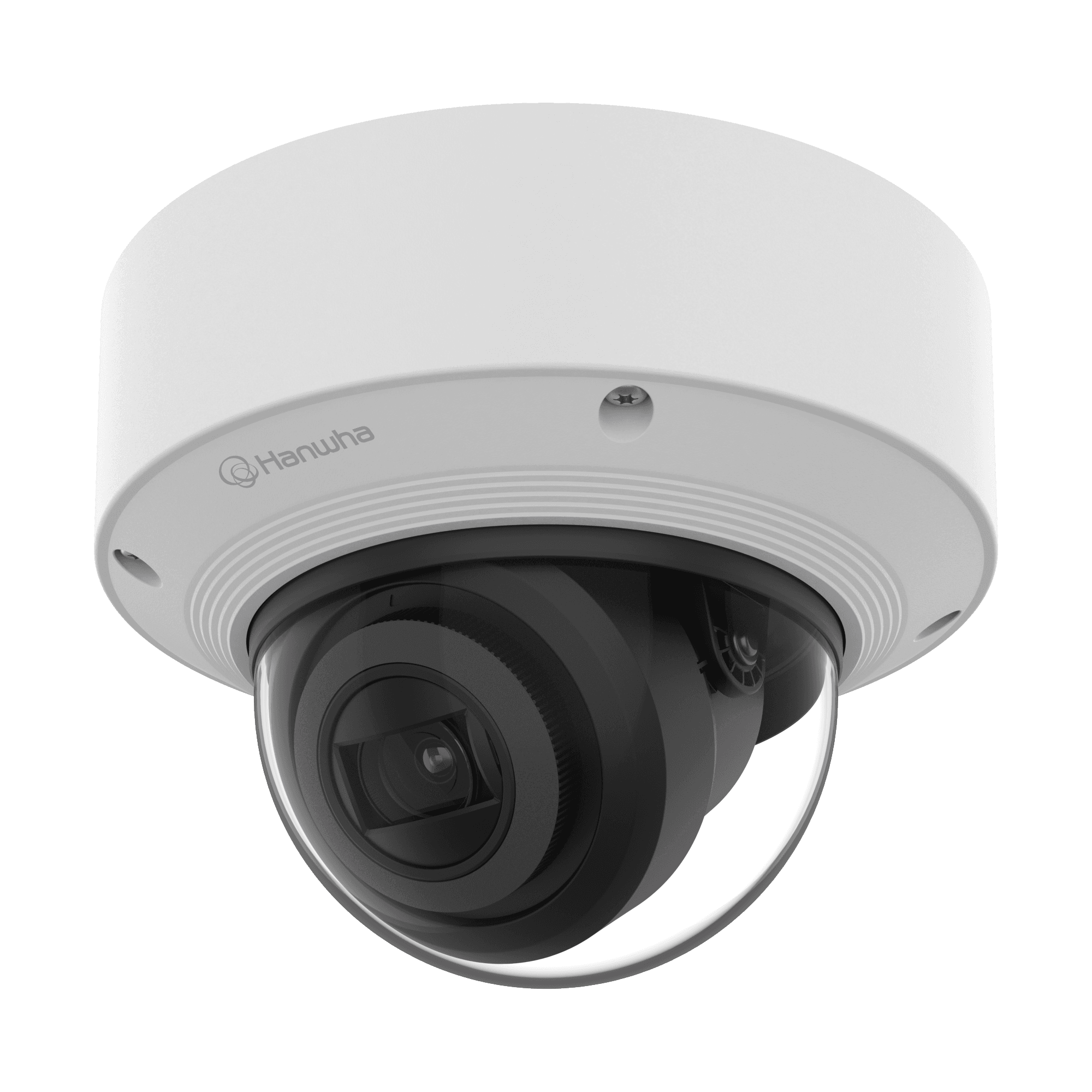

XNV-C6083
2MP AI None IR Vandal Dome CameraKey Features
• 2MP resolution
• 2.8~12mm (4.3x) motorised varifocal
• Maximum 60 fps@2MP (H.265/H.264)
• Day & Night (ICR), extremeWDR (150 dB)
• DIS with built-in Gyro sensor
• Hard-coated dome bubble
• Analytics events based on AI engine (NPU)
• IP66, IP67, NEMA4X, IK10
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNV-C6083_240710_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-C6083_240710_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-C6083_240710_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-C6083_240710_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-C6083_240710_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-C6083_240710_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-C6083_240710_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-C6083_240710_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-C6083_240710_ZH.pdf | 2026-08-06 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_XNV-C6083RXNV-C7083RXNV-C8083RXNV-C9083R_211005_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNV-C8083RXNV-C9083RXNV-C7083RXNV-C6083R_210510_Common.dxf | 2026-08-06 | |
| CAD | CAD_XNV-C8083RXNV-C9083RXNV-C7083RXNV-C6083R_210510_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XNV-C6083_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XNV-C6083_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_XNV-C6083_230224_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XNV-C6083_230224_EN_FCC_IC.pdf | 2026-08-06 | |
| Certification | Certification_XNV-C6083_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_XNV-C6083_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_XNV-C6083_230321_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_XNV-C9083R,XNV-C8083R,XNV-C7083R,XNV-C6083R,XNV-C6083_241224_EN_ULCAP.pdf | 2026-08-06 | |
| Certification | Certification_XNV-C6083R_210625_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_XNV-C6083_230315_KO_Report_KC%25EC%259C%25A0%25EC%2584%25A0.pdf | 2026-08-06 | |
| Certification | Certification_XNV-C6083_230315_KO_Report_KC%25EC%25A0%2584%25EC%259E%2590%25ED%258C%258C.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN7_2_11_04_20251016_hva_prod.zip | 2026-08-06 | |
| Firmware | GenetecSecurityCenterSaaS_v_WN7_25_10_27_20251027.zip | 2026-08-06 | |
| Firmware | XND-C7083RV_2.24.00_20251125_R62.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNV-C6083_250204_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNV-C6083_20260806_EN_170946.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_XNV-C6083R_211019_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_XNV-C6083R_211019_Common_mm.rfa | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XNV-C6083_240710_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-C6083_240710_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-C6083_240710_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-C6083_240710_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-C6083_240710_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-C6083_240710_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-C6083_240710_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-C6083_240710_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-C6083_240710_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-C6083_240710_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-C6083_240710_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_XNV-C9083RXNV-C8083RXNV-C6083RXNV-C7083R_20211021_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNV-C9083RXNV-C8083RXNV-C6083RXNV-C7083R_20211021_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNV-C9083RXNV-C8083RXNV-C6083RXNV-C7083R_20211021_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNB-6002XNF-9013RVXNV-C6083TNV-C7013RC_240307_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.01 |
| BW(1/30sec, 30IRE) | 0.001 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.8~12 | |
| Zoom Ratio | Optical | 4.3x |
| Max Aperture Ratio (F number) | Wide | 1.4 |
| Tele | 3.6 | |
| Angular Field of View | Horizontal | 120°~27° |
| Vertical | 63°~15° | |
| Diagonal | 143°~32° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus, Manual | |
| Lens Type | DC auto iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~75° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support(Fill/stretch mode) | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Vehicle | Type(car, bus, truck, motorcycle, bicycle) |
| Thumbnail | DetectionShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) | |
| Security Certificate | CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2) |
General
| Memory | RAM | 2GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | Start up should be done at above -20°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | 0.02㎡ | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max 10.8W, Typical 9.0W |
| 12VDC | Max 10.0W, Typical 8.4W |
Mechanical
| Color | White | |
| Material | Aluminum, Hard-coated dome | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø160x118mm(ø6.30x4.65") | |
| Product Weight | 1450g(3.20lb) | |
| Compatible Conduit Hole | 12.7mm(1/2")(M20) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 22.2m(72.74ft) |
| Tele | 159.9m(524.76ft) | |
| Observe (63PPM/ 19PPF) | Wide | 8.9m(29.09ft) |
| Tele | 64.0m(209.90ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 4.4m(14.55ft) |
| Tele | 32.0m(104.95ft) | |
| Identify (250PPM/ 76PPF) | Wide | 2.2m(7.27ft) |
| Tele | 16.0m(52.48ft) |
