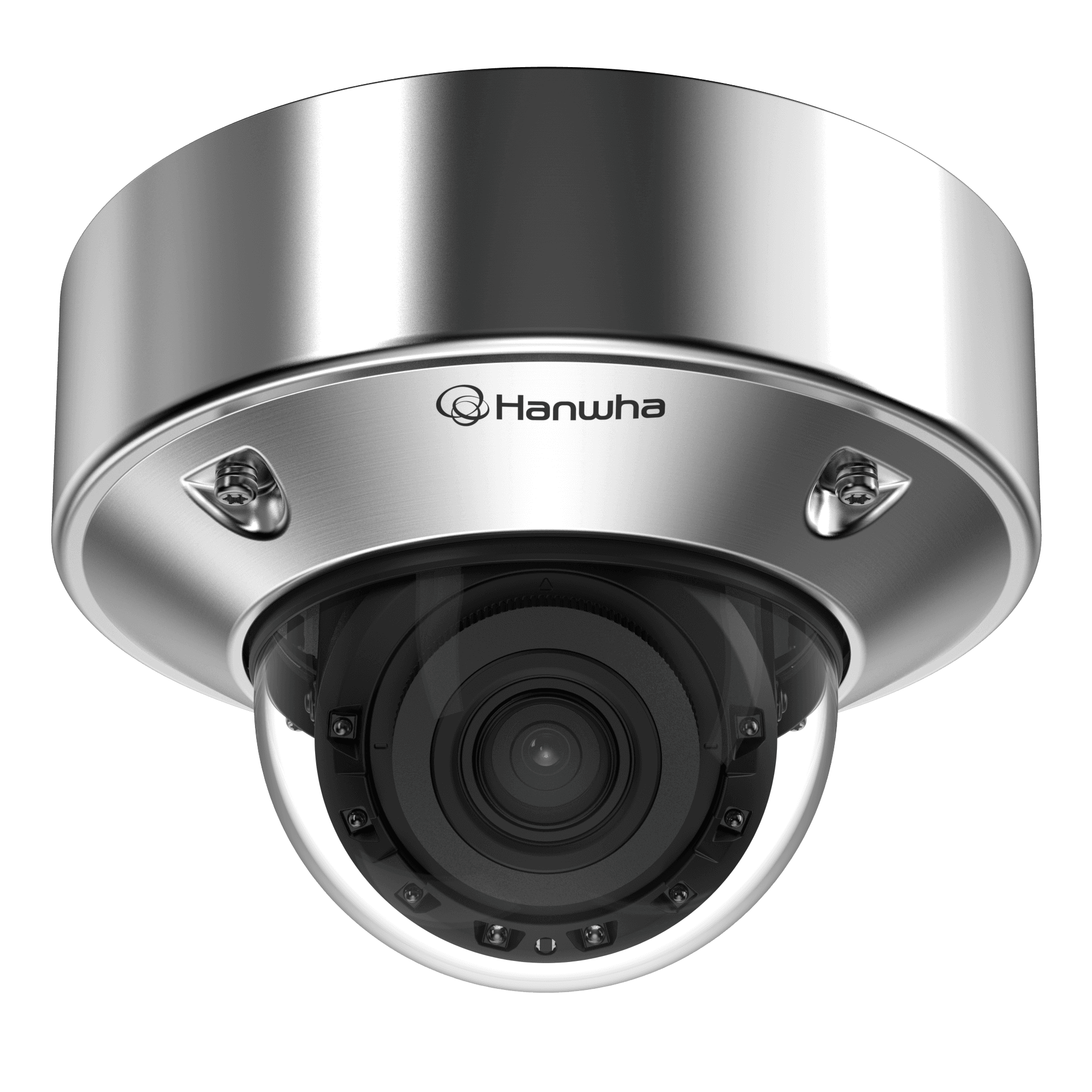

XNV-A9084RS
8MP Stainless Steel AI IR Vandal Dome CameraKey Features
- Dual NPU for AI-based Image Enhancement
- Object detection, Intelligent Video Analytics
- People/Vehicle/Crowd counting, Queue management, Heatmap
- BestShot and color attributes
- Dynamic Privacy Masking
Downloads
View Selection
Manuals
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNV-A8084RS%2CXNV-A9084RS_260107_Common.dxf | 2026-08-14 | |
| CAD | CAD_XNV-A8084RS%2CXNV-A9084RS_260107_Common.pdf | 2026-08-14 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN9_2_14_05_20260407_hva_prod.zip | 2026-08-14 | |
| Firmware | WiseAI_v_XNO-A9084R_26_03_03_20260513.zip | 2026-08-14 | |
| Firmware | XNO-A9084R_26.03.05_20260625_R753.zip | 2026-08-14 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | A%26E%20Document_XNV-A9084RS_260227_EN.docx | 2026-08-14 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNV-A9084RS_20260814_EN_100607.pdf | 2026-08-14 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_AR.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_CS.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_DE.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_EN.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_ES.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_FR.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_IT.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_NL.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_PL.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_PT.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_TR.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_ZH-TW.pdf | 2026-08-14 | |
| Quick Guide | Quick%20Guide_XNV-A9084RS%2CXNV-A8084RS_251212_ZH.pdf | 2026-08-14 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XND-A9084RV%2CXND-A8084RV%2CXNV-A9084RS%2CXNV-A8084RS_260326_EN.txt | 2026-08-14 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation%20Guide%20Sheet_XNV-A8084RS%2CXNV-A9084RS_251222_Common.pdf | 2026-08-14 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_XND-A9084RV%2CXND-A8084RV%2CXNV-A9084RS%2CXNV-A8084RS_260326_EN_cyclonedx.json | 2026-08-14 |
Specifications
Video
| Imaging Device | Size | 1/1.8" |
| Type | CMOS | |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@8MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.04 |
| BW(1/30sec, 30IRE) | 0.004 | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 4.4~9.3 | |
| Zoom Ratio | Optical | 2.1x |
| Max Aperture Ratio (F number) | Wide | 1.3 |
| Tele | 2.15 | |
| Angular Field of View | Horizontal | 113°~47° |
| Vertical | 58°~26° | |
| Diagonal | 138°~54° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus, Manual | |
| Lens Type | P iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~75° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 8point Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support(Fill/stretch mode) | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/30,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR 50m(164.04ft) |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Face mask, Glasses | |
| Similarity Search | Support | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal | Defocus detection, Tampering, Audio detection, Shock detection | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps) | |
| Smart Codec | WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control, MAC-based access control, Auto logout | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | |
| Supply Chain Security | SBOM | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
General
| SoC | Type | Wisenet 9 |
| Dual NPU | Support | |
| Memory | RAM | 4GB |
| Flash | 8GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+50°C(-40°F~+122°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | 0.015㎡ | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 11.2W, typical 8.4W |
| WisePower | Power monitoring, Eco mode |
Mechanical
| Color | Silver | |
| Material | Stainless(STS316L), Nylon dome | |
| Material Management | Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| Product Dimensions | ø175x120mm(6.89x4.72") | |
| Product Weight | 2,010g(4.43lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 60529 IP68, ISO 20653 IP6K9K, IEC 62262 IK11, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, NSF/ANSI Standard 169, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 50.8m(166.77ft) |
| Tele | 176.6m(579.49ft) | |
| Observe (63PPM/ 19PPF) | Wide | 20.3m(66.71ft) |
| Tele | 70.7m(231.80ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 10.2m(33.35ft) |
| Tele | 35.3m(115.90ft) | |
| Identify (250PPM/ 76PPF) | Wide | 5.1m(16.68ft) |
| Tele | 17.7m(57.95ft) |
