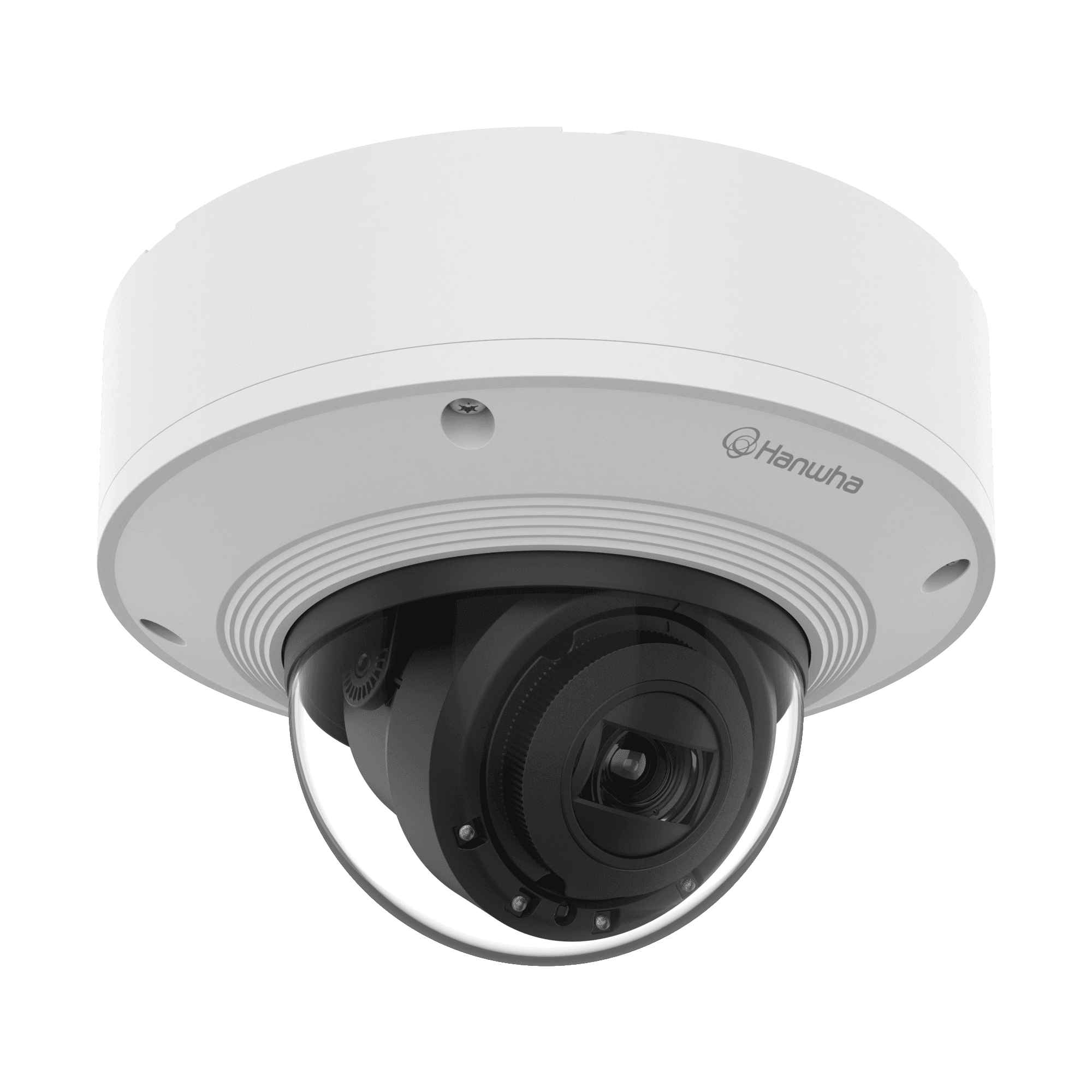

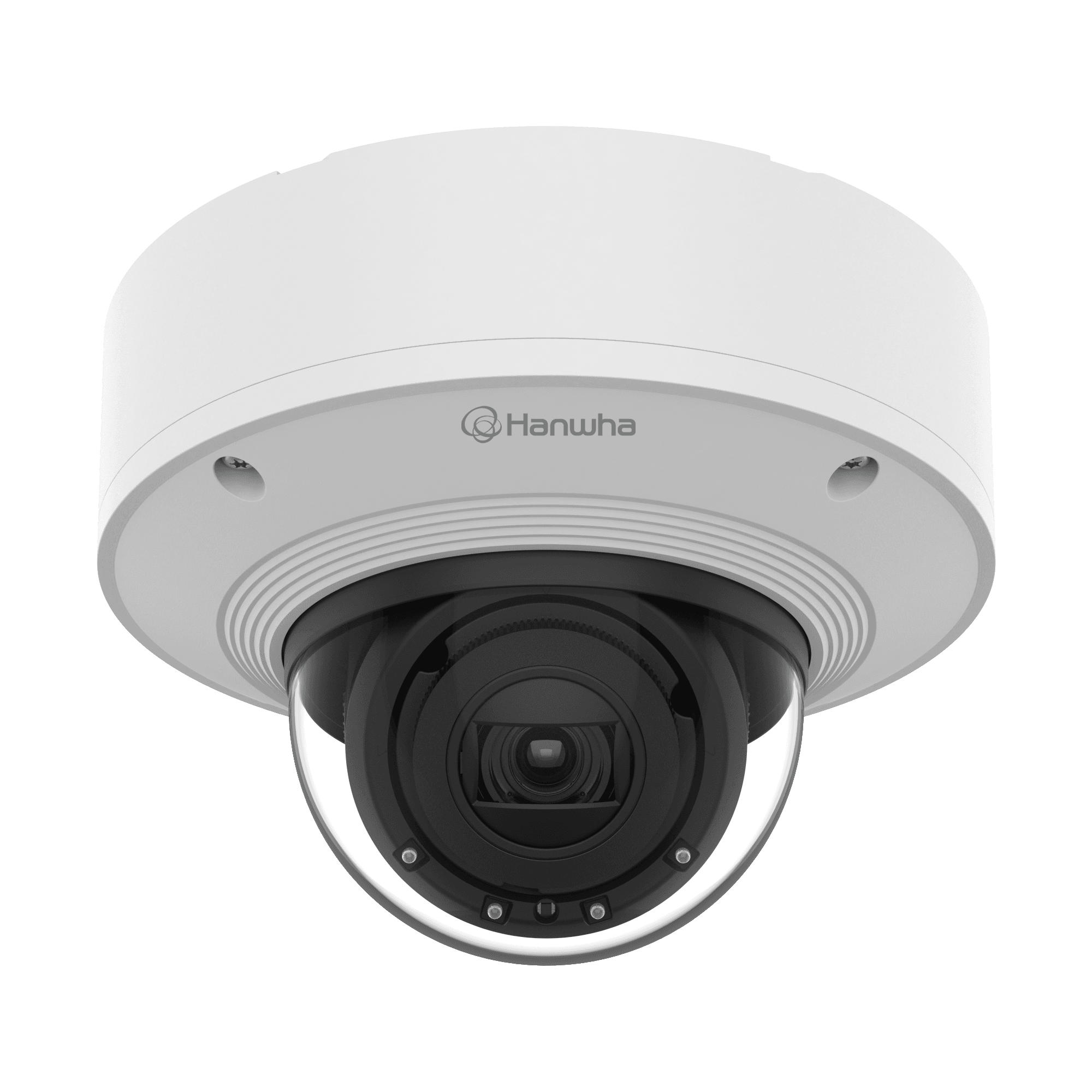

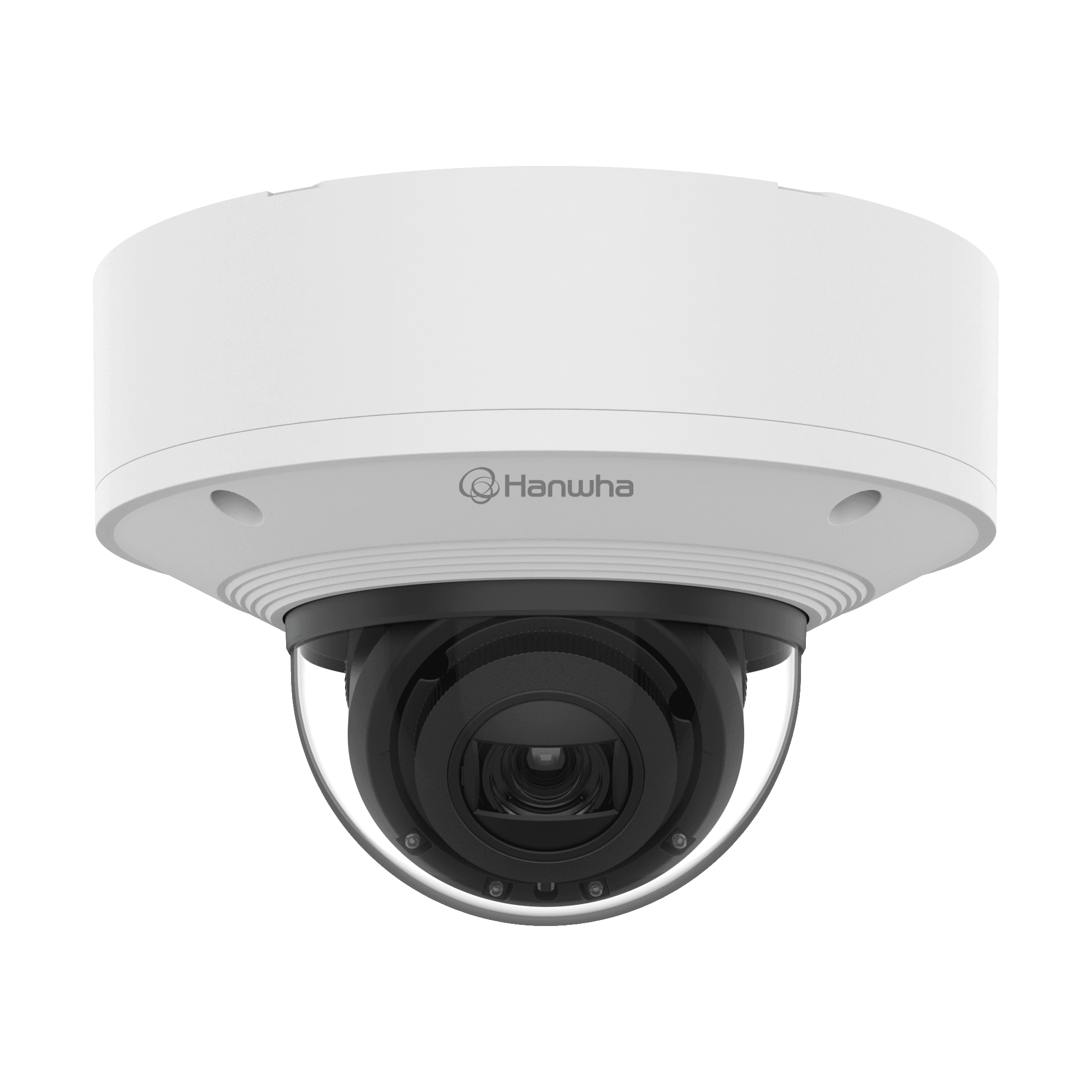

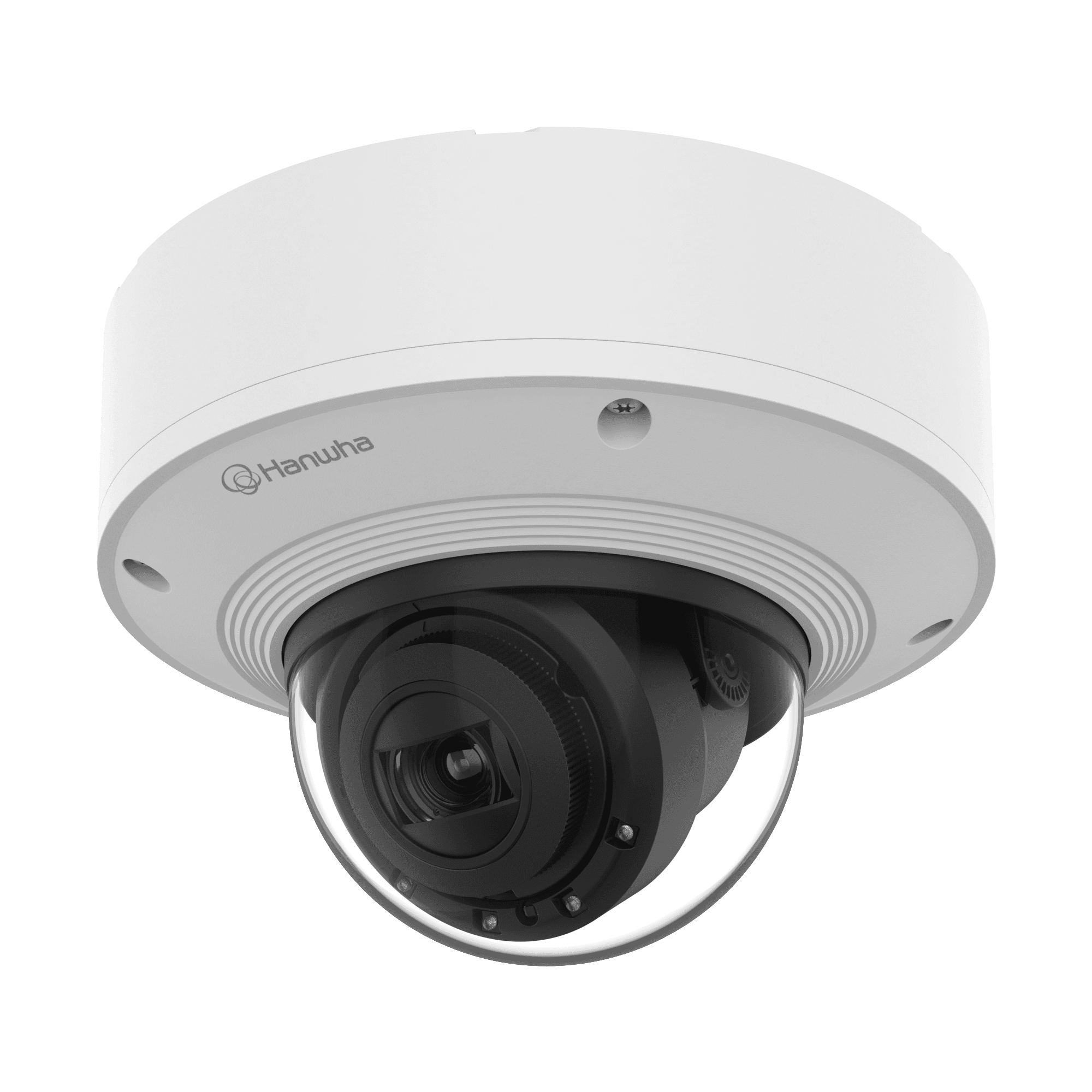

XNV-6081RE
2MP IR PoE Extender Vandal Dome CameraKey Features
• Max. 2MP resolution
• PoE Extender (Main cam, extension cam)
• PoE out :Max. 12.95W@80m
• 2.8~12mm(4.3x) motorized varifocal
• 0.015Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
• IR viewable length 50m
• Day & Night (ICR), WDR (150dB)
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• Business Intelligence(People counting, Queue management, Heatmap)
• DIS and shock detection with built-in gyro sensor
• Modular structure, PoE+ in/ PoE out
• IP66/IP67/IP6K9K, IK10+, NEMA4X
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNV-6081RE,XNV-8081RE,XND-6081REV,XND-8081REV_240702_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6081RE,XNV-8081RE,XND-6081REV,XND-8081REV_240702_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6081RE,XNV-8081RE,XND-6081REV,XND-8081REV_240702_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6081RE,XNV-8081RE,XND-6081REV,XND-8081REV_240702_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6081RE,XNV-8081RE,XND-6081REV,XND-8081REV_240702_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6081RE,XNV-8081RE,XND-6081REV,XND-8081REV_240702_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6081RE,XNV-8081RE,XND-6081REV,XND-8081REV_240702_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6081RE,XNV-8081RE,XND-6081REV,XND-8081REV_240702_TR.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNV-6081RXNV-8081RXNV-6081REXNV-8081RE_211105_Common.dxf | 2026-08-06 | |
| CAD | CAD_XNV-6081RXNV-8081RXNV-6081REXNV-8081RE_211105_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XNV-6081RE_200212_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_200212_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_200212_EN_FCC-IC.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_200212_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_200212_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_200212_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_200212_KO_Report_KC(tel).pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_200213_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_200401_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_200402_KO_SDoC_KC.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_211209_EN_IK10+.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_211209_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6081RE_211209_EN_IP67.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | XND-6081REV_2.23.01_20260708_R94.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNV-6081RE_200831_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNV-6081RE_20260806_EN_143308.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_XND-6081REV_200814_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_XND-6081REV_200814_Common_mm.rfa | 2026-08-06 |
Quick Guide
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online%20Help_XNV-6081RE_260101_EN.zip | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNV-6081RE%2CXND-8081REV%2CXNV-8081RE%2CXNV-6012%2CXNV-6012M_260406_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.015 |
| BW(1/30sec, 30IRE) | 0.0015 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.8~12 | |
| Zoom Ratio | Optical | 4.3x |
| Max Aperture Ratio (F number) | Wide | 1.4 |
| Tele | 3.6 | |
| Angular Field of View | Horizontal | 119.5°~27.9° |
| Vertical | 62.8°~15.7° | |
| Diagonal | 142.1°~32.0° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus, Manual | |
| Lens Type | DC auto iris(IR corrected), P iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | -45°~85° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 50m(164.04ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
| Business Intelligence | Normal | People counting, Queue management, Heatmap |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical
| Operating Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -35°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4) | |
| Power Consumption | PoE | Max. 25.5 W (Main CAM+Extension CAM), Typical 10.2W (Main CAM) |
| Others | PoE Out: Max. 12.95W at 80m using CAT5/5E cable |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø180x125mm(7.09x4.92") | |
| Product Weight | 1750g(3.86lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 22.4m(73.49ft) |
| Tele | 155m(508.53ft) | |
| Observe (63PPM/ 19PPF) | Wide | 9.0m(29.53ft) |
| Tele | 62m(203.41ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 4.5m(14.76ft) |
| Tele | 31m(101.71ft) | |
| Identify (250PPM/ 76PPF) | Wide | 2.2m(7.22ft) |
| Tele | 15m(49.21ft) |
