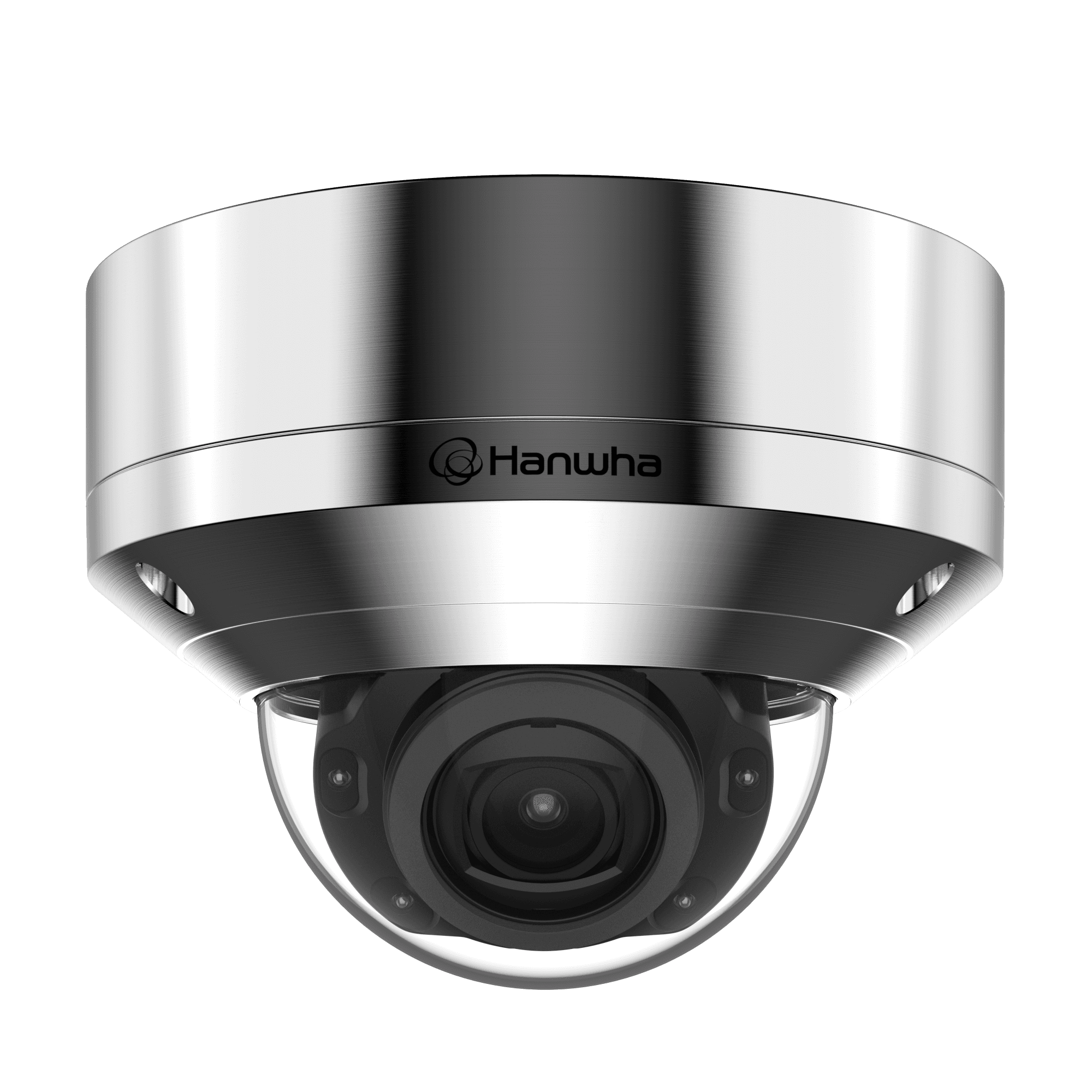

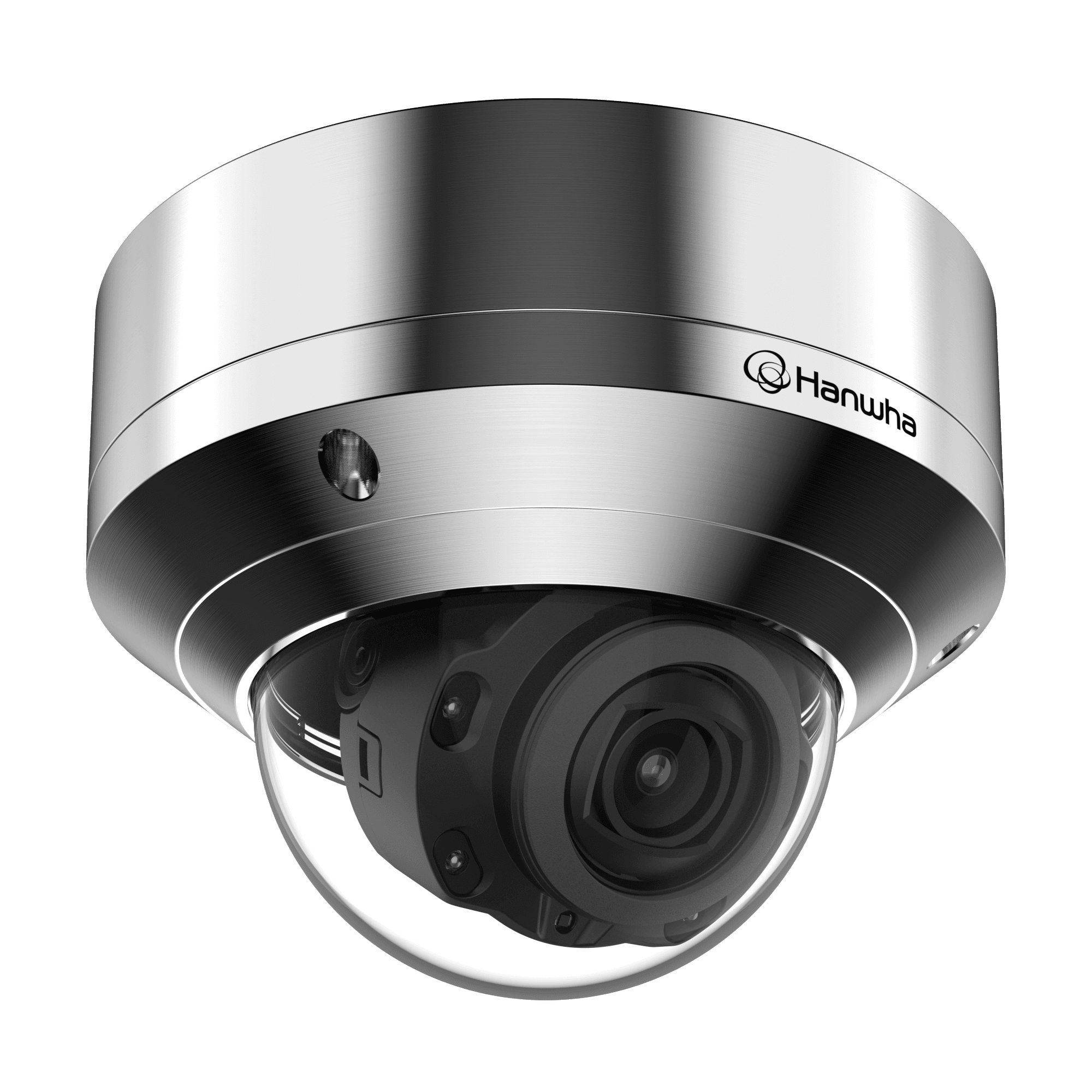

XNV-6080RSA
2MP Stainless IR Dome CameraKey Features
• Max. 2Megapixel (1920 x 1080) resolution
• 2.8 ~ 12mm (4.3x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (150dB), Defog
• Loitering, Directional detection, Tampering, Audio detection, Digital auto tracking, Fog detection, Sound classification
• Motion detection, Handover
• SD/SDHC/SDXC memory 2slots (Max. 512GB)
• Hallway view, WiseStream II support
• IR viewable length 50m
• IP66, IP6K9K, IK10+, NEMA4X
• NSF/ANSI 169-2016: Special purpose food equipment and devices
• LDC, PoE support
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNV-6080RSA,XNV-8080RSA_240628_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6080RSA,XNV-8080RSA_240628_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6080RSA,XNV-8080RSA_240628_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6080RSA,XNV-8080RSA_240628_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6080RSA,XNV-8080RSA_240628_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6080RSA,XNV-8080RSA_240628_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6080RSA,XNV-8080RSA_240628_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6080RSA,XNV-8080RSA_240628_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNV-6080RSA,XNV-8080RSA_240628_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNV-6080RSAXNV-8080RSA_200720.dwg | 2026-08-06 | |
| CAD | CAD_XNV-6080RSAXNV-8080RSA_200720.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XNV-6080RSA_210329_EN_IK10+.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6080RSA_210329_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6080RSA_210331_KO_IP6K9K_.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6080RSA_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6080RSA_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6080RSA_230224_EN_EMC_CE,UKCA.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6080RSA_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6080RSA_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_XNV-8080RSA_200702_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_XNV-8080RSA_200713_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6080RSA_230224_EN_FCC-IC.pdf | 2026-08-06 | |
| Certification | Certification_XNV-6080RSA_210507_EN_NEMA-4X.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | XND-6080_2.23.02_20260617_R77.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNV-6080RSA_201119_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNV-6080RSA_20260806_EN_164536.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_XNV-6080RSA_200923_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_XNV-6080RSA_200923_Common_mm.rfa | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNV-6080RSAXNV-8080RSA_240628_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_XNV-6080RSA_20200805_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNV-6080RSA_20200805_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNV-6080RSA_20200805_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XND-6080V%2CXND-K6080N%2CXNV-6080%2CXNV-6080R%2CXNV-6080RS%2CXNV-6080RSA_250718_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 60fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.015 |
| BW(1/30sec, 30IRE) | 0.0015 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.8~12 | |
| Zoom Ratio | Optical | 4.3x |
| Max Aperture Ratio (F number) | Wide | 1.4 |
| Tele | 3.6 | |
| Angular Field of View | Horizontal | 120°~27° |
| Vertical | 63°~15° | |
| Diagonal | 143°~32° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris, P iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~354° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 50m(164.04ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
General
| Memory | RAM | 1GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC | |
| Power Consumption | PoE | Max 12.95W |
| 12VDC | Max 11.5W | |
| 24VAC | Max 14W |
Mechanical
| Color | Silver | |
| Material | Stainless(STS316L) | |
| Product Dimensions | Ø162x120.5mm(Ø6.38x4.74") | |
| Product Weight | 2.8kg(6.17lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X, NSF/ANSI Standard 169 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 22.2m(72.74ft) |
| Tele | 159.9m(524.76ft) | |
| Observe (63PPM/ 19PPF) | Wide | 8.9m(29.09ft) |
| Tele | 64.0m(209.90ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 4.4m(14.55ft) |
| Tele | 32.0m(104.95ft) | |
| Identify (250PPM/ 76PPF) | Wide | 2.2m(7.27ft) |
| Tele | 16.0(52.48ft) |
