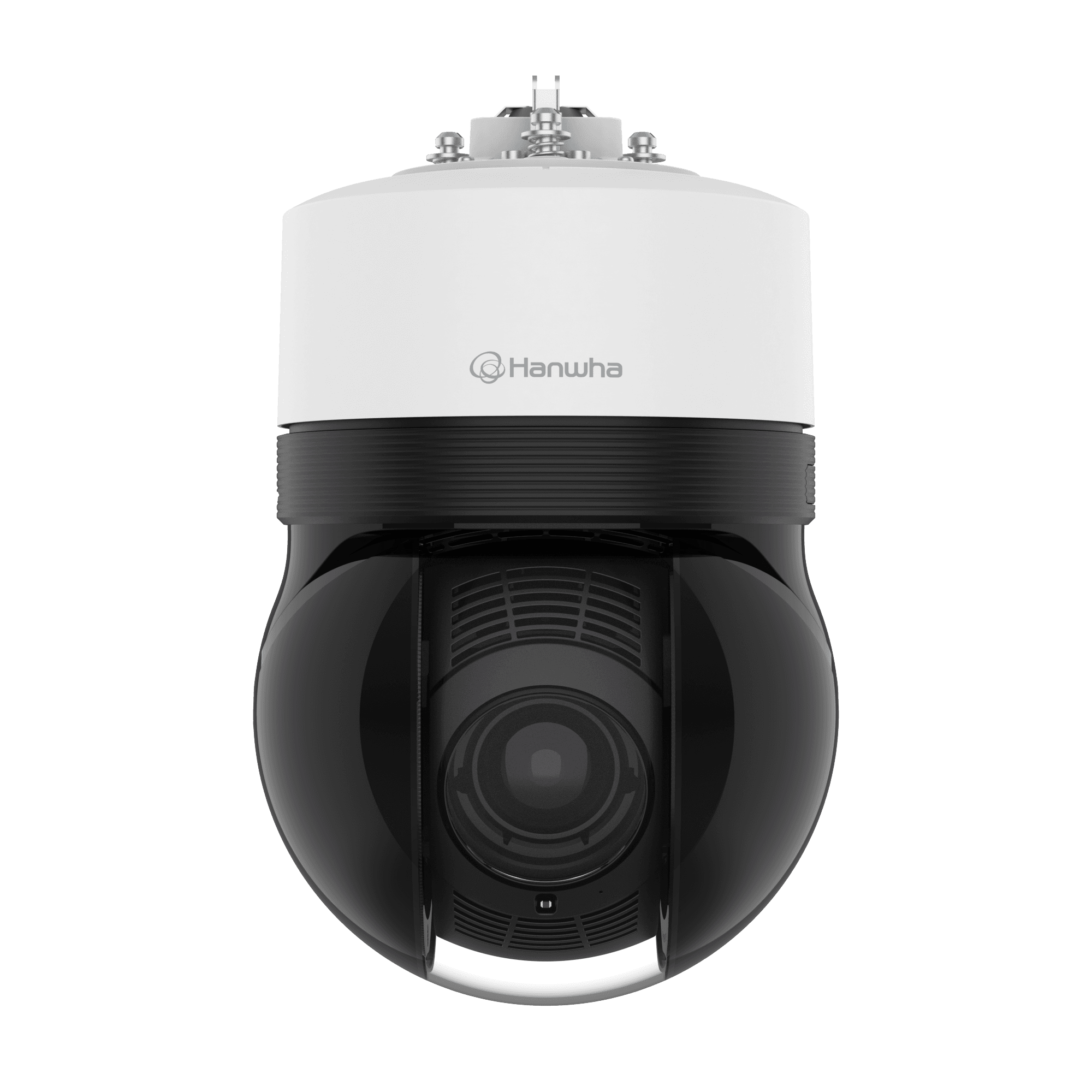

XNP-C7310R
4MP 31x AI FOCUS IR PTZ CameraKey Features
• 4MP Image Resolution
• 31x Optical Zooom
• 90°~-20° Tilt Range
• 300m IR Length
• AI Object Detection
• Auto tracking(Person, Vehicle), Target lock tracking
• DIS with built-in Gyro sensor
• Quick zoom, Wise auto focus(AI based), Focus scan
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNP-C9310R,XNP-C7310R_250228_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-C9310R,XNP-C7310R_250228_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-C9310R,XNP-C7310R_250228_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-C9310R,XNP-C7310R_250228_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-C9310R,XNP-C7310R_250228_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-C9310R,XNP-C7310R_250228_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-C9310R,XNP-C7310R_250228_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-C9310R,XNP-C7310R_250228_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-C9310R,XNP-C7310R_250228_ZH.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-C9310RXNP-C7310R_231122_EN_Quick-Zoom-Quick-Focus-USER-GUIDE.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNP-C9310RXNP-C7310R_231208_EN.dxf | 2026-08-06 | |
| CAD | CAD_XNP-C9310RXNP-C7310R_231208_EN.pdf | 2026-08-06 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN7_2_14_05_20260407_hva_prod.zip | 2026-08-06 | |
| Firmware | GenetecSecurityCenterSaaS_v_WN7_26_06_18_20260618.zip | 2026-08-06 | |
| Firmware | XNP-C9310R_3.01.01_20260623_R552.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNP-C7310R_240104_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNP-C7310R_20260806_EN_142042.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-C9310RXNP-C7310R_250228_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_XNP-C7310RXNP-C9310R_20231204_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNP-C7310RXNP-C9310R_20231204_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNP-C7310RXNP-C9310R_20231204_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNP-C7310R%2CXNP-C9310R_260514_EN.txt | 2026-08-06 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_XNP-C7310R%2CXNP-C9310R_260514_EN_cyclonedx.json | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/1.8" |
| Type | CMOS | |
| Resolution | 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on) |
| MJPEG | 30fps(@4MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.04 |
| BW(1/30sec, 30IRE) | 0.004 |
Lens
| Focal Length (mm) | 6.91 ~ 214.7 | |
| Zoom Ratio | Optical | 31x |
| Digital | 32x | |
| Max Aperture Ratio (F number) | Wide | 1.36 |
| Tele | 4.6 | |
| Angular Field of View | Horizontal | 59.4°~2.54° |
| Vertical | 35.8°~1.49° | |
| Diagonal | 68.2°~2.95° | |
| Min. Object Distance | 3m(9.84ft) | |
| Focus Control | Oneshot AF, Focus save, Focus scan, Wise auto focus | |
| Lens Type | P iris(IR corrected) | |
| Optional Lens | Non |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 360° Endless |
| Tilt | 90°~-20° | |
| Pan Speed | Preset | Max. 550°/sec |
| Manual | 0.024°/sec~200°/sec | |
| Tilt Speed | Preset | Max. 550°/sec |
| Manual | 0.024°/sec~200°/sec | |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.05° |
Operational
| Direction Indicator | Support | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip&Mirror | |
| Alarm Interface | Others | Support alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication | |
| Audio In | Support via optional I/O box | |
| Audio Out | Support via optional I/O box | |
| Light Type | IR LED | |
| Light Viewable Length | IR | Wise IR 300m(984ft) |
| IR Wavelength | 850nm | |
| Water Removal | Support(Spin Dry, Lens heater) | |
| Auto Tracking | Support, Object auto tracking(Person/Vehicle), Target lock tracking |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Vehicle | Type(car, bus, truck, motorcycle, bicycle) |
| Thumbnail | DetectionShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205 | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control, MAC-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical
| Operating Condition | Temperature | -50°C~+55°C(-58°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | 0.046㎡ | |
| Input Voltage | PoE++(IEEE802.3bt type4, Class8) | |
| Power Consumption | PoE | Max. 62W, typical 23W |
Mechanical
| Color | White, Black | |
| Material | Aluminum, PC(Polycarbonate) | |
| RAL Code | RAL9003, RAL9005 | |
| Product Dimensions | ø188x264.9mm(7.40x10.47") | |
| Product Weight | 4,400g(9.70lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 90.9m(298.18ft) |
| Tele | 2338.4m(7671.81ft) | |
| Observe (63PPM/ 19PPF) | Wide | 36.4m(119.27ft) |
| Tele | 935.3m(3068.72ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 18.2m(59.64ft) |
| Tele | 467.7m(1534.36ft) | |
| Identify (250PPM/ 76PPF) | Wide | 9.1m(29.82ft) |
| Tele | 233.8m(767.18ft) |
