XNP-6371RH
2M H.265 37x IR PTZ CameraKey Features
• Max. 2megapixel (1920 x 1080) resolution
• 6~ 222mm (Optical 37x) lens
• 0.01Lux@F1.5 (Color), 0Lux (B/W, IR LED on)
• Max. IR viewable length : 350m (1,148ft)
• Day & Night (ICR), WDR (150dB)
• DIS & Shock detection with built-in gyro sensor
• Intelligent Video / Audio Analytics, Defog
• H.265, H.264, MJPEG codec support
• Multiple streaming, WiseStream II support
• SD / SDHC / SDXC memory 1 slot (Up to 256 GB)
• IP66, IK10
*Available in Hanwha Techwin Middle east and Africa Only - XNP-6371RH/KME
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNP-6371RH_230516_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6371RH_230516_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6371RH_230516_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6371RH_230516_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6371RH_230516_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6371RH_230516_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6371RH_230516_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6371RH_230516_TR.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNP-9200RH,XNP-6370RH,XNP-6371RH_181115.dxf | 2026-08-06 | |
| CAD | CAD_PNP-9200RH,XNP-6370RH,XNP-6371RH_181115.pdf | 2026-08-06 | |
| CAD | XNP-6370RH_Camera_Total_Assy-161117.dwg | 2026-08-06 | |
| CAD | XNP-6370RH_Camera_Total_Assy-161117.pdf | 2026-08-06 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | XNP-6371RH_2.23.04_20260615_R279.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNP-6371RH_200407_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNP-6371RH_20260806_EN_192035.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XNP-6371RH_230516_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6371RH_230516_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6371RH_230516_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6371RH_230516_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6371RH_230516_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6371RH_230516_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6371RH_230516_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6371RH_230516_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6371RH_230516_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6371RH_230516_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6371RH_230516_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_XNP-6371RH_191115_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNP-6371RH_191115_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNP-6371RH_191115_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNP-6250RH%2CXNP-6320RH%2CXNP-6341RH%2CXNP-6371RH%2CXND-6010%2CKND-2010_250718_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.01 |
| BW(1/30sec, 30IRE) | 0.001 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 6~222 | |
| Zoom Ratio | Optical | 37x |
| Max Aperture Ratio (F number) | Wide | 1.5 |
| Tele | 4.6 | |
| Angular Field of View | Horizontal | 59.3°~1.90° |
| Vertical | 35.8°~1.1° | |
| Min. Object Distance | 1.5m(4.92ft) | |
| Focus Control | Auto, Manual, Oneshot AF | |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | -5°~185° | |
| Pan Speed | Preset | Max. 400°/sec |
| Manual | 0.024°/sec~250°/sec | |
| Tilt Speed | Preset | Max. 300°/sec |
| Manual | 0.024°/sec~250°/sec | |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.2° |
Operational
| Direction Indicator | Support | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm Interface | In/Out | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 350m(1,148.29ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Ethernet | SFP, RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205 | |
| Application Programming Interface | ONVIF | S, G |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -50°C~+55°C(-58°F~+131°F) |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | 0.072㎡ | |
| Input Voltage | 24VAC | |
| Power Consumption | 24VAC | Max 90W |
Mechanical
| Color | Ivory, Black | |
| Material | Aluminum, Plastic | |
| Product Dimensions | ø236.9x407.7mm(9.33x16.05") | |
| Product Weight | 7.1kg(15.65lb) |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 67.5m(221.3ft) |
| Tele | 2315.7m(7597.6ft) | |
| Observe (63PPM/ 19PPF) | Wide | 27m(88.5ft) |
| Tele | 926.3m(3039ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 13.5m(44.3ft) |
| Tele | 463.1m(1519.5ft) | |
| Identify (250PPM/ 76PPF) | Wide | 6.7m(22.1ft) |
| Tele | 231.6m(759.8ft) |
Video
| Imaging Device | Size | 1/2" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.01 |
| BW(1/30sec, 30IRE) | 0.001 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 6~222 | |
| Zoom Ratio | Optical | 37x |
| Max Aperture Ratio (F number) | Wide | 1.5 |
| Tele | 4.6 | |
| Angular Field of View | Horizontal | 59.3°~1.90° |
| Vertical | 35.8°~1.1° | |
| Min. Object Distance | 1.5m(4.92ft) | |
| Focus Control | Auto, Manual, Oneshot AF | |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | -5°~185° | |
| Pan Speed | Preset | Max. 400°/sec |
| Manual | 0.024°/sec~250°/sec | |
| Tilt Speed | Preset | Max. 300°/sec |
| Manual | 0.024°/sec~250°/sec | |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.2° |
Operational
| Direction Indicator | Support | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm Interface | In/Out | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 350m(1,148.29ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Ethernet | SFP, RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205 | |
| Application Programming Interface | ONVIF | S, G |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -50°C~+55°C(-58°F~+131°F) |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | 0.072㎡ | |
| Input Voltage | 24VAC | |
| Power Consumption | 24VAC | Max 90W |
Mechanical
| Color | Ivory, Black | |
| Material | Aluminum, Plastic | |
| Product Dimensions | ø236.9x407.7mm(9.33x16.05") | |
| Product Weight | 7.1kg(15.65lb) |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 67.5m(221.3ft) |
| Tele | 2315.7m(7597.6ft) | |
| Observe (63PPM/ 19PPF) | Wide | 27m(88.5ft) |
| Tele | 926.3m(3039ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 13.5m(44.3ft) |
| Tele | 463.1m(1519.5ft) | |
| Identify (250PPM/ 76PPF) | Wide | 6.7m(22.1ft) |
| Tele | 231.6m(759.8ft) |
Accessories
SBP-300CM
Discontinued

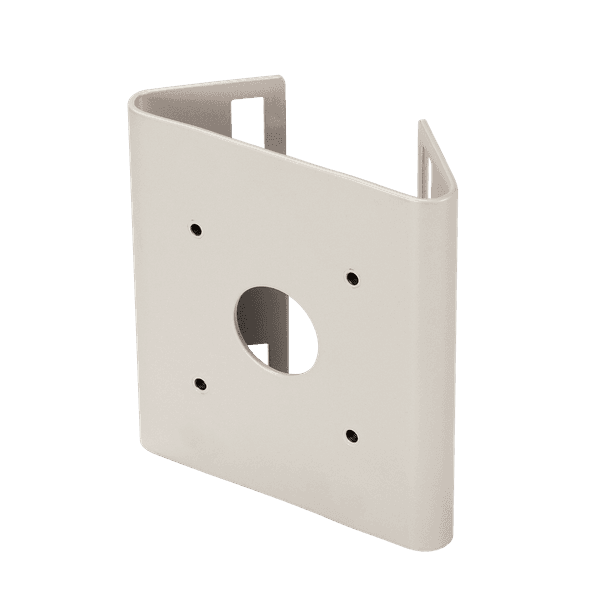

SBP-300PM
Discontinued

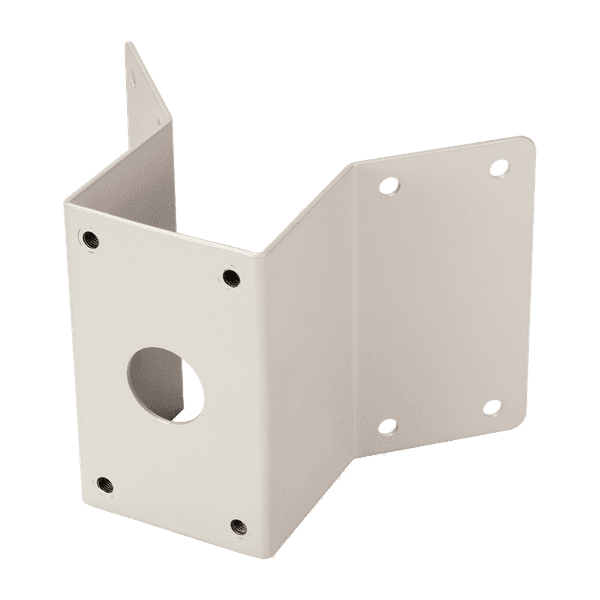

SBP-300KM
SBP-300WM1
SBP-300LM
SBP-300WM
SBP-300B
SBP-303HF
Discontinued
SBP-300NB
Service policies and processesService policies and processes can differ by nation / product / model. For more details, click below to view the warranty information applicable to your product.
Explore official resources, documentation, and insights for Hanwha Vision solutions
© 2026 Hanwha Vision Co., Ltd. All rights Reserved.6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 13488, KOREA
Cookie Policy|Privacy Policy
