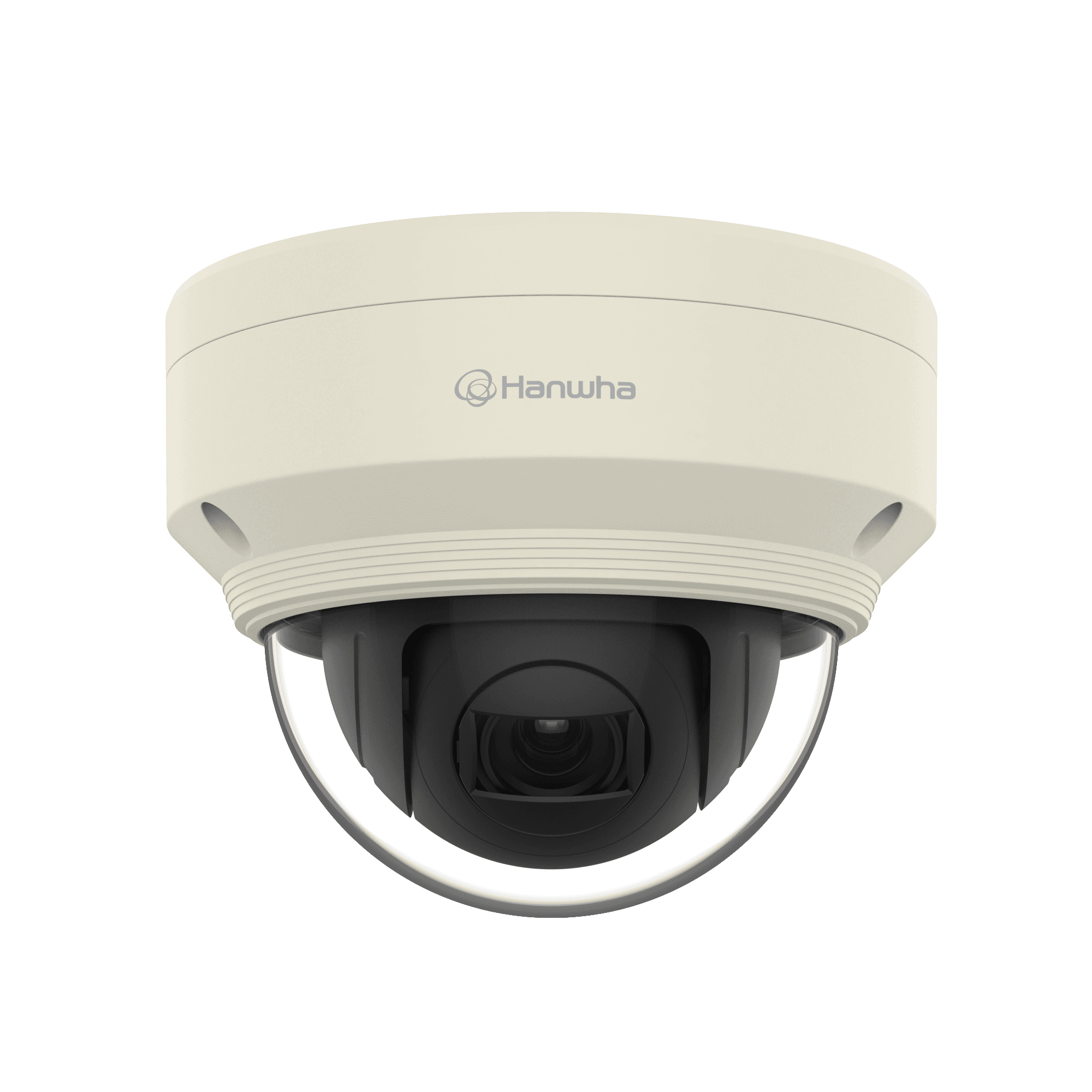

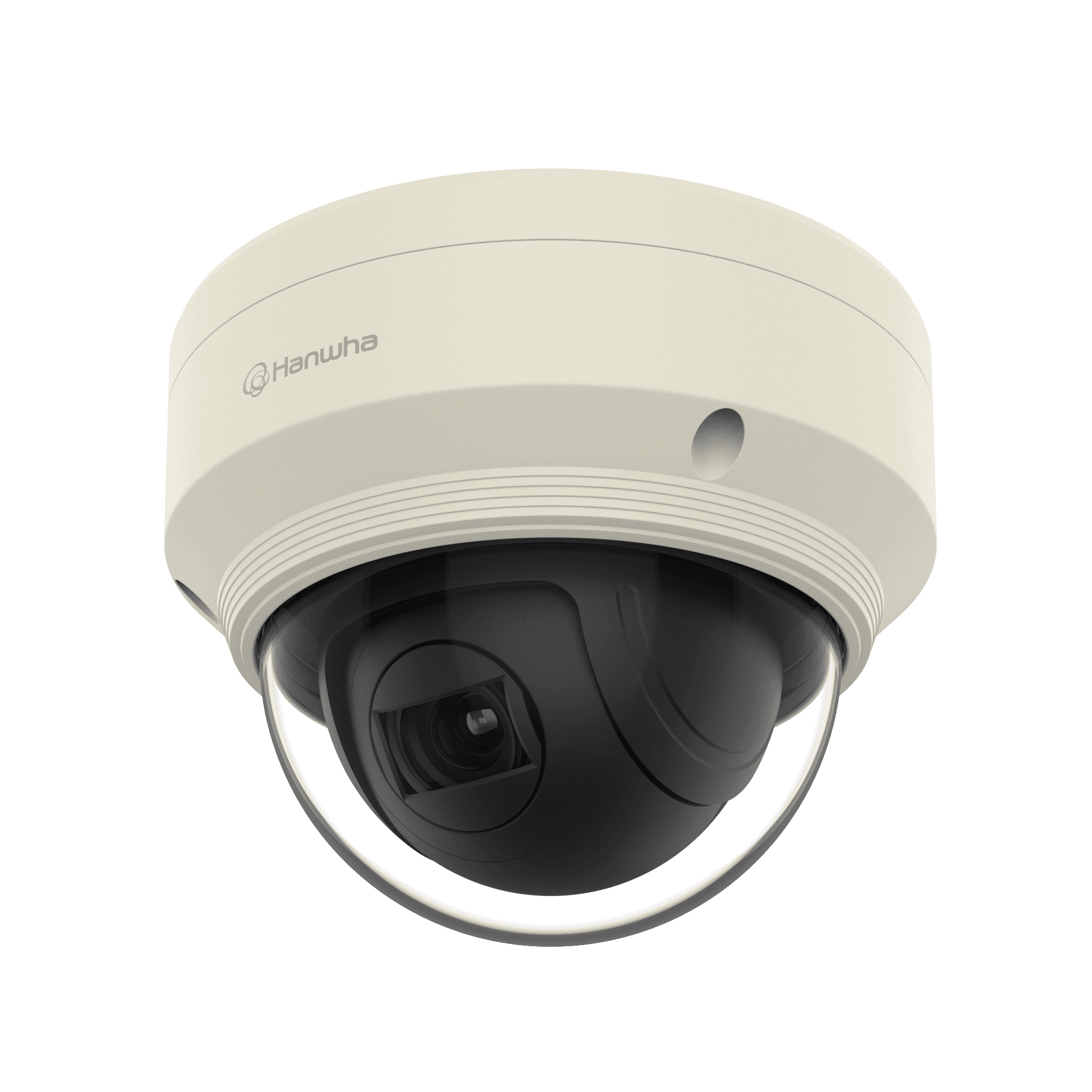

XNP-6040H
2M H.265 4.3x PTZ CameraKey Features
• Max. 2Megapixel (1920 x 1080) resolution
• 2.8 ~ 12mm (4.3x), 24x digital zoom
• H.265, H.264, MJPEG codec
• WiseStreamII/IP66, IK10 Support, Multiple streaming
• Day & Night (ICR), WDR (150dB)
• Digital image stabilization with Built-in Gyro sensor
• Motion/Direction/Fog/Audio detection
• SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNP-6040H_240627_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6040H_240627_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6040H_240627_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6040H_240627_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6040H_240627_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6040H_240627_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6040H_240627_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6040H_240627_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNP-6040H_240627_ZH.pdf | 2026-08-06 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet-X-series_191111_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNP-6040H_171212.dxf | 2026-08-06 | |
| CAD | CAD_XNP-6040H_171212.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XNP-6040H_170608_EN_IK!0.pdf | 2026-08-06 | |
| Certification | Certification_XNP-6040H_170608_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_XNP-6040H_170816_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_XNP-6040H_230221_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XNP-6040H_230221_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_XNP-6040H_230221_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XNP-6040H_230221_EN_FCC.pdf | 2026-08-06 | |
| Certification | Certification_XNP-6040H_230221_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_XNP-6040H_230221_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_XNP-6040HN_230221_EN_FCC.pdf | 2026-08-06 | |
| Certification | Certification_XNP-6040HN_230221_EN_VCCI.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | XNP-6040H_2.23.02_20260129_R194.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNP-6040H_181106_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNP-6040H_20260806_EN_140437.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XNP-6040H_240627_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6040H_240627_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6040H_240627_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6040H_240627_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6040H_240627_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6040H_240627_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6040H_240627_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6040H_240627_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6040H_240627_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6040H_240627_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNP-6040H_240627_ZH.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNP-6321H%2CXNP-6040H%2CKNP-2120HN%2CXNP-6120H%2CKNP-2320RH%2CKNP-2320RHA_250718_EN.txt | 2026-08-06 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_PND-9080RXND-60806080R6080RV6080V8080R8080RVXNP-6040H_220418_Common.pdf | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.015 |
| BW(1/30sec, 30IRE) | 0.0015 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.8~12 | |
| Zoom Ratio | Optical | 4.3x |
| Digital | 32x | |
| Max Aperture Ratio (F number) | Wide | 1.4 |
| Angular Field of View | Horizontal | 119.5°~27.9° |
| Vertical | 62.8°~15.7° | |
| Diagonal | 142.1°~32.0° | |
| Min. Object Distance | 1.5m(4.92ft) | |
| Focus Control | Auto, Manual, Oneshot AF | |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~90° | |
| Pan Speed | Preset | Max. 60°/sec |
| Manual | 0.1°/sec~60°/sec | |
| Tilt Speed | Preset | Max. 60°/sec |
| Manual | 0.1°/sec~60°/sec | |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.5° |
Operational
| Direction Indicator | Support | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Auto Tracking | Support |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205 | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max. 9.6W |
| 12VDC | Max. 8.6W |
Mechanical
| Color | Ivory | |
| Material | Aluminum | |
| Product Dimensions | ø136x106mm(5.35x4.17") | |
| Product Weight | 780g(1.72lb) |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 22.4m(73.47ft) |
| Tele | 154.6m(507.18ft) | |
| Observe (63PPM/ 19PPF) | Wide | 9.0m(29.39ft) |
| Tele | 61.8m(202.87ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 4.5m(14.69ft) |
| Tele | 30.9m(101.44ft) | |
| Identify (250PPM/ 76PPF) | Wide | 2.2m(7.35ft) |
| Tele | 15.5m(50.72ft) |
