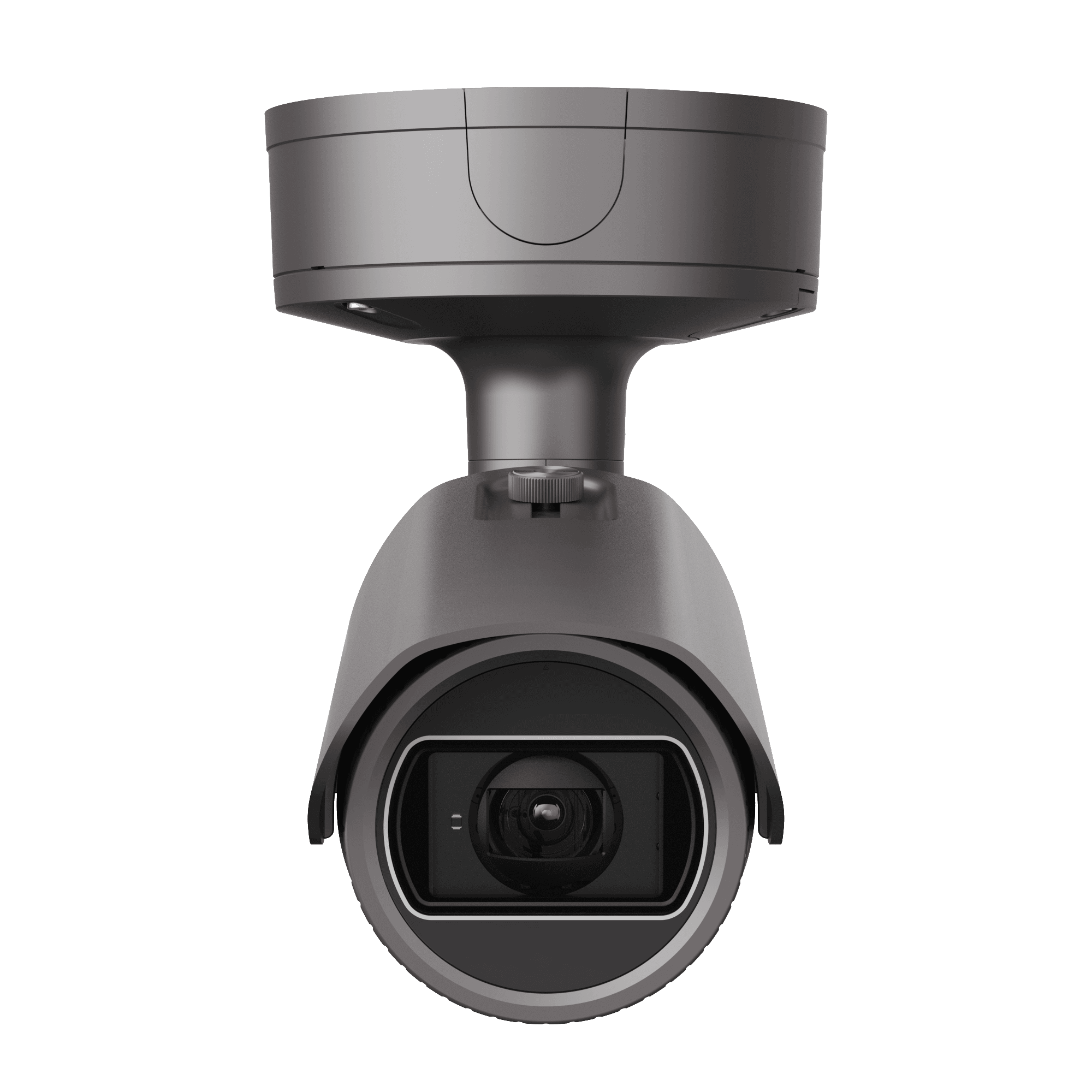

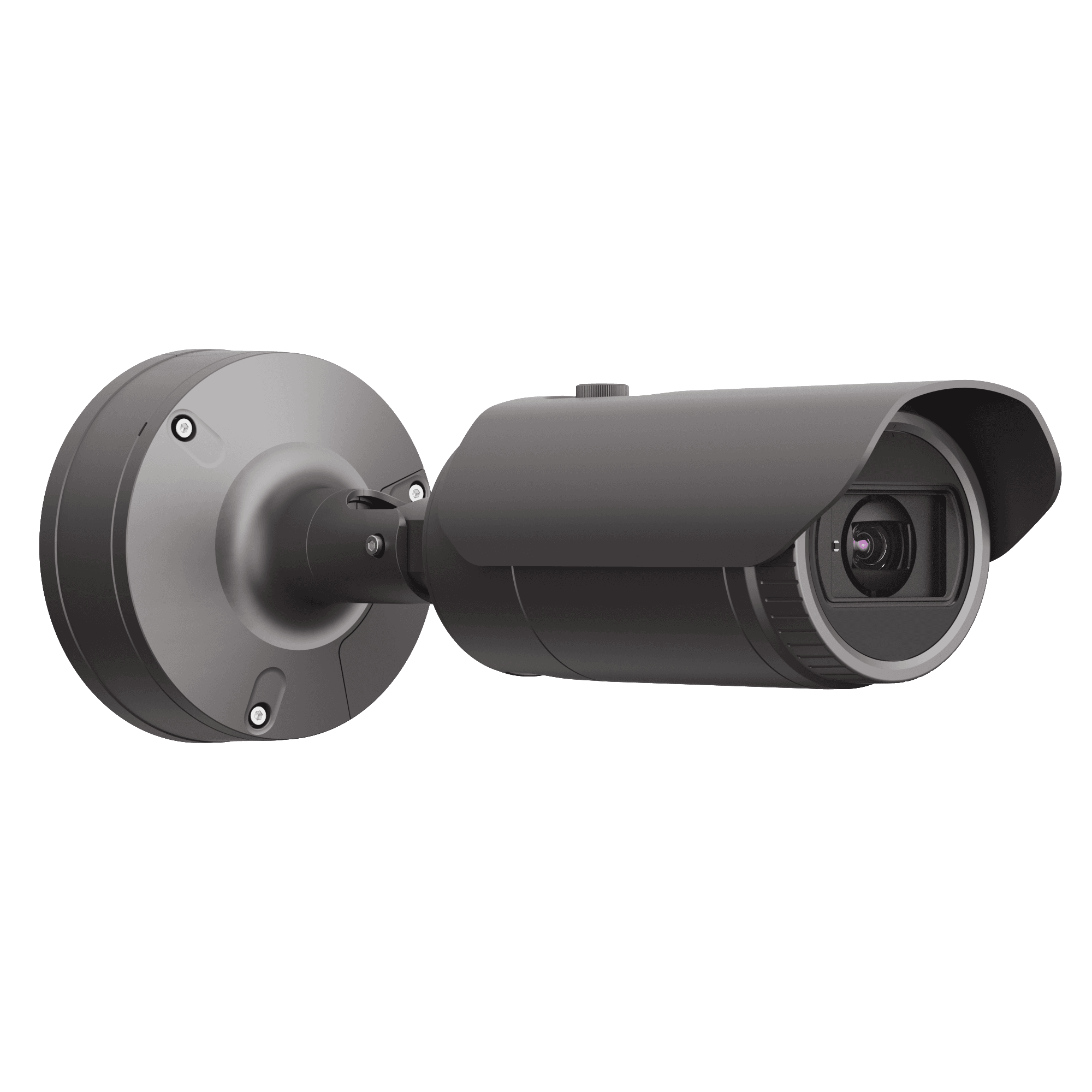

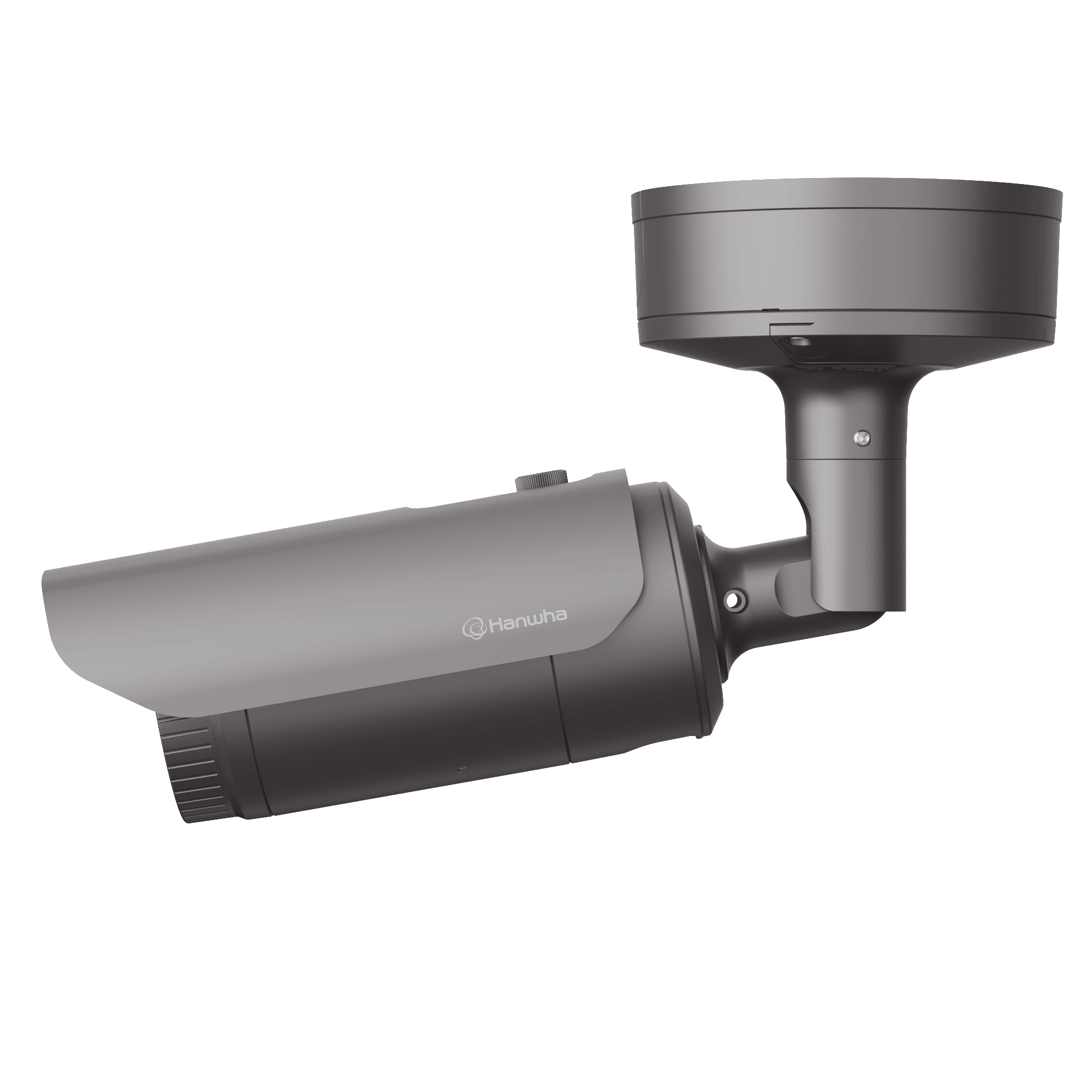

XNO-9082R
4K IR Bullet CameraKey Features
• 8MP Image Resolution
• 2.8~8.4mm Focal Length
• IR Length 40m
• IP66, IP67, IK10 Rated
• DIS Built-in Gyro
• Sound Classification
• Dual SD slots (Max. 1TB)
• PoE support
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNO-9082R,XNO-8082R,XNB-9002,XNB-8002_240603_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_XNO-9082R,XNO-8082R,XNB-9002,XNB-8002_240603_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_XNO-9082R,XNO-8082R,XNB-9002,XNB-8002_240603_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_XNO-9082R,XNO-8082R,XNB-9002,XNB-8002_240603_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNO-9082R,XNO-8082R,XNB-9002,XNB-8002_240603_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNO-9082R,XNO-8082R,XNB-9002,XNB-8002_240603_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_XNO-9082R,XNO-8082R,XNB-9002,XNB-8002_240603_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNO-9082R,XNO-8082R,XNB-9002,XNB-8002_240603_TR.pdf | 2026-08-06 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet7-Lineup_210312_EN_v1.2.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNO-9082RXNO-8082R_200521.dxf | 2026-08-06 | |
| CAD | CAD_XNO-9082RXNO-8082R_200521.pdf | 2026-08-06 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN7_2_11_04_20251016_hva_prod.zip | 2026-08-06 | |
| Firmware | GenetecSecurityCenterSaaS_v_WN7_25_10_27_20251027.zip | 2026-08-06 | |
| Firmware | XNV-9082R_2.24.00_20251125_R67.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNO-9082R_211213_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNO-9082R_20260806_EN_175447.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_XNO-9082R_200710_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_XNO-9082R_200710_Common_mm.rfa | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XNO-9082RXNO-8082RXNB-9002XNB-8002_240603_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNO-9082RXNO-8082RXNB-9002XNB-8002_240603_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNO-9082RXNO-8082RXNB-9002XNB-8002_240603_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNO-9082RXNO-8082RXNB-9002XNB-8002_240603_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNO-9082RXNO-8082RXNB-9002XNB-8002_240603_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNO-9082RXNO-8082RXNB-9002XNB-8002_240603_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNO-9082RXNO-8082RXNB-9002XNB-8002_240603_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNO-9082RXNO-8082RXNB-9002XNB-8002_240603_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNO-9082RXNO-8082RXNB-9002XNB-8002_240603_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNO-9082RXNO-8082RXNB-9002XNB-8002_240603_TR.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_XND-9082RVXND-9082RFXNV-9082RXNO-9082RXND-8082RVXND-8082RFXNV-8082RXNO-8082R_20200616_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_XND-9082RVXND-9082RFXNV-9082RXNO-9082RXND-8082RVXND-8082RFXNV-8082RXNO-8082R_20200616_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_XND-9082RVXND-9082RFXNV-9082RXNO-9082RXND-8082RVXND-8082RFXNV-8082RXNO-8082R_20200616_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNB-8002XNB-9002XNV-8082RXNV-9082RXNO-8082RXNO-9082R_240307_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@8MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.05 |
| BW(1/30sec, 30IRE) | 0.005 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.8~8.4 | |
| Zoom Ratio | Optical | 3x |
| Max Aperture Ratio (F number) | Wide | 1.2 |
| Tele | 2.8 | |
| Angular Field of View | Horizontal | 114°~40° |
| Vertical | 62°~22° | |
| Diagonal | 133°~46° | |
| Min. Object Distance | 0.7m(2.23ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris(IR corrected), P iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~100° | |
| Rotate | 0°~360° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support(Fill/stretch mode) | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR 40m(131.23ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face/upper body detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
| Business Intelligence | Normal | People counting, Queue management, Heatmap |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) | |
| Security Certificate | CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2) |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Start up should be done at above -30°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC | |
| Power Consumption | PoE | Max. 12.95W, typical 10.5W |
| 12VDC | Max. 12.5W, typical 9.4W | |
| 24VAC | Max. 14.5W, typical 11.2W |
Mechanical
| Color | Dark grey | |
| Material | Aluminum, Hard-coated dome | |
| Product Dimensions | ø91x368.6mm(3.85x14.51") | |
| Product Weight | 2,200g(4.85lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 49.9m(163.63ft) |
| Tele | 211.0m(692.28ft) | |
| Observe (63PPM/ 19PPF) | Wide | 19.9m(65.45ft) |
| Tele | 84.4m(276.91ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 10.0m(32.73ft) |
| Tele | 42.2m(138.46ft) | |
| Identify (250PPM/ 76PPF) | Wide | 5.0m(16.36ft) |
| Tele | 21.1m(69.23ft) |
