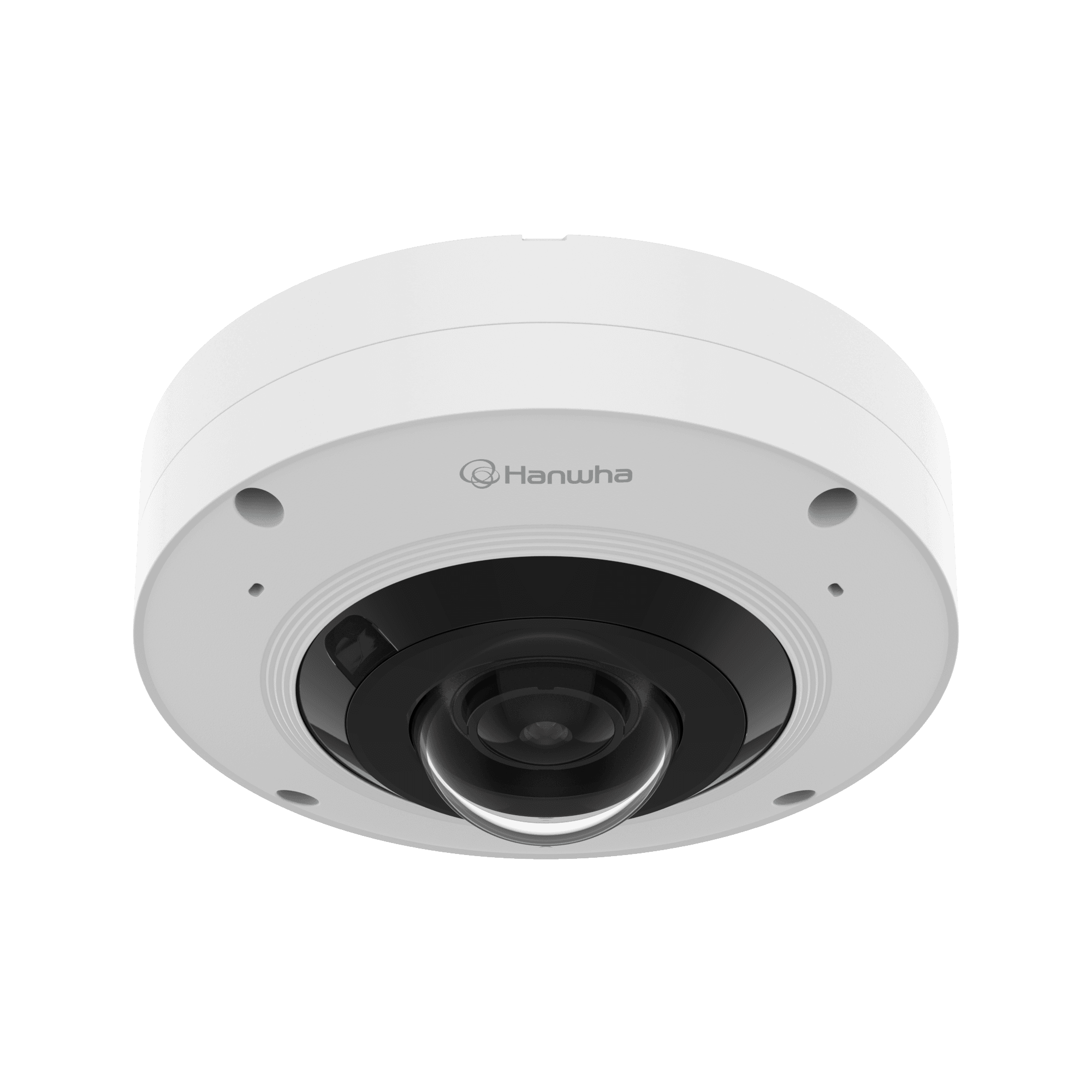

XNF-A9014RV
12MP AI IR Fisheye CameraKey Features
- 12MP Image Resolution
- 30fps Max. Framerate
- 20m IR Length
- IP66, IK10 Rated
- 1.76mm fixed stereo graphic type lens
- Digital Rotation
- Dual NPU for AI-based Image Enhancement
- Object detection, Intelligent Video Analytics, Motion detection
- People/Vehicle/Crowd counting, Queue management, Heatmap
- BestShot and color attributes
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_260415_EN.pdf | 2026-07-20 | |
| Manuals | Manuals_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_260416_DE.pdf | 2026-07-20 | |
| Manuals | Manuals_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_260416_ES.pdf | 2026-07-20 | |
| Manuals | Manuals_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_260416_FR.pdf | 2026-07-20 | |
| Manuals | Manuals_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_260416_IT.pdf | 2026-07-20 | |
| Manuals | Manuals_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_260416_PL.pdf | 2026-07-20 | |
| Manuals | Manuals_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_260416_PT.pdf | 2026-07-20 | |
| Manuals | Manuals_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_260416_TR.pdf | 2026-07-20 | |
| Manuals | Manuals_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_260416_ZH-TW.pdf | 2026-07-20 | |
| Manuals | Manuals_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_260416_ZH.pdf | 2026-07-20 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNF-A9014RV%2CXNF-A8014RV_250908_Common.dxf | 2026-07-20 | |
| CAD | CAD_XNF-A9014RV%2CXNF-A8014RV_250908_Common.pdf | 2026-07-20 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN9_2_11_04_20251016_hva_prod.zip | 2026-07-20 | |
| Firmware | WiseAI_v_XNF-A9014R_25_01_01_20260414.zip | 2026-07-20 | |
| Firmware | XNF-A9014R_25.01.01_20260504_R367.zip | 2026-07-20 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | A%26E%20Document_XNF-A9014RV_260306_EN.docx | 2026-07-20 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNF-A9014RV_20260720_EN_194700.pdf | 2026-07-20 |
Quick Guide
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online%20Help_XNF-A8014R%2CXNF-A8014RV%2CXNF-A9014R%2CXNF-A9014RV_20260305_EN.pdf | 2026-07-20 | |
| Online Help | Online%20Help_XNF-A8014R%2CXNF-A8014RV%2CXNF-A9014R%2CXNF-A9014RV_20260305_ES.pdf | 2026-07-20 | |
| Online Help | Online%20Help_XNF-A8014R%2CXNF-A8014RV%2CXNF-A9014R%2CXNF-A9014RV_20260305_FR.pdf | 2026-07-20 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_251106_EN.txt | 2026-07-20 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation%20Guide%20Sheet_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_251124_Common.pdf | 2026-07-20 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_XNF-A9014R%2CXNF-A9014RV%2CXNF-A8014R%2CXNF-A8014RV_251106_EN_cyclonedx.json | 2026-07-20 |
Specifications
Video
| Imaging Device | Size | 1/1.6" |
| Type | CMOS | |
| Resolution | 3584x2688, 3584x1792, 3584x896, 3536x3536, 3008x3008, 2560x2560, 2560x1920, 2560x1280, 2560x640, 1920x960, 1920x480, 1792x1344, 1600x1600, 1280x1280, 1280x960, 1280x640, 1280x320, 1024x768, 1024x512, 1024x256, 800x800, 800x600, 640x640, 640x480, 640x320, 640x160, 480x480, 320x240, 160x160 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 5fps | |
| Others | Max. 20fps in PoE mode | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.02 |
| BW(1/30sec, 30IRE) | 0.001 |
Lens
| Focal Length (mm) | 1.76 | |
| Max Aperture Ratio (F number) | Wide | 1.8 |
| Tele | 1.8 | |
| Angular Field of View | Horizontal | 185° |
| Vertical | 185° | |
| Diagonal | 185° | |
| Min. Object Distance | 0.5m(1.64ft) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Rotate | Digital rotation |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 8point Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/30,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in), Built-in 3mics | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR up to 20m(65.61ft) |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal | Defocus detection, Tampering, Audio detection, Shock detection | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | Opus 8/16kHz, G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), OPUS: 16kHz(64kbps), AAC-LC: 16/32/44.1/48kHz(48kbps), OPUS: 48kHz(64kbps) | |
| Smart Codec | WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP, 802.1AE(MACsec) | |
| Access Control | IP-based access control, MAC-based access control, Auto logout | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | |
| Supply Chain Security | SBOM | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
General
| SoC | Type | Wisenet 9 |
| Dual NPU | Support | |
| Memory | RAM | 4GB |
| Flash | 8GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | In PoE+ mode, IR illuminator will turn off if the temperature is higher than 50°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max. 19.8W, typical 10.5W |
| 12VDC | Max. 20W, typical 10.9W | |
| WisePower | Power mode, Power monitoring | |
| Power Redundance Failover | Support |
Mechanical
| Color | White | |
| Material | Aluminum, Hard-coated dome | |
| Material Management | Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018) |
| RAL Code | RAL9003 | |
| Product Dimensions | Ø160x75mm(6.23x2.95") | |
| Product Weight | 1020g(2.25 lb) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, EN 50121-3-2 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, EN 50155, IEC 62236-4, EN 50121-4, EN 50498, IEC/EN 61373, EN 45545, IEC 62236-3-2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 43.4m(142.24ft) |
| Observe (63PPM/ 19PPF) | Wide | 17.3m(56.89ft) |
| Recognize (125PPM/ 38PPF) | Wide | 8.7m(28.45ft) |
| Identify (250PPM/ 76PPF) | Wide | 4.3m(14.22ft) |
