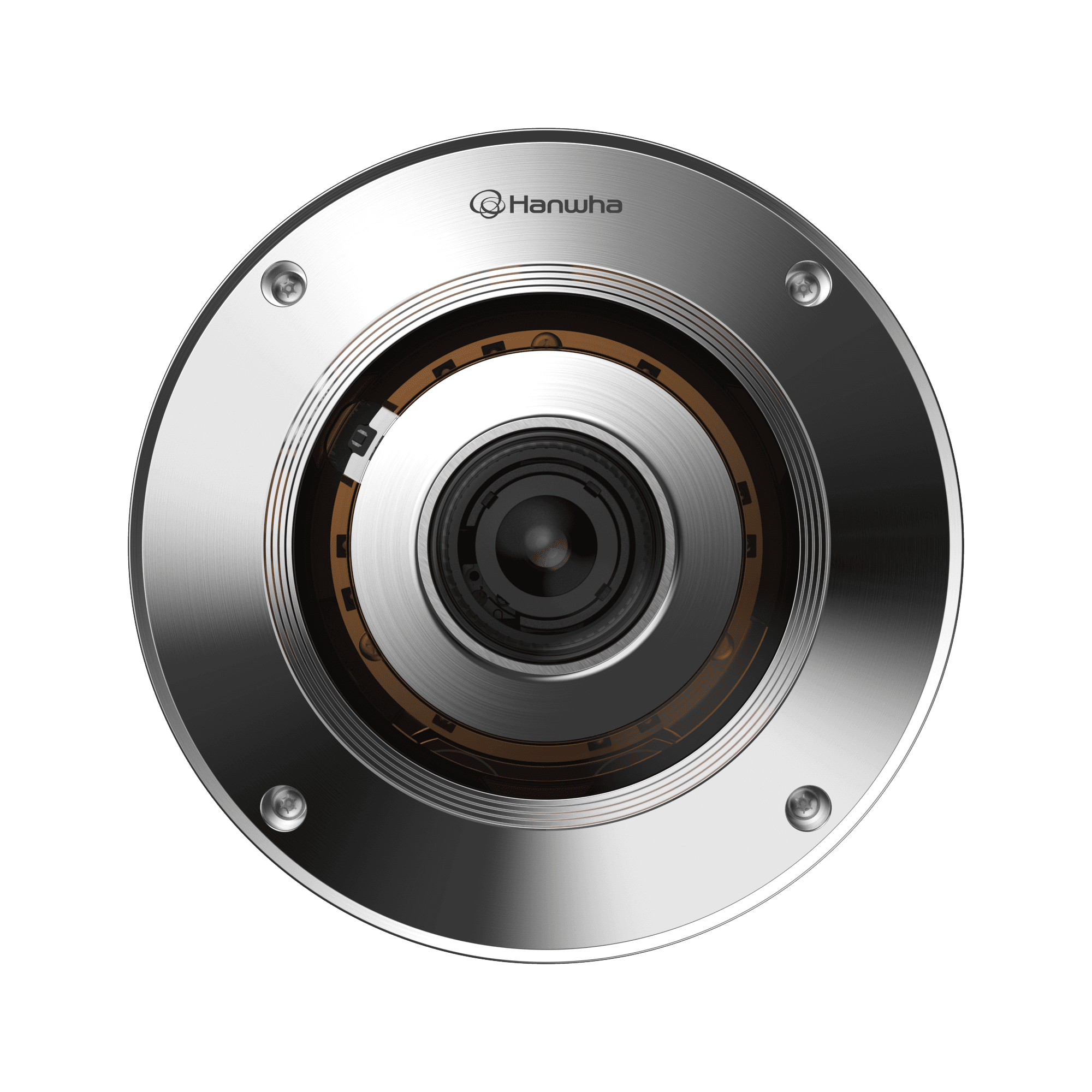

XNF-9010RS
Stainless IR Fisheye CameraKey Features
• 1/2.3" 12MP CMOS
• 1.08mm fixed focal lens
• Stereo graphic type lens - enhanced resolution for the peripheral regions
• H.265, H.264, MJPEG codec supported
• Fisheye, Single panorama, Double panorama, Quad view
• On board dewarping, Digital PTZ
• extreme WDR (120dB), WiseStreamⅡ support
• Wise IR - IR viewable length 8m (26.25ft)
• Virtual channel support
• Plugin support, selectable I/O port
• Video Analytics, Heatmap, People counting
• Queue management
• Stainless Steel
• Motion detection, Handover
• IP66, IP67, IP6K9K, NEMA4X, IK10, IK10+ (it can resist impacts of 40 joules), NSF/ANSI Standard 169 – Special Purpose Food Equipment and Devices
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNF-9010RS_240703_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_XNF-9010RS_240703_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_XNF-9010RS_240703_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_XNF-9010RS_240703_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNF-9010RS_240703_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNF-9010RS_240703_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_XNF-9010RS_240703_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNF-9010RS_240703_TR.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNF-9010RS_210101.dxf | 2026-08-06 | |
| CAD | CAD_XNF-9010RS_210101.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XNF-9010RS_210323_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_XNF-9010RS_210323_EN_IP67.pdf | 2026-08-06 | |
| Certification | Certification_XNF-9010RS_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XNF-9010RS_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_XNF-9010RS_230224_EN_EMC_CE(+UKCA).pdf | 2026-08-06 | |
| Certification | Certification_XNF-9010RS_230224_EN_FCC&IC.pdf | 2026-08-06 | |
| Certification | Certification_XNF-9010RS_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_XNF-9010RS_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_XNF-9010RS_230315_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_XNF-9010RS_230315_KO_Report_KC(TEL).pdf | 2026-08-06 | |
| Certification | Certification_XNF-9010RS_230321_KO_KC(EMC).pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN7_2_11_04_20251016_hva_prod.zip | 2026-08-06 | |
| Firmware | GenetecSecurityCenterSaaS_v_WN7_25_10_27_20251027.zip | 2026-08-06 | |
| Firmware | XNF-9010RV_2.24.00_20251125_R69.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNF-9010RS_210813_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNF-9010RS_20260806_EN_135836.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XNF-9010RS_240703_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNF-9010RS_240703_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNF-9010RS_240703_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNF-9010RS_240703_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNF-9010RS_240703_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNF-9010RS_240703_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNF-9010RS_240703_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNF-9010RS_240703_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNF-9010RS_240703_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNF-9010RS_240703_TR.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_XNF-9010RS_210805_FR.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNF-9010RS_210805_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNF-9010RS_210805_ES.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNF-9010RVXNF-9010RVMXNF-9010RS_240307_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.3" |
| Type | CMOS | |
| Resolution | 3840x2160, 3584x2688, 3584x1792, 3584x896, 3008x3008, 1920x960, 1920x480, 1792x1344, 1792x896, 1504x1504, 1080x1080, 1024x768, 960x960, 800x600, 768x768, 720x720, 704x576, 640x640, 640x480, 640x320, 640x160, 480x480 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@9MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.39 |
| BW(1/30sec, 30IRE) | 0.039 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 1.08 | |
| Max Aperture Ratio (F number) | Wide | 2.2 |
| Angular Field of View | Horizontal | 187° |
| Vertical | 187° | |
| Diagonal | 187° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support(Fill/stretch mode) | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control |
| Speed Range | 2~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in), Built-in mic | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR 8m(26.25ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
| Business Intelligence | Normal | People counting, Queue management, Heatmap |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+50°C(-40°F~+122°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max 12.95W, typical 11W |
| 12VDC | Max 11W, typical 9.1W |
Mechanical
| Color | Silver | |
| Material | Stainless(STS316L), Nylon dome | |
| Product Dimensions | ø167.9x72.1mm(6.61x2.84") | |
| Product Weight | 2,980g(6.57lb) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X, NSF/ANSI Standard 169 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 34.9m(114.49ft) |
| Observe (63PPM/ 19PPF) | Wide | 13.9m(45.60ft) |
| Recognize (125PPM/ 38PPF) | Wide | 7.0m(22.96ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.5m(11.48ft) |
