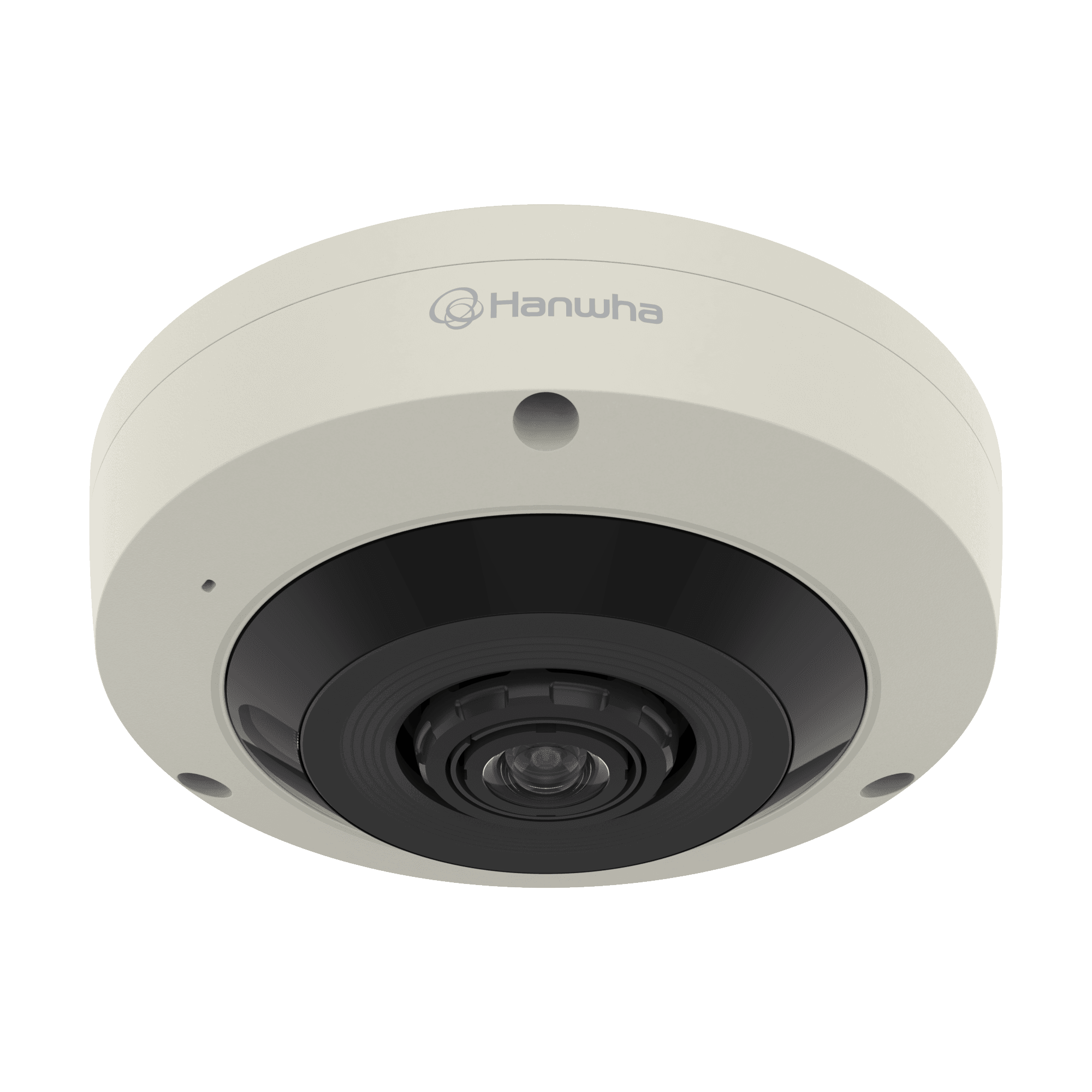

XNF-8010R
6MP H.265 Fisheye CameraKey Features
• Max. 2048 x 2048 resolution
• H.265, H.264, MJPEG codec supported
• Fisheye, Single panorama, Double panorama, Quad view
• On board dewarping, Digital PTZ (8x), Bi-directional audio
• True WDR (120dB), WiseStreamⅡ support
• Tampering, Loitering, Directional detection
• Audio detection, Sound classification, Heatmap
• People counting, Queue management
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNF-8010R,XNF-8010RV,XNF-8010RVM_240627_DE.pdf | 2026-08-10 | |
| Manuals | Manuals_XNF-8010R,XNF-8010RV,XNF-8010RVM_240627_EN.pdf | 2026-08-10 | |
| Manuals | Manuals_XNF-8010R,XNF-8010RV,XNF-8010RVM_240627_ES.pdf | 2026-08-10 | |
| Manuals | Manuals_XNF-8010R,XNF-8010RV,XNF-8010RVM_240627_FR.pdf | 2026-08-10 | |
| Manuals | Manuals_XNF-8010R,XNF-8010RV,XNF-8010RVM_240627_IT.pdf | 2026-08-10 | |
| Manuals | Manuals_XNF-8010R,XNF-8010RV,XNF-8010RVM_240627_PL.pdf | 2026-08-10 | |
| Manuals | Manuals_XNF-8010R,XNF-8010RV,XNF-8010RVM_240627_PT.pdf | 2026-08-10 | |
| Manuals | Manuals_XNF-8010R,XNF-8010RV,XNF-8010RVM_240627_TR.pdf | 2026-08-10 | |
| Manuals | Manuals_XNF-8010R,XNF-8010RV,XNF-8010RVM_240627_ZH.pdf | 2026-08-10 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNF-8010R_170720.dxf | 2026-08-10 | |
| CAD | CAD_XNF-8010R_170720.pdf | 2026-08-10 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XNF-8010R_230224_EN_DoC_CE.pdf | 2026-08-10 | |
| Certification | Certification_XNF-8010R_230224_EN_DoC_UKCA.pdf | 2026-08-10 | |
| Certification | Certification_XNF-8010R_230224_EN_EMC_CE.pdf | 2026-08-10 | |
| Certification | Certification_XNF-8010R_230224_EN_FCC,IC.pdf | 2026-08-10 | |
| Certification | Certification_XNF-8010R_230224_EN_RCM.pdf | 2026-08-10 | |
| Certification | Certification_XNF-8010R_230224_EN_VCCI.pdf | 2026-08-10 | |
| Certification | Certification_XNF-8010R_230315_KO_KC(SAFETY).pdf | 2026-08-10 | |
| Certification | Certification_XNF-8010R_230315_KO_Report_KC(EMC).pdf | 2026-08-10 | |
| Certification | Certification_XNF-8010R_230321_KO_KC(EMC).pdf | 2026-08-10 | |
| Certification | Certification_XNF-8010R_190509_EN_UL.pdf | 2026-08-10 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | XNF-8010R_2.10.07_20251114_R24.zip | 2026-08-10 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNF-8010R_171128_EN.docx | 2026-08-10 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNF-8010R_20260806_EN_135504.pdf | 2026-08-10 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_XNF-8010R_200814_Common_inch.rfa | 2026-08-10 | |
| BIM&Revit | BIM&Revit_XNF-8010R_200814_Common_mm.rfa | 2026-08-10 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_CS.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_DE.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_EN.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_ES.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_FR.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_IT.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_NL.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_PL.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_PT.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_TR.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_XNF-8010RXNF-8010RVXNF-8010RVM_240627_ZH.pdf | 2026-08-10 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online Help_XNF-8010R_191031_KO.pdf | 2026-08-10 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNO-6321RHP%2CXNF-8010R%2CXNF-8010RV%2CXNF-8010RVM%2CXNF-8010RVMNB_260406_EN.txt | 2026-08-10 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_PNF-9010R9010RV9010RVMXNF-8010R8010RV8010RVM_140520_Common.pdf | 2026-08-10 |
Specifications
Video
| Imaging Device | Size | 1/1.8" |
| Type | CMOS | |
| Resolution | 2048x2048, 2048x1536, 2048x1024, 2048x512, 1920x960, 1920x480, 1600x1200, 1280x1280, 1280x960, 1280x640, 1280x320, 1080x1080, 1024x768, 960x960, 800x600, 768x768, 720x720, 704x576, 704x352, 704x176, 640x640, 640x480, 640x320, 640x160, 480x480 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 15fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.01 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 1.6 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 192° |
| Vertical | 192° | |
| Diagonal | 192° | |
| Min. Object Distance | 0.3m(0.98ft) | |
| Focus Control | Simple focus | |
| Lens Type | Fixed iris |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output | |
| Audio In | Selectable(mic in/line in), Built-in mic | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 15m(49.21ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
| Business Intelligence | Normal | People counting, Queue management, Heatmap |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), PPPoE, PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials | |
| Audit | Access / System / Event Log management |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max 12W |
| 12VDC | Max 11W |
Mechanical
| Color | Ivory | |
| Material | Aluminum | |
| Product Dimensions | Ø146x54.8mm(Ø5.75x2.16") | |
| Product Weight | 730g(1.61lb) |
Video
| Imaging Device | Size | 1/1.8" |
| Type | CMOS | |
| Resolution | 2048x2048, 2048x1536, 2048x1024, 2048x512, 1920x960, 1920x480, 1600x1200, 1280x1280, 1280x960, 1280x640, 1280x320, 1080x1080, 1024x768, 960x960, 800x600, 768x768, 720x720, 704x576, 704x352, 704x176, 640x640, 640x480, 640x320, 640x160, 480x480 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 15fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.01 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 1.6 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 192° |
| Vertical | 192° | |
| Diagonal | 192° | |
| Min. Object Distance | 0.3m(0.98ft) | |
| Focus Control | Simple focus | |
| Lens Type | Fixed iris |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output | |
| Audio In | Selectable(mic in/line in), Built-in mic | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 15m(49.21ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
| Business Intelligence | Normal | People counting, Queue management, Heatmap |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), PPPoE, PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials | |
| Audit | Access / System / Event Log management |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max 12W |
| 12VDC | Max 11W |
Mechanical
| Color | Ivory | |
| Material | Aluminum | |
| Product Dimensions | Ø146x54.8mm(Ø5.75x2.16") | |
| Product Weight | 730g(1.61lb) |
Accessories
SBP-300CM
Discontinued
SBP-300PM
Discontinued
SBP-300KM
SBP-300WM1
SBP-300HM5
SBP-300LM
SBP-390WM2
SBP-300WM
SBF-100B1
SBP-300B
SHD-1600FPW
SHF-1500F
Discontinued
SBP-300NB

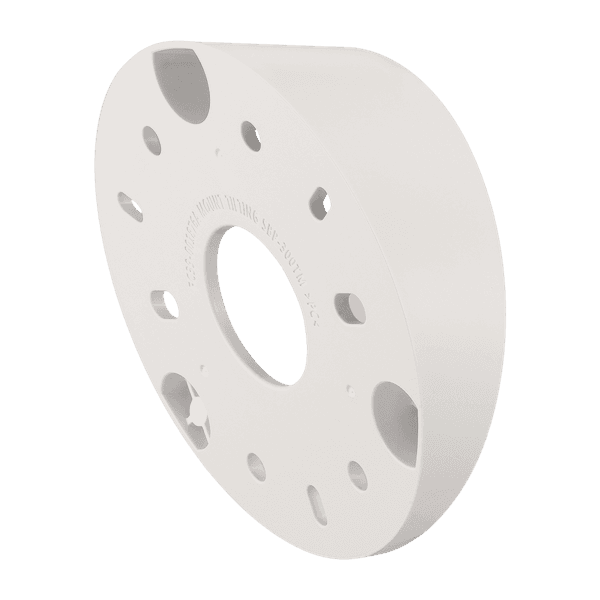

SBP-300TM1
