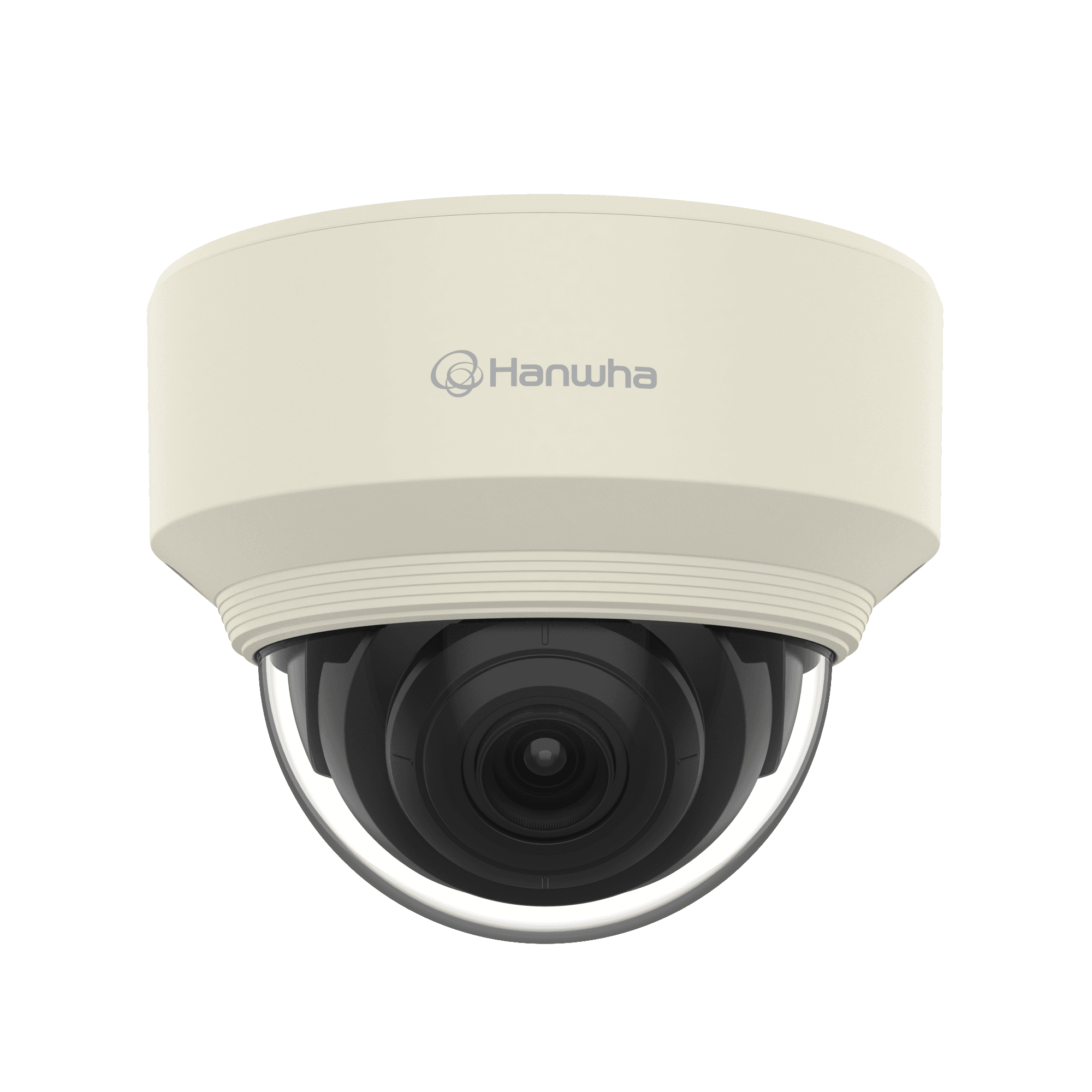

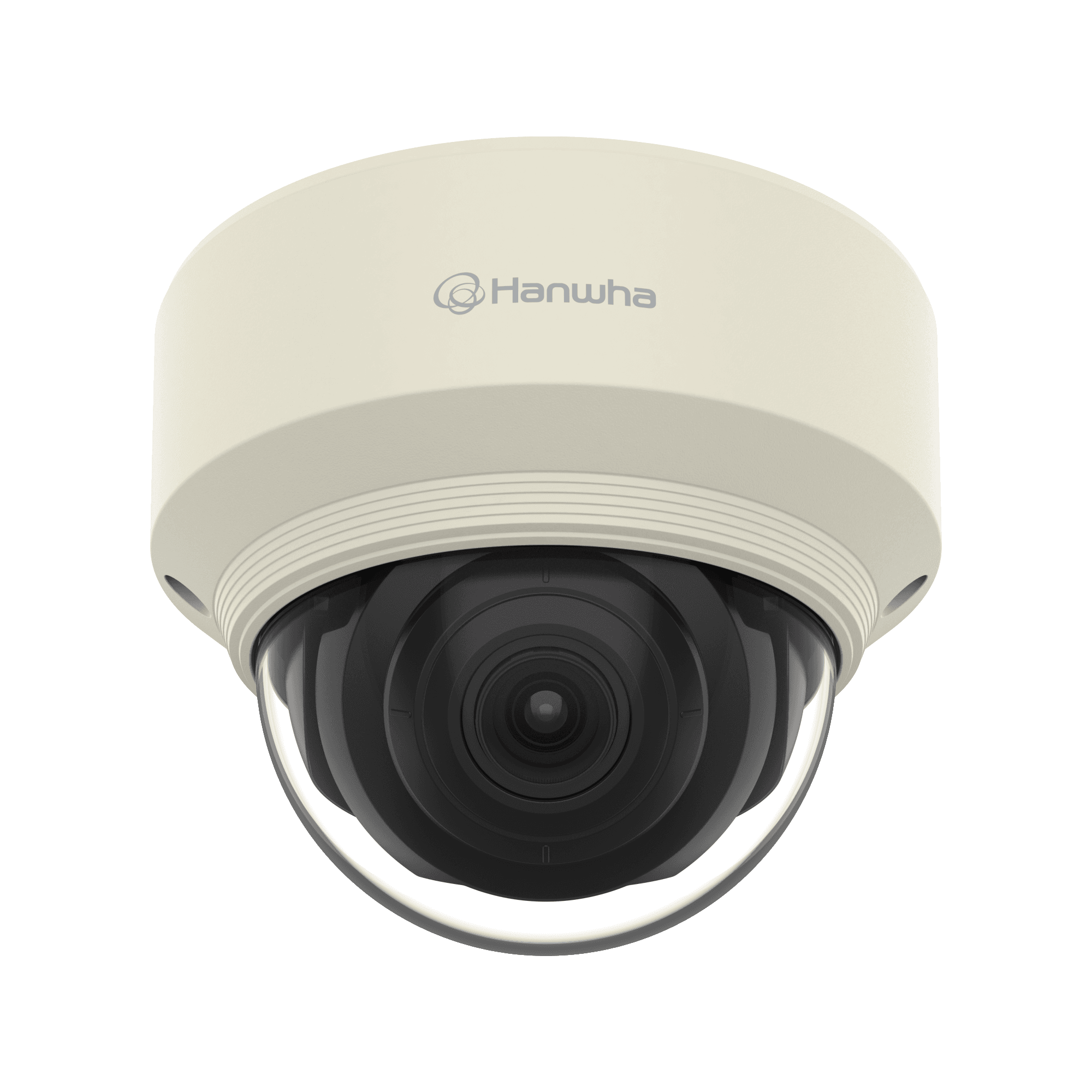

XND-L6080V
2M H.265 Dome CameraKey Features
• Max. 2megapixel (1920 x 1080) resolution
• 3.2 ~ 10mm (3.1x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB), Defog
• Tampering, Defocus detection
• Motion Detection, Handover
• SD/SDHC/SDXC memory slot (Max. 256GB)
• Hallway view, WiseStreamII support
• IK08, PoE support
Downloads
View Selection
Manuals
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet-X-series_191111_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XND-L6080V,XND-L6080R,XND-L6080RV_180223.dxf | 2026-08-06 | |
| CAD | CAD_XND-L6080V,XND-L6080R,XND-L6080RV_180223.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XND-L6080V_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XND-L6080V_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_XND-L6080V_230224_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XND-L6080V_230224_EN_FCC&IC.pdf | 2026-08-06 | |
| Certification | Certification_XND-L6080V_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_XND-L6080V_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_XND-L6080V_230315_KO_KC(SAFETY).pdf | 2026-08-06 | |
| Certification | Certification_XND-L6080V_230315_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_XND-L6080V_230321_KO_KC(EMC).pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | XNV-L6080R_2.23.02_20260615_R311.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XND-L6080V_190916_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XND-L6080V_20260806_EN_161602.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_XND-L6080V_200814_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_XND-L6080V_200814_Common_mm.rfa | 2026-08-06 |
Quick Guide
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XND-L6080R%2CXND-L6080RV%2CXND-L6080V%2CXNO-L6080R%2CXNV-L6080%2CXNV-L6080R_250718_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.03 |
| BW(1/30sec, 30IRE) | 0.003 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 3.2~10 | |
| Zoom Ratio | Optical | 3.1x |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 2.9 | |
| Angular Field of View | Horizontal | 109.0°~33.2° |
| Vertical | 57.4°~18.7° | |
| Diagonal | 132.0°~38.0° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~354° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, PIM-SM | |
| Application Programming Interface | ONVIF | S, G |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure) | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 1GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 6W, typical 4W |
Mechanical
| Color | Ivory | |
| Material | Plastic | |
| Product Dimensions | Ø140.8x113.0mm(5.54x4.45") | |
| Product Weight | 675g(1.49lb) |
Certifications & Standards
| Environment | IEC 62262 IK08 |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.03 |
| BW(1/30sec, 30IRE) | 0.003 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 3.2~10 | |
| Zoom Ratio | Optical | 3.1x |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 2.9 | |
| Angular Field of View | Horizontal | 109.0°~33.2° |
| Vertical | 57.4°~18.7° | |
| Diagonal | 132.0°~38.0° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~354° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, PIM-SM | |
| Application Programming Interface | ONVIF | S, G |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure) | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 1GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 6W, typical 4W |
Mechanical
| Color | Ivory | |
| Material | Plastic | |
| Product Dimensions | Ø140.8x113.0mm(5.54x4.45") | |
| Product Weight | 675g(1.49lb) |
Certifications & Standards
| Environment | IEC 62262 IK08 |
