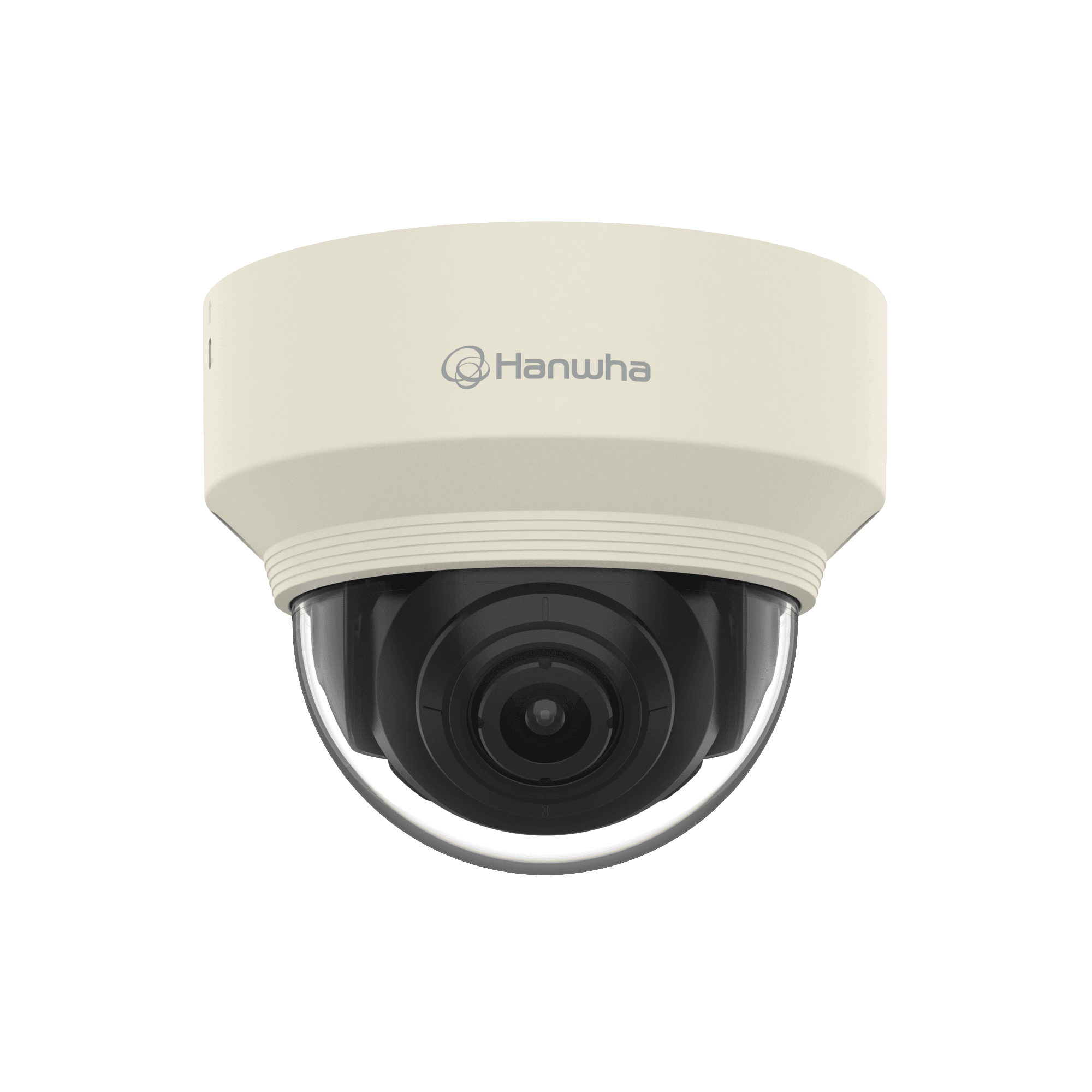

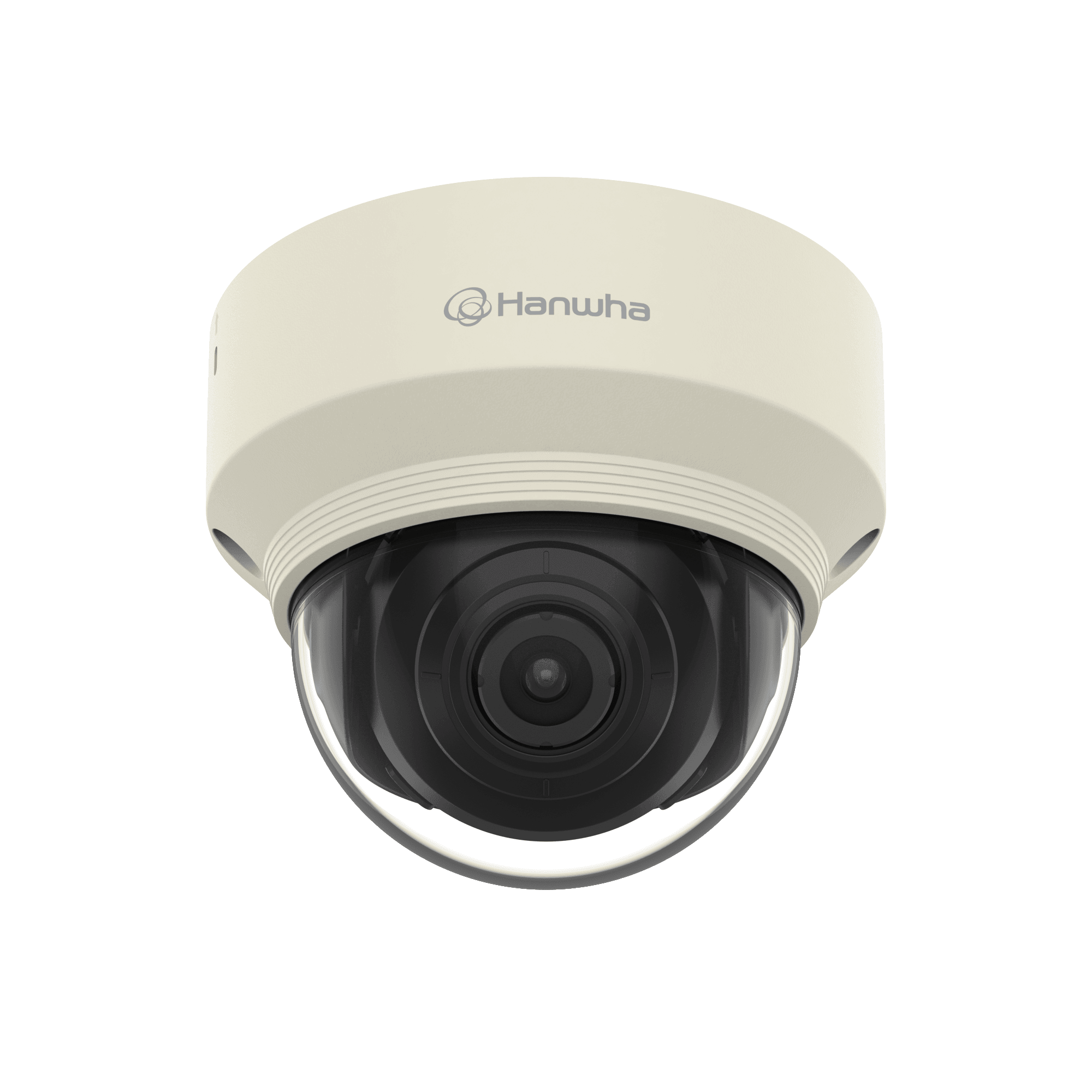

XND-6010
2M H.265 Dome CameraKey Features
• Built-in 2.4mm fixed lens
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Heatmap
• People counting, Queue management, Tampering
• Motion detection, Handover
• Dual SD slots (Max. 512GB)
• Hallway view, WiseStream II support, IK08
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XND-6010,XND-6020R,XND-8020R,XND-8030R,XND-8040R_240618_DE.pdf | 2026-08-13 | |
| Manuals | Manuals_XND-6010,XND-6020R,XND-8020R,XND-8030R,XND-8040R_240618_EN.pdf | 2026-08-13 | |
| Manuals | Manuals_XND-6010,XND-6020R,XND-8020R,XND-8030R,XND-8040R_240618_ES.pdf | 2026-08-13 | |
| Manuals | Manuals_XND-6010,XND-6020R,XND-8020R,XND-8030R,XND-8040R_240618_FR.pdf | 2026-08-13 | |
| Manuals | Manuals_XND-6010,XND-6020R,XND-8020R,XND-8030R,XND-8040R_240618_IT.pdf | 2026-08-13 | |
| Manuals | Manuals_XND-6010,XND-6020R,XND-8020R,XND-8030R,XND-8040R_240618_PL.pdf | 2026-08-13 | |
| Manuals | Manuals_XND-6010,XND-6020R,XND-8020R,XND-8030R,XND-8040R_240618_PT.pdf | 2026-08-13 | |
| Manuals | Manuals_XND-6010,XND-6020R,XND-8020R,XND-8030R,XND-8040R_240618_TR.pdf | 2026-08-13 | |
| Manuals | Manuals_XND-6010,XND-6020R,XND-8020R,XND-8030R,XND-8040R_240618_ZH.pdf | 2026-08-13 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet-X-series_191111_EN.pdf | 2026-08-13 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | Appearance_XND-6010_6020R_8020R_30R_40R_161114.dxf | 2026-08-13 | |
| CAD | Appearance_XND-6010_6020R_8020R_30R_40R_161114.pdf | 2026-08-13 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XND-6010_170126_EN_UL.pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_170209_EN_IK08.pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_230224_EN_DoC_CE.pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_230224_EN_DoC_UKCA.pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_230224_EN_EMC_CE.pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_230224_EN_RCM.pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_230224_EN_VCCI.pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_230315_KO_KC(SAFETY).pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_230315_KO_Report_KC(EMC).pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_230315_KO_Report_KC(TEL).pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_230321_KO_KC(EMC).pdf | 2026-08-13 | |
| Certification | Certification_XND-6010_230224_EN_FCC-IC.pdf | 2026-08-13 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | XND-6010_2.23.02_20260615_R317.zip | 2026-08-13 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XND-6010_191231_EN.docx | 2026-08-13 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XND-6010_20260806_EN_162313.pdf | 2026-08-13 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_XND-6010_200814_Common_inch.rfa | 2026-08-13 | |
| BIM&Revit | BIM&Revit_XND-6010_200814_Common_mm.rfa | 2026-08-13 |
Quick Guide
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNP-6250RH%2CXNP-6320RH%2CXNP-6341RH%2CXNP-6371RH%2CXND-6010%2CKND-2010_250718_EN.txt | 2026-08-13 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_XND-6010_161214_Common.pdf | 2026-08-13 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.055 |
| BW(1/30sec, 30IRE) | 0.0055 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.4 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 139° |
| Vertical | 73° | |
| Diagonal | 167° | |
| Min. Object Distance | 0.4m(1.31ft) | |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~354° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP | |
| Audio In | Selectable(mic in/line in), Built-in mic | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
| Business Intelligence | Normal | People counting, Queue management, Heatmap |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max. 6.5W |
| 12VDC | Max. 6W |
Mechanical
| Color | Ivory | |
| Material | PC(Polycarbonate) | |
| Product Dimensions | ø110.0x90.0mm(4.33x3.54") | |
| Product Weight | 625g(1.38lb) |
Certifications & Standards
| Environment | IEC 62262 IK08 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 14.4m(47.10ft) |
| Observe (63PPM/ 19PPF) | Wide | 5.7m(18.84ft) |
| Recognize (125PPM/ 38PPF) | Wide | 2.9m(9.42ft) |
| Identify (250PPM/ 76PPF) | Wide | 1.4m(4.7ft) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.055 |
| BW(1/30sec, 30IRE) | 0.0055 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.4 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 139° |
| Vertical | 73° | |
| Diagonal | 167° | |
| Min. Object Distance | 0.4m(1.31ft) | |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~354° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP | |
| Audio In | Selectable(mic in/line in), Built-in mic | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
| Business Intelligence | Normal | People counting, Queue management, Heatmap |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max. 6.5W |
| 12VDC | Max. 6W |
Mechanical
| Color | Ivory | |
| Material | PC(Polycarbonate) | |
| Product Dimensions | ø110.0x90.0mm(4.33x3.54") | |
| Product Weight | 625g(1.38lb) |
Certifications & Standards
| Environment | IEC 62262 IK08 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 14.4m(47.10ft) |
| Observe (63PPM/ 19PPF) | Wide | 5.7m(18.84ft) |
| Recognize (125PPM/ 38PPF) | Wide | 2.9m(9.42ft) |
| Identify (250PPM/ 76PPF) | Wide | 1.4m(4.7ft) |
Accessories
SPB-IND11
SBP-300CM
SBP-120WM
Discontinued
SBP-300PM
Discontinued
SBP-300KM
SBP-300WM1
SBP-300LM
SBP-390WM2
SBP-300WM
SBP-300B
SBP-300HM7
Discontinued
SBP-300NB
Service policies and processesService policies and processes can differ by nation / product / model. For more details, click below to view the warranty information applicable to your product.
Explore official resources, documentation, and insights for Hanwha Vision solutions
© 2026 Hanwha Vision Co., Ltd. All rights Reserved.6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 13488, KOREA
Cookie Policy|Privacy Policy
