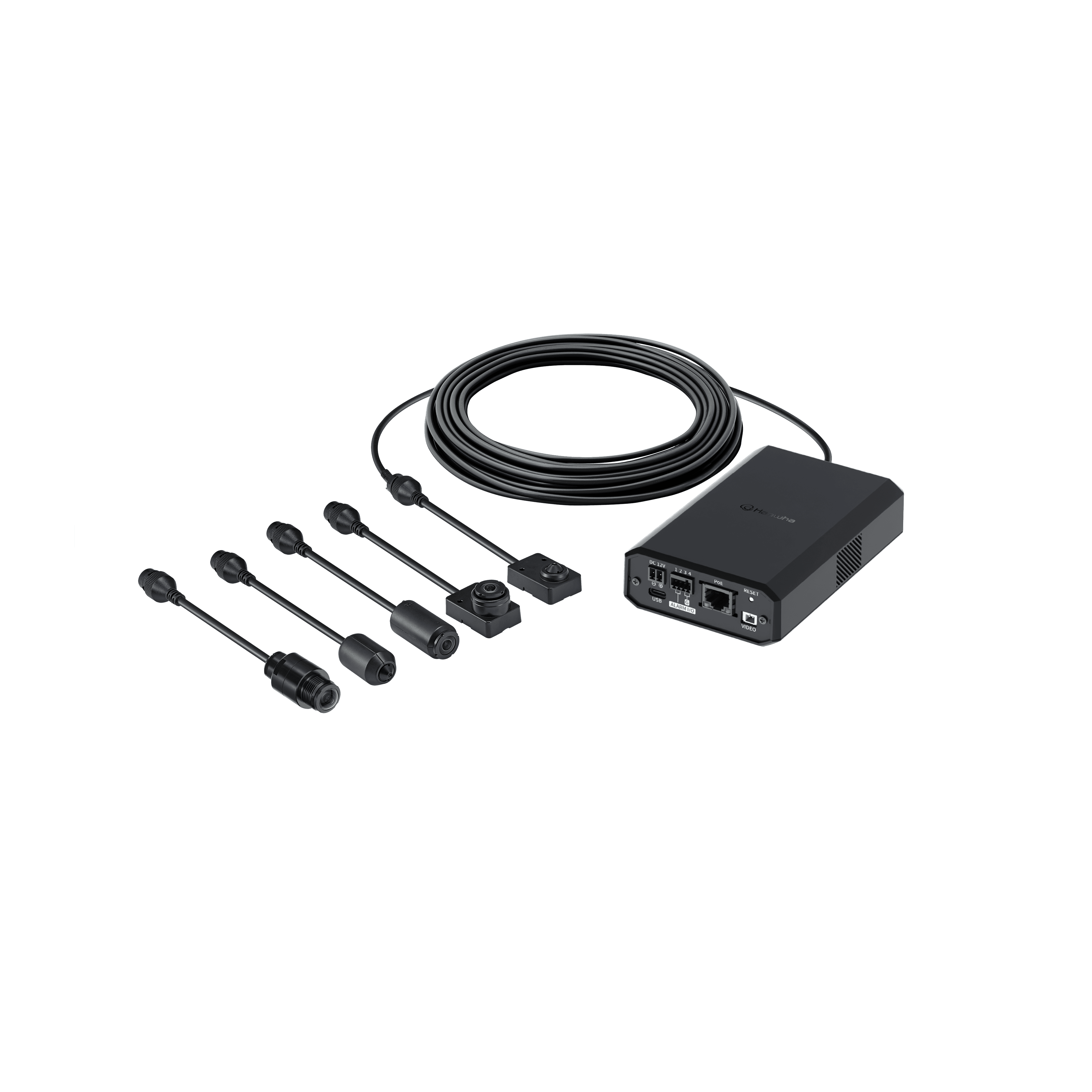

XNB-A8004B
AI 1-Ch Remote-head CameraKey Features
- Micro SD Card Slot
- Audio In/Out
- DC 12V Power
- Legacy Analog Support: CVBS Video Output included
- Compatible Lenses: SLA-F1080FA, SLA-F2480A, SLA-F2480VA, SLA-F4780A, SLA-F4780V
*The lens module is sold separately
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNB-A8004B_260605_EN.pdf | 2026-07-27 | |
| Manuals | Manuals_XNB-A8004B_260615_DE.pdf | 2026-07-27 | |
| Manuals | Manuals_XNB-A8004B_260615_ES.pdf | 2026-07-27 | |
| Manuals | Manuals_XNB-A8004B_260615_FR.pdf | 2026-07-27 | |
| Manuals | Manuals_XNB-A8004B_260615_IT.pdf | 2026-07-27 | |
| Manuals | Manuals_XNB-A8004B_260615_PL.pdf | 2026-07-27 | |
| Manuals | Manuals_XNB-A8004B_260615_PT.pdf | 2026-07-27 | |
| Manuals | Manuals_XNB-A8004B_260615_TR.pdf | 2026-07-27 | |
| Manuals | Manuals_XNB-A8004B_260615_ZH-TW.pdf | 2026-07-27 | |
| Manuals | Manuals_XNB-A8004B_260615_ZH.pdf | 2026-07-27 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNB-A8004B_251030_Common.dxf | 2026-07-27 | |
| CAD | CAD_XNB-A8004B_251030_Common.pdf | 2026-07-27 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XNB-A8004B_251029_EN_DoC_CE.pdf | 2026-07-27 | |
| Certification | Certification_XNB-A8004B_251029_EN_DoC_UKCA.pdf | 2026-07-27 | |
| Certification | Certification_XNB-A8004B_251029_EN_EMC_CE%2CUKCA.pdf | 2026-07-27 | |
| Certification | Certification_XNB-A8004B_251029_EN_FCC%2CIC.pdf | 2026-07-27 | |
| Certification | Certification_XNB-A8004B_251029_EN_IECEN%2060068-2.pdf | 2026-07-27 | |
| Certification | Certification_XNB-A8004B_251029_EN_IP3X.pdf | 2026-07-27 | |
| Certification | Certification_XNB-A8004B_251029_EN_RCM.pdf | 2026-07-27 | |
| Certification | Certification_XNB-A8004B_251029_EN_VCCI.pdf | 2026-07-27 | |
| Certification | Certification_XNB-A8004B_251106_EN_UL.pdf | 2026-07-27 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN9_2_14_05_20260407_hva_prod.zip | 2026-07-27 | |
| Firmware | WiseAI_v_XNB-A8004B_26_01_03_20260617.zip | 2026-07-27 | |
| Firmware | XNB-A8004B_26.01.05_20260626_R303.zip | 2026-07-27 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNB-A8004B_20260727_EN_115303.pdf | 2026-07-27 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_AR.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_CS.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_DE.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_EN.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_ES.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_FR.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_IT.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_NL.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_PL.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_PT.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_TR.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_ZH-TW.pdf | 2026-07-27 | |
| Quick Guide | Quick%20Guide_XNB-A8004B_251120_ZH.pdf | 2026-07-27 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online%20Help_XNB-A8004B_20251127_EN.pdf | 2026-07-27 | |
| Online Help | Online%20Help_XNB-A8004B_20251127_ES.pdf | 2026-07-27 | |
| Online Help | Online%20Help_XNB-A8004B_20251127_FR.pdf | 2026-07-27 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNB-A8004B_251017_EN.txt | 2026-07-27 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_XNB-A8004B_251017_EN_cyclonedx.json | 2026-07-27 |
Specifications
Video
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@5MP Max. 5fps) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Optional Lens | SLA-T1080FA, SLA-T2480A, SLA-T4680A, SLA-T2480VA, SLA-T4680VA, SLA-T2480BA, SLA-T2880BA, SLA-T4680DA, SLA-T4680DSA, SLA-T2480WA, SLA-T2480WDA, SLA-F1080FA, SLA-F2480A, SLA-F4780A, SLA-F2480VA, SLA-F4780VA, SLA-F2480BA, SLA-F2480DA, SLA-F2480DSA, SLA-F2480WA, SLA-F2480WDA, SLA-F2480HA, SLA-T4615VA, SLA-T2480HA |
Operational
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 8point Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support(Not support for fisheye lens) | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/30,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Face mask, Glasses | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Tailgating detection |
| Normal | Defocus detection, Tampering, Audio detection, Shock detection | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps) | |
| Smart Codec | WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control, MAC-based access control, Auto logout | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | |
| Supply Chain Security | SBOM | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
General
| SoC | Type | Wisenet 9 |
| Dual NPU | Support | |
| Memory | RAM | 4GB |
| Flash | 8GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+50°C(+14°F~+122°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max. 10.6W, typical 9.3W |
| 12VDC | Max. 10.5W, typical 9.0W | |
| WisePower | Power monitoring | |
| Power Redundance Failover | Support |
Mechanical
| Color | Black | |
| Material | Aluminum, PC(Polycarbonate) | |
| Material Management | Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9005 | |
| Product Dimensions | 131.1(W)x33.5(H)x86(D)mm(5.16x1.32x3.39") | |
| Product Weight | 467g(1.03lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | IEC/EN 63000, IEC 60529 IP3X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
