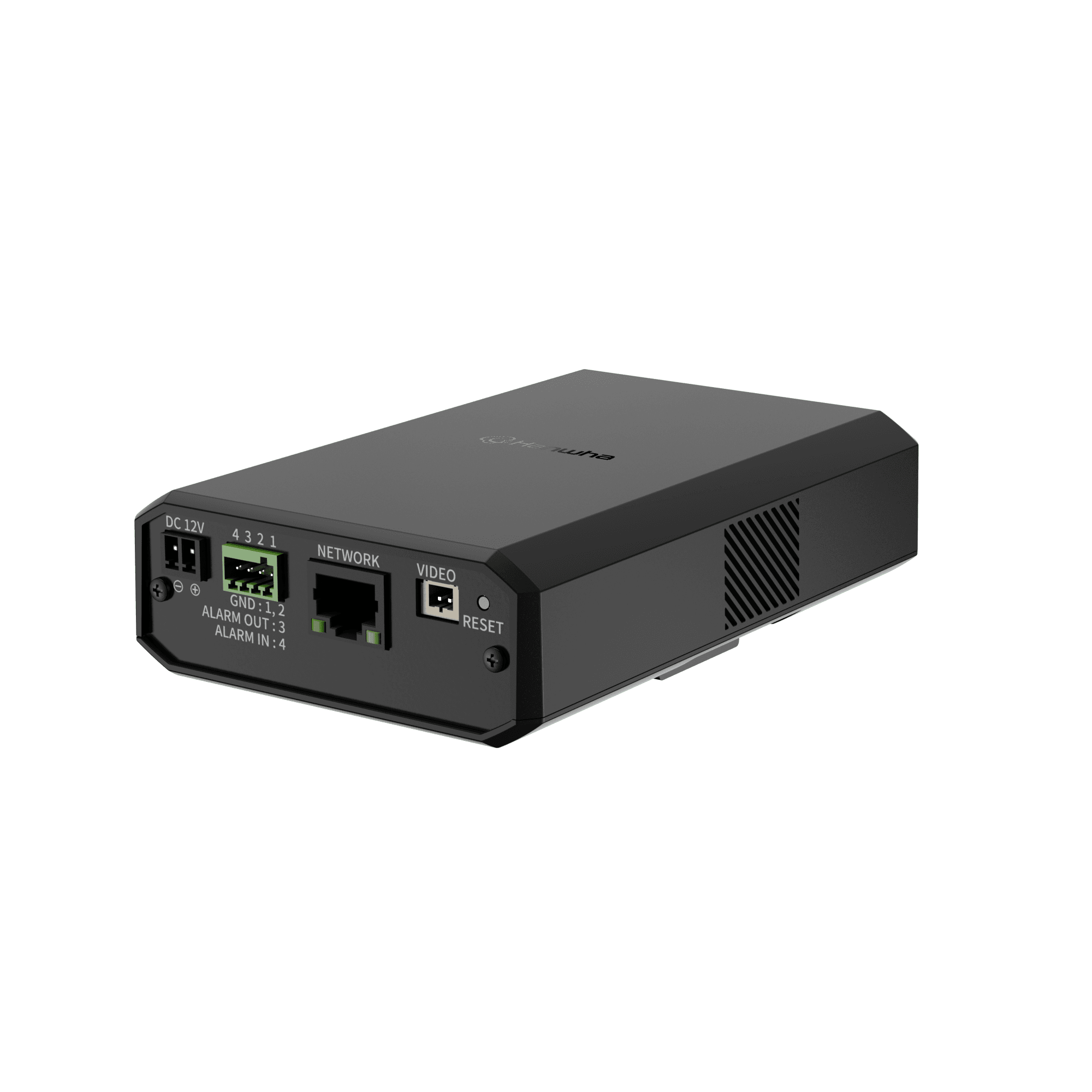

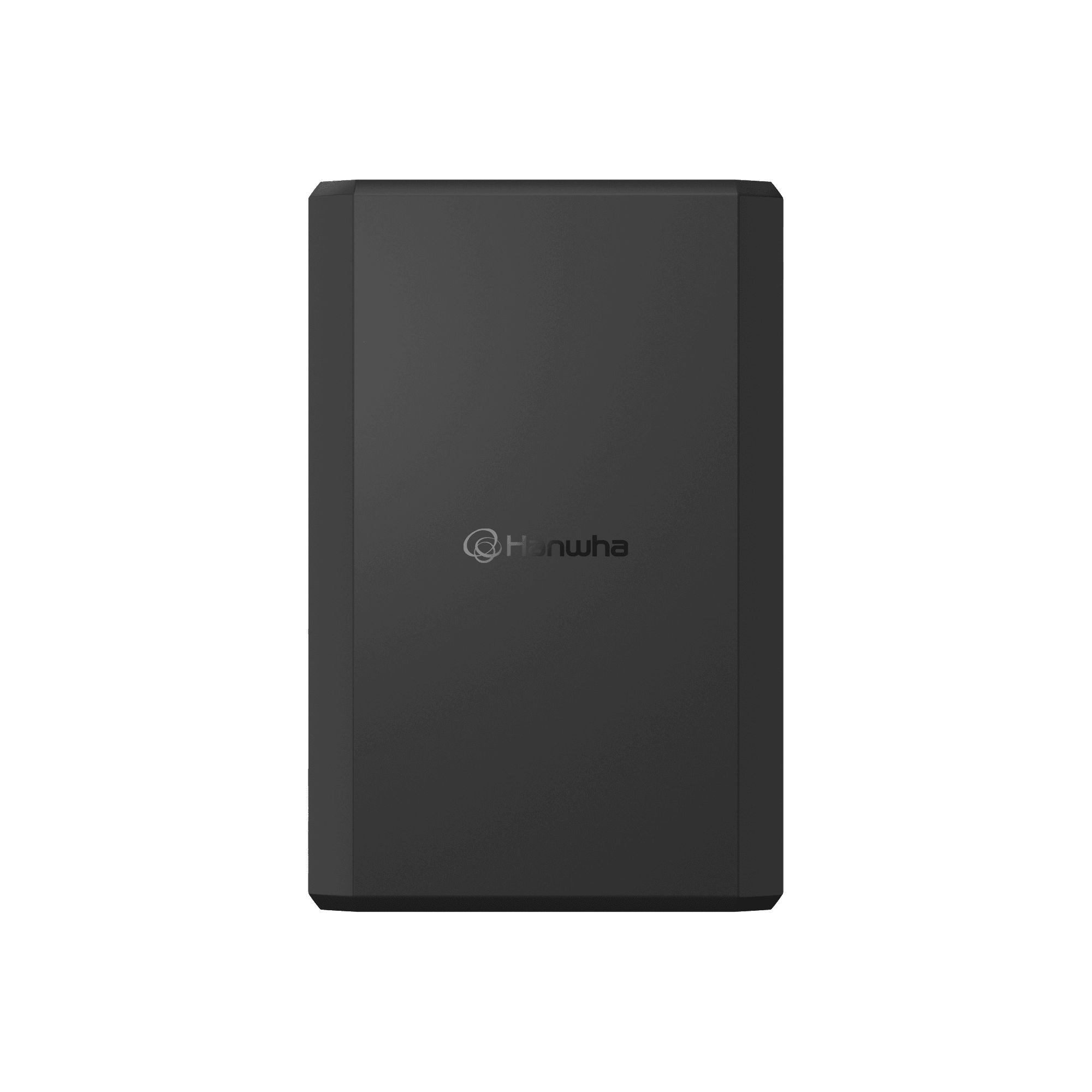

XNB-6002
2MP Remote Head Camera & Lens ModulesKey Features
• Max. 2 Megapixel (1920 x 1080) resolution
• H.265, H.264, MJPEG codec support, Multiple streaming
• extremeWDR (120dB), Defog, DIS, WiseStreamII
• Tampering, Loitering, Directional detection, Fog detection
• Audio detection, Heatmap, Sound classification
• Queue management, Face detection, People counting
• Compatible lens: SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNB-6002_240710_DE.pdf | 2026-06-22 | |
| Manuals | Manuals_XNB-6002_240710_EN.pdf | 2026-06-22 | |
| Manuals | Manuals_XNB-6002_240710_ES.pdf | 2026-06-22 | |
| Manuals | Manuals_XNB-6002_240710_FR.pdf | 2026-06-22 | |
| Manuals | Manuals_XNB-6002_240710_IT.pdf | 2026-06-22 | |
| Manuals | Manuals_XNB-6002_240710_PL.pdf | 2026-06-22 | |
| Manuals | Manuals_XNB-6002_240710_PT.pdf | 2026-06-22 | |
| Manuals | Manuals_XNB-6002_240710_TR.pdf | 2026-06-22 | |
| Manuals | Manuals_XNB-6002_240710_ZH.pdf | 2026-06-22 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNB-6002_221014_EN.dxf | 2026-06-22 | |
| CAD | CAD_XNB-6002_221014_EN.pdf | 2026-06-22 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XNB-6002_230224_EN_DoC_CE.pdf | 2026-06-22 | |
| Certification | Certification_XNB-6002_230224_EN_DoC_UKCA.pdf | 2026-06-22 | |
| Certification | Certification_XNB-6002_230224_EN_EMC_CE,UKCA.pdf | 2026-06-22 | |
| Certification | Certification_XNB-6002_230224_EN_RCM.pdf | 2026-06-22 | |
| Certification | Certification_XNB-6002_230224_EN_VCCI.pdf | 2026-06-22 | |
| Certification | Certification_XNB-6002_230315_KO_KC(SAFETY).pdf | 2026-06-22 | |
| Certification | Certification_XNB-6002_230321_KO_KC(EMC).pdf | 2026-06-22 | |
| Certification | Certification_XNB-6002_230224_EN_FCC-IC.pdf | 2026-06-22 | |
| Certification | Certification_XNB-6002_221119_EN_UL.pdf | 2026-06-22 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN7_2_14_05_20260407_hva_prod.zip | 2026-06-25 | |
| Firmware | GenetecSecurityCenterSaaS_v_WN7_26_06_18_20260618.zip | 2026-06-25 | |
| Firmware | XNB-6002_3.01.01_20260623_R73.zip | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNB-6002_230103_EN.docx | 2026-06-22 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNB-6002_20260612_EN_170845.pdf | 2026-06-22 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XNB-6002_240710_CS.pdf | 2026-06-22 | |
| Quick Guide | Quick-Guide_XNB-6002_240710_DE.pdf | 2026-06-22 | |
| Quick Guide | Quick-Guide_XNB-6002_240710_EN.pdf | 2026-06-22 | |
| Quick Guide | Quick-Guide_XNB-6002_240710_ES.pdf | 2026-06-22 | |
| Quick Guide | Quick-Guide_XNB-6002_240710_FR.pdf | 2026-06-22 | |
| Quick Guide | Quick-Guide_XNB-6002_240710_IT.pdf | 2026-06-22 | |
| Quick Guide | Quick-Guide_XNB-6002_240710_NL.pdf | 2026-06-22 | |
| Quick Guide | Quick-Guide_XNB-6002_240710_PL.pdf | 2026-06-22 | |
| Quick Guide | Quick-Guide_XNB-6002_240710_PT.pdf | 2026-06-22 | |
| Quick Guide | Quick-Guide_XNB-6002_240710_TR.pdf | 2026-06-22 | |
| Quick Guide | Quick-Guide_XNB-6002_240710_ZH.pdf | 2026-06-22 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_XNB-6002_221115_EN.pdf | 2026-06-22 | |
| Online Help | Online-Help_XNB-6002_221115_ES.pdf | 2026-06-22 | |
| Online Help | Online-Help_XNB-6002_221115_FR.pdf | 2026-06-22 | |
| Online Help | Online-Help_XNB-6002_221115_JA.pdf | 2026-06-22 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNB-6002_260514_EN.txt | 2026-06-22 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_XNB-6002_260514_EN_cyclonedx.json | 2026-06-22 |
Specifications
Video
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Optional Lens | SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA |
Operational
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNR, SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support(Not support for fisheye lens) | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
| Business Intelligence | Normal | People counting, Queue management, Heatmap |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 |
General
| Memory | RAM | 2GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max 10.5W, typical 6.9W |
| 12VDC | Max 8.6W, typical 5.5W | |
| Power Redundance Failover | Support |
Mechanical
| Color | Black | |
| Material | Metal, Plastic | |
| RAL Code | RAL9005 | |
| Product Dimensions | 131.1(W)x33.5(H)x86(D)mm(5.16x1.32x3.39") | |
| Product Weight | 420g(0.93lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | IEC/EN 63000 |
