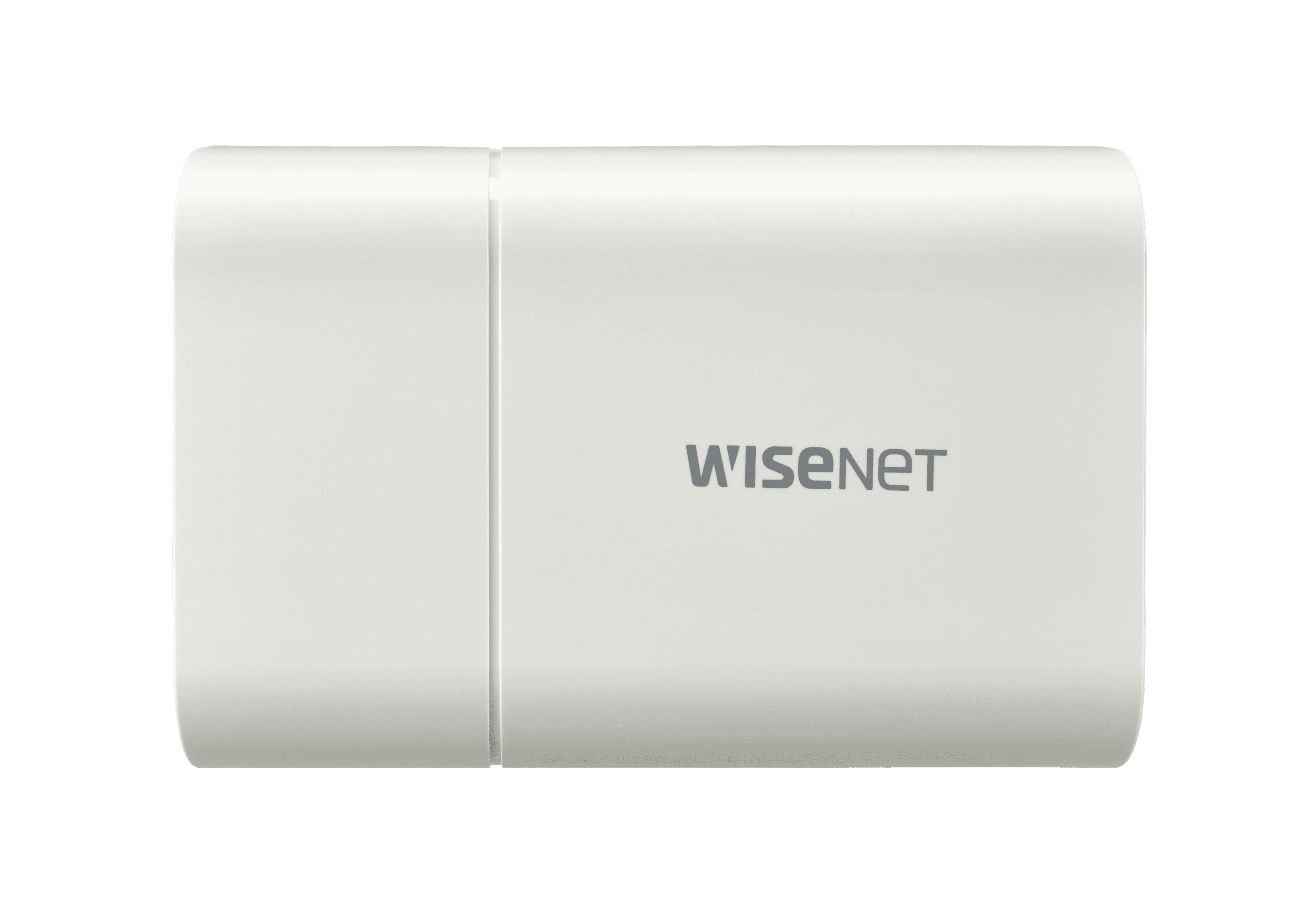

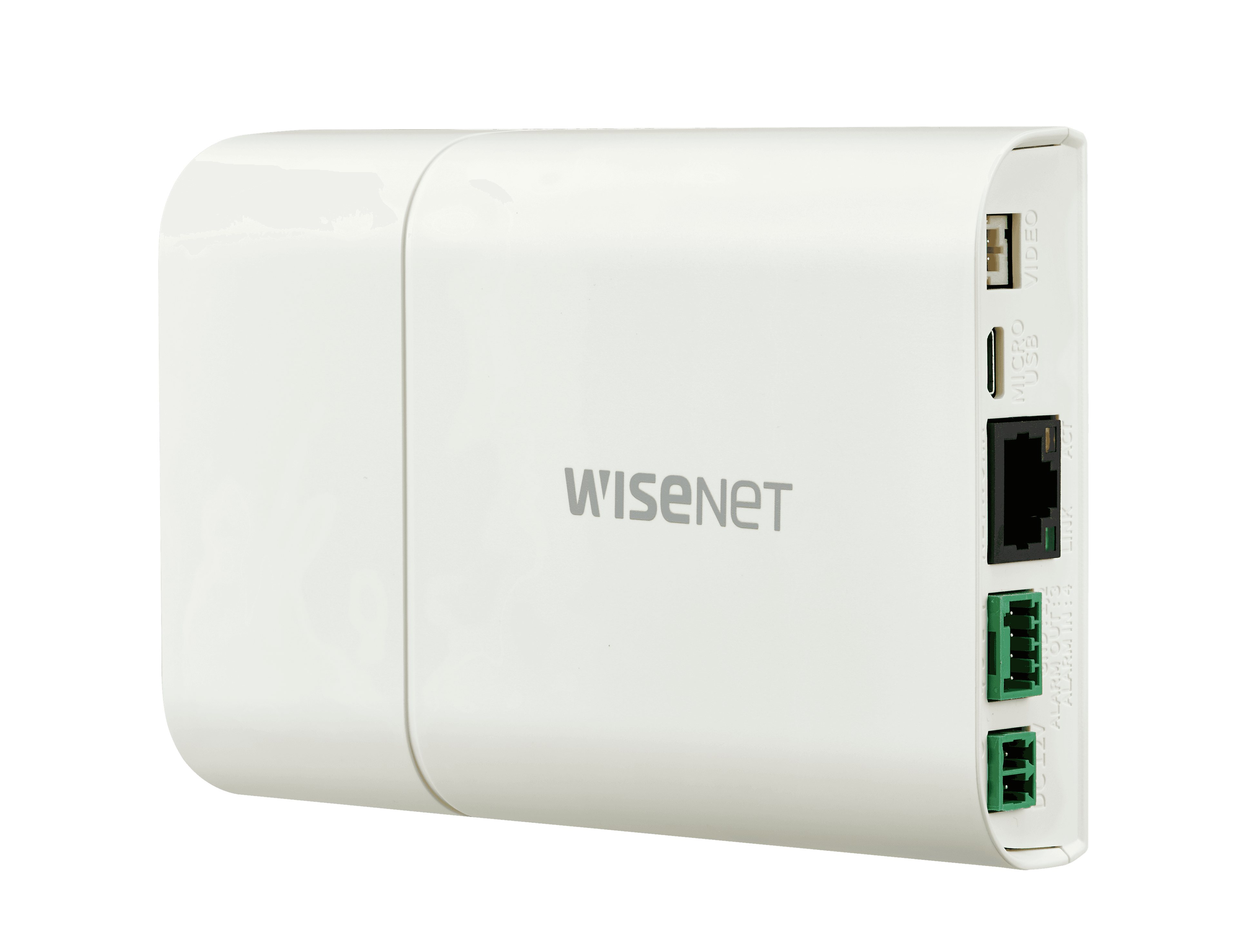

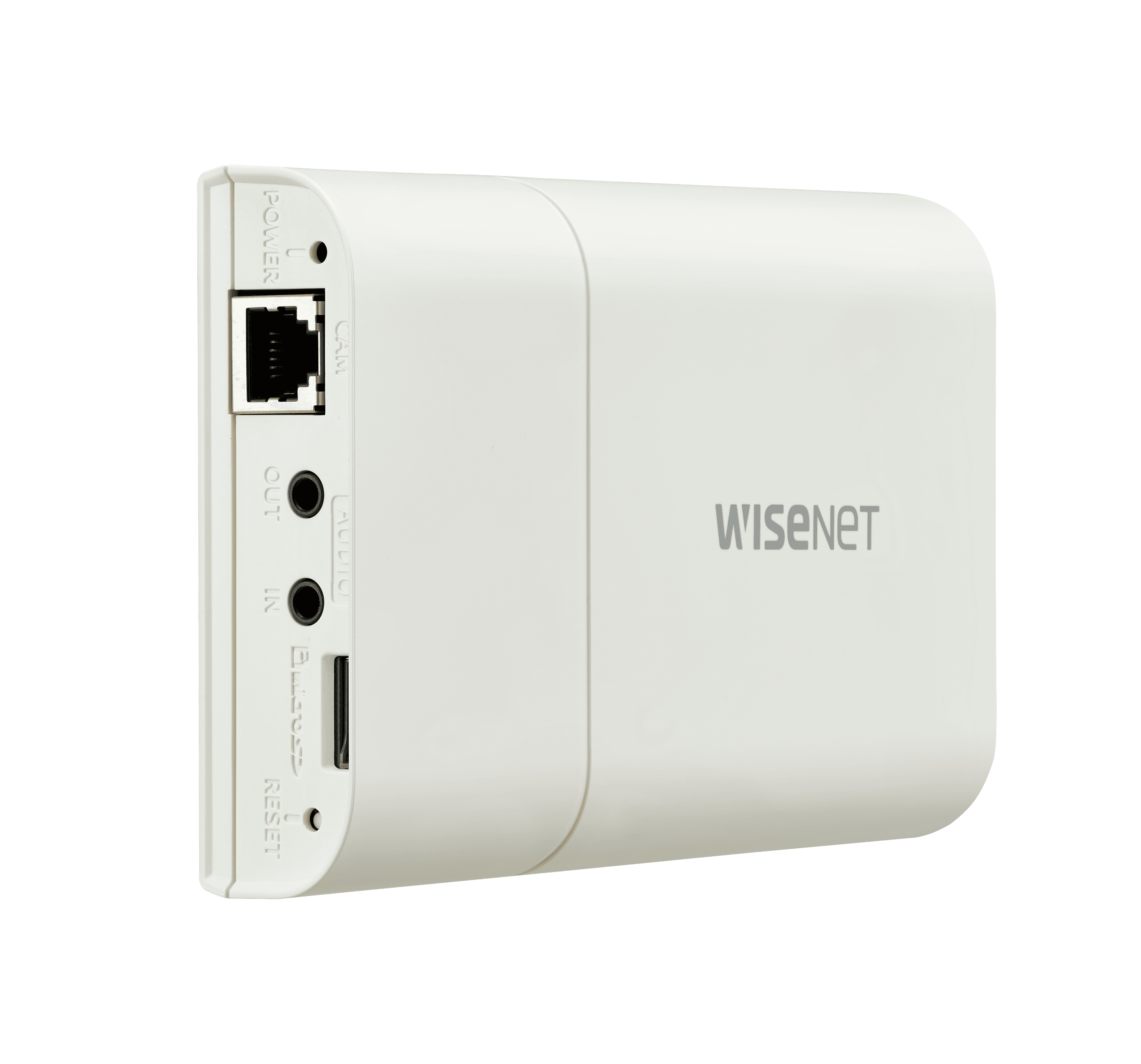

XNB-6001

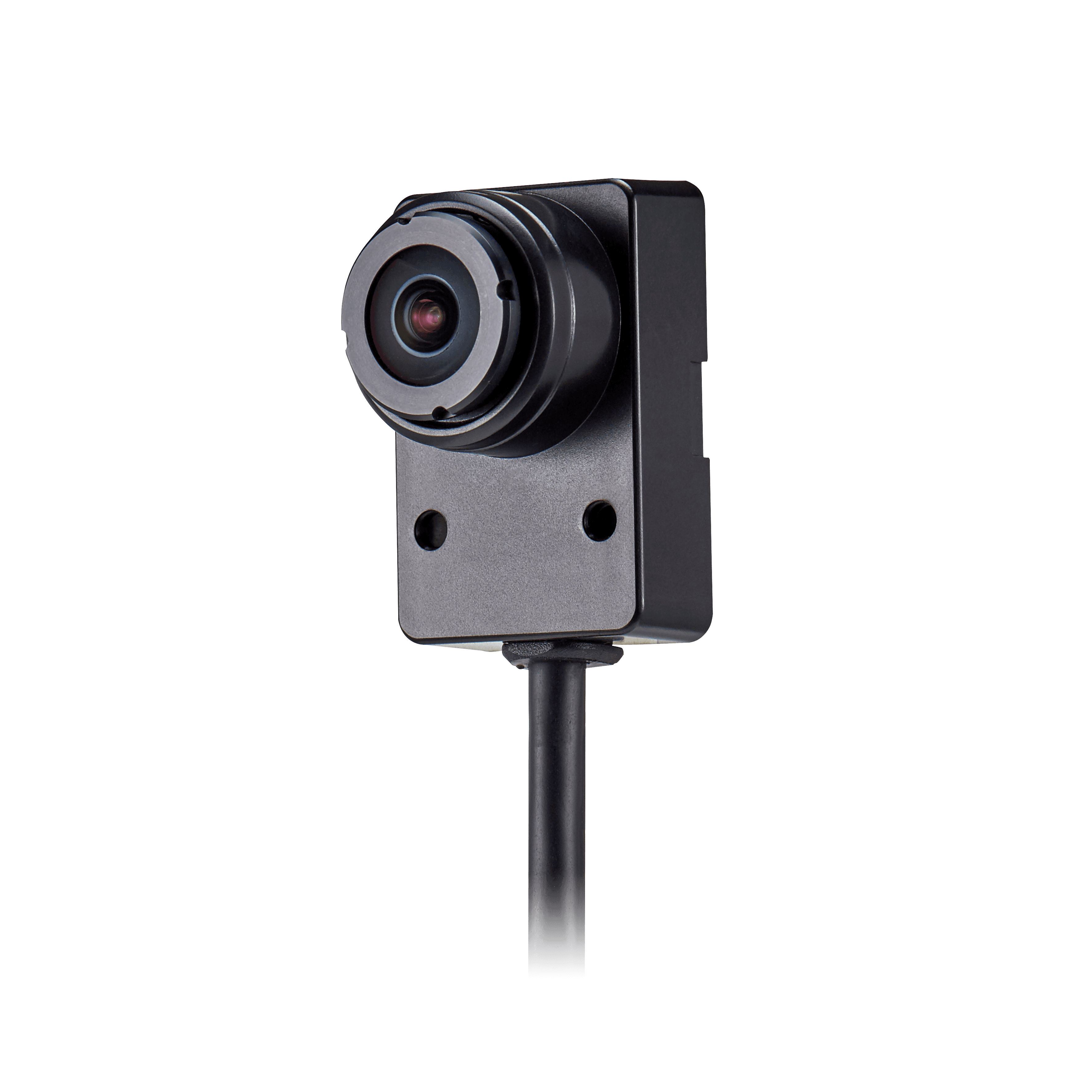

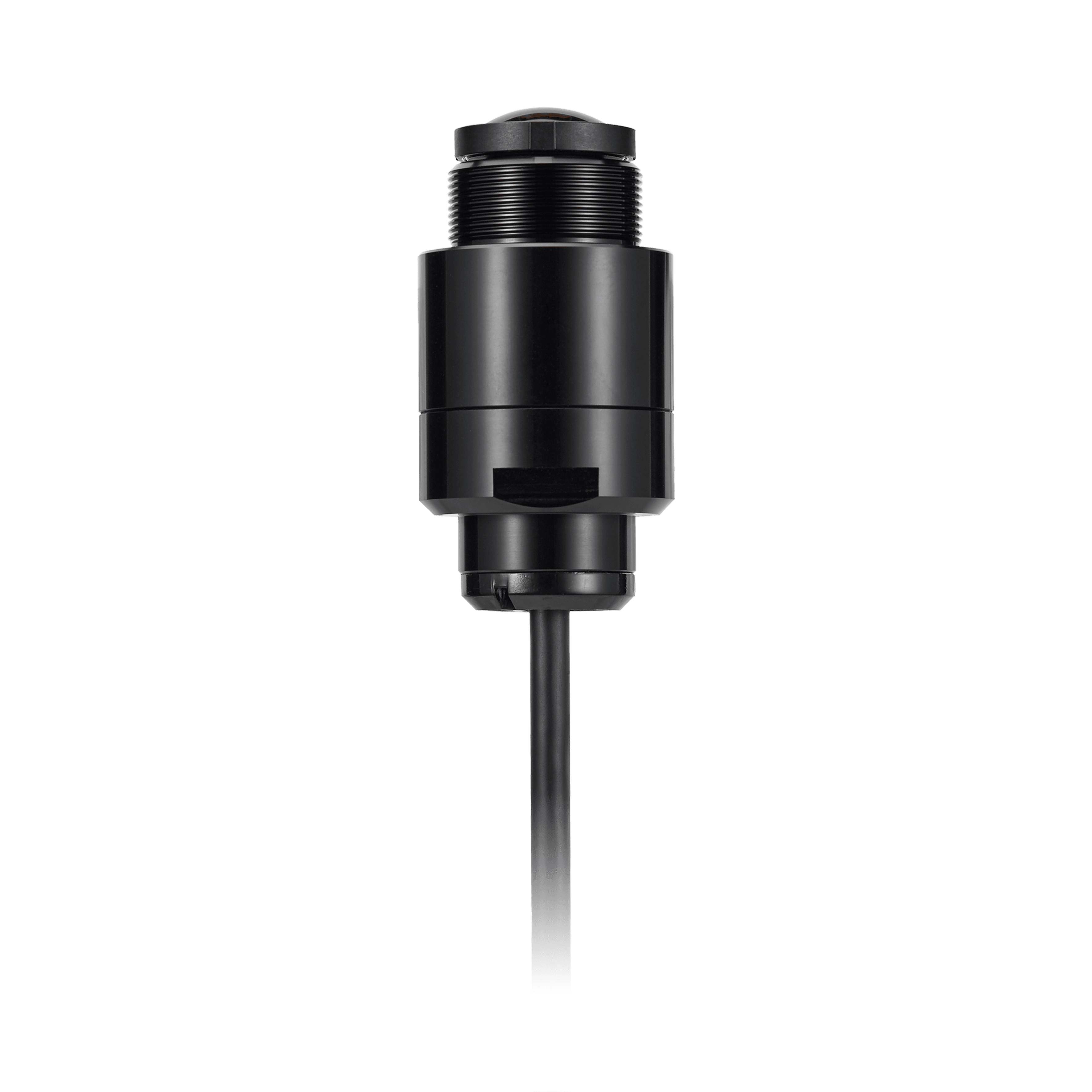

Remote Head Cam & Lens modulesKey Features
• Max. 2Megapixel (1920 x 1080) resolution
• H.265, H.264, MJPEG codec support, Multiple streaming
• Max. 60fps@2MP (H.265 / H.264)
• WDR (120dB), Defog, DIS, WiseStreamII
• Tampering, Loitering, Directional detection, Fog detection
• Audio detection, Digital auto tracking, Heatmap
• Queue management, Face detection, People counting
• Motion detection, Handover
• Memory slot (Max. 256GB), Hallway View
• LDC, PoE / 12V DC, Bi-directional audio support
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_XNB-6001_230611_ZH.pdf | 2026-08-06 | |
| Manuals | Manuals_XNB-6001_240611_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_XNB-6001_240611_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_XNB-6001_240611_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_XNB-6001_240611_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_XNB-6001_240611_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNB-6001_240611_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_XNB-6001_240611_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_XNB-6001_240611_TR.pdf | 2026-08-06 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet-X-series_191111_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_XNB-6001_170628.dwg | 2026-08-06 | |
| CAD | CAD_XNB-6001_170628.dxf | 2026-08-06 | |
| CAD | CAD_XNB-6001_170628.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_XNB-6001_170915_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_XNB-6001_230220_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XNB-6001_230220_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_XNB-6001_230220_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_XNB-6001_230220_EN_FCC&IC.pdf | 2026-08-06 | |
| Certification | Certification_XNB-6001_230220_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_XNB-6001_230220_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_XNB-6001_230315_KO_KC(SAFETY).pdf | 2026-08-06 | |
| Certification | Certification_XNB-6001_230321_KO_KC(EMC).pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | XNB-6001_2.23.01_20260708_R91.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_XNB-6001_171120_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_XNB-6001_20260806_EN_135244.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_XNB-6001_240611_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNB-6001_240611_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNB-6001_240611_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNB-6001_240611_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNB-6001_240611_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNB-6001_240611_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNB-6001_240611_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNB-6001_240611_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNB-6001_240611_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNB-6001_240611_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_XNB-6001_240611_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_XNB-6001_191031_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNB-6001_191031_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_XNB-6001_191031_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNV-6013M%2CXNV-6022R%2CXNV-6022RM%2CXNB-6001%2CTNB-6030_260406_EN.txt | 2026-08-06 |
Specifications
Video
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Optional Lens | SLA-T1080F, SLA-T2480, SLA-T2480V, SLA-T4680, SLA-T4680V |
Operational
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max. 6.5W |
| 12VDC | Max. 6W |
Mechanical
| Color | Ivory | |
| Material | Plastic | |
| Product Dimensions | 131.1(W)x28(H)x86(D)mm(5.16x1.1x3.39") | |
| Product Weight | 245g(0.54lb) |
