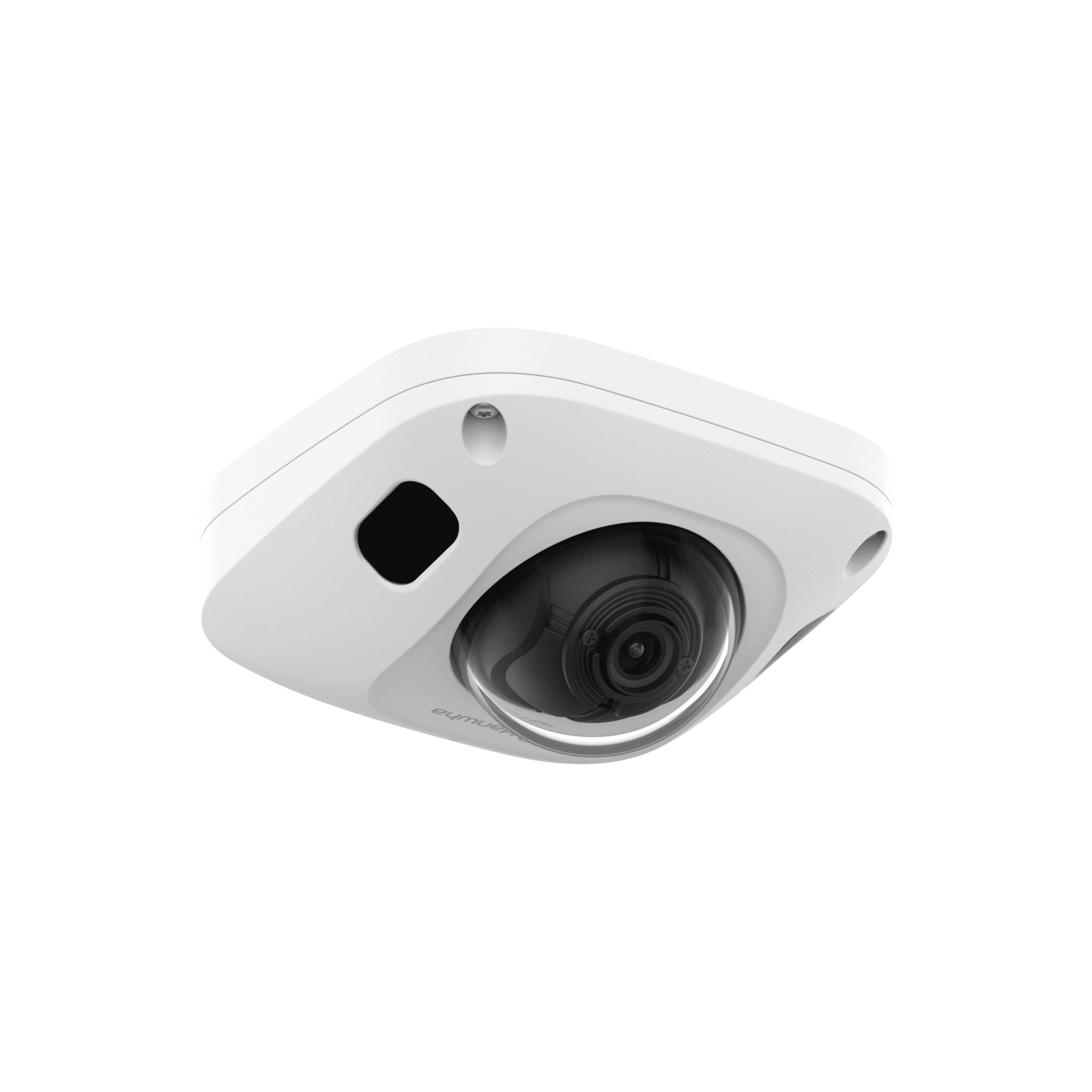

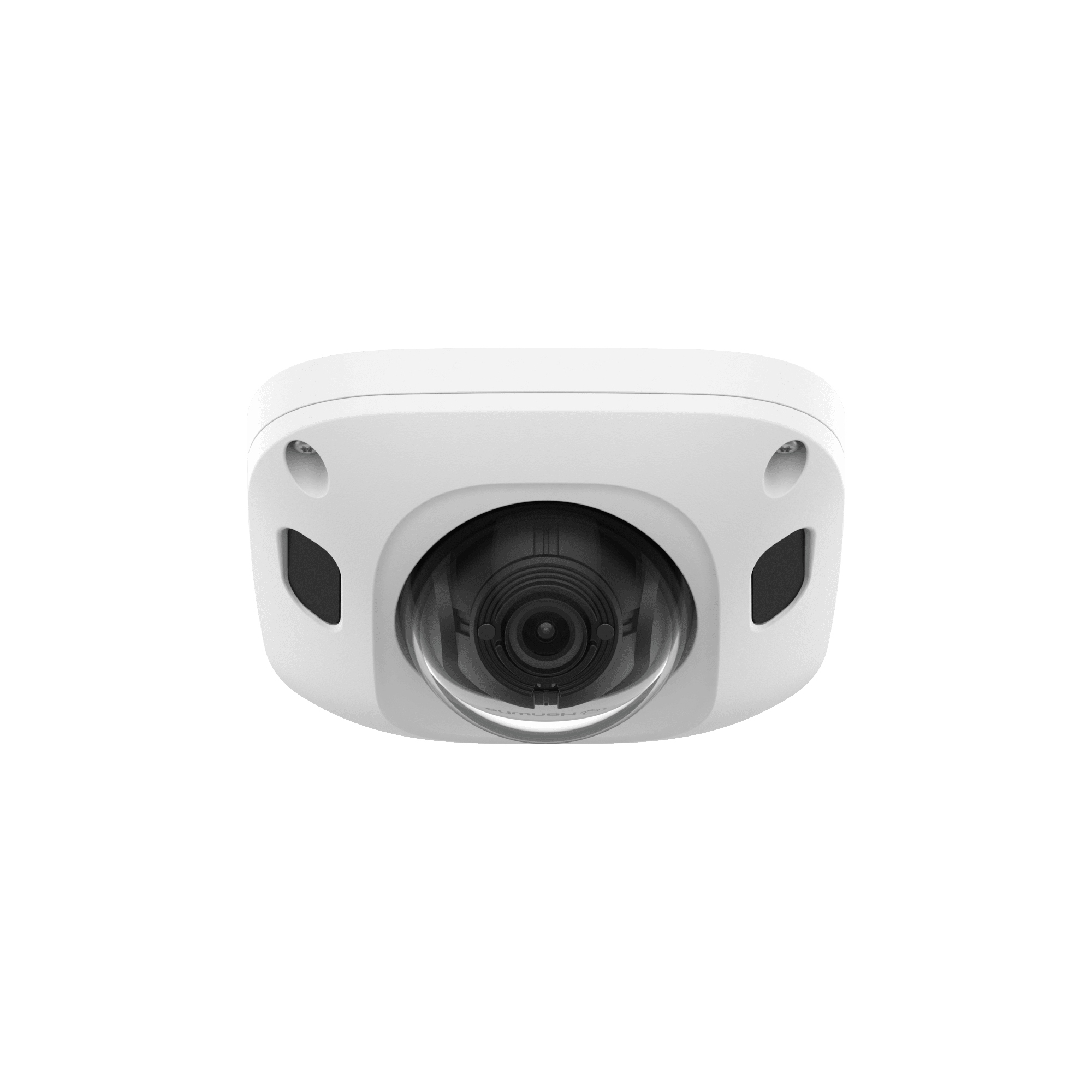

TNV-C8034RM
T AI 5MP IR Mobile CameraKey Features
- FoV - H: 50°/ V: 37° / D: 64°
- IR viewable length 30m (98.42ft)
- AI-based Analytics and Business Intelligence
- Hard-coated dome bubble
- EIS, Shock detection, Heater, Built-in Mic
- IP66, IK10
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNV-C8014RM,TNV-C8034RM_241216_DE.pdf | 2026-08-07 | |
| Manuals | Manuals_TNV-C8014RM,TNV-C8034RM_241216_EN.pdf | 2026-08-07 | |
| Manuals | Manuals_TNV-C8014RM,TNV-C8034RM_241216_ES.pdf | 2026-08-07 | |
| Manuals | Manuals_TNV-C8014RM,TNV-C8034RM_241216_FR.pdf | 2026-08-07 | |
| Manuals | Manuals_TNV-C8014RM,TNV-C8034RM_241216_IT.pdf | 2026-08-07 | |
| Manuals | Manuals_TNV-C8014RM,TNV-C8034RM_241216_PL.pdf | 2026-08-07 | |
| Manuals | Manuals_TNV-C8014RM,TNV-C8034RM_241216_PT.pdf | 2026-08-07 | |
| Manuals | Manuals_TNV-C8014RM,TNV-C8034RM_241216_TR.pdf | 2026-08-07 | |
| Manuals | Manuals_TNV-C8014RM,TNV-C8034RM_241216_ZH-TW.pdf | 2026-08-07 | |
| Manuals | Manuals_TNV-C8014RM,TNV-C8034RM_241216_ZH.pdf | 2026-08-07 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNV-C8014RM_241112_Common.dxf | 2026-08-07 | |
| CAD | CAD_TNV-C8014RM_241112_Common.pdf | 2026-08-07 |
Certification
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNV-C8034RM_241230_EN.docx | 2026-08-07 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNV-C8034RM_20260806_EN_161219.pdf | 2026-08-07 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241127_CS.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241127_DE.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241127_EN.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241127_ES.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241127_FR.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241127_IT.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241127_NL.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241127_PL.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241127_PT.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241127_TR.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241216_ZH-TW.pdf | 2026-08-07 | |
| Quick Guide | Quick-Guide_TNV-C8014RMTNV-C8034RM_241216_ZH.pdf | 2026-08-07 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNV-C8014RMTNV-C8034RM_20250107_EN.pdf | 2026-08-07 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNV-C8014RM%2CTNV-C8034RM%2CQNF-C9010%2CQNF-C9010V%2CSMT-3231PV%2CSMT-2731PV_260215_EN.txt | 2026-08-07 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_TNV-C8014RM8034RM_241122_Common.pdf | 2026-08-07 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@5MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.03 |
| BW(1/30sec, 30IRE) | 0.003 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 6.0 | |
| Max Aperture Ratio (F number) | Wide | 1.65 |
| Angular Field of View | Horizontal | 50° |
| Vertical | 37° | |
| Diagonal | 64° | |
| Min. Object Distance | 2.0m(6.56ft) | |
| Focus Control | Fixed | |
| Lens Type | Fixed iris | |
| Mount Type | M12 |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | ±5° |
| Tilt | 0°~67° | |
| Rotate | ±90° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR, ClearHDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/25,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics, Network disconnect, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in), Built-in mic | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 30m(98.42ft) |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Vehicle | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Defocus detection, Tampering, Shock detection, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting |
Network
| Ethernet | M12 | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure) | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 2GB |
| Flash | 1GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | Start up should be done at above -30°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 7.2W, typical 4.2W |
Mechanical
| Color | White | |
| Material | Aluminum, Hard-coated dome | |
| RAL Code | RAL9003 | |
| Product Dimensions | 106x105x55mm(4.17x.4.13x2.17") | |
| Product Weight | 466g(1.03 Ib) |
Certifications & Standards
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, EN 50121-3-2 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, EN 50155, IEC 62236-4, EN 50121-4, JIS E 4031, EN 50498, IEC/EN 61373, EN 45545, JIS E 5006, IEC 62236-3-2 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 111.2m(364.74ft) |
| Observe (63PPM/ 19PPF) | Wide | 44.5m(145.89ft) |
| Recognize (125PPM/ 38PPF) | Wide | 22.2m(72.95ft) |
| Identify (250PPM/ 76PPF) | Wide | 11.1m(36.47ft) |
