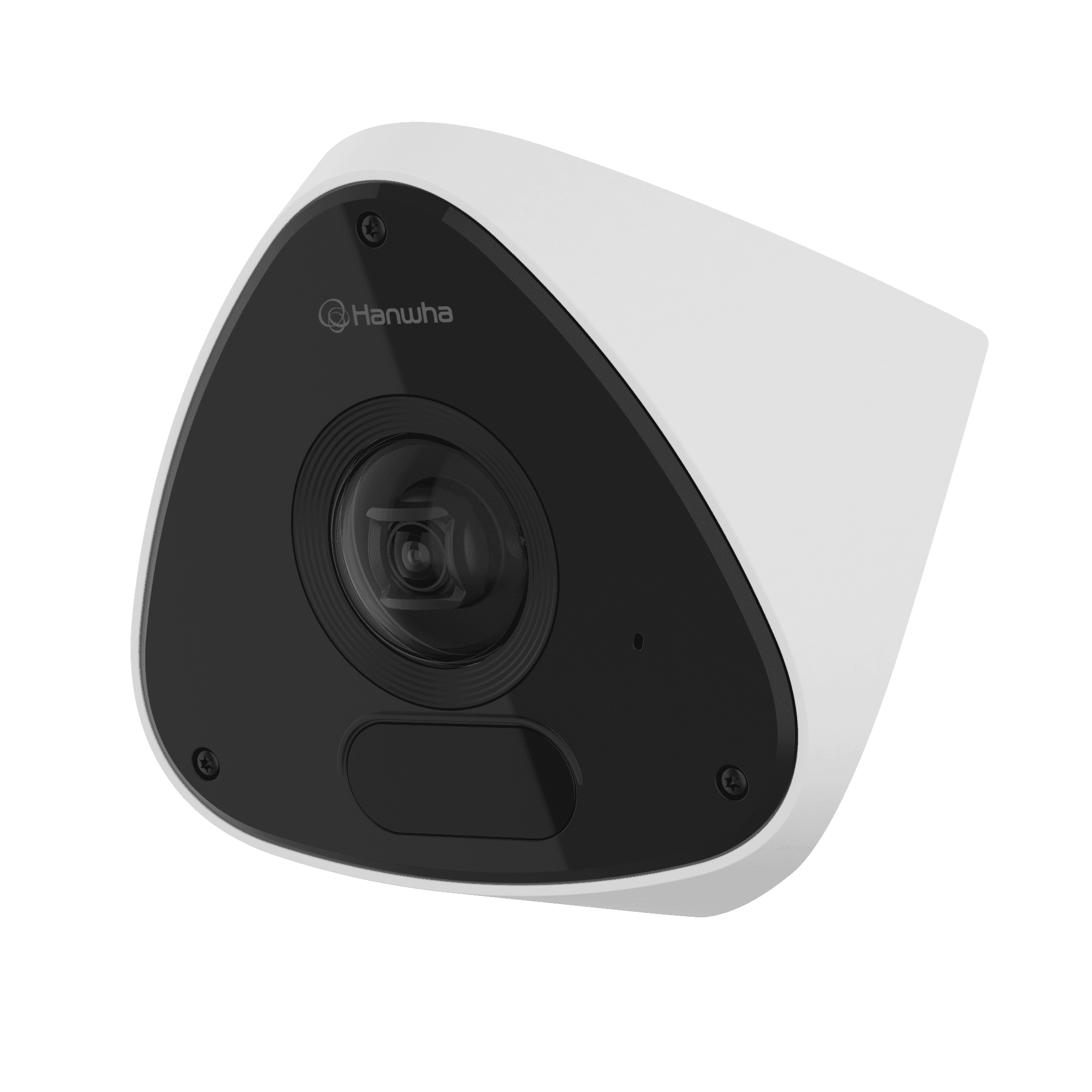

TNV-C7013RC

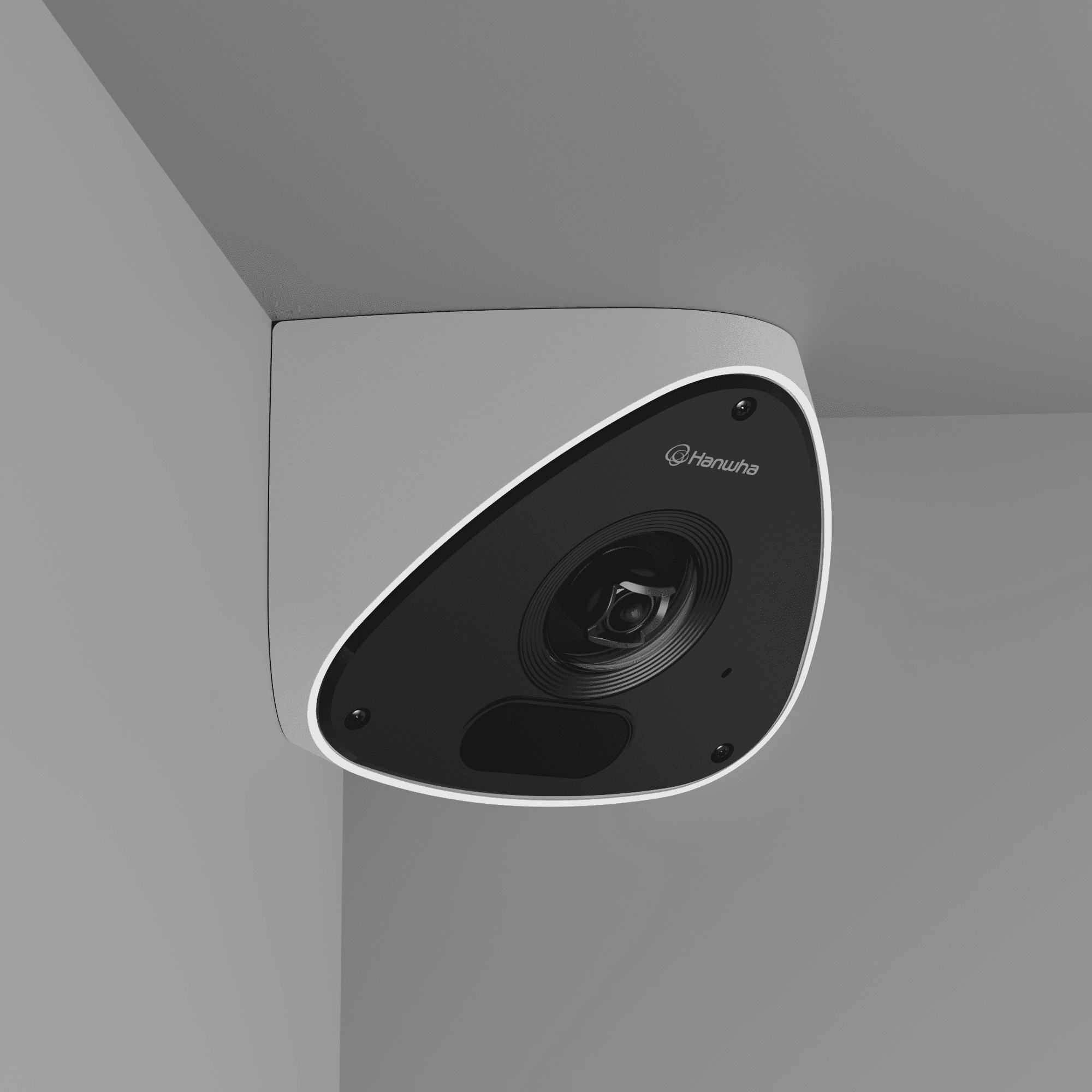

AI Corner Mount CameraKey Features
• Maximum 3MP (2048 x 1536) resolution
• Angular Field of View: Horizontal 128°, Vertical 100°
• Color: 0.04 lux (F2.0, 1/30sec, 30IRE) , BW: 0.04Lux (F2.0, 1/30sec, 30IRE)
• Built-in 2.39mm fixed focal lens
• Anti-ligature design for corrections and mental health facilities
• MicroSD/SDHC/SDXC memory slot (1TB)
• IR Viewable Length: Wise IR 15m (49.21ft), invisible 940mm wavelength
• Classified object type: Person/Face/Vehicle/License plate
• Clothes color detection (Orange/Black/Red, @400lux)
• Analytics events based on AI engine, Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNV-C7013RC_240710_DE.pdf | 2026-08-13 | |
| Manuals | Manuals_TNV-C7013RC_240710_EN.pdf | 2026-08-13 | |
| Manuals | Manuals_TNV-C7013RC_240710_ES.pdf | 2026-08-13 | |
| Manuals | Manuals_TNV-C7013RC_240710_FR.pdf | 2026-08-13 | |
| Manuals | Manuals_TNV-C7013RC_240710_IT.pdf | 2026-08-13 | |
| Manuals | Manuals_TNV-C7013RC_240710_PL.pdf | 2026-08-13 | |
| Manuals | Manuals_TNV-C7013RC_240710_PT.pdf | 2026-08-13 | |
| Manuals | Manuals_TNV-C7013RC_240710_TR.pdf | 2026-08-13 | |
| Manuals | Manuals_TNV-C7013RC_230525_EN_Clothes-color-detection_INSTALLATION-GUIDE.pdf | 2026-08-13 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNV-C7013RC_230612_EN.dxf | 2026-08-13 | |
| CAD | CAD_TNV-C7013RC_230612_EN.pdf | 2026-08-13 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNV-C7013RC_230317_EN_DoC_CE.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_230317_EN_DoC_UKCA.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_230321_EN_EMC_CE(+UKCA).pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_230321_EN_FCC,IC.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_230321_EN_RCM.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_230321_EN_VCCI.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_230405_EN_IK10+.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_230406_EN_IP66.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_230417_EN_UL.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_240621_EN_NEMA4X.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_240627_EN_IP6X.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_240710_EN_IPX9.pdf | 2026-08-13 | |
| Certification | Certification_TNV-C7013RC_250213_EN_IK11.pdf | 2026-08-13 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN7_2_11_04_20251016_hva_prod.zip | 2026-08-13 | |
| Firmware | GenetecSecurityCenterSaaS_v_WN7_25_10_27_20251027.zip | 2026-08-13 | |
| Firmware | TNV-C7013RC_2.24.00_20251125_R59.zip | 2026-08-13 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNV-C7013RC_250225_EN.docx | 2026-08-13 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNV-C7013RC_20260806_EN_145657.pdf | 2026-08-13 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TNV-C7013RC_240710_CS.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_TNV-C7013RC_240710_DE.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_TNV-C7013RC_240710_EN.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_TNV-C7013RC_240710_ES.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_TNV-C7013RC_240710_FR.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_TNV-C7013RC_240710_IT.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_TNV-C7013RC_240710_NL.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_TNV-C7013RC_240710_PL.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_TNV-C7013RC_240710_PT.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_TNV-C7013RC_240710_TR.pdf | 2026-08-13 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNV-C7013RC_230426_EN.pdf | 2026-08-13 | |
| Online Help | Online-Help_TNV-C7013RC_230426_ES.pdf | 2026-08-13 | |
| Online Help | Online-Help_TNV-C7013RC_230426_FR.pdf | 2026-08-13 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_XNB-6002XNF-9013RVXNV-C6083TNV-C7013RC_240307_EN.txt | 2026-08-13 |
Specifications
Video
| Imaging Device | Size | 1/1.8" |
| Type | CMOS | |
| Resolution | 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@3MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.04 |
| BW(1/30sec, 30IRE) | 0.004 |
Lens
| Focal Length (mm) | 2.39 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 128° |
| Vertical | 100° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Fixed |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in), Built-in mic | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR 15m(49.21ft) |
| IR Wavelength | 940nm |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Vehicle | Type(car, bus, truck, motorcycle, bicycle) |
| Thumbnail | DetectionShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Virtual area(Appear/Disappear) |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max 12.95W, typical 9.7W |
| 12VDC | Max 12.7W, typical 9.0W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | 198.3(W)x104.8(H)x198.6(D)mm(7.87x4.13x7.82") | |
| Product Weight | 1935g(4.27 lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, ISO 20653 IP6K9K, IEC 62262 IK11, NEMA 250 type 4X, IEC 60529 IP66/IP69 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 35.1m(115.16ft) |
| Observe (63PPM/ 19PPF) | Wide | 14m(45.93ft) |
| Recognize (125PPM/ 38PPF) | Wide | 7.0m(22.97ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.5m(11.48ft) |
