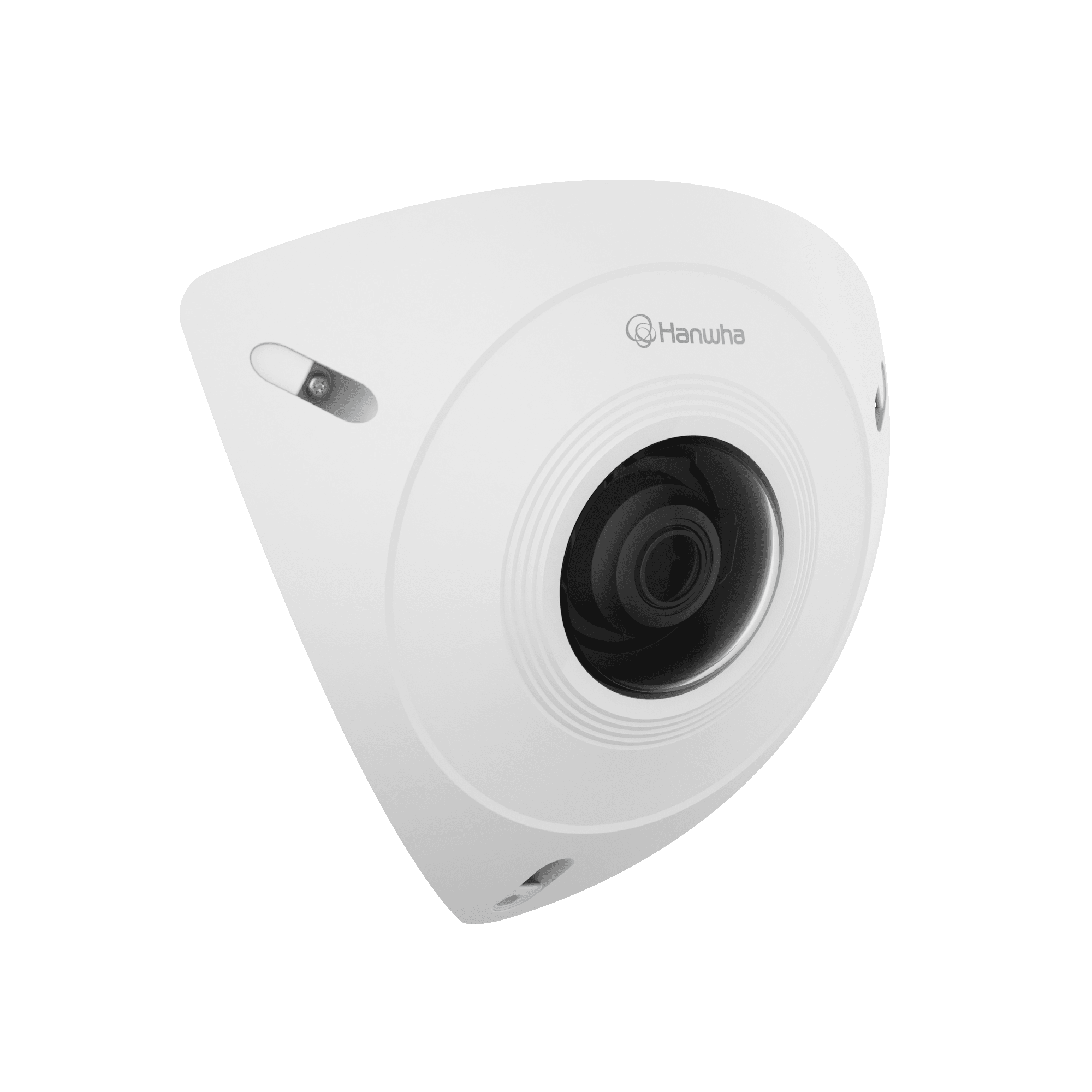

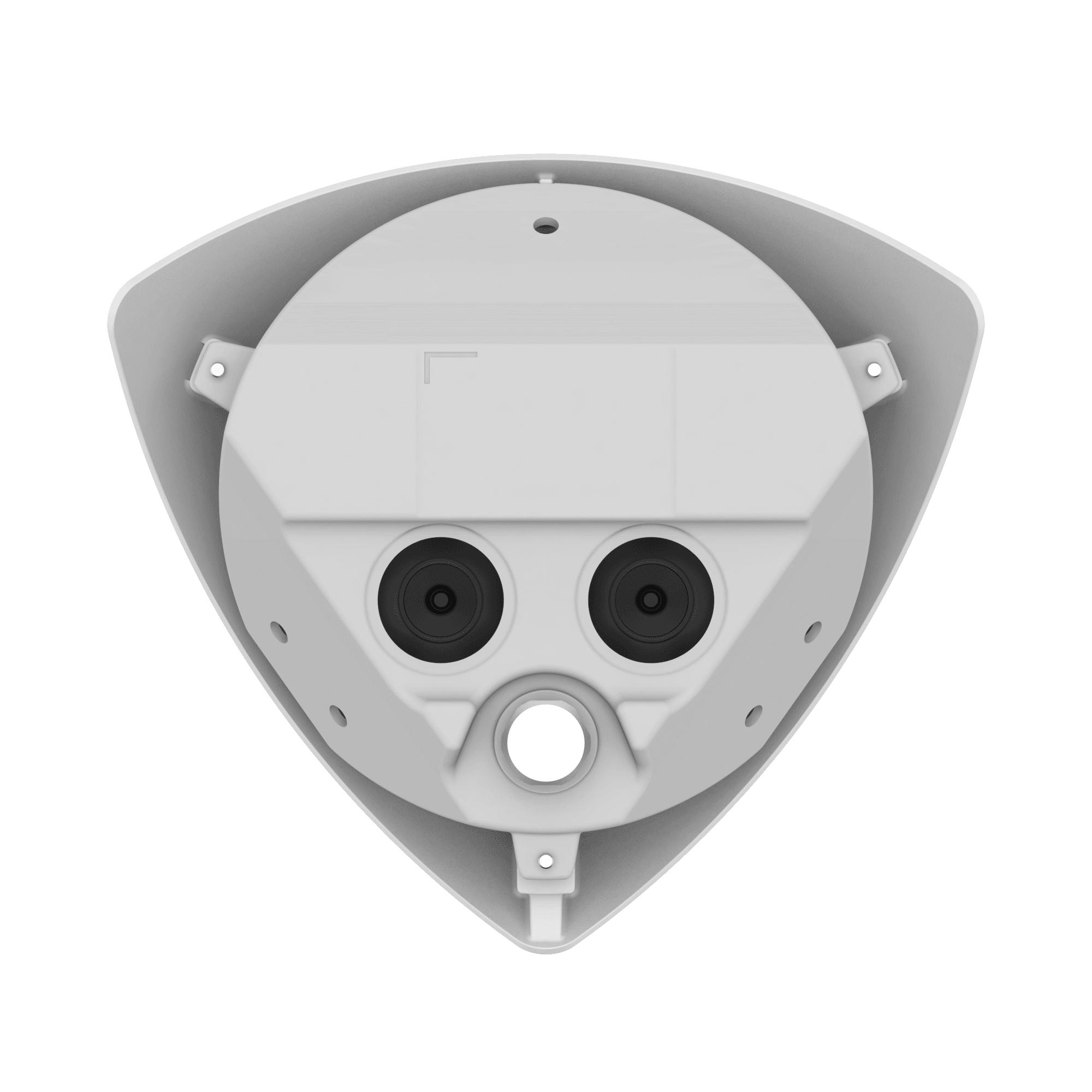

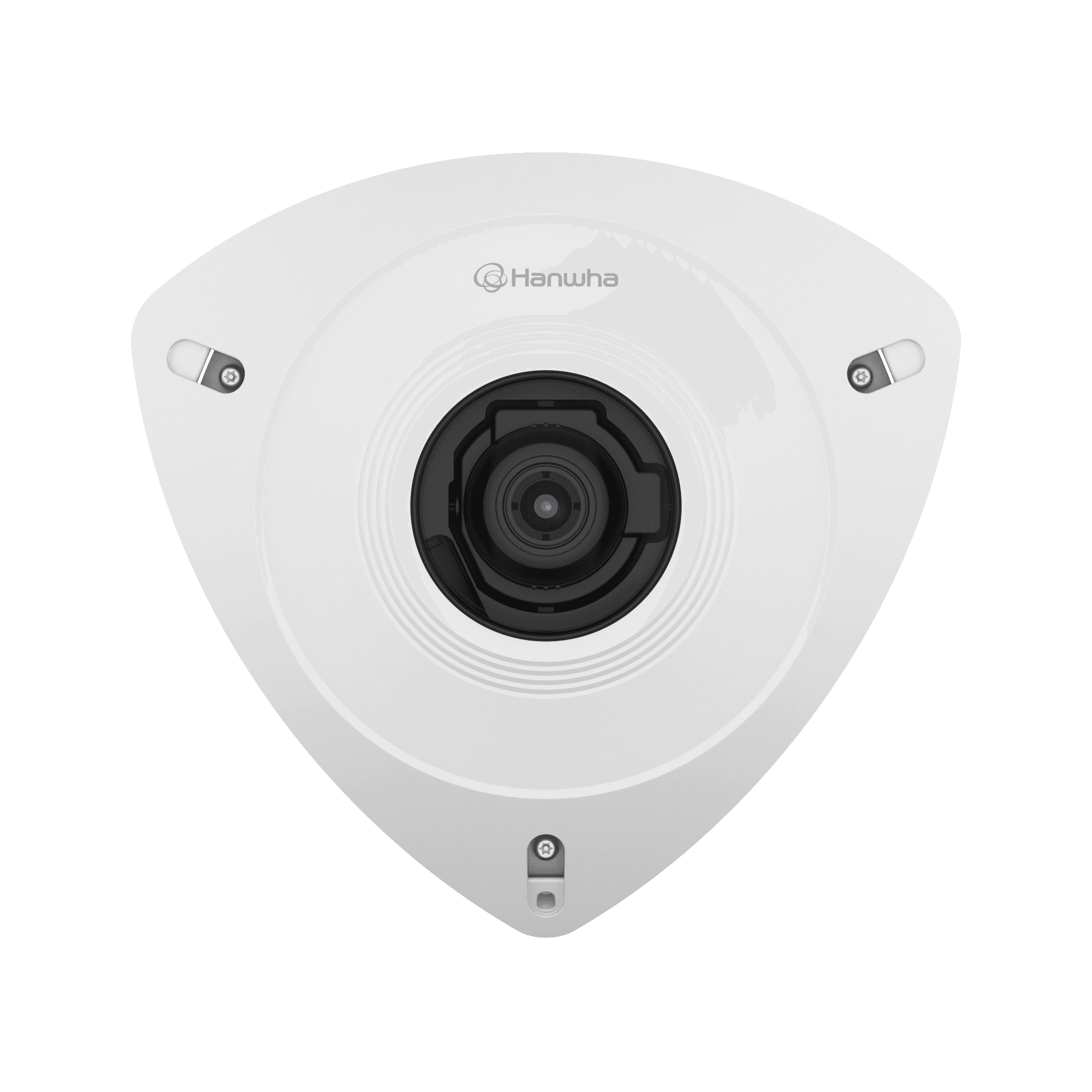

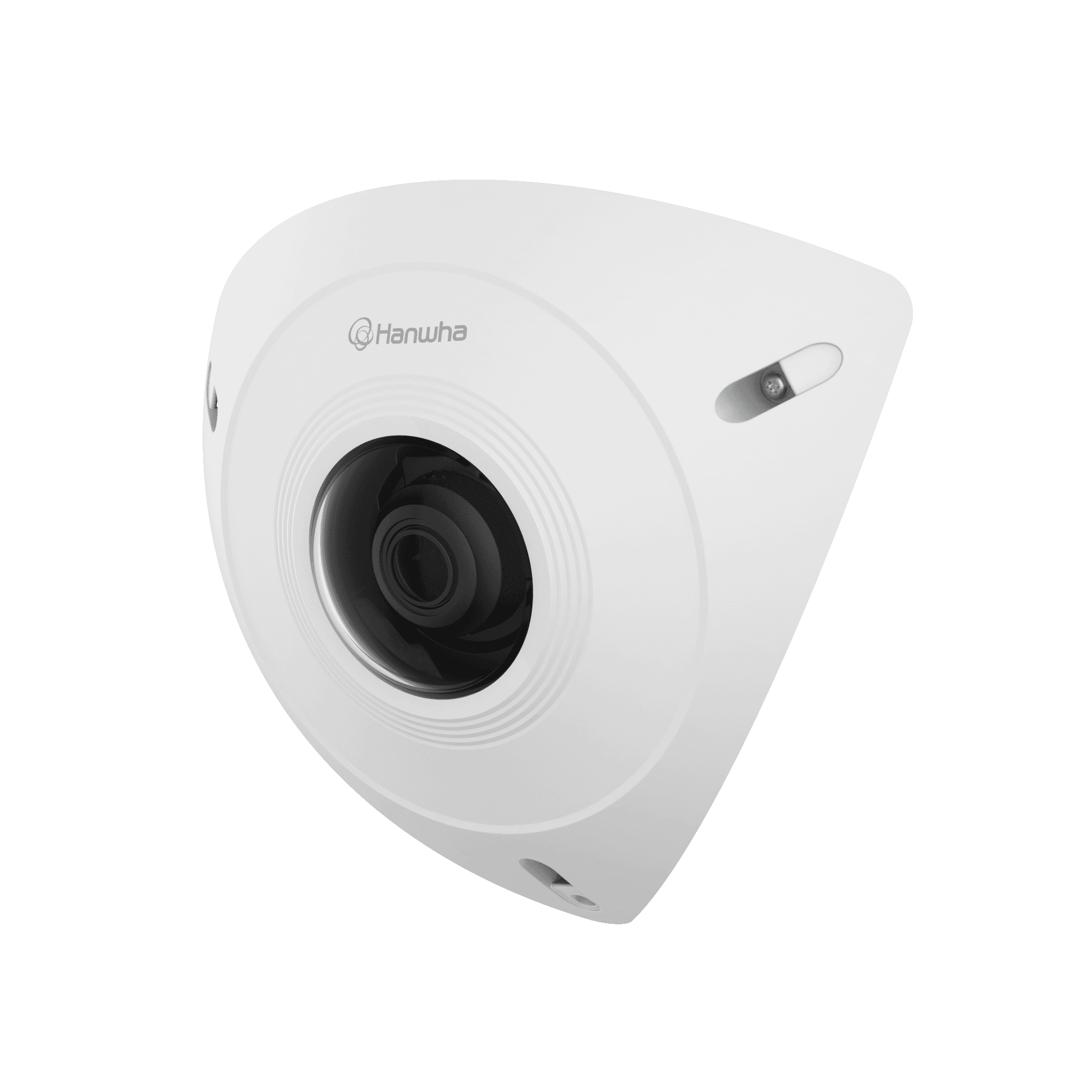

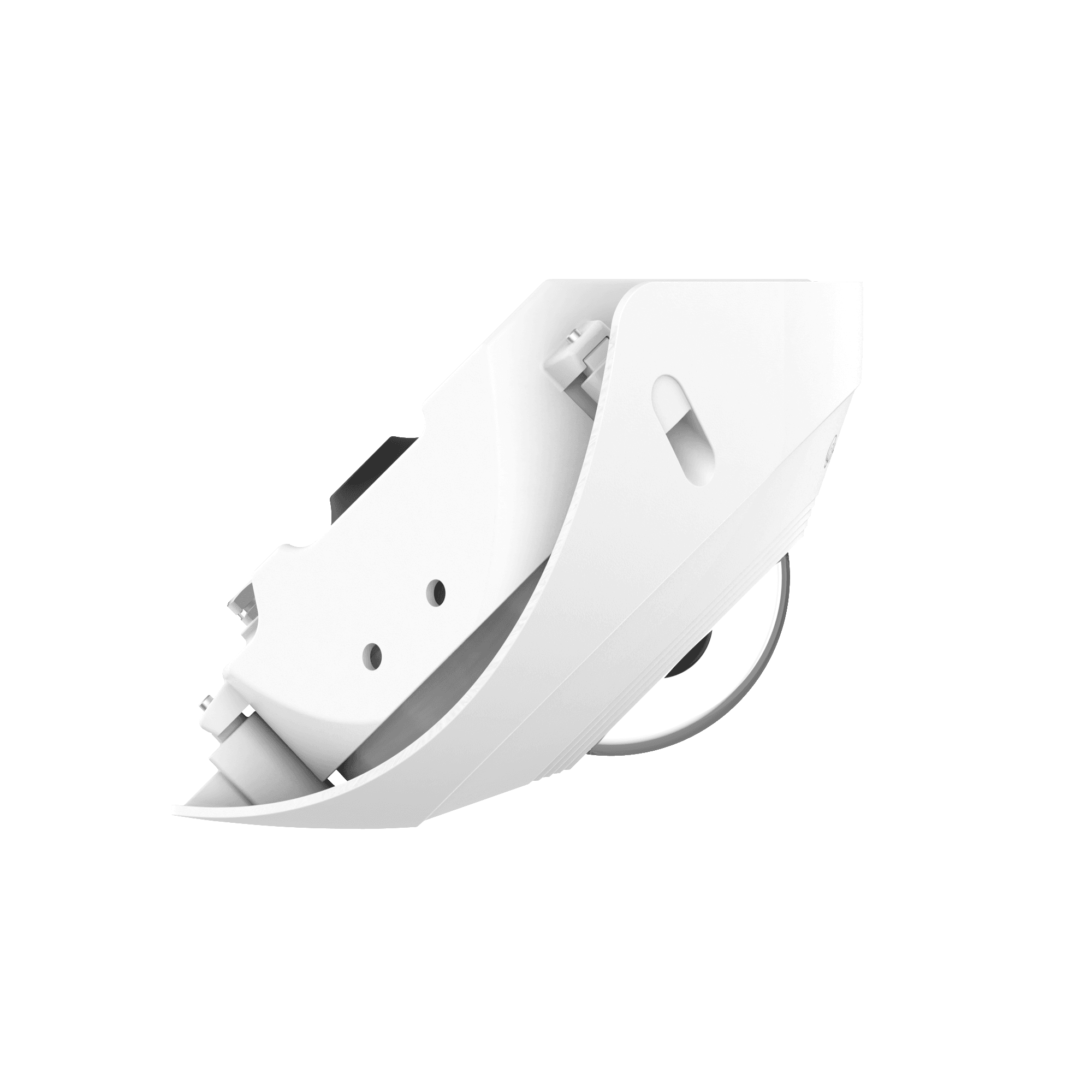

TNV-8011C

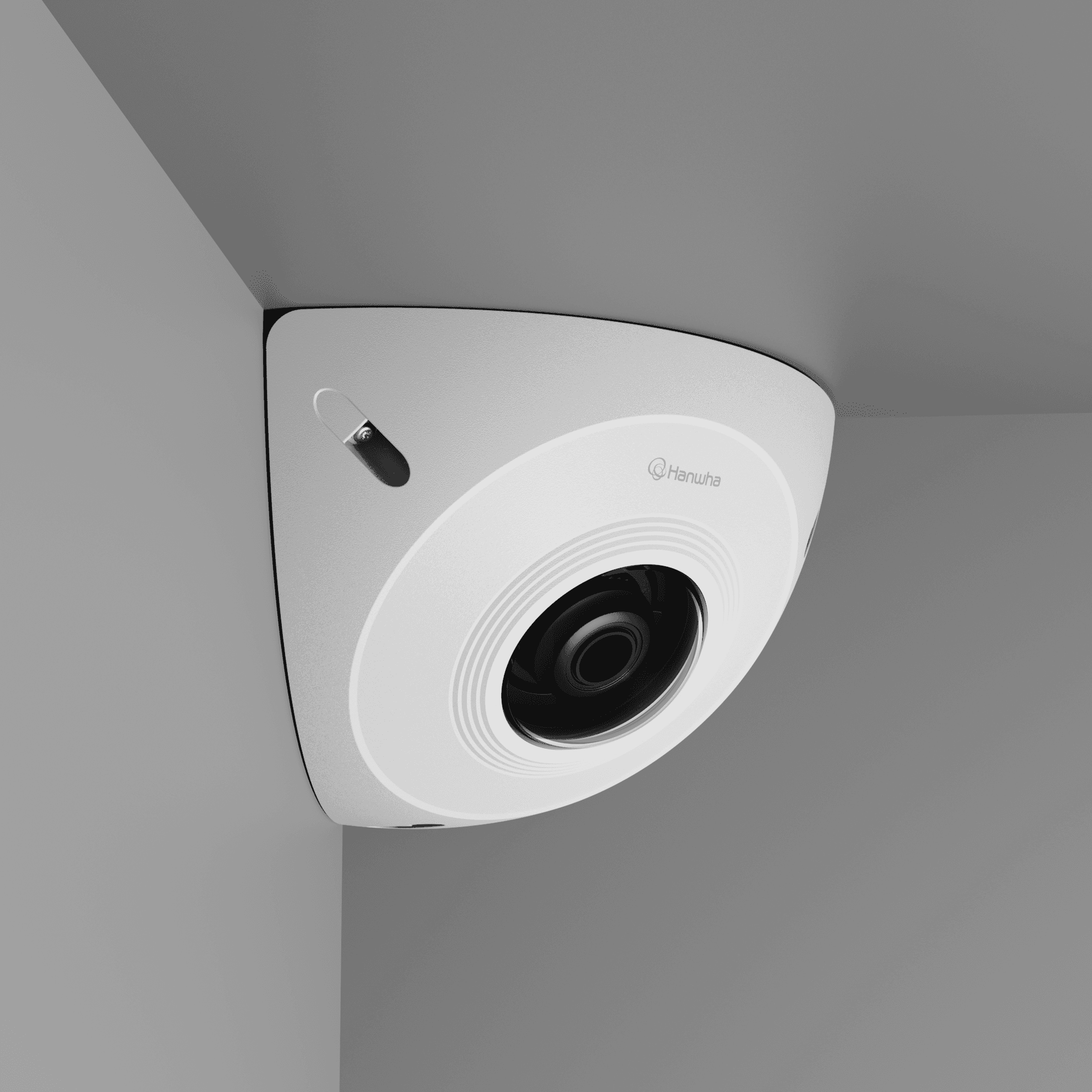

5MP Corner Mount CameraKey Features
• Maximum 5MP resolution
• Maximum 30fps @ all resolutions (H.265/H.264/MJPEG)
• 0.1lux@F2.3(Color), 0.02lux@F2.3(B/W)
• 2.3mm fixed focal
• Anti-ligature design for corrections and behavioral health facilities
• Day & Night Auto(ICR), WDR (120dB)
• Defocus detection, Tampering, Audio detection
• Micro SD/SDHC/SDXC memory slot (128GB)
• Hallway view, WiseStream II support
• PoE, IP66, IP6K9K, IK10
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNV-8011C_240708_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-8011C_240708_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-8011C_240708_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-8011C_240708_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-8011C_240708_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-8011C_240708_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-8011C_240708_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-8011C_240708_TR.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNV-8011C_211123_Common.dxf | 2026-08-06 | |
| CAD | CAD_TNV-8011C_211123_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNV-8011C_211122_EN_IP6K9K.pdf | 2026-08-06 | |
| Certification | Certification_TNV-8011C_211130_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_TNV-8011C_211215_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_TNV-8011C_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNV-8011C_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNV-8011C_230224_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNV-8011C_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_TNV-8011C_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TNV-8011C_230224_EN_FCC-IC.pdf | 2026-08-06 | |
| Certification | Certification_TNV-8011C_211202_EN_IK10.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNV-8010C_2.21.03_20260708_R59.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNV-8011C_220914_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNV-8011C_20260806_EN_145548.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TNV-8011C_240708_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-8011C_240708_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-8011C_240708_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-8011C_240708_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-8011C_240708_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-8011C_240708_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-8011C_240708_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-8011C_240708_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-8011C_240708_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-8011C_240708_TR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_ANO-L6012R%2CLNO-6072R%2CQNB-8002%2CQNO-7082R%2CQNO-6084R%2CTNV-8011C_251209_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 15fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.02 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.3 | |
| Max Aperture Ratio (F number) | Wide | 2.3 |
| Angular Field of View | Horizontal | 131° |
| Vertical | 93.4° | |
| Diagonal | 174° | |
| Focus Control | Fixed |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNR | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 4ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Audio detection, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 512MB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 128GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class2) | |
| Power Consumption | PoE | Max 6.49W, typical 4.6W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | 170(W)x165(H)x78.8(D)mm(6.69x6.49x3.10") | |
| Product Weight | 830g(1.83lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A | |
| Environment | IEC/EN 63000, IEC 60529 IP66, ISO 20653 IP6K9K, IEC 62262 IK10 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 23.6m(77.51ft) |
| Observe (63PPM/ 19PPF) | Wide | 9.4m(31.00ft) |
| Recognize (125PPM/ 38PPF) | Wide | 4.7m(15.50ft) |
| Identify (250PPM/ 76PPF) | Wide | 2.4m(7.75ft) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 15fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.02 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.3 | |
| Max Aperture Ratio (F number) | Wide | 2.3 |
| Angular Field of View | Horizontal | 131° |
| Vertical | 93.4° | |
| Diagonal | 174° | |
| Focus Control | Fixed |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNR | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 4ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Audio detection, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 512MB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 128GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class2) | |
| Power Consumption | PoE | Max 6.49W, typical 4.6W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | 170(W)x165(H)x78.8(D)mm(6.69x6.49x3.10") | |
| Product Weight | 830g(1.83lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A | |
| Environment | IEC/EN 63000, IEC 60529 IP66, ISO 20653 IP6K9K, IEC 62262 IK10 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 23.6m(77.51ft) |
| Observe (63PPM/ 19PPF) | Wide | 9.4m(31.00ft) |
| Recognize (125PPM/ 38PPF) | Wide | 4.7m(15.50ft) |
| Identify (250PPM/ 76PPF) | Wide | 2.4m(7.75ft) |
Accessories
SBC-170CW
SBC-170C
SBC-170CB
