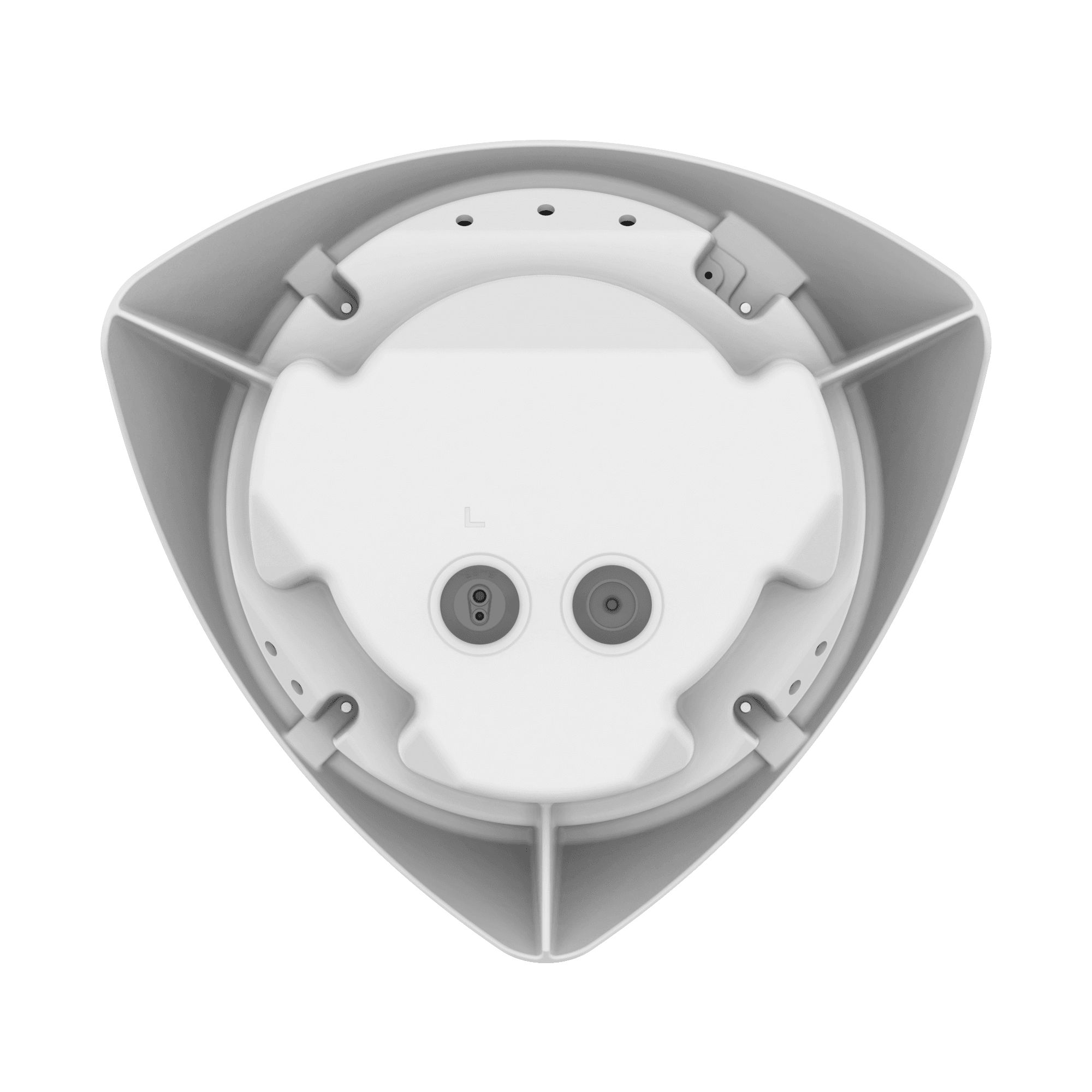

TNV-7011RC
3MP Corner Mount CameraKey Features
• Maximum 3MP (2048 x 1536) resolution
• Maximum 30fps @ all resolutions (H.265/H.264/MJPEG)
• 0.3 lux @ F2.0 (Color), 0 lux @ F2.0 (B/W)
• Built-in 2.8mm fixed lens
• Anti-ligature design for corrections and behavioral health facilities
• Day & Night, WDR (120dB)
• Video & audio analytics, Shock detection
• microSD/SDHC/SDXC memory slot (256GB)
• Hallway view, WiseStream II support
• PoE, DC 12V, IK10+
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNV-7011RC_240705_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-7011RC_240705_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-7011RC_240705_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-7011RC_240705_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-7011RC_240705_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-7011RC_240705_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-7011RC_240705_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNV-7011RC_240705_TR.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNV-7011RC_211123_Common.dxf | 2026-08-06 | |
| CAD | CAD_TNV-7011RC_211123_EN.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNV-7011RC_211130_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_TNV-7011RC_211220_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_TNV-7011RC_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNV-7011RC_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNV-7011RC_230224_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNV-7011RC_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_TNV-7011RC_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TNV-7011RC_230224_EN_EMC_CEEN-50130-4.pdf | 2026-08-06 | |
| Certification | Certification_TNV-7011RC_230224_EN_FCC-IC.pdf | 2026-08-06 | |
| Certification | Certification_TNV-7011RC_211201_EN_IK10.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNV-7010RC_2.23.01_20260721_R99.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNV-7011RC_220914_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNV-7011RC_20260806_EN_145805.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TNV-7011RC_240705_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-7011RC_240705_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-7011RC_240705_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-7011RC_240705_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-7011RC_240705_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-7011RC_240705_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-7011RC_240705_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-7011RC_240705_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-7011RC_240705_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-7011RC_240705_TR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_QNF-8010%2CTNV-7011RC%2CQNP-6320R%2CQNP-6250R%2CXNZ-L6320%2CXNZ-6320_250718_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.3 |
| BW(1/30sec, 30IRE) | 0.03 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 2.8 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 102° |
| Vertical | 75° | |
| Diagonal | 129° | |
| Min. Object Distance | 0.4m(1.31ft) | |
| Focus Control | Manual |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Tilt | 30°~60° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in), Built-in mic | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 10m(32.8ft) |
| IR Wavelength | 940nm |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), PPPoE, PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management |
General
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class2), 12VDC | |
| Power Consumption | PoE | Max 12W, typical 10.1W |
| 12VDC | Max 11W, typical 8.6W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | 274.5(W)x258.5(H)x113.5(D)mm(10.81x10.18x4.5") | |
| Product Weight | 2.1kg(4.63lb) |
Certifications & Standards
| Environment | IEC 60529 IP66, ISO 20653 IP6K9K, IEC 62262 IK10+ |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 33.2m(108.82ft) |
| Observe (63PPM/ 19PPF) | Wide | 13.3m(43.53ft) |
| Recognize (125PPM/ 38PPF) | Wide | 6.6m(21.76ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.3m(10.88ft) |
