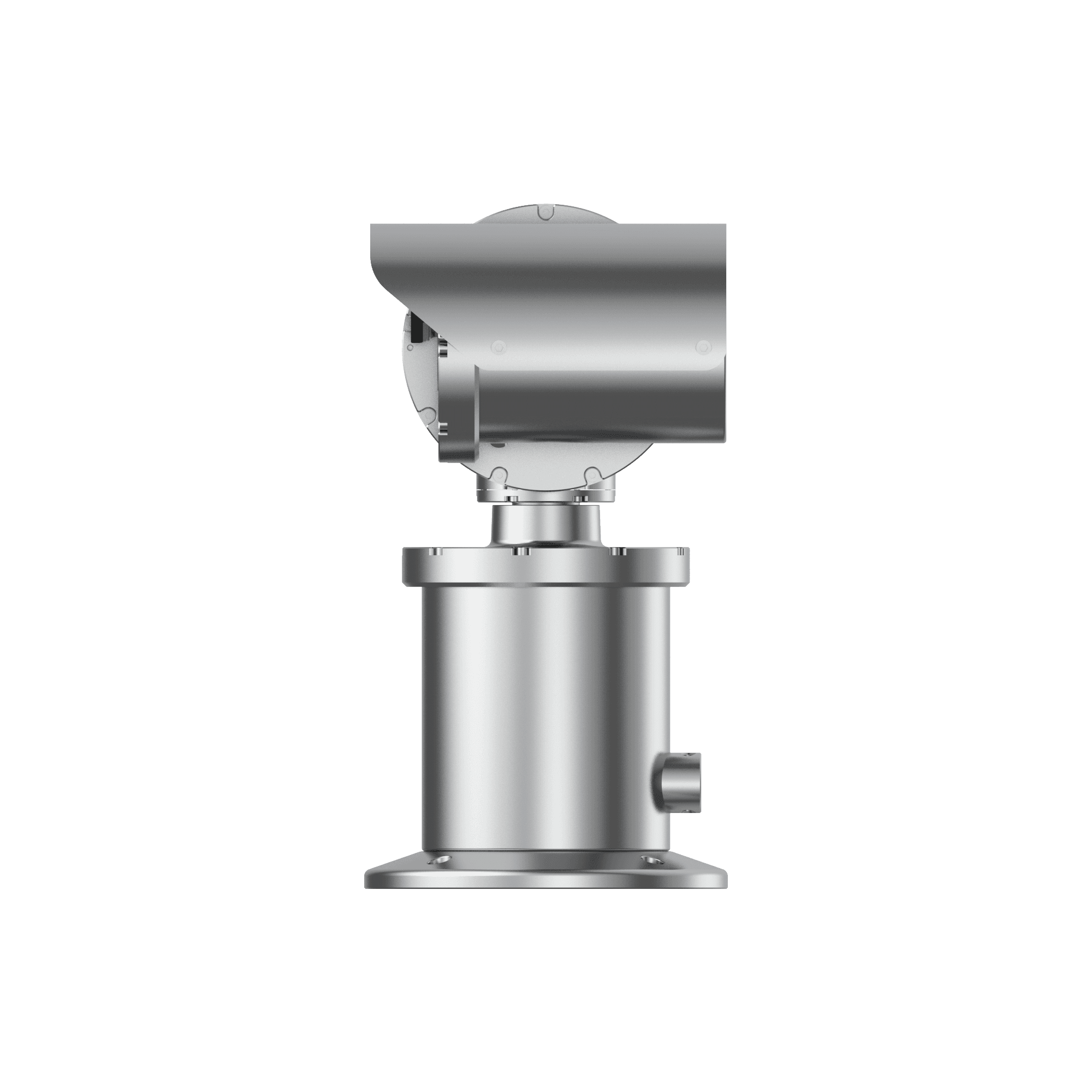

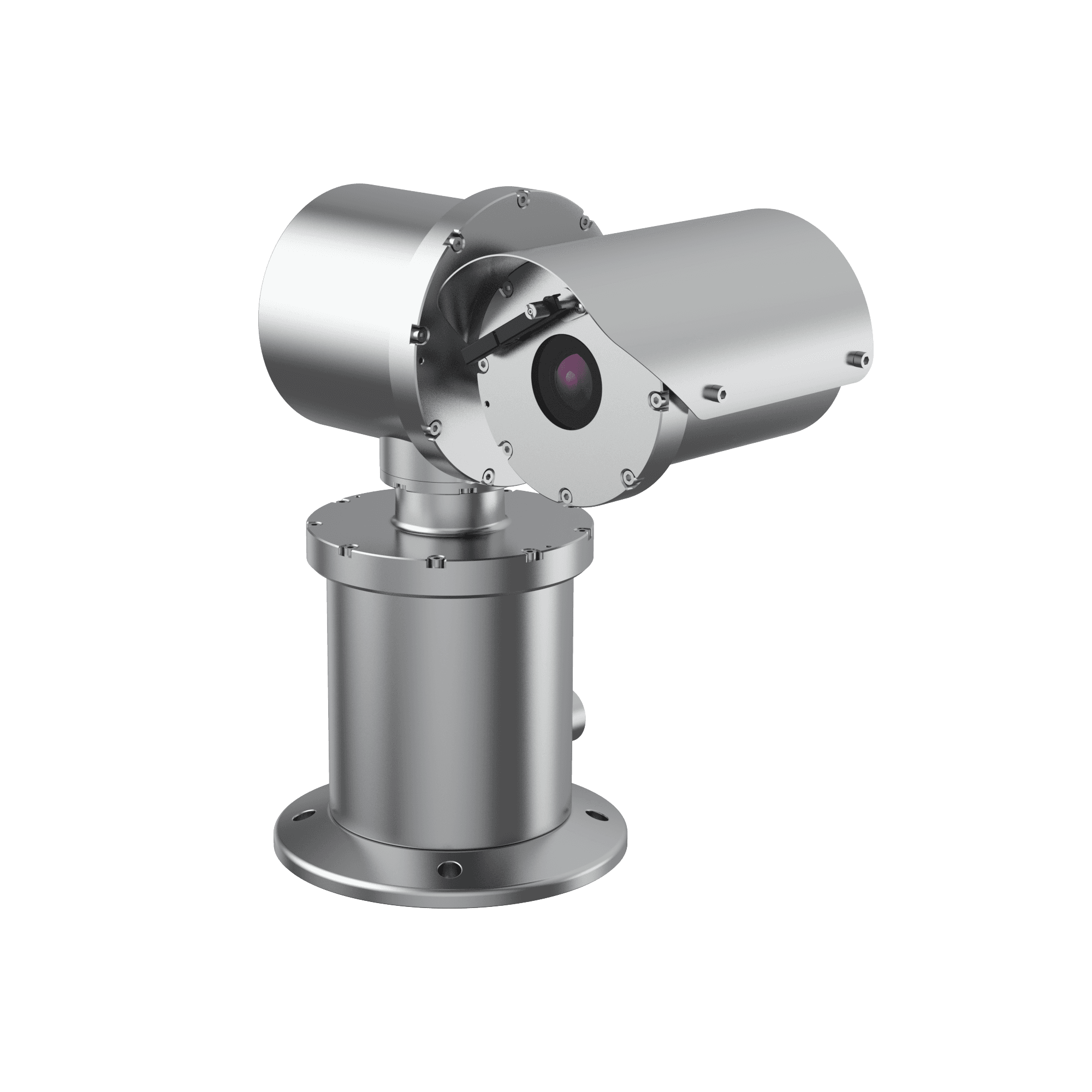

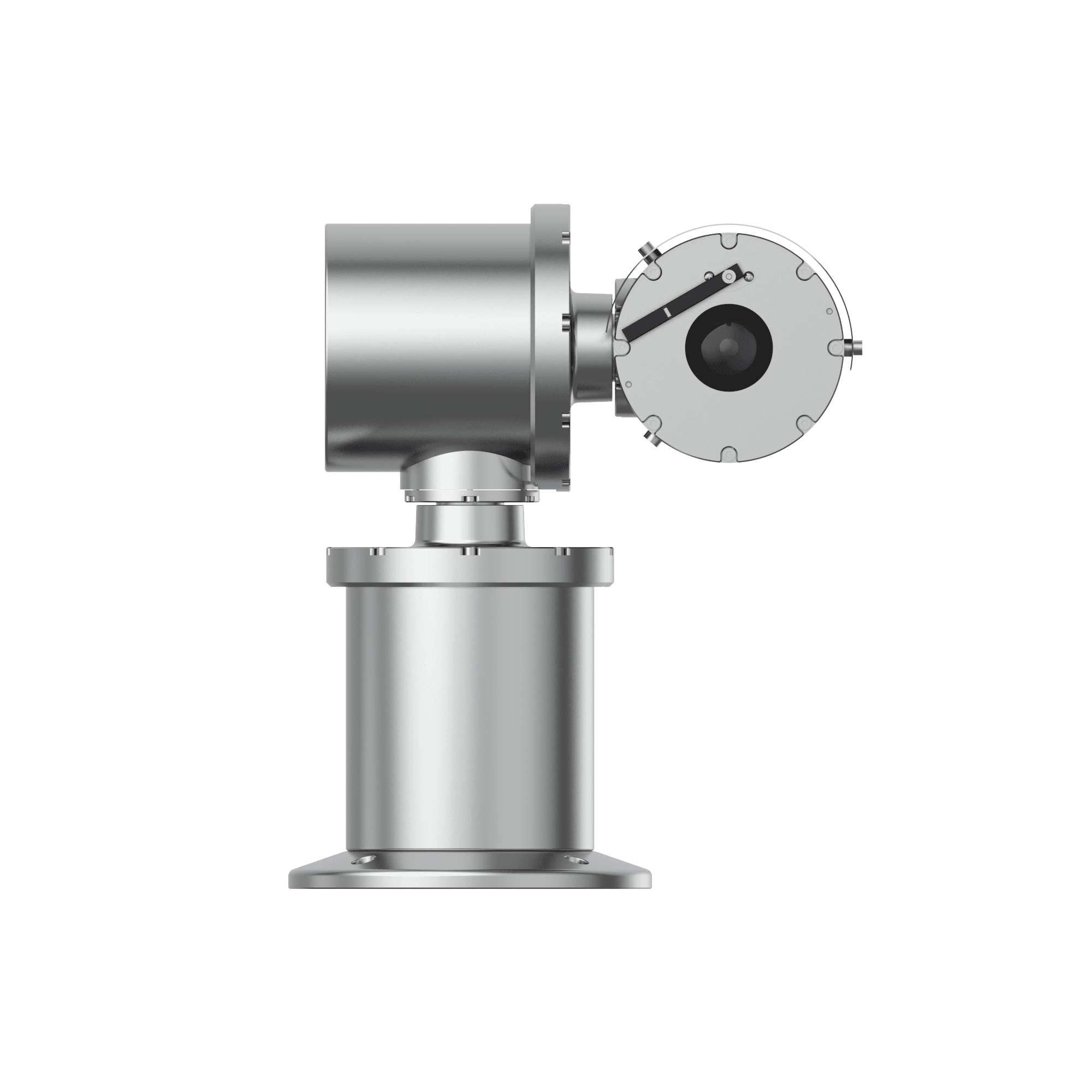

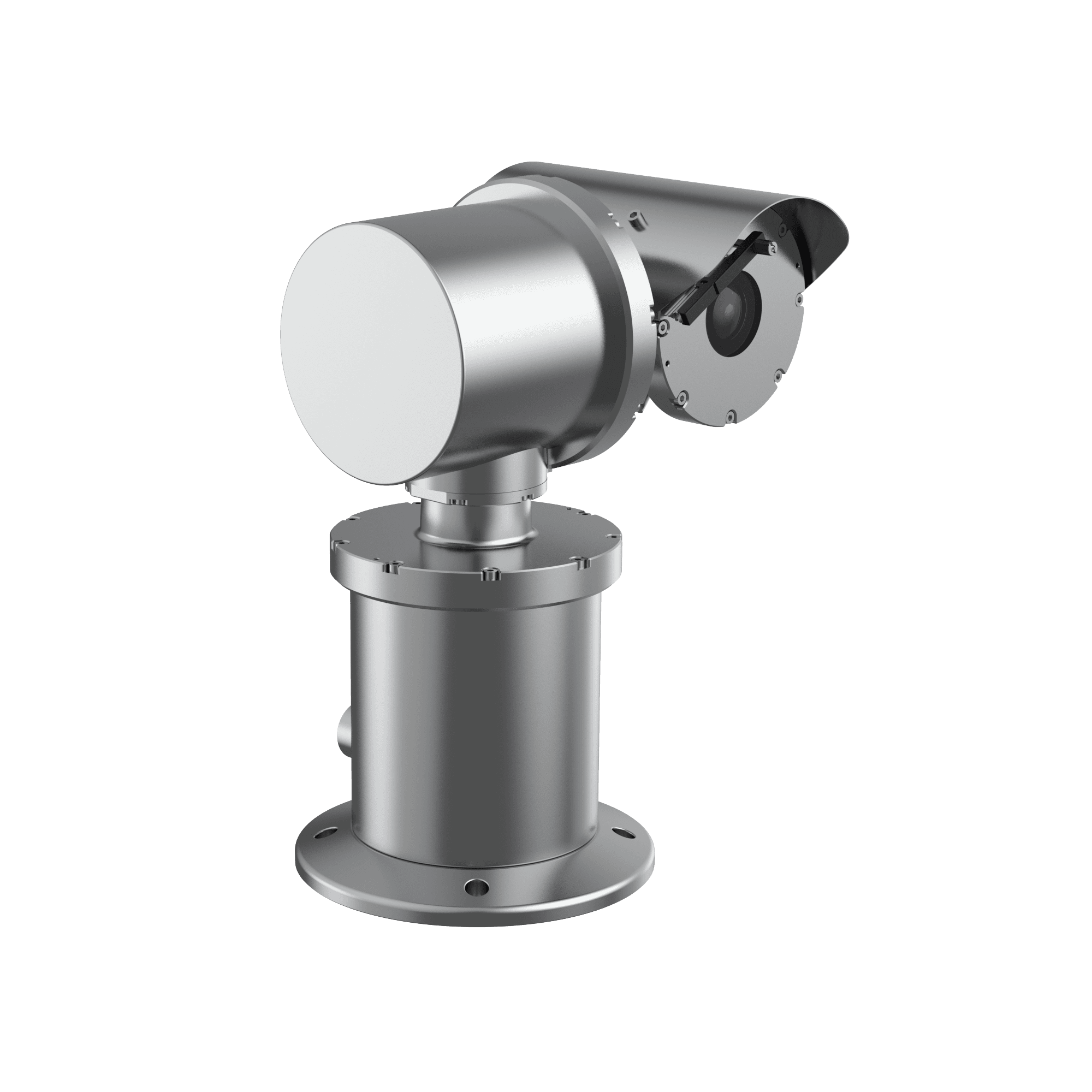

TNU-6324E
2M Explosion-proof CameraKey Features
- 2MP Image Resolution
- 4.44~142.6mm Focal Length
- 180° Tilt Range
- IP67, IK10 Rated
- Max. 2MP (1920 x 1080) resolution
- IECEx, ATEX, KCs, KC, CE/UKCA
- Stainless 316L, Built-in wiper
- H.265, H.264, MJPEG codec, WiseStream II
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNU-6324ER,TNU-6324E_240829_DE.pdf | 2026-04-19 | |
| Manuals | Manuals_TNU-6324ER,TNU-6324E_240829_EN.pdf | 2026-04-19 | |
| Manuals | Manuals_TNU-6324ER,TNU-6324E_240829_ES.pdf | 2026-04-19 | |
| Manuals | Manuals_TNU-6324ER,TNU-6324E_240829_FR.pdf | 2026-04-19 | |
| Manuals | Manuals_TNU-6324ER,TNU-6324E_240829_IT.pdf | 2026-04-19 | |
| Manuals | Manuals_TNU-6324ER,TNU-6324E_240829_PL.pdf | 2026-04-19 | |
| Manuals | Manuals_TNU-6324ER,TNU-6324E_240829_PT.pdf | 2026-04-19 | |
| Manuals | Manuals_TNU-6324ER,TNU-6324E_240829_TR.pdf | 2026-04-19 | |
| Manuals | Manuals_TNU-6324ER,TNU-6324E_240829_ZH.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNU-6324ER_20250703_Common.dwg | 2026-04-19 | |
| CAD | CAD_TNU-6324ER_20250703_Common.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNU-6324E_240411_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_TNU-6324E_240411_EN_EMC_CE.pdf | 2026-04-19 | |
| Certification | Certification_TNU-6324E_240412_EN_IK10.pdf | 2026-04-19 | |
| Certification | Certification_TNU-6324ER,TNU-6324E_240712_EN_IECEx.pdf | 2026-04-19 | |
| Certification | Certification_TNU-6324ER,TNU-6324E_240903_EN_ATEX.pdf | 2026-04-19 | |
| Certification | Certification_TNU-6324ER,TNU-6324E_241015_EN_UKEX.pdf | 2026-04-19 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNU-6324E_241115_EN.docx | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNU-6324E_20260119_EN_143006.pdf | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_CS.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_DE.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_EN.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_ES.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_FR.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_IT.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_NL.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_PL.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_PT.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_TR.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_TNU-6324ER%2CTNU-6324E_250708_ZH.pdf | 2026-04-19 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNU-6324ETNU-6324ER_20241215_EN-1.pdf | 2026-04-19 | |
| Online Help | Online-Help_TNU-6324ETNU-6324ER_20241215_ES-1.pdf | 2026-04-19 | |
| Online Help | Online-Help_TNU-6324ETNU-6324ER_20241215_FR-1.pdf | 2026-04-19 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNU-6324ETNU-6324ER_240117_EN.txt | 2026-04-19 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.05 |
| BW(1/30sec, 30IRE) | 0.005 |
Lens
| Focal Length (mm) | 4.44~142.6 | |
| Zoom Ratio | Optical | 32x |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 4.4 | |
| Angular Field of View | Horizontal | 61.8°~2.19° |
| Vertical | 36.2°~1.24° | |
| Min. Object Distance | 1.5m(4.92ft) | |
| Focus Control | Oneshot AF | |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 360° Endless |
| Tilt | 180°(-90° ~90°) | |
| Pan Speed | Manual | 0.5°/sec ~80°/sec |
| Tilt Speed | Manual | 0.1°/sec~60°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.25° |
Operational
| Direction Indicator | Support | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 1~1/12,000sec | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Alarm output, Handover: PTZ preset, NAS recording at event triggers | |
| Water Removal | Support(with Wiper) |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Fog detection, Face detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management |
General
| Memory | RAM | 1GB |
| Flash | 256MB |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | 110VAC, 220VAC | |
| Power Consumption | 110VAC | 1.4A, Max. 87W |
Mechanical
| Color | Silver | |
| Material | Stainless(STS316L) | |
| Product Dimensions | 611(W)x438(H)x235(D)mm(24.06x17.24x9.25") | |
| Product Weight | 36kg(79.37lb) |
Certifications & Standards
| Environment | IEC 60529 IP67, IEC 62262 IK10, ATEX II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db, IECEx Ex db IIC T6 Gb, Ex tb IIIC T80°C Db, KCs |
