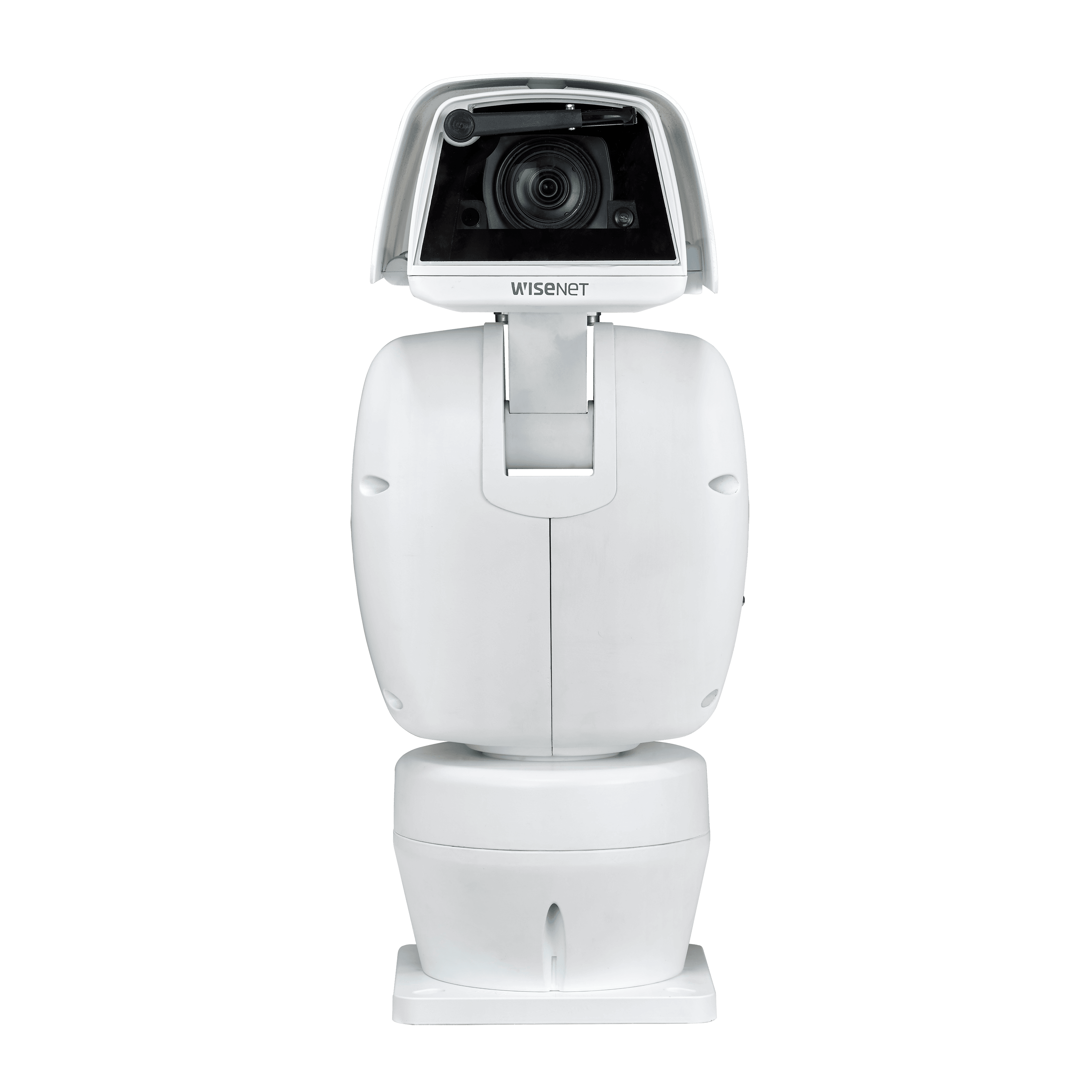

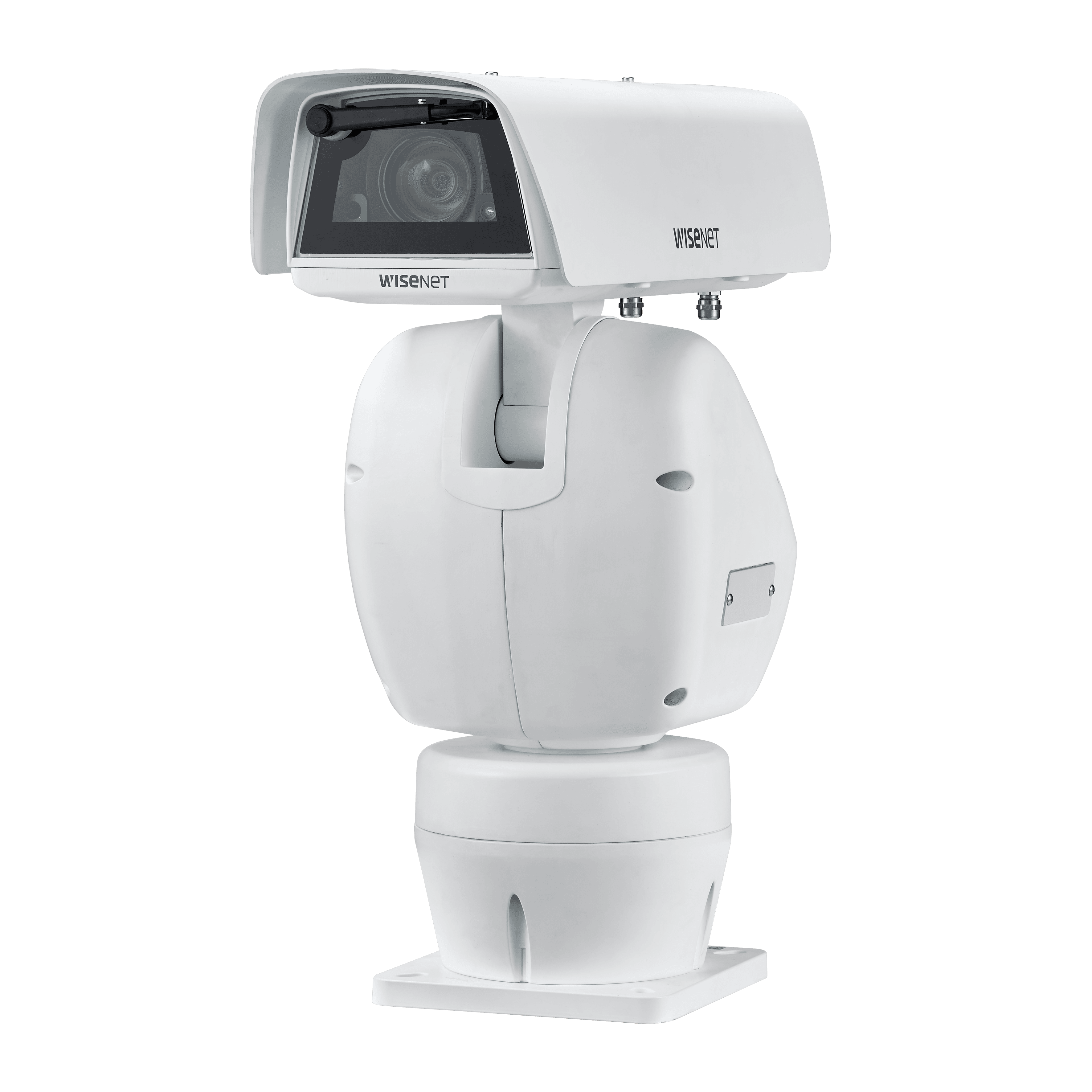

TNU-6321
2MP Positioning CameraKey Features
• Max. 2megapixel (1920 x 1080) resolution
• 4.44 ~ 142.6mm (32x) varifocal lens
• Max. 60fps@2MP (H.265/H.264), Max. 30fps@2MP (MJPEG)
• H.265, H.264, MJPEG codec support
• Day & Night (ICR), WDR (120dB), Defog
• Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection
• Face detection, Motion detection
• microSD / SDHC / SDXC slot
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNU-6321_230321_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_TNU-6321_230321_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_TNU-6321_230321_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_TNU-6321_230321_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNU-6321_230321_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNU-6321_230321_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_TNU-6321_230321_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNU-6321_230321_TR.pdf | 2026-08-06 |
Test Reports
| Category | File Name | Last Update | |
|---|---|---|---|
| Test Reports | Test-Reports_TNU-6321_20220926_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNU-6321_220721_Common.dxf | 2026-08-06 | |
| CAD | CAD_TNU-6321_220926_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNU-6321_200522_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_TNU-6321_200529_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_TNU-6321_200529_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TNU-6321_200529_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TNU-6321_200529_KO_Report_KC(Tel).pdf | 2026-08-06 | |
| Certification | Certification_TNU-6321_200608_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TNU-6321_200624_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_TNU-6321_210705_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNU-6321_210705_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNU-6321_210705_EN_FCC-IC.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNU-6321_2.01.04_20260213_R121.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNU-6321_200730_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNU-6321_20260806_EN_135135.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_TNU-6321_200923_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_TNU-6321_200923_Common_mm.rfa | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TNU-6321_230321_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNU-6321_230321_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNU-6321_230321_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNU-6321_230321_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNU-6321_230321_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNU-6321_230321_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNU-6321_230321_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNU-6321_230321_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNU-6321_230321_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNU-6321_230321_TR.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNU-6321_20200708_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNU-6321_20200708_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNU-6321_20200708_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNU-6321_200619_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.05 |
| BW(1/30sec, 30IRE) | 0.005 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 4.44~142.6 | |
| Zoom Ratio | Optical | 32x |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 4.4 | |
| Angular Field of View | Horizontal | 61.8˚~2.19˚ |
| Vertical | 36.2˚~1.24˚ | |
| Min. Object Distance | 1.5m(4.92ft) | |
| Focus Control | Auto, Oneshot AF | |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 360˚ Endless |
| Tilt | -90˚~40˚ | |
| Pan Speed | Preset | Max. 120°/sec |
| Manual | 0.036°/sec~120°/sec | |
| Tilt Speed | Preset | Max. 40°/sec |
| Manual | 0.012°/sec~40°/sec | |
| Sequence | Preset(255ea), Swing, Group(6ea), Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.3° |
Operational
| Direction Indicator | Support | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 1~1/12,000sec | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Water Removal | Support(with Wiper) |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -30°C | |
| Storage Condition | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 24VAC | |
| Power Consumption | 24VAC | Max. 100W(Heater On), typical 25W(Heater Off) |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | 219(W)×528.2(H)×460(D)mm(8.62x20.79x18.11") | |
| Product Weight | 14,000g(30.86lb) |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 64.2m(210.50ft) |
| Tele | 2,009.0m(6,591.31ft) | |
| Observe (63PPM/ 19PPF) | Wide | 25.7m(84.20ft) |
| Tele | 803.6m(2,636.53ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 12.8m(42.10ft) |
| Tele | 401.8m(1,318.26ft) | |
| Identify (250PPM/ 76PPF) | Wide | 6.4m(21.05ft) |
| Tele | 200.9m(659.13ft) |
