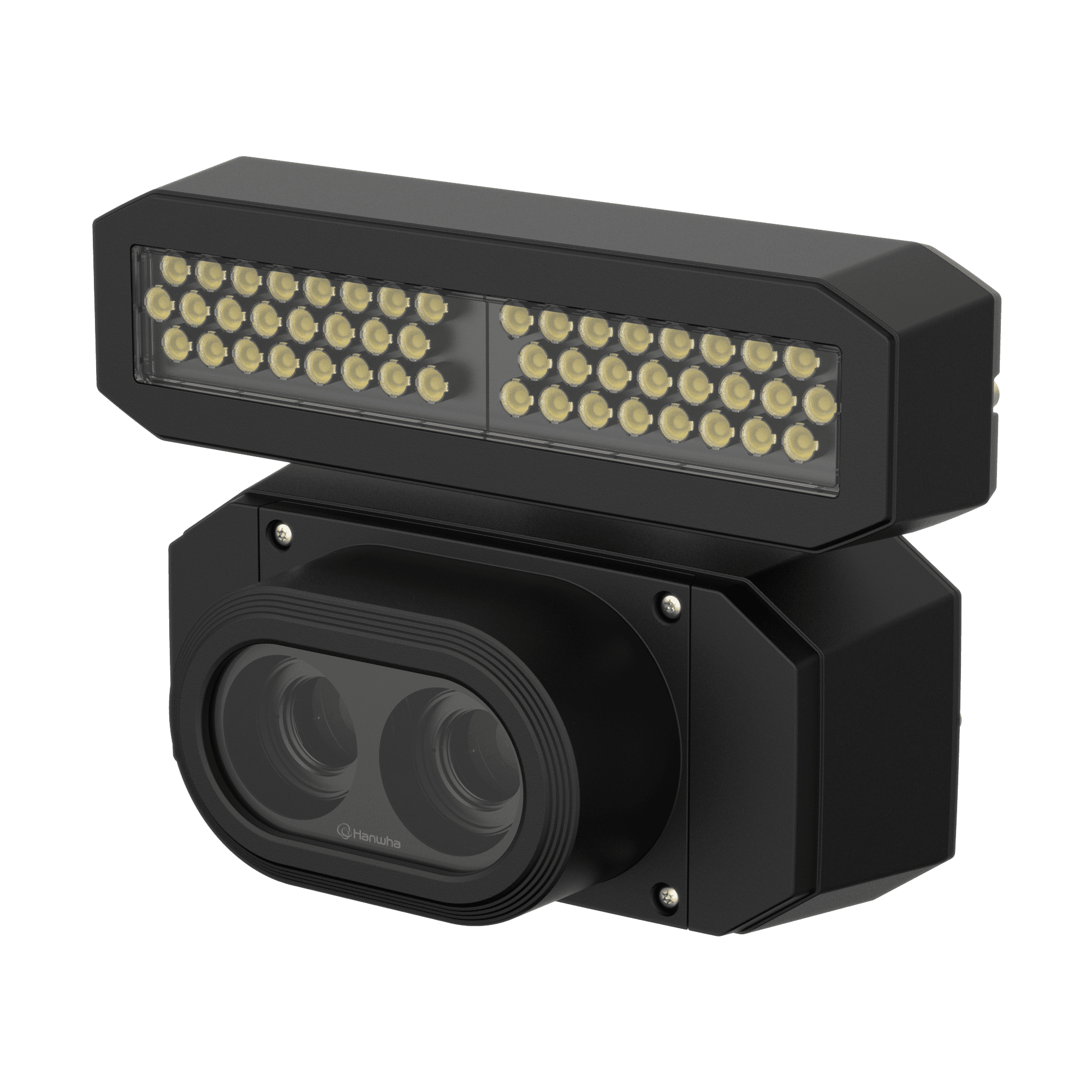

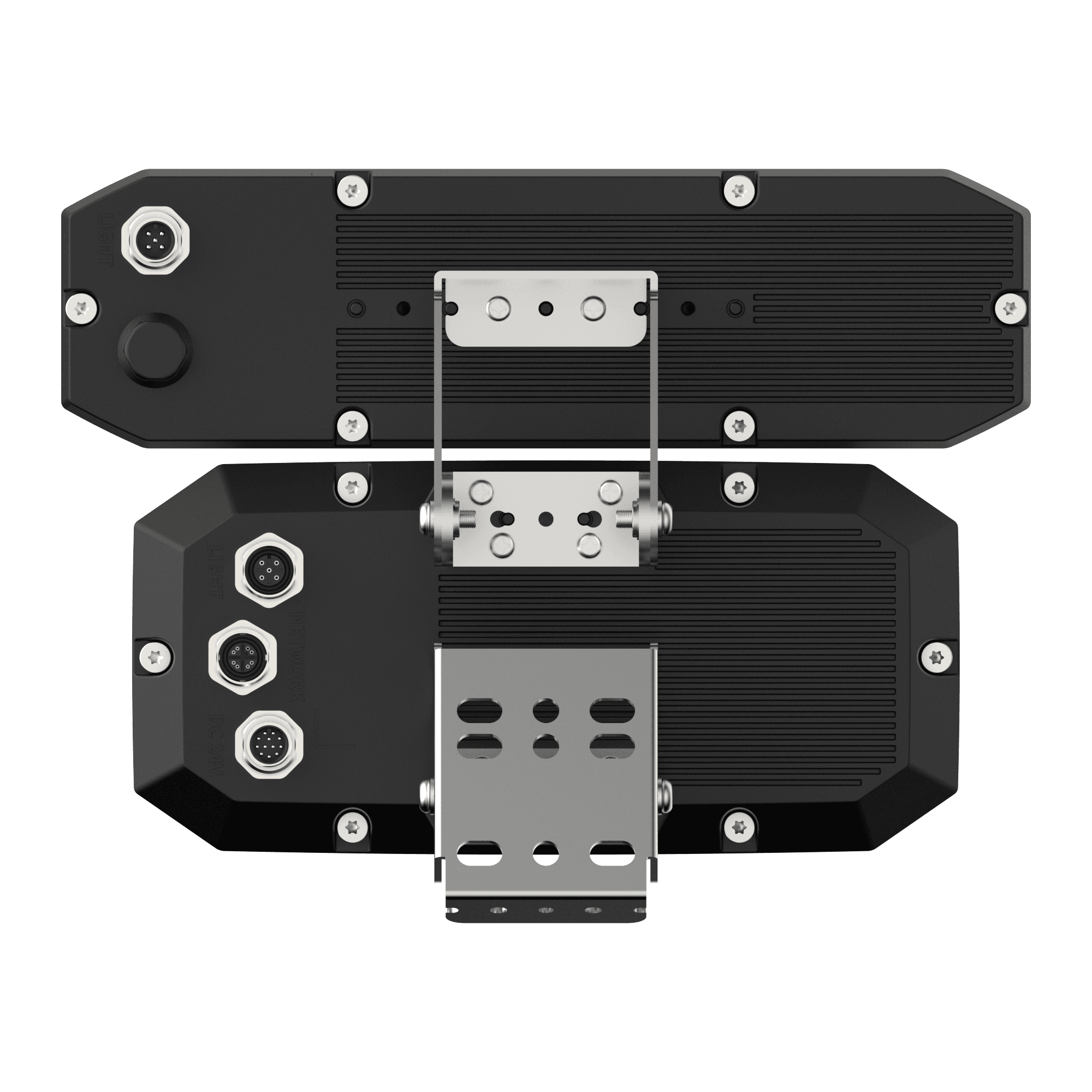

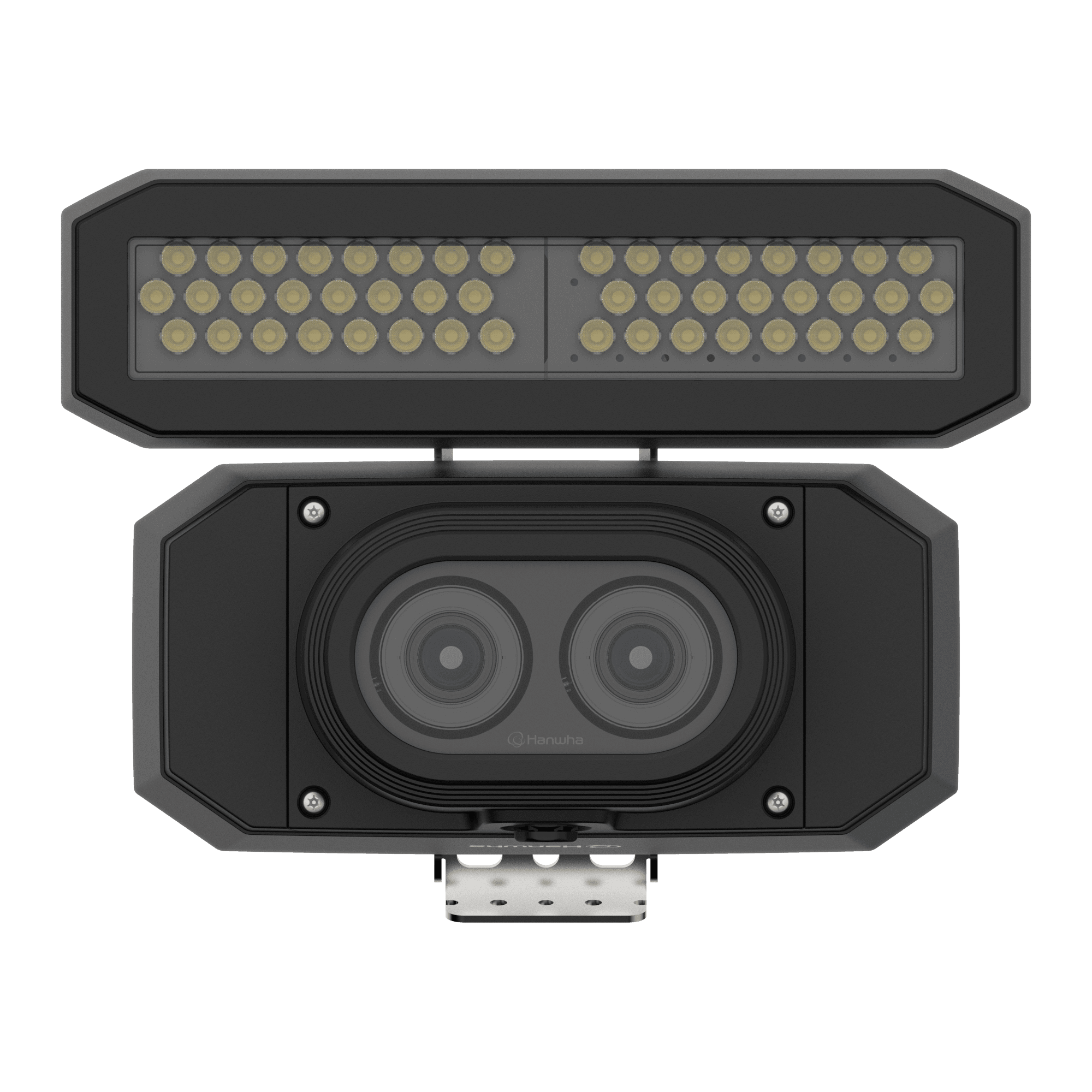

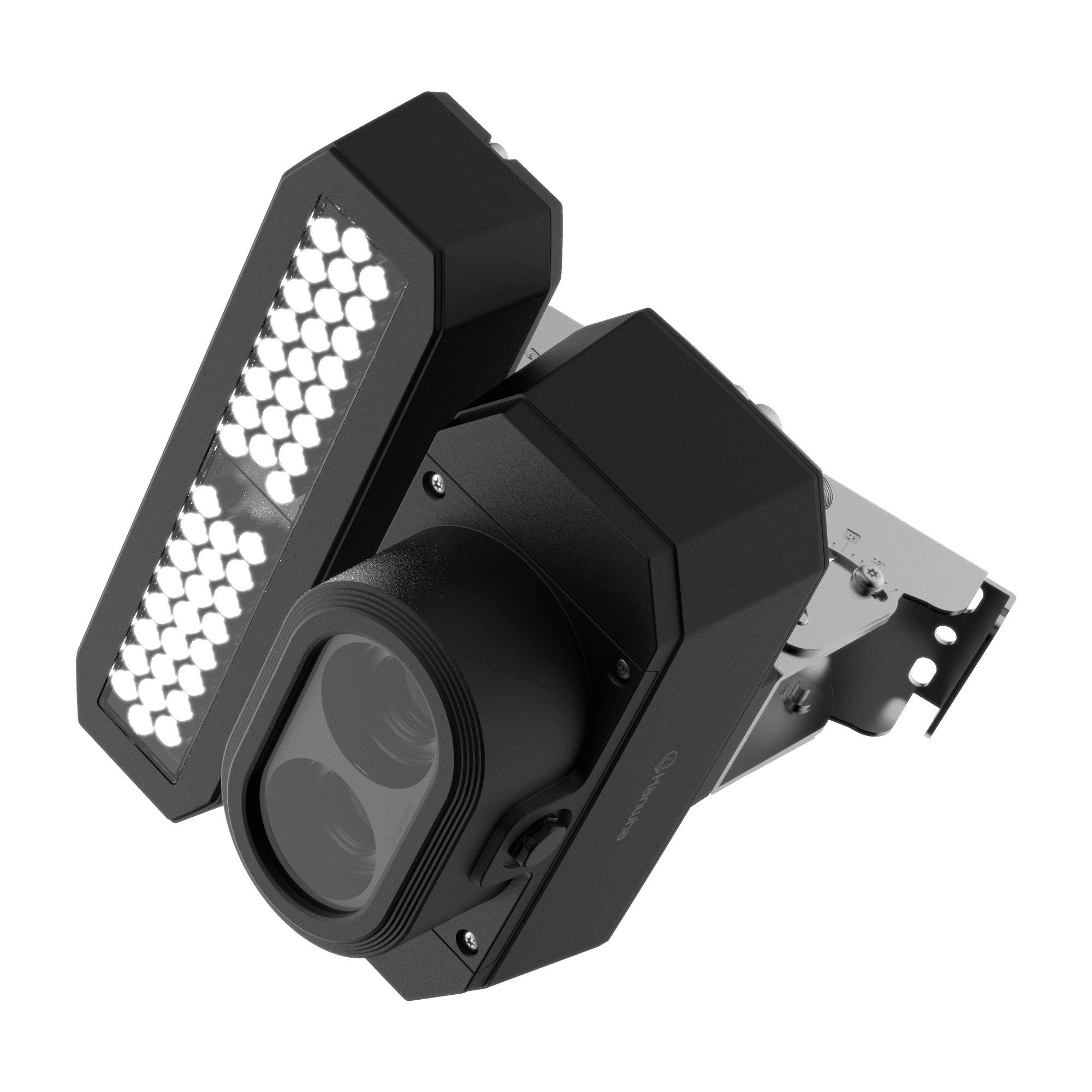

TNS-9060IBC
Dual Sensor BCR CameraKey Features
- AI-powered location search reliably reads 1D codes on conveyor belts moving up to 2m/s
- Eliminates manual errors, boosts speed, and provides full traceability to reduce returns
- Reads 1D code and 2D code for multiple orientations and supports high data storage capacity for complex workflows
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNS-9040IBC,TNS-9050IBC,TNS-9060IBC_250514_EN.pdf | 2026-09-14 | |
| Manuals | Manuals_TNS-9040IBC,TNS-9050IBC,TNS-9060IBC_250520_DE.pdf | 2026-09-14 | |
| Manuals | Manuals_TNS-9040IBC,TNS-9050IBC,TNS-9060IBC_250520_ES.pdf | 2026-09-14 | |
| Manuals | Manuals_TNS-9040IBC,TNS-9050IBC,TNS-9060IBC_250520_FR.pdf | 2026-09-14 | |
| Manuals | Manuals_TNS-9040IBC,TNS-9050IBC,TNS-9060IBC_250520_IT.pdf | 2026-09-14 | |
| Manuals | Manuals_TNS-9040IBC,TNS-9050IBC,TNS-9060IBC_250520_PL.pdf | 2026-09-14 | |
| Manuals | Manuals_TNS-9040IBC,TNS-9050IBC,TNS-9060IBC_250520_PT.pdf | 2026-09-14 | |
| Manuals | Manuals_TNS-9040IBC,TNS-9050IBC,TNS-9060IBC_250520_TR.pdf | 2026-09-14 | |
| Manuals | Manuals_TNS-9040IBC,TNS-9050IBC,TNS-9060IBC_250520_ZH.pdf | 2026-09-14 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNS-9040IBCTNS-9050IBCTNS-9060IBC_241203_Common.dxf | 2026-09-14 | |
| CAD | CAD_TNS-9040IBCTNS-9050IBCTNS-9060IBC_241203_Common.pdf | 2026-09-14 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNS-9050IBC,TNS-9040IBC,TNS-9060IBC_241106_EN_DoC_CE.pdf | 2026-09-14 | |
| Certification | Certification_TNS-9050IBC,TNS-9040IBC,TNS-9060IBC_241106_EN_DoC_UKCA.pdf | 2026-09-14 | |
| Certification | Certification_TNS-9060IBC_240805_EN_IP66.pdf | 2026-09-14 | |
| Certification | Certification_TNS-9060IBC_240805_EN_IP67.pdf | 2026-09-14 | |
| Certification | Certification_TNS-9060IBC_240808_EN_IK10.pdf | 2026-09-14 | |
| Certification | Certification_TNS-9060IBC_240808_EN_NEMA4X.pdf | 2026-09-14 | |
| Certification | Certification_TNS-9060IBC_240812_EN_UL.pdf | 2026-09-14 | |
| Certification | Certification_TNS-9060IBC_241115_EN_EMC_CE,UKCA.pdf | 2026-09-14 | |
| Certification | Certification_TNS-9060IBC_241115_EN_FCC,IC.pdf | 2026-09-14 | |
| Certification | Certification_TNS-9060IBC_241115_EN_RCM.pdf | 2026-09-14 | |
| Certification | Certification_TNS-9060IBC_241115_EN_VCCI.pdf | 2026-09-14 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNS-9050IBC_2.21.05_20260325_R309.zip | 2026-09-14 | |
| Firmware | WiseBCR_v_TNS-9050IBC_1_01_04_20251023.zip | 2026-09-14 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNS-9060IBC_240822_EN.docx | 2026-09-14 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNS-9060IBC_20260831_EN_134356.pdf | 2026-09-14 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_CS.pdf | 2026-09-14 | |
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_DE.pdf | 2026-09-14 | |
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_EN.pdf | 2026-09-14 | |
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_ES.pdf | 2026-09-14 | |
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_FR.pdf | 2026-09-14 | |
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_IT.pdf | 2026-09-14 | |
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_NL.pdf | 2026-09-14 | |
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_PL.pdf | 2026-09-14 | |
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_PT.pdf | 2026-09-14 | |
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_TR.pdf | 2026-09-14 | |
| Quick Guide | Quick-Guide_TNS-9040IBCTNS-9050IBCTNS-9060IBC_250213_ZH.pdf | 2026-09-14 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online%20Help_TNS-7000M%2CTNS-9060IBC%2CTNS-9050IBC%2CTNS-9040IBC_250825_EN_WiseBCR.pdf | 2026-09-14 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNS-9050IBC_240117_EN.txt | 2026-09-14 |
Specifications
Video
| Imaging Device | Size | - | 1" | 1" |
| Type | - | CMOS | CMOS | |
| Resolution | - | 4096x2160 | 4096x2160, 640x360 | |
| Max. Framerate | H.265/H.264 | - | 20fps/20fps(60Hz/50Hz) | 20fps/20fps(60Hz/50Hz) |
| Pixel Size | 3.45㎛ | - | - |
Lens
| Focal Length (mm) | 35mm | - | - | |
| Max Aperture Ratio (F number) | Wide | - | F8.0 | F8.0 |
| Angular Field of View | Horizontal | - | 21.5° | 21.5° |
| Vertical | - | 11.5° | 11.5° | |
| Diagonal | - | 24.2° | 24.2° | |
| Min. Object Distance | 0.2m (0.66ft) | - | - | |
| Focus Control | Manual | - | - | |
| Lens Type | Manual | - | - | |
| Mount Type | C mount | - | - |
Operational
| Digital Noise Reduction | SSNR | - | - | |
| Gain Control | Manual | - | - | |
| White Balance | AWC, Manual | - | - | |
| Electronic Shutter | Mode | Global shutter mode | - | - |
| Speed Range | 1/30~1/10,000s (33.3ms~100㎲) | - | - | |
| Video Rotation | Flip, Mirror | - | - | |
| Alarm Interface | In/Out | Output 1ea | - | - |
| LED | Color | White(M12 5pin connector) | - | - |
| Color Temperature | 5700K | - | - | |
| Quantity | 48EA | - | - |
Analytics
| Barcode Type | 1D Code | Code128, CODE39, CODE93, Codabar, ITF(Interleaved 2 of 5), UPC, EAN | - | - |
| 2D Code | QRcode, DataMatrix, Maxicode, PDF417 | - | - |
Network
| Ethernet | M12 8pin connector(10/100/1000BASE-T) | - | - | |
| Video Compression | H.265/H.264: Main/High, MJPEG | - | - | |
| Streaming | Unicast | Up to 6 users | - | - |
| Multicast | Support | - | - | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), MQTT | - | - | |
| Application Programming Interface | ONVIF | M | - | - |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | - | - |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | - | - | |
| User authentication | Digest authentication, Prevent brute-force attack | - | - | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | - | - | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | - | - | |
| Access Control | IP-based access control | - | - | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | - | - | |
| Audit | Access / System / Event Log management | - | - | |
| Device ID | Device certificate(Hanwha Vision Root CA) | - | - | |
| Secure Storage | HTPM(Hanwha Trusted Platform Module) | - | - |
General
| Memory | RAM | 4GB | - | - |
| Flash | 512MB | - | - |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) | - | - |
| Humidity | 0~95% RH(non-condensing) | - | - | |
| Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C | - | - | |
| Storage Condition | Temperature | -40°C~+60°C(-40°F~+140°F) | - | - |
| Humidity | 0~95% RH(non-condensing) | - | - | |
| Input Voltage | 24VDC, M12 12pin connector | - | - | |
| Power Consumption | 24VDC | Max 35.4W, Typical 13.7W * Max: LED On Typical: LED Off | - | - |
Mechanical
| Color | Black | - | - | |
| Material | Aluminum | - | - | |
| RAL Code | RAL9005 | - | - | |
| Product Dimensions | Camera: 218x104.1x127.1mm LED: 255.8x73.8x49.8mm Total: 255.8x181x127.1mm(with install bracket) | - | - | |
| Product Weight | Camera: 1897g LED: 996g Total: 3438g(with install bracket) | - | - |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835 | - | - | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | - | - | |
| Environment | IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS-2 2.2.9 (shock resistance), IEC 60068-2-6, IEC 60068-2-27 | - | - |
Video
| Imaging Device | Size | - | 1" | 1" |
| Type | - | CMOS | CMOS | |
| Resolution | - | 4096x2160 | 4096x2160, 640x360 | |
| Max. Framerate | H.265/H.264 | - | 20fps/20fps(60Hz/50Hz) | 20fps/20fps(60Hz/50Hz) |
| Pixel Size | 3.45㎛ | - | - |
Lens
| Focal Length (mm) | 35mm | - | - | |
| Max Aperture Ratio (F number) | Wide | - | F8.0 | F8.0 |
| Angular Field of View | Horizontal | - | 21.5° | 21.5° |
| Vertical | - | 11.5° | 11.5° | |
| Diagonal | - | 24.2° | 24.2° | |
| Min. Object Distance | 0.2m (0.66ft) | - | - | |
| Focus Control | Manual | - | - | |
| Lens Type | Manual | - | - | |
| Mount Type | C mount | - | - |
Operational
| Digital Noise Reduction | SSNR | - | - | |
| Gain Control | Manual | - | - | |
| White Balance | AWC, Manual | - | - | |
| Electronic Shutter | Mode | Global shutter mode | - | - |
| Speed Range | 1/30~1/10,000s (33.3ms~100㎲) | - | - | |
| Video Rotation | Flip, Mirror | - | - | |
| Alarm Interface | In/Out | Output 1ea | - | - |
| LED | Color | White(M12 5pin connector) | - | - |
| Color Temperature | 5700K | - | - | |
| Quantity | 48EA | - | - |
Analytics
| Barcode Type | 1D Code | Code128, CODE39, CODE93, Codabar, ITF(Interleaved 2 of 5), UPC, EAN | - | - |
| 2D Code | QRcode, DataMatrix, Maxicode, PDF417 | - | - |
Network
| Ethernet | M12 8pin connector(10/100/1000BASE-T) | - | - | |
| Video Compression | H.265/H.264: Main/High, MJPEG | - | - | |
| Streaming | Unicast | Up to 6 users | - | - |
| Multicast | Support | - | - | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), MQTT | - | - | |
| Application Programming Interface | ONVIF | M | - | - |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | - | - |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | - | - | |
| User authentication | Digest authentication, Prevent brute-force attack | - | - | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | - | - | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | - | - | |
| Access Control | IP-based access control | - | - | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | - | - | |
| Audit | Access / System / Event Log management | - | - | |
| Device ID | Device certificate(Hanwha Vision Root CA) | - | - | |
| Secure Storage | HTPM(Hanwha Trusted Platform Module) | - | - |
General
| Memory | RAM | 4GB | - | - |
| Flash | 512MB | - | - |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) | - | - |
| Humidity | 0~95% RH(non-condensing) | - | - | |
| Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C | - | - | |
| Storage Condition | Temperature | -40°C~+60°C(-40°F~+140°F) | - | - |
| Humidity | 0~95% RH(non-condensing) | - | - | |
| Input Voltage | 24VDC, M12 12pin connector | - | - | |
| Power Consumption | 24VDC | Max 35.4W, Typical 13.7W * Max: LED On Typical: LED Off | - | - |
Mechanical
| Color | Black | - | - | |
| Material | Aluminum | - | - | |
| RAL Code | RAL9005 | - | - | |
| Product Dimensions | Camera: 218x104.1x127.1mm LED: 255.8x73.8x49.8mm Total: 255.8x181x127.1mm(with install bracket) | - | - | |
| Product Weight | Camera: 1897g LED: 996g Total: 3438g(with install bracket) | - | - |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835 | - | - | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | - | - | |
| Environment | IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS-2 2.2.9 (shock resistance), IEC 60068-2-6, IEC 60068-2-27 | - | - |
