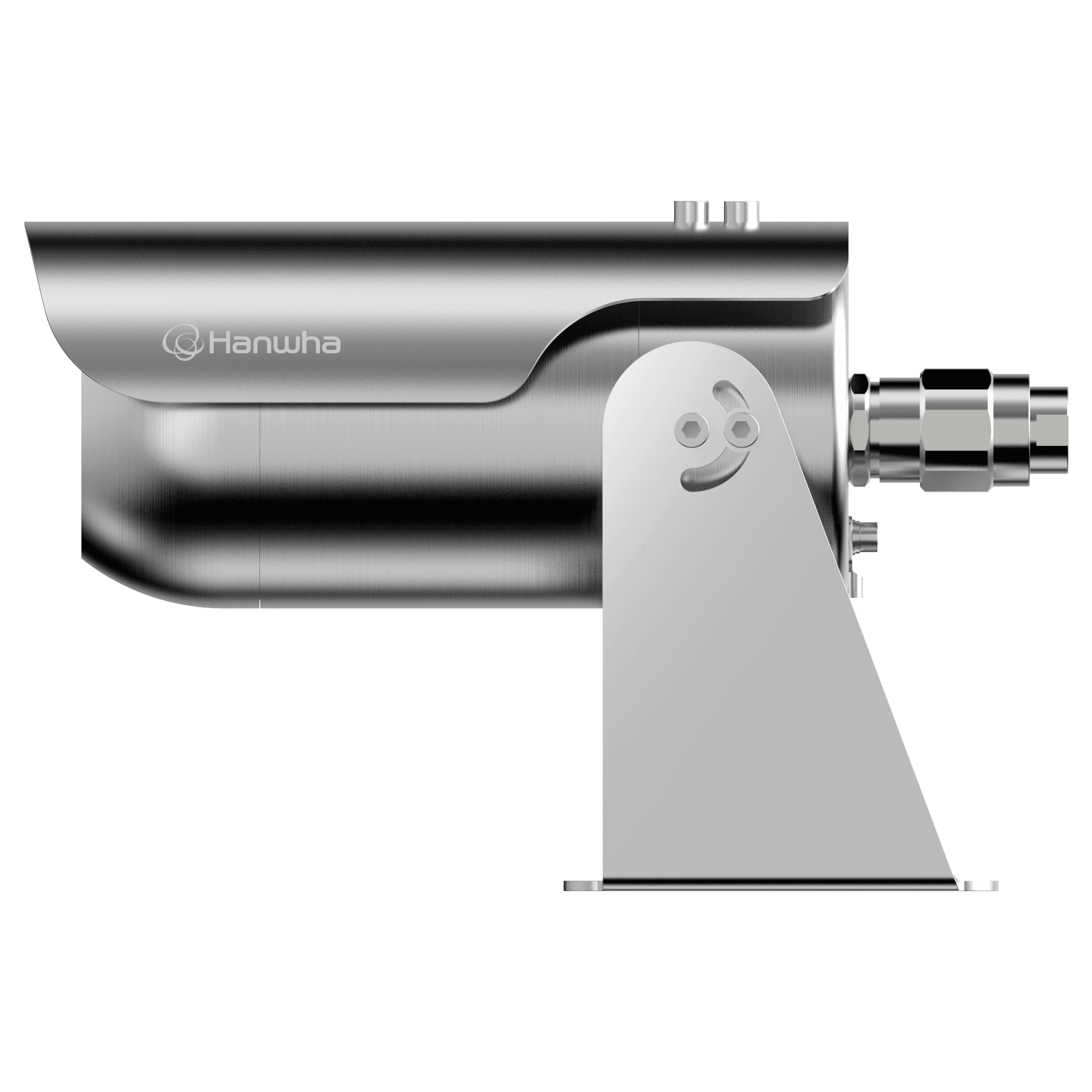

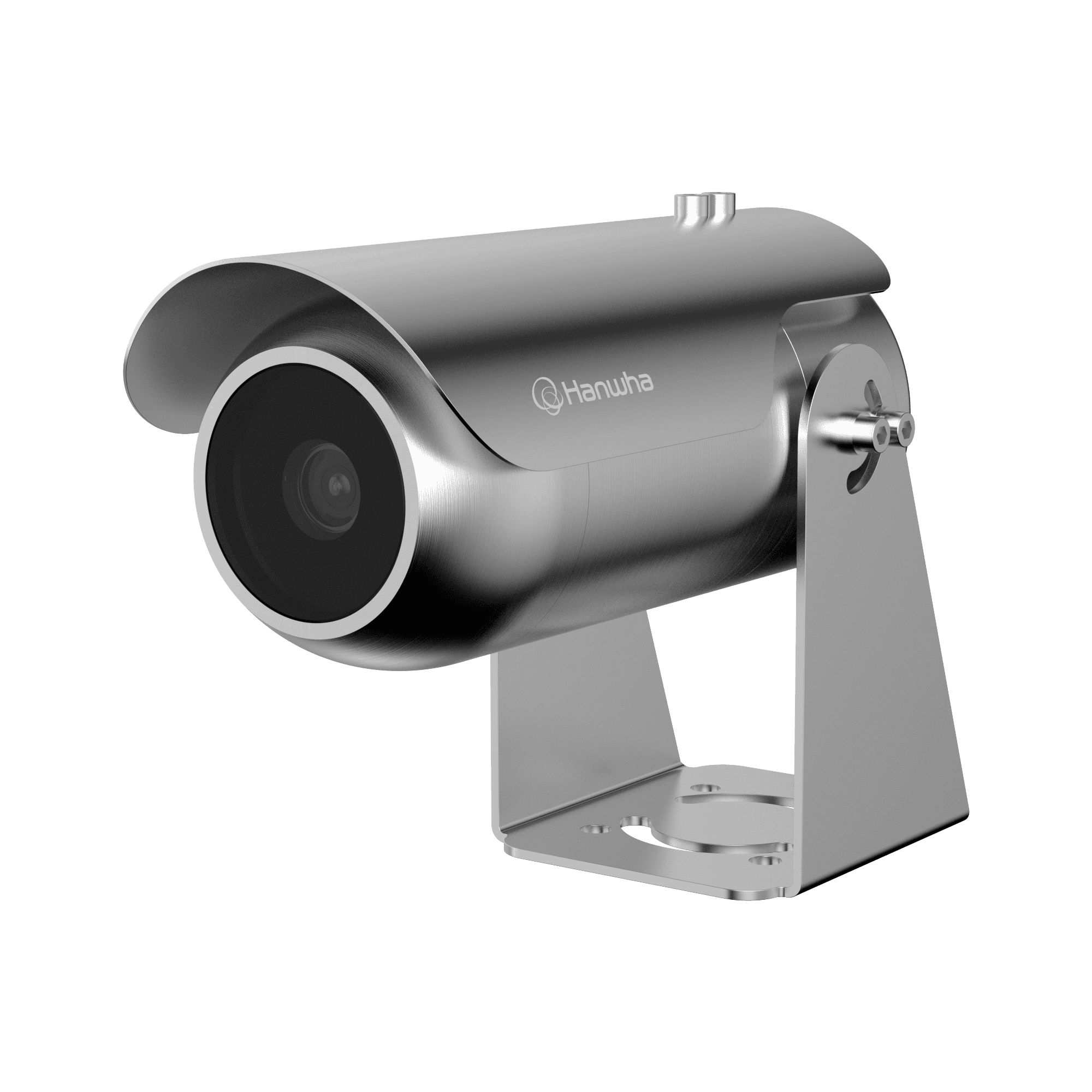

TNO-C8083E
5MP Compact Explosion-proof AI CameraKey Features
- 5MP Image Resolution
- 3.2~10.2mm Focal Length
- Max. Framerate 30fps
- Compact size 4.77Kg
- AI Object Detection and Classification
- 1/2” cable gland type for easy installation
- IECEx, ATEX, KCs, JPEx
- LAN cable supports LSZH made by fire retardant material
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNO-C8083E_250409_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C8083E_250409_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C8083E_250409_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C8083E_250409_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C8083E_250409_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C8083E_250409_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C8083E_250409_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C8083E_250409_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C8083E_250409_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNO-C8083E_210126_Common.pdf | 2026-08-06 | |
| CAD | CAD_TNO-C8083E_210126_JA.dxf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNO-C8083E_230109_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_230109_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_230109_EN_EMC_CE,UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_230109_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_230109_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_240529_EN_ATEX.pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_240531_EN_IECEx.pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_240704_EN_JPEx.pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_250624_EN_DoC_ATEX.pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_240125_EN_IK10.pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_240126_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_250827_EN_CCC%20EX.zip | 2026-08-06 | |
| Certification | Certification_TNO-C8083E_260331_EN_INMETRO%20EX.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_Q_AI_2_14_05_20260407_hva_prod.zip | 2026-08-06 | |
| Firmware | GenetecSecurityCenterSaaS_v_Q_AI_26_06_17_20260617.zip | 2026-08-06 | |
| Firmware | TNO-C8083E_2.23.10_20260624_R136.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNO-C8083E_240415_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNO-C8083E_20260806_EN_182956.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TNO-C8083E_240703_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNO-C8083E_240703_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNO-C8083E_240703_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNO-C8083E_240703_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNO-C8083E_240703_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNO-C8083E_240703_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNO-C8083E_240703_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNO-C8083E_240703_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNO-C8083E_240703_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNO-C8083E_240703_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNO-C8083E_240703_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNO-C8083E_20240510_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNO-C8083E_20240510_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNO-C8083E_20240510_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNO-C8083E%2CTNO-C8083ER%2CTNO-C9083ER%2CQNB-C5013RH%2CKND-C5013R%2CKNO-C5013R_260215_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@5MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.07 |
| BW(1/30sec, 30IRE) | 0.007 |
Lens
| Focal Length (mm) | 3.2~10.2 | |
| Zoom Ratio | Optical | 3.2x |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 3.1 | |
| Angular Field of View | Horizontal | 95°~29° |
| Vertical | 69°~21° | |
| Diagonal | 126°~36° | |
| Min. Object Distance | 1.2m(3.93ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris(IR corrected) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Dynamic Privacy Masking: Color / Option | Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/25,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics, Network disconnect, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
Analytics
| Classified Object Type | Person, Vehicle | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Memory | RAM | 2GB |
| Flash | 1GB |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Start up should be done at above -30°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 9.5W, typical 5.30W |
Mechanical
| Color | Silver | |
| Material | Stainless(STS316L) | |
| Product Dimensions | ø110.5 x 215mm(ø4.35x8.46") | |
| Product Weight | 4770g(10.51Ib) |
Certifications & Standards
| EMC | CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Environment | IEC 60529 IP66, IEC 62262 IK10, ATEX II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db, IECEx Ex db IIC T6 Gb, Ex tb IIIC T80°C Db, JPEx, KCs, CCC, INMETRO |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 42.7m(140.20ft) |
| Tele | 186.9m(613.28ft) | |
| Observe (63PPM/ 19PPF) | Wide | 17.2m(56.08ft) |
| Tele | 75.4m(245.31ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 8.5m(28.04ft) |
| Tele | 37.4m(122.66ft) | |
| Identify (250PPM/ 76PPF) | Wide | 4.3m(14.02ft) |
| Tele | 18.7m(61.33ft) |
