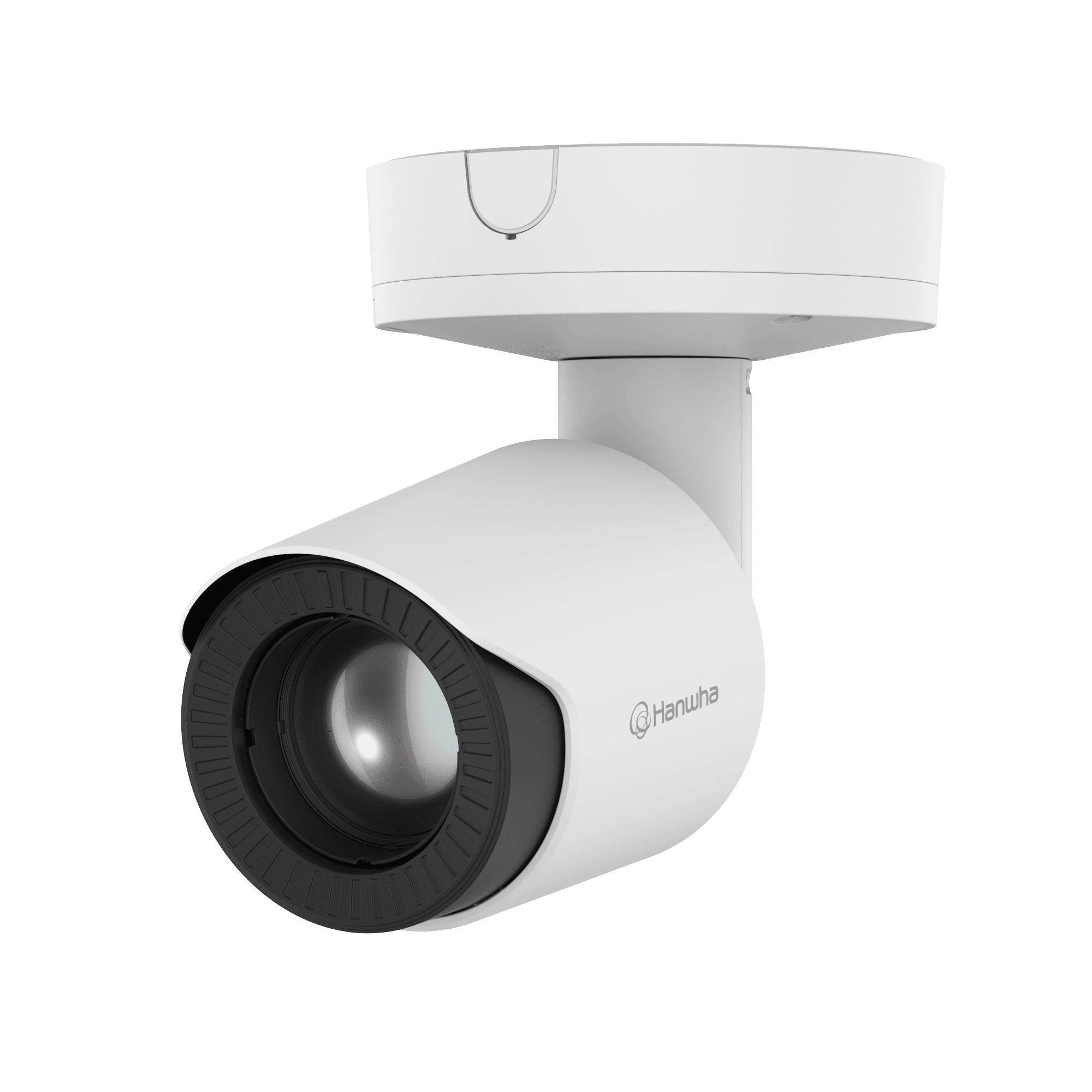

TNO-C4080TNew
VGA AI Tele lens Thermal CameraKey Features
- Upscaling up to 1280x960 resolution
- Max. 30fps@all resolutions (H.265/H.264, MJPEG)
- MIL-STD, NEMA 4X, NEMA TS Rated
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNO-C4080T%2CTNO-C4082T_260428_DE.pdf | 2026-08-13 | |
| Manuals | Manuals_TNO-C4080T%2CTNO-C4082T_260428_EN.pdf | 2026-08-13 | |
| Manuals | Manuals_TNO-C4080T%2CTNO-C4082T_260428_ES.pdf | 2026-08-13 | |
| Manuals | Manuals_TNO-C4080T%2CTNO-C4082T_260428_FR.pdf | 2026-08-13 | |
| Manuals | Manuals_TNO-C4080T%2CTNO-C4082T_260428_IT.pdf | 2026-08-13 | |
| Manuals | Manuals_TNO-C4080T%2CTNO-C4082T_260428_PL.pdf | 2026-08-13 | |
| Manuals | Manuals_TNO-C4080T%2CTNO-C4082T_260428_PT.pdf | 2026-08-13 | |
| Manuals | Manuals_TNO-C4080T%2CTNO-C4082T_260428_TR.pdf | 2026-08-13 | |
| Manuals | Manuals_TNO-C4080T%2CTNO-C4082T_260428_ZH-TW.pdf | 2026-08-13 | |
| Manuals | Manuals_TNO-C4080T%2CTNO-C4082T_260428_ZH.pdf | 2026-08-13 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNO-C4080T%2CTNO-C4082T_260112_Common.dxf | 2026-08-13 | |
| CAD | CAD_TNO-C4080T%2CTNO-C4082T_260112_Common.pdf | 2026-08-13 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN9_2_13_04_20251210_hva_prod.zip | 2026-08-13 | |
| Firmware | TNO-C4040T_26.01.01_20260719_R459.zip | 2026-08-13 | |
| Firmware | WiseAI_v_TNO-C4040T_26_01_00_20260408.zip | 2026-08-13 | |
| Firmware | WiseSound_v_WN8_AIA-C01SOUND_26_01_00_20260305.zip | 2026-08-13 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | A%26E%20Document_TNO-C4080T_260708_EN.docx | 2026-08-13 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNO-C4080T_20260814_EN_081506.pdf | 2026-08-13 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_AR.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_CS.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_DE.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_EN.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_ES.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_FR.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_IT.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_NL.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_PL.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_PT.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_TR.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_ZH-TW.pdf | 2026-08-13 | |
| Quick Guide | Quick%20Guide_TNO-C4080T%2CTNO-C4082T_260428_ZH.pdf | 2026-08-13 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online%20Help_TNO-C4040T%2CTNO-C4050T%2CTNO-C4060T%2CTNO-C4080T_20260413_EN.pdf | 2026-08-13 | |
| Online Help | Online%20Help_TNO-C4040T%2CTNO-C4050T%2CTNO-C4060T%2CTNO-C4080T_20260413_ES.pdf | 2026-08-13 | |
| Online Help | Online%20Help_TNO-C4040T%2CTNO-C4050T%2CTNO-C4060T%2CTNO-C4080T_20260413_FR.pdf | 2026-08-13 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation%20Guide%20Sheet_TNO-C4060T%2CTNO-C4062T%2CTNO-C4080T%2CTNO-C4082T_260108_Common.pdf | 2026-08-13 |
Specifications
Video
| Imaging Device | Type | Uncooled micro bolometer (640x480) |
| Resolution | 1280x960, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Spectral Range | 8~14㎛ | |
| NETD | ≤16mK@25°C, F1.0 | |
| Pixel Size | 17㎛ | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 60 | |
| Max Aperture Ratio (F number) | Wide | 1.15 |
| Angular Field of View | Horizontal | 10.3° |
| Vertical | 7.7° | |
| Diagonal | 12.8° | |
| iFoV | 0.28 mRad | |
| Min. Object Distance | 92m(301.8ft) | |
| Focus Control | Fixed | |
| Lens Type | Athermalized |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~90° | |
| Rotate | 0°~350° |
Operational
| Digital Noise Reduction | WiseNR | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 8point Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Serial Interface | RS-485 | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Color Pallettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
Analytics
| Classified Object Type | Person, Vehicle, Vessel | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Sound classification |
| Normal | Tampering, Audio detection, Shock detection, Temperature change detection |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps) | |
| Smart Codec | WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control, MAC-based access control, Auto logout | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | |
| Supply Chain Security | SBOM | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
General
| SoC | Type | Wisenet 8 |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max. 7.8W, typical 7.4W |
| 12VDC | Max. 8.1W, typical 7.8W |
Mechanical
| Color | White | |
| Material | Aluminum, PC(Polycarbonate) | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø107.3 x 275mm(ø4.22/10.83") | |
| Product Weight | 2100g(4.6 lb) | |
| Compatible Conduit Hole | Support conduit compatibility via optional adaptor | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A, FCC - IC Regulation ICES 003 Issue 7, RCM - EN IEC 63000:2018 Class A, VCCI - EN IEC 63000:2018 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 505.7, MIL-STD-810H 506.6, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 510.7, MIL-STD-810H 514.8, MIL-STD-810H 516.8, MIL-STD-810H 521.4 |
AI Detection Distance
| Person(1.8m/5.9ft) | Wide | up to 508m(1,666ft) |
| Vehicle(1.45m/4.8ft) | Wide | up to 724m(2,375ft) |
| Vessel(2.4m/7.9ft from Waterline) | Wide | up to 1,732m(5,681ft) |
DRI (Johnson's Criteria)
| Detection | Person(1.67PPM) | 2,130m(6,989ft) |
| Vehicle(0.65PPM) | 5,444m(17,861ft) | |
| Recognition | Person(6.67PPM) | 533m(1,747ft) |
| Vehicle(2.61PPM) | 1,361m(4,465ft) | |
| Identification | Person(13.33PPM) | 266m(874ft) |
| Vehicle(5.22PPM) | 681m(2,233ft) |
