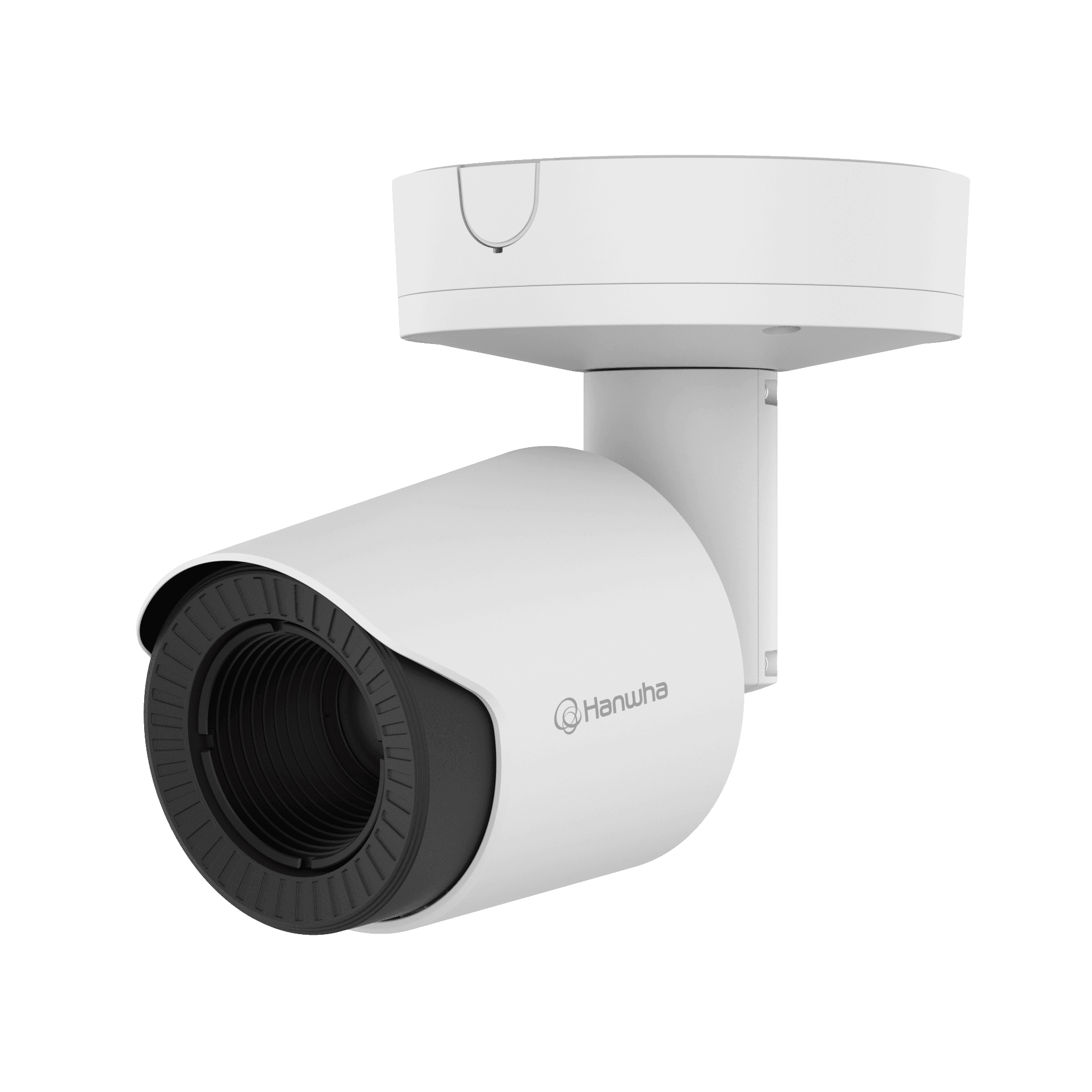

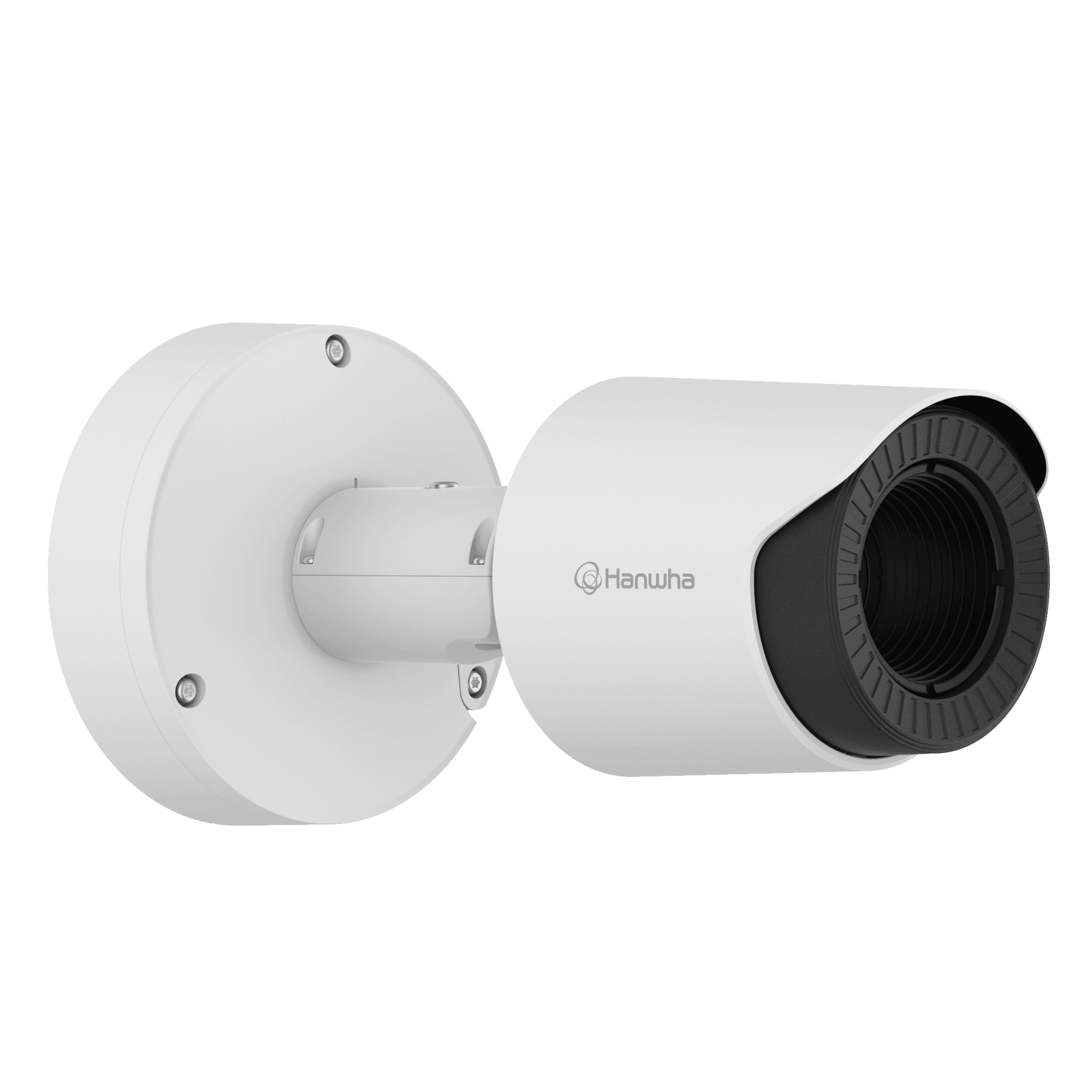

TNO-C3060T
QVGA AI Tele lens Thermal CameraKey Features
- QVGA resolution
- 35mm Focal Length
- Max. Framerate 30fps
- Min. Object Distance 36.1m
- High performance thermal sensitivity (NETD 20mK@25°C)
- AI based object classification
- NEMA4X, NEMA-TS2, MIL-STD-810H
- Secure element with FIPS 140-3 level3, CC EAL6+
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250714_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250714_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250714_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250714_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250714_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250714_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250714_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250714_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250714_ZH-TW.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250714_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250425_Common.dxf | 2026-08-06 | |
| CAD | CAD_TNO-C3060T%2CTNO-C3062T%2CTNO-C3080T%2CTNO-C3082T_250425_Common.pdf | 2026-08-06 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNO-C3040T_3.01.02_20260522_R258.zip | 2026-08-06 | |
| Firmware | WiseAI_v_AA_TNO-C3040T_1_00_06_20260508.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | A%26E%20Document_TNO-C3060T_250714_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNO-C3060T_20260806_EN_192601.pdf | 2026-08-06 |
Quick Guide
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNO-C3040T%2CTNO-C3050T%2CTNO-C3060T%2CTNO-C3080T_060429_EN.txt | 2026-08-06 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_TNO-C3040TTNO-C3042TTNO-C3050TTNO-C3052T_250310_Common.pdf | 2026-08-06 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_TNO-C3040T%2CTNO-C3050T%2CTNO-C3060T%2CTNO-C3080T_260429_EN_cyclonedx.json | 2026-08-06 |
Specifications
Video
| Imaging Device | Type | Uncooled micro bolometer (384x288) |
| Resolution | 768x576, 384x288 | |
| Max. Framerate | H.265/H.264 | 30fps |
| MJPEG | 30fps | |
| Spectral Range | 8~14㎛ | |
| NETD | ≤20mK@25°C, F1.0 | |
| Pixel Size | 17㎛ | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 35 | |
| Max Aperture Ratio (F number) | Wide | 1.0 |
| Angular Field of View | Horizontal | 10.7° |
| Vertical | 8.0° | |
| Diagonal | 13.3° | |
| iFoV | 0.486 mRad | |
| Min. Object Distance | 36.1m(118.4ft) | |
| Focus Control | Fixed | |
| Lens Type | Athermalized |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~90° | |
| Rotate | 0°~350° |
Operational
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Black, White | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Serial Interface | RS-485 | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Color Pallettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
Analytics
| Classified Object Type | Person, Vehicle | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
Radiometry
| Hybrid Pallettes | Support | |
| ROI Condition Monitoring | None, Increase, Decrease |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+) |
General
| Memory | RAM | 2GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max. 10.8W, typical 9W |
| 12VDC | Max. 9.4W, typical 7.7W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø107.3x275mm(ø4.22x10.83") | |
| Product Weight | 2370g(5.22lb) | |
| Compatible Conduit Hole | Support conduit compatibility via optional adaptor | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 514.8, MIL-STD-810H 516.8 |
DRI (Johnson's Criteria)
| Detection | Person(1.67PPM) | 1,230m(4,036ft) |
| Vehicle(0.65PPM) | 3,144m(10,314ft) | |
| Recognition | Person(6.67PPM) | 308m(1,009ft) |
| Vehicle(2.61PPM) | 786m(2,578ft) | |
| Identification | Person(13.33PPM) | 154m(504ft) |
| Vehicle(5.22PPM) | 393m(1,289ft) |
