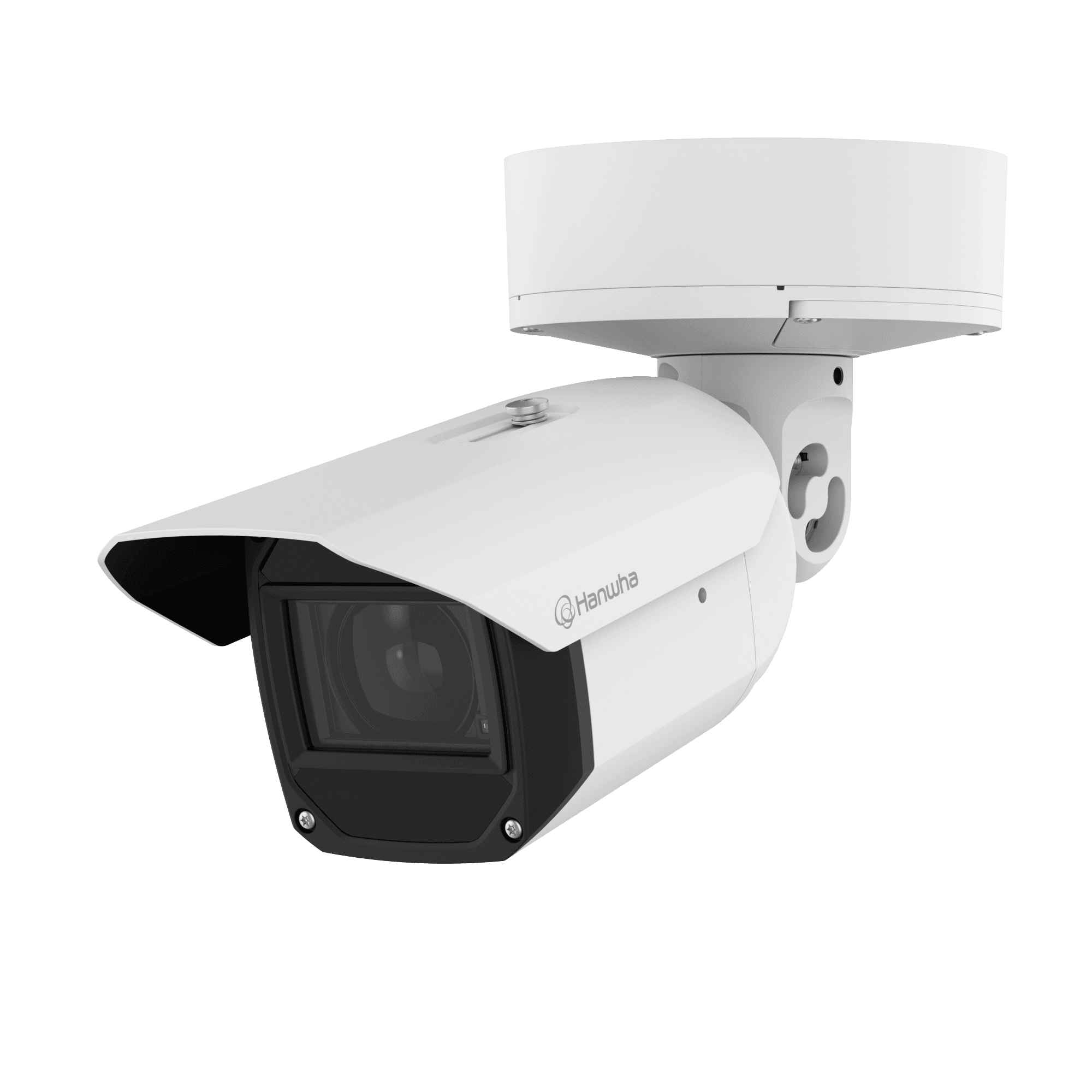

TNO-A45090RNew
Ultra High Resolution 45MP T AI CameraKey Features
- Compact & Lightweight (13.8" × 4.7", 8.93 lbs)
- Dual Model Lineup (TNO-A45080R: 12-51mm, TNO-A45090R: 50-150mm)
- Low Ligiht Performance with 1/1.4" Sensor
- IR Distance Up to 200m
- Flexible Power & Connectivity Options(PoE+, PoE, 12V DC, SFP)
- Multi-View (1 Original + Up to 4 ROI Channels)
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNO-A45080R%2CTNO-A45090R_260724_EN.pdf | 2026-10-27 | |
| Manuals | Manuals_TNO-A45080R%2CTNO-A45090R_260806_DE.pdf | 2026-10-27 | |
| Manuals | Manuals_TNO-A45080R%2CTNO-A45090R_260806_ES.pdf | 2026-10-27 | |
| Manuals | Manuals_TNO-A45080R%2CTNO-A45090R_260806_FR.pdf | 2026-10-27 | |
| Manuals | Manuals_TNO-A45080R%2CTNO-A45090R_260806_IT.pdf | 2026-10-27 | |
| Manuals | Manuals_TNO-A45080R%2CTNO-A45090R_260806_PL.pdf | 2026-10-27 | |
| Manuals | Manuals_TNO-A45080R%2CTNO-A45090R_260806_PT.pdf | 2026-10-27 | |
| Manuals | Manuals_TNO-A45080R%2CTNO-A45090R_260806_TR.pdf | 2026-10-27 | |
| Manuals | Manuals_TNO-A45080R%2CTNO-A45090R_260806_ZH-TW.pdf | 2026-10-27 | |
| Manuals | Manuals_TNO-A45080R%2CTNO-A45090R_260806_ZH.pdf | 2026-10-27 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNO-A45080R%2CTNO-A45090R_260520_Common.dxf | 2026-10-27 | |
| CAD | CAD_TNO-A45080R%2CTNO-A45090R_260520_Common.pdf | 2026-10-27 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNO-A45080R%2CTNO-A45090R_260727_EN_Report_UL.pdf | 2026-10-27 | |
| Certification | Certification_TNO-A45080R%2CTNO-A45090R_260803_EN_UL.pdf | 2026-10-27 | |
| Certification | Certification_TNO-A45090R_260706_EN_DoC_CE.pdf | 2026-10-27 | |
| Certification | Certification_TNO-A45090R_260706_EN_EMC_CE%2CUKCA.pdf | 2026-10-27 | |
| Certification | Certification_TNO-A45090R_260706_EN_FCC%2CIC.pdf | 2026-10-27 | |
| Certification | Certification_TNO-A45090R_260706_EN_RCM.pdf | 2026-10-27 | |
| Certification | Certification_TNO-A45090R_260706_EN_VCCI.pdf | 2026-10-27 | |
| Certification | Certification_TNO-A45090R%2CTNO-A45080R_260616_EN_IK10.pdf | 2026-10-27 | |
| Certification | Certification_TNO-A45090R%2CTNO-A45080R_260616_EN_IP66.pdf | 2026-10-27 | |
| Certification | Certification_TNO-A45090R%2CTNO-A45080R_260616_EN_IP67.pdf | 2026-10-27 | |
| Certification | Certification_TNO-A45090R%2CTNO-A45080R_260626_EN_NEMA4X.pdf | 2026-10-27 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNO-A45080R_26.01.01_20260909_R616.zip | 2026-10-27 | |
| Firmware | WiseAI_v_TNO-A45080R_26_01_01_20260827.zip | 2026-10-27 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | A%26E%20Document_TNO-A45090R_260824_EN.docx | 2026-10-27 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNO-A45090R_20261027_EN_112214.pdf | 2026-10-27 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_AR.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_CS.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_DE.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_EN.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_ES.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_FR.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_IT.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_NL.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_PL.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_PT.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_TR.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_ZH-TW.pdf | 2026-10-27 | |
| Quick Guide | Quick%20Guide_TNO-A45080R%2CTNO-A45090R_260806_ZH.pdf | 2026-10-27 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online%20Help_TNO-A45090R%2CTNO-A45080R_20260729_EN.pdf | 2026-10-27 | |
| Online Help | Online%20Help_TNO-A45090R%2CTNO-A45080R_20260729_ES.pdf | 2026-10-27 | |
| Online Help | Online%20Help_TNO-A45090R%2CTNO-A45080R_20260729_FR.pdf | 2026-10-27 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNO-A45080R%2CTNO-A45090R_260623_EN.txt | 2026-10-27 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation%20Guide%20Sheet_TNO-A45080R%2CTNO-A45090R_270721_Common.pdf | 2026-10-27 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_TNO-A45080R%2CTNO-A45090R_260623_EN_cyclonedx.json | 2026-10-27 |
Specifications
Video
| Imaging Device | Size | Diagonal 23.1mm 1.4" |
| Type | CMOS | |
| Resolution Mode | 45MP | 8192x5552, 7792x5280, 7392x5008, 6752x4576, 5936x4024, 4512x3056, 4096x2776, 3456x2344, 2880x1952, 2240x1520, 1440x976, 1216x824, 800x544, 640x436 |
| 8K | 7680x4320, 7424x4176, 7680x3840, 6400x4800, 6144x3456, 5120x2880, 4096x3072, 3840x2160, 3200x2400, 3328x1872, 2688x1512, 2560x1440, 1920x1080, 1600x1200, 640x480 | |
| Virtual Channel (Supports 1 to 4 Channels) | 3840x2160, 3328x1872, 3200x2400, 2688x1512, 2560x1440, 1920x1080,1600x1200 | |
| Max. Framerate | H.265/H.264 | 15fps@45MP(45MP mode) / 25fps@33MP(8K mode) |
| MJPEG | 25fps/1fps@45MP(45MP mode) / 1fps@33MP(8K mode) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.12 |
| BW(1/30sec, 30IRE) | 0.012 | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 50-150mm | |
| Zoom Ratio | Optical | 3.0 |
| Max Aperture Ratio (F number) | Wide | 2.3 |
| Tele | 3.5 | |
| Angular Field of View | Horizontal | 21.3°(Wide)~7.2°(Tele) |
| Vertical | 14.6°(Wide)~4.9°(Tele) | |
| Diagonal | 25.4°(Wide)~8.6°(Tele) | |
| Min. Object Distance | 2m(Wide)~3m(Tele) | |
| Focus Control | Simple focus | |
| Lens Type | P iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0~90° | |
| Rotate | 0°~350° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, SSDR | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 4ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High, Off | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 200m(656.2ft) |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Face mask, Glasses | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal | Defocus detection, Tampering, Audio detection, Shock detection | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T), SFP | |
| Video Compression | H.265: Main, H.264: Main/High, MJPEG | |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps) | |
| Smart Codec | Manual, WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control, MAC-based access control, Auto logout | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt(AES-256), Secure element | |
| Supply Chain Security | SBOM | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
General
| Memory | RAM | 8GB |
| Flash | 16GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6), 12VDC | |
| Power Consumption | PoE | PoE++: Max. 39.4W, typical 19.0W PoE+: Max. 24.2W, typical 19.0W |
| 12VDC | Max. 37.3W, typical 18.4W | |
| WisePower | Power mode |
Mechanical
| Color | White, Black | |
| Material | Aluminum, Plastic | |
| RAL Code | RAL9003 | |
| Product Dimensions | 120x120x350mm(4.72"x4.72"x13.78") | |
| Product Weight | 4050g(8.93lb) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A, FCC - IC Regulation ICES 003 Issue 7, RCM - EN IEC 63000:2018 Class A, VCCI - EN IEC 63000:2018 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
AI Detection Distance
| Person(1.8m/5.9ft) | Wide | Up to 312.2m(1024.3ft) |
| Tele | Up to 934.9m(3067.3ft) | |
| Vehicle(1.45m/4.8ft) | Wide | Up to 404.3m(1326.4ft) |
| Tele | Up to 1210.3m(3970.8ft) |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 871.3m(2858.48ft) |
| Tele | 2604.2m(8543.84ft) | |
| Observe (63PPM/ 19PPF) | Wide | 348.5m(1143.39ft) |
| Tele | 1041.7m(3417.54ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 174.3m(571.70ft) |
| Tele | 520.8m(1708.77ft) | |
| Identify (250PPM/ 76PPF) | Wide | 87.1m(285.85ft) |
| Tele | 260.4m(854.38ft) |
Video
| Imaging Device | Size | Diagonal 23.1mm 1.4" |
| Type | CMOS | |
| Resolution Mode | 45MP | 8192x5552, 7792x5280, 7392x5008, 6752x4576, 5936x4024, 4512x3056, 4096x2776, 3456x2344, 2880x1952, 2240x1520, 1440x976, 1216x824, 800x544, 640x436 |
| 8K | 7680x4320, 7424x4176, 7680x3840, 6400x4800, 6144x3456, 5120x2880, 4096x3072, 3840x2160, 3200x2400, 3328x1872, 2688x1512, 2560x1440, 1920x1080, 1600x1200, 640x480 | |
| Virtual Channel (Supports 1 to 4 Channels) | 3840x2160, 3328x1872, 3200x2400, 2688x1512, 2560x1440, 1920x1080,1600x1200 | |
| Max. Framerate | H.265/H.264 | 15fps@45MP(45MP mode) / 25fps@33MP(8K mode) |
| MJPEG | 25fps/1fps@45MP(45MP mode) / 1fps@33MP(8K mode) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.12 |
| BW(1/30sec, 30IRE) | 0.012 | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 50-150mm | |
| Zoom Ratio | Optical | 3.0 |
| Max Aperture Ratio (F number) | Wide | 2.3 |
| Tele | 3.5 | |
| Angular Field of View | Horizontal | 21.3°(Wide)~7.2°(Tele) |
| Vertical | 14.6°(Wide)~4.9°(Tele) | |
| Diagonal | 25.4°(Wide)~8.6°(Tele) | |
| Min. Object Distance | 2m(Wide)~3m(Tele) | |
| Focus Control | Simple focus | |
| Lens Type | P iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0~90° | |
| Rotate | 0°~350° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, SSDR | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 4ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High, Off | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 200m(656.2ft) |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Face mask, Glasses | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal | Defocus detection, Tampering, Audio detection, Shock detection | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T), SFP | |
| Video Compression | H.265: Main, H.264: Main/High, MJPEG | |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps) | |
| Smart Codec | Manual, WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control, MAC-based access control, Auto logout | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt(AES-256), Secure element | |
| Supply Chain Security | SBOM | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
General
| Memory | RAM | 8GB |
| Flash | 16GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6), 12VDC | |
| Power Consumption | PoE | PoE++: Max. 39.4W, typical 19.0W PoE+: Max. 24.2W, typical 19.0W |
| 12VDC | Max. 37.3W, typical 18.4W | |
| WisePower | Power mode |
Mechanical
| Color | White, Black | |
| Material | Aluminum, Plastic | |
| RAL Code | RAL9003 | |
| Product Dimensions | 120x120x350mm(4.72"x4.72"x13.78") | |
| Product Weight | 4050g(8.93lb) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A, FCC - IC Regulation ICES 003 Issue 7, RCM - EN IEC 63000:2018 Class A, VCCI - EN IEC 63000:2018 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
AI Detection Distance
| Person(1.8m/5.9ft) | Wide | Up to 312.2m(1024.3ft) |
| Tele | Up to 934.9m(3067.3ft) | |
| Vehicle(1.45m/4.8ft) | Wide | Up to 404.3m(1326.4ft) |
| Tele | Up to 1210.3m(3970.8ft) |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 871.3m(2858.48ft) |
| Tele | 2604.2m(8543.84ft) | |
| Observe (63PPM/ 19PPF) | Wide | 348.5m(1143.39ft) |
| Tele | 1041.7m(3417.54ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 174.3m(571.70ft) |
| Tele | 520.8m(1708.77ft) | |
| Identify (250PPM/ 76PPF) | Wide | 87.1m(285.85ft) |
| Tele | 260.4m(854.38ft) |
Accessories
SBP-300CMTS
SBP-140CMB
SBP-180CMB
SBP-180CMS
SBP-150CMP
SBP-300CMP
SBP-900CMP
SBP-C15H
SBP-C15NP
SBP-C35H
SBP-C15P
SBP-150CMI
SBP-300CMI
SBP-300CMW1
SBP-300CMTW
SBP-050NBW
SBP-060S
SBP-900CMW
SBP-250WMW
SBP-400WMW
SBP-115PFA
SBP-150PMW
SBD-180PMW
SBP-156KMW
SBP-150NBW
SBP-350WMW
SBP-200WMW
SPM-4210
SBP-180HMW1
SBP-150S
Service policies and processesService policies and processes can differ by nation / product / model. For more details, click below to view the warranty information applicable to your product.
Explore official resources, documentation, and insights for Hanwha Vision solutions
© 2026 Hanwha Vision Co., Ltd. All rights Reserved.6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 13488, KOREA
