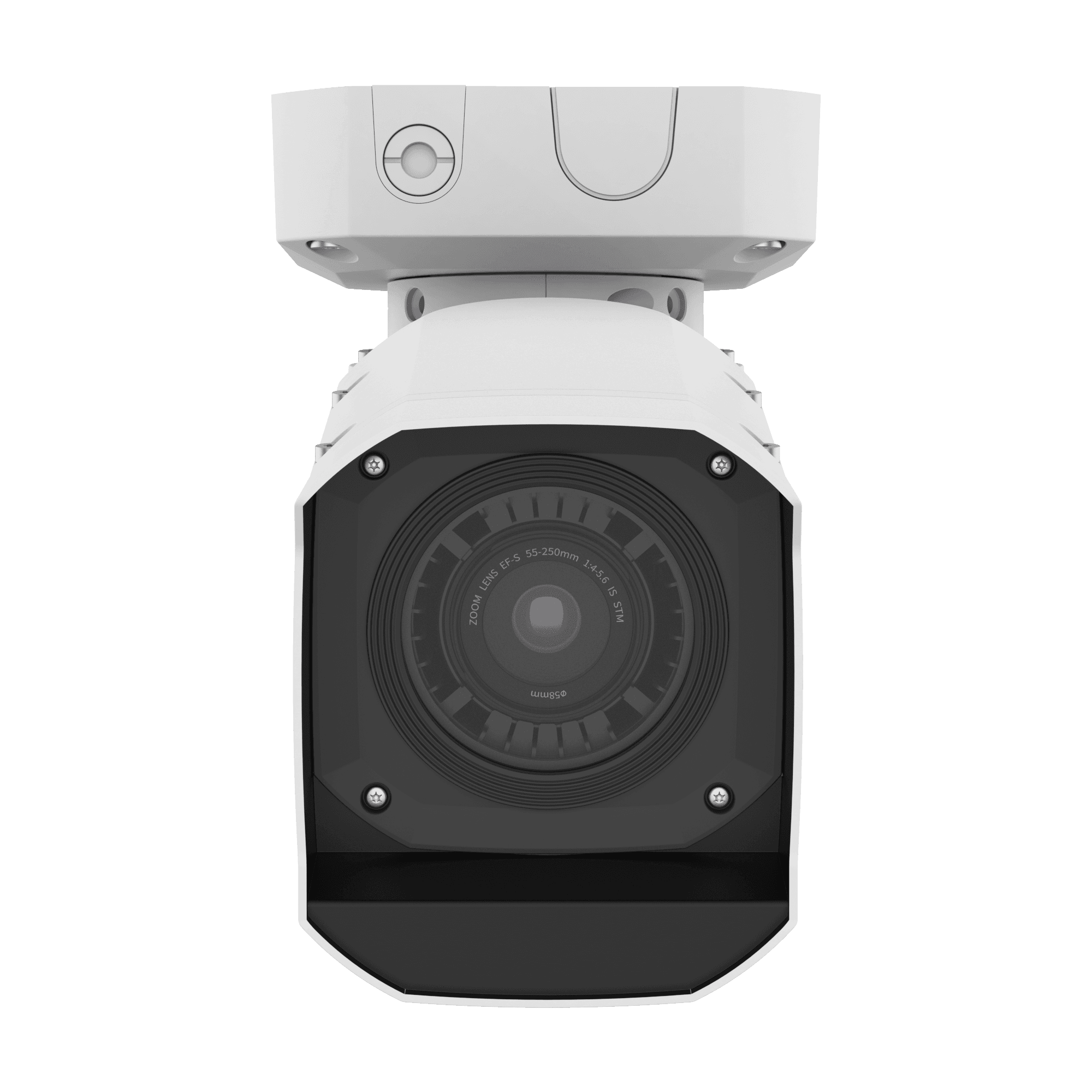

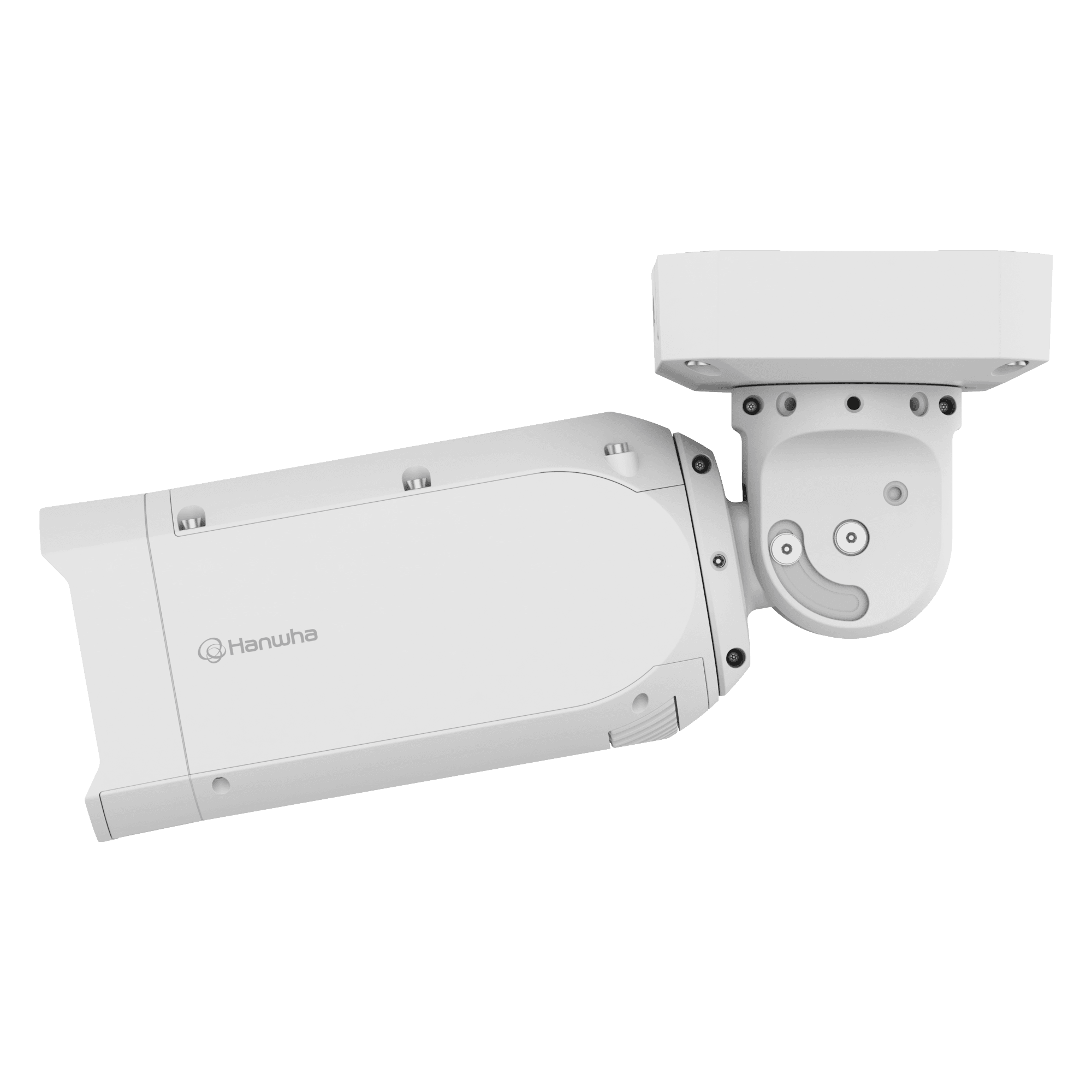

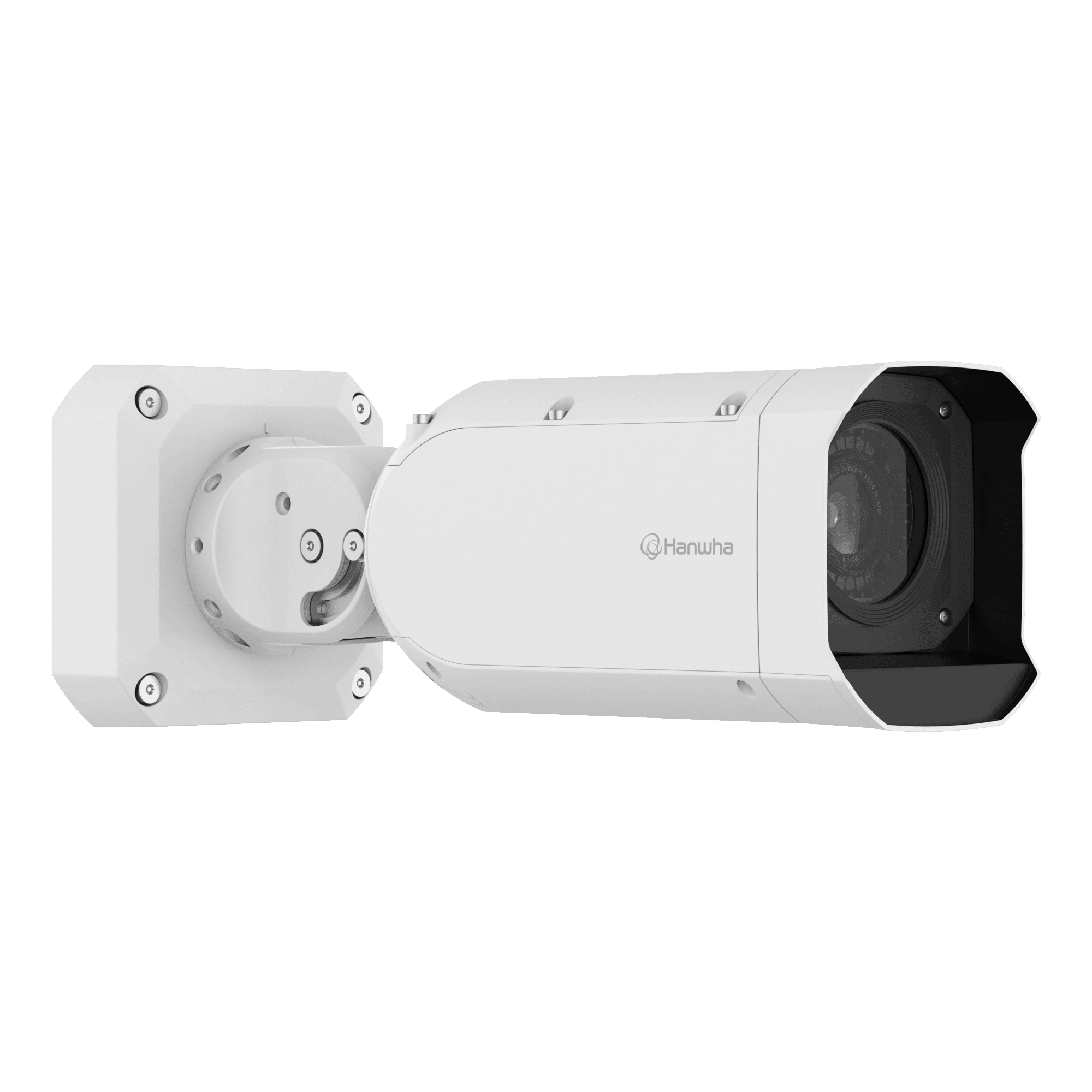

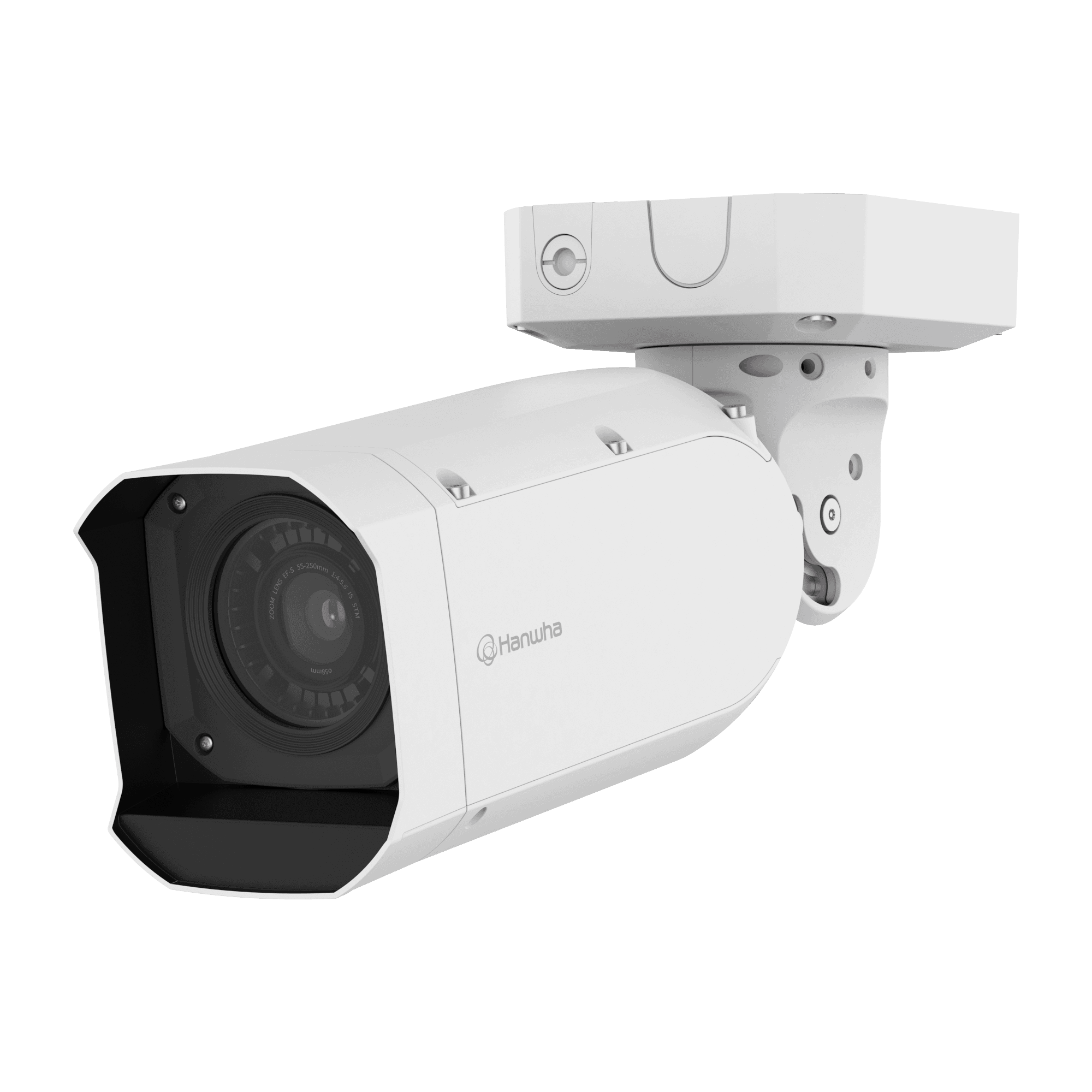

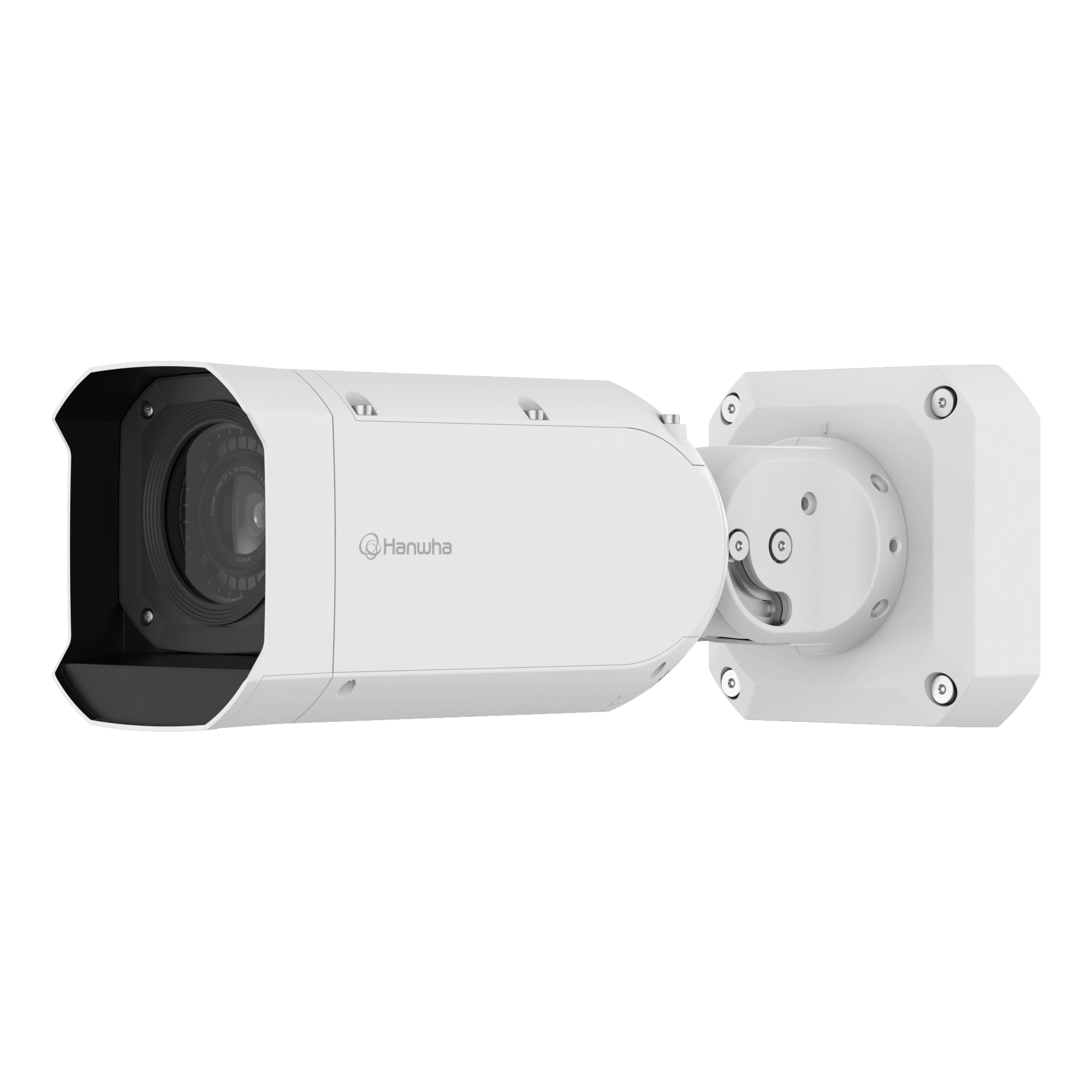

TNO-A26081
Ultra-resolution 26MP T AI cameraKey Features
- 26MP Image Resolution
- 55~250mm Focal Length
- IP66, IP67, IK10 Rated
- AI Analytics (Person and Vehicle Detection)
- Max. 30fps @ all resolutions (H.265, H.264, MJPEG)
- Diagonal 28.3mm 1.8" CMOS
- PoE++(IEEE802.3bt type3, Class6), 12VDC
- Ethernet : Metal shielded RJ-45 (10/100/1000BASE-T), SFP
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNO-A26081_241212_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNO-A26081_250616_Common.dxf | 2026-08-06 | |
| CAD | CAD_TNO-A26081_250616_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNO-A26081_241106_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNO-A26081_241106_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNO-A26081_241106_EN_EMC_CE,UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNO-A26081_241106_EN_FCC,IC.pdf | 2026-08-06 | |
| Certification | Certification_TNO-A26081_241106_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_TNO-A26081_241106_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TNO-A26081_241122_EN_IK10.pdf | 2026-08-06 | |
| Certification | Certification_TNO-A26081_241122_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_TNO-A26081_241122_EN_IP67.pdf | 2026-08-06 | |
| Certification | Certification_TNO-A26081_241122_EN_NEMA4X.pdf | 2026-08-06 | |
| Certification | Certification_TNO-A26081_241206_EN_UL.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNO-A26081_25.01.02_20250529_R389.zip | 2026-08-06 | |
| Firmware | WiseAI_v_TNO-A26081_25_01_02_20250422.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNO-A26081_241213_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNO-A26081_20260806_EN_151956.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TNO-A26081_241212_EN.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNO-A26081_20241203_EN.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNO-A26081_250328_EN.txt | 2026-08-06 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_TNO-A26081_241122_Common.pdf | 2026-08-06 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_TNO-A26081_250328_EN_cyclonedx.json | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | Diagonal 28.3mm 1.8" |
| Type | CMOS | |
| Resolution | 6240x4160, 3840x2160, 2880x1920, 1920x1080, 1600x1200, 1440x960, 1280x800, 1280x720, 1024x768, 720x480, 640x480 | |
| Max. Framerate | H.265/H.264 | 30fps |
| MJPEG | 30fps | |
| Others | Max. 20fps when WiseAI on | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.2Lux(F4.0, 1/30sec) |
| BW(1/30sec, 30IRE) | 0.02Lux(F4.0, 1/30sec) | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 55-250 | |
| Zoom Ratio | Optical | 4.54 |
| Max Aperture Ratio (F number) | Wide | 4 |
| Tele | 5.6 | |
| Angular Field of View | Horizontal | 24°(Wide)~5.4°(Tele) |
| Vertical | 16°(Wide)~3.6°(Tele) | |
| Diagonal | 29°(Wide)~6.5°(Tele) | |
| Min. Object Distance | 0.85m (2.8ft) | |
| Focus Control | Simple focus | |
| Lens Type | Canon EF-S 55~250mm F4-5.6 IS STM | |
| Mount Type | Canon EF-S |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, SSDR | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Face mask, Glasses | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Defocus detection, Tampering, Audio detection, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T), SFP | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control, MAC-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt(AES-256) | |
| Security Certificate | Secure element with FIPS 140-3 level3 |
General
| Memory | RAM | 8GB |
| Flash | 16GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE++(IEEE802.3bt type3, Class6), 12VDC | |
| Power Consumption | PoE | Max 44.3W, Typical 24.9W |
| 12VDC | Max 35.4W, Typical 19.6W |
Mechanical
| Color | White | |
| Material | Aluminum, PC(Polycarbonate) | |
| RAL Code | RAL9003 | |
| Product Dimensions | 193.5x193.5x532mm(7.62"x7.62"x20.94") | |
| Product Weight | 8100g(17.86lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 587.1m(1,926.3ft) |
| Tele | 2,646.4m(8,682.3ft) | |
| Observe (63PPM/ 19PPF) | Wide | 234.9m(770.5ft) |
| Tele | 1,058.6m(3,472.9ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 117.4m(385.3ft) |
| Tele | 529.3m(1,736.5ft) | |
| Identify (250PPM/ 76PPF) | Wide | 58.7m(192.6ft) |
| Tele | 264.6m(868.2ft) |
