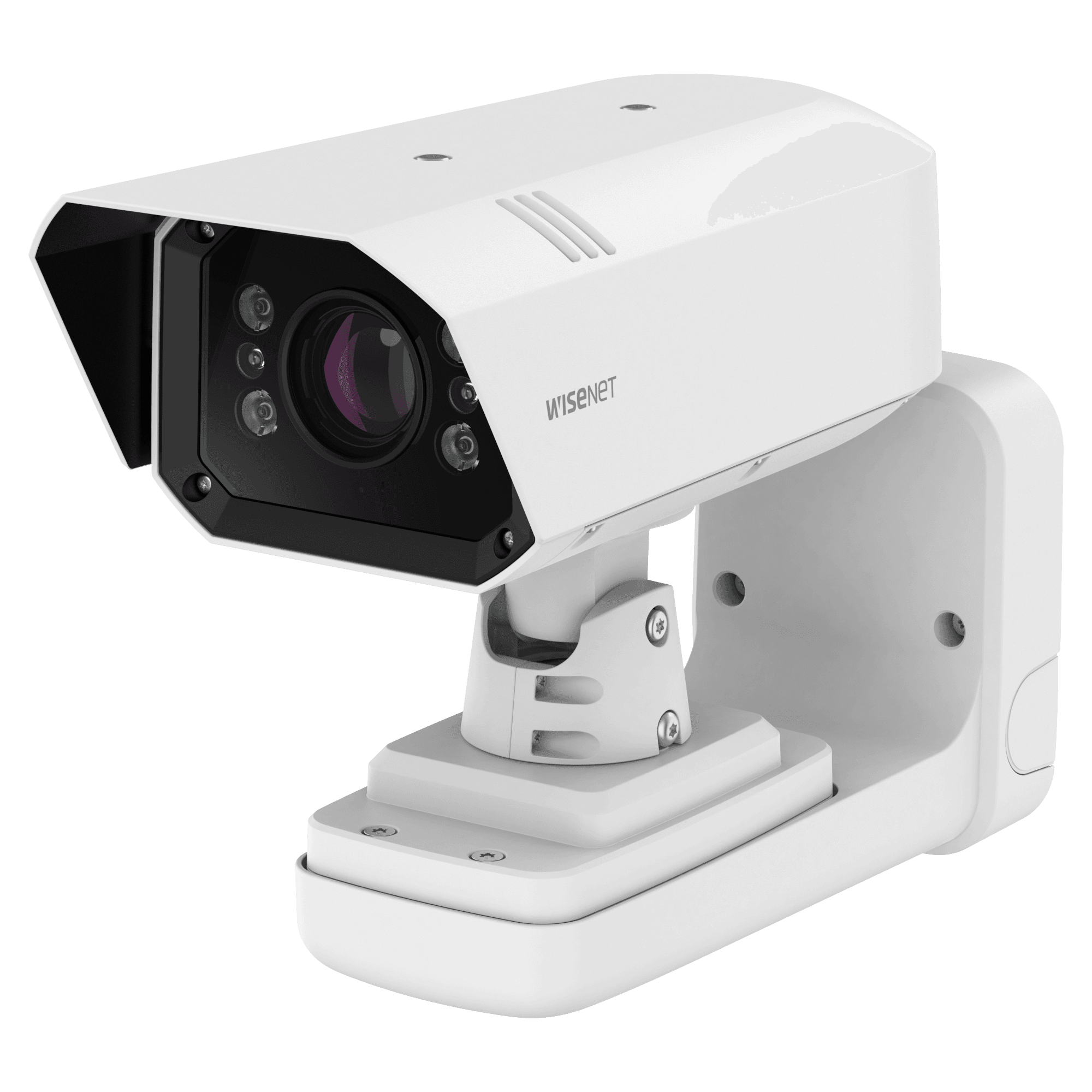

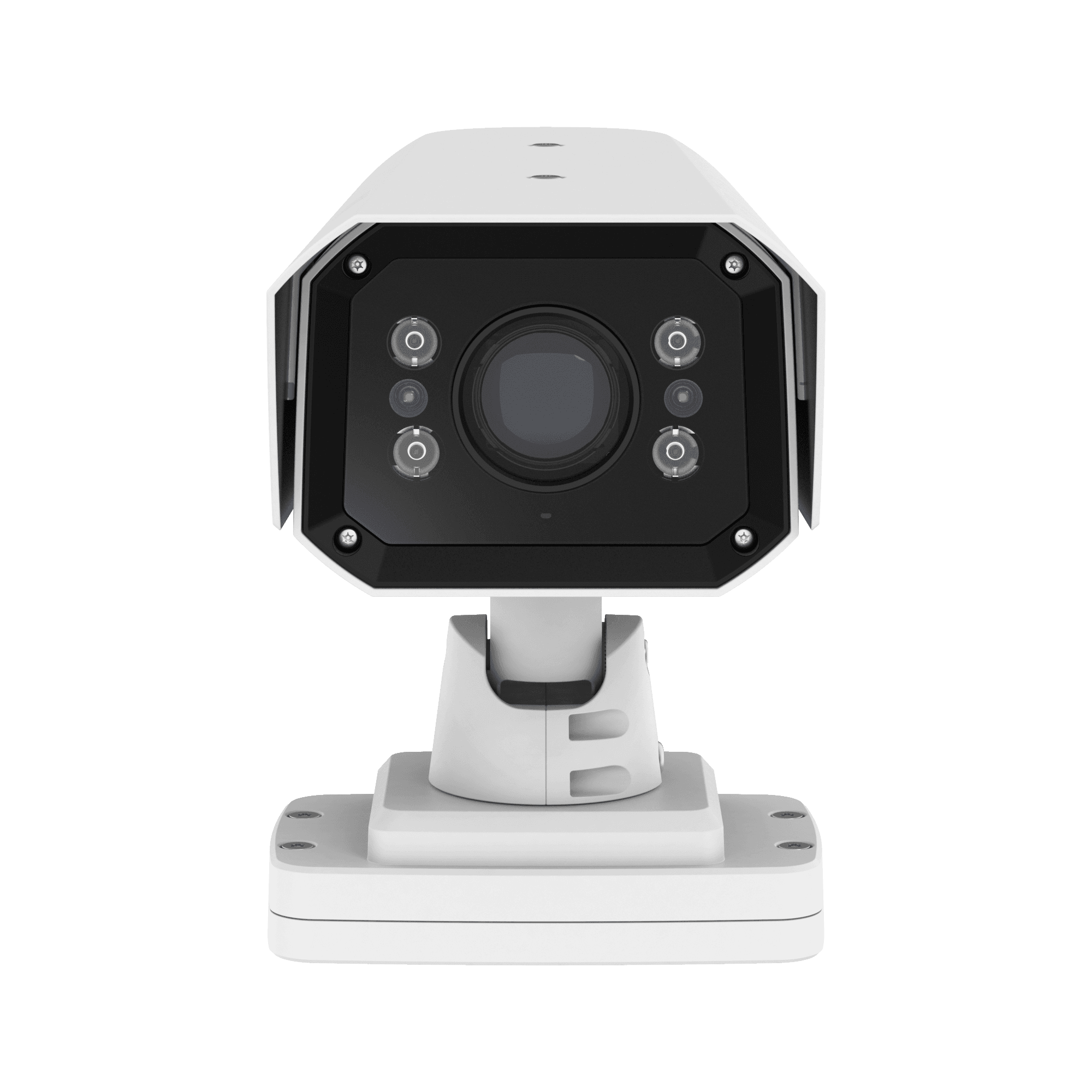

TNO-7180RLP
High-speed License Plate Capture CameraKey Features
• 3MP, Color Global Shutter Sensor
• 6.8~120mm(18x) motorized varifocal
• H.265, H.264, MJPEG codec
• Maximum 60fps@3MP all resolutions (H.265, H.264, MJPEG)
• Edge Storage Pre-installed with 32GB Micro SD to support 10,000 LPR images
• WiseStreamII support
• HPoE, 12VDC
• IR Viewable Length 50m(164.04ft)
• IP66, IK10, NEMA 4X, NEMA TS 2(2.2.8, 2.2.9)
• Wisenet Road AI application (Pre-installed)
- License/Number Plate Recognition
- Make/Model/Color Recognition
- Black/White list notification
- Smart Search (LP/NP, Country, brand, model, color)
*PoE power supply is not included, must be purchased separately if required
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNO-7180RLP_231102_EN_INSTALLATION-GUIDE.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-7180RLP_231103_EN_Road-AI-application.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-7180RLP_250821_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-7180RLP_250821_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-7180RLP_250821_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-7180RLP_250821_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-7180RLP_250821_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-7180RLP_250821_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-7180RLP_250821_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-7180RLP_250821_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-7180RLP_250821_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNO-7180RLP_221220_EN.dxf | 2026-08-06 | |
| CAD | CAD_TNO-7180RLP_221220_EN.pdf.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNO-7180RLP_221107_EN_IK10.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_221107_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_221115_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_230224_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_230224_EN_FCC.IC.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_221107_EN_NEMA-4X.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_221107_EN_NEMA-TS-22.2.7.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_221107_EN_NEMA-TS-22.2.8.pdf | 2026-08-06 | |
| Certification | Certification_TNO-7180RLP_221107_EN_NEMA-TS-22.2.9.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNO-7180RLP_2.11.02_20231024_R114.zip | 2026-08-06 | |
| Firmware | WisenetRoadAI_vT8296853372.zip | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNO-7180RLP_20260806_EN_151846.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick Guide_TNO-7180RLP_230404_EN_INSTALLATIONGUIDE.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_TNO-7180RLP_250821_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNO-7180RLP_20230315_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNO-7180RLP_20230315_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNO-7180RLP_20230315_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNO-7180RLP_221027_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/1.8" |
| Type | CMOS | |
| Resolution | 2048x1536, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 55fps/50fps(55Hz/50Hz)@3MP mode / 60fps/50fps(60Hz/50Hz)@2MP mode |
| MJPEG | 5fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.01 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 6.8~120 | |
| Zoom Ratio | Optical | 18x |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 4.13 | |
| Angular Field of View | Horizontal | 54.5°~3.4° |
| Vertical | 42.3°~2.5° | |
| Min. Object Distance | 2m(6.5ft) | |
| Focus Control | Simple focus, Focus save | |
| Lens Type | DC auto iris |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, SSDR | |
| Digital Noise Reduction | SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Gain Control | Support | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Global shutter mode |
| Speed Range | 1/25~1/12,000sec | |
| Video Rotation | Flip, Mirror | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm Interface | In/Out | 4 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 50m(164ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure) | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 |
General
| Memory | RAM | 2GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | 1slot (32GB card preinstalled) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Start up should be done at above -40°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE++(IEEE802.3bt type3, Class6), 12VDC | |
| Power Consumption | PoE | Max. 50W, typical 27W |
| 12VDC | Max. 47.5W, typical 25W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | 186.9(W)x 259.3(H)x293.7(D)mm(7.32x10.2x11.56") | |
| Product Weight | 4,762g(10.5 lb) |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X, NEMA TS 2-2013 (2.2.8, 2.2.9) |
Wisenet Road AI LPR/ANPR/MMCR
| Solution | Highways | |
| Speed Description | High Speed | |
| Lane Coverage | Up to 2 lanes | |
| Speed Limit | Up to 200kmh(125mph) for 2 lanes | |
| Min. Forward Distance | 27m(90ft) | |
| Max. Forward Distance | 46m(150ft) | |
| Max. Horizontal Angle | 15° | |
| Max. Vertical Angle | 15° | |
| Horizontal Offset | Up to 4m(12ft) | |
| Camera Height | Up to 7m(24ft) | |
| Vehicle Recognition | Make : 70+ Model : 600+ Color : 11 colors | |
| Available Countries | Albania, Armenia, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Germany, Hungary, Ireland, Iceland, Italy, Lithuania, Luxembourg, Latvia, Montenegro, North Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovenia, Slovakia, Spain, Switzerland, Turkey, United Kingdom, United States of America, Canada, Russian Federation, Azerbaijan, Uzbekistan, Ukraine, Kyrgyzstan, Kazakhstan, Tajikistan, Georgia, Turkmenistan, UAE, Liechtenstein, Mexico, Moldova, Monaco, San Marino, Sweden |
