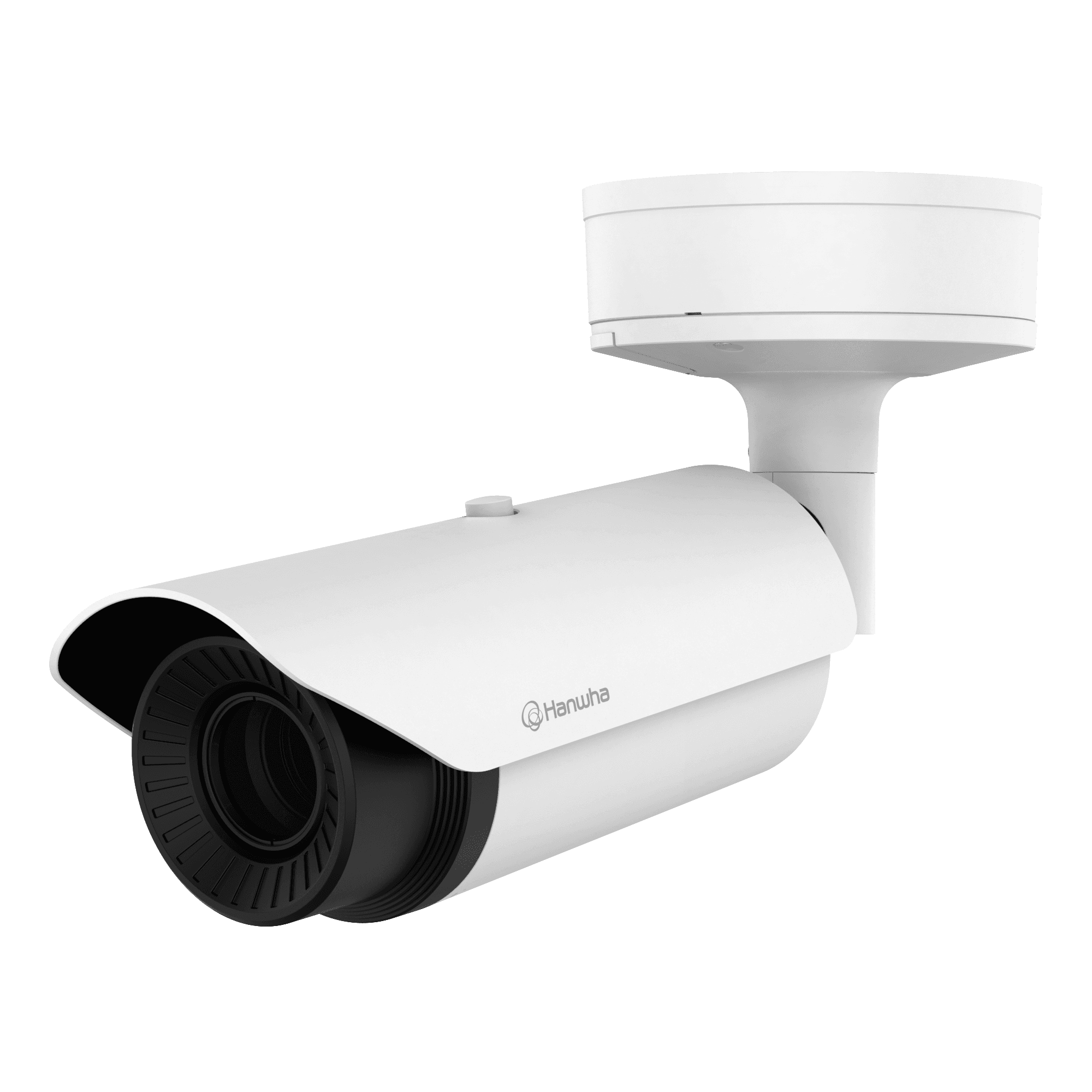

TNO-4050T
VGA H.265 Thermal CameraKey Features
- Max. 640 x 480 resolution support
- Built-in 35mm fixed lens
- H.265, H.264, MJPEG codec
- Max. 30fps@all resolutions (H.265, H.264, MJPEG)
- Motion detection, Handover, Tampering, Loitering
- Directional detection, Audio detection, Sound classification
- Shock detection, Temperature change detection
- SD / SDHC / SDXC memory slot (Max. 256GB)
- Hallway View, WiseStreamII support
- PoE, 24V AC, 12V DC
- IP66, NEMA4X
※ Bridge firmware is required to upgrade from 1.00~1.2X versions to the latest version. For more details, please refer to the [UPGRADE NOTIFICATION] or [Release Note] included with your firmware (ZIP file).
Downloads
View Selection
Manuals
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet-T-series_210105_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNO-4050T_180308.dxf | 2026-08-06 | |
| CAD | CAD_TNO-4050T_180308.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNO-4050T_180215_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_TNO-4050T_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNO-4050T_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNO-4050T_230224_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNO-4050T_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_TNO-4050T_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TNO-4050T_230315_KO_KC(SAFETY).pdf | 2026-08-06 | |
| Certification | Certification_TNO-4050T_230315_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TNO-4050T_230321_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TNO-4050T_230224_EN_FCC-IC.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNO-4050T_2.11.11_20221117_R800.zip | 2026-08-06 | |
| Firmware | TNO-4050T_2.11.13_20260608_R168.zip | 2026-08-06 | |
| Firmware | TNO-4050T_2.11.11_20221117_R800.zip | 2026-08-06 | |
| Firmware | TNO-4050T_2.11.13_20260608_R168.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNO-4050T_191231_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNO-4050T_20260806_EN_183712.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_TNO-4050T_200814_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_TNO-4050T_200814_Common_mm.rfa | 2026-08-06 |
Quick Guide
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNO-4050TTNO-4040TTNO-4051TTNO-4041TTNO-4030T_191031_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNO-4050TTNO-4040TTNO-4051TTNO-4041TTNO-4030T_191031_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNO-4050TTNO-4040TTNO-4051TTNO-4041TTNO-4030T_191031_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNO-4050T%2CTNO-4051T%2CTNO-3040T%2CTNO-3050T%2CTNO-3030T%2CTNO-3020T_250718_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Type | Uncooled micro bolometer (640x480) |
| Resolution | 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Spectral Range | 8~14㎛ | |
| NETD | ≤50mK | |
| Pixel Size | 17㎛ | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 35 | |
| Max Aperture Ratio (F number) | Wide | 1.0 |
| Angular Field of View | Horizontal | 17.2° |
| Vertical | 13° | |
| Diagonal | 22° | |
| iFoV | 0.47mRad | |
| Min. Object Distance | 36m(118.11ft) | |
| Focus Control | Fixed |
Operational
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Color Pallettes | Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Custom |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Temperature detection |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC | |
| Power Consumption | PoE | Max. 10W, typical 8.6W |
| 12VDC | Max. 9W, typical 7.5W | |
| 24VAC | Max. 10.5W, typical 8.9W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø101.97x401.8mm(4.01x15.82") | |
| Product Weight | 3175g(7.01lb) |
Certifications & Standards
| Environment | IEC 60529 IP66, NEMA 250 type 4X |
Video
| Imaging Device | Type | Uncooled micro bolometer (640x480) |
| Resolution | 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Spectral Range | 8~14㎛ | |
| NETD | ≤50mK | |
| Pixel Size | 17㎛ | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 35 | |
| Max Aperture Ratio (F number) | Wide | 1.0 |
| Angular Field of View | Horizontal | 17.2° |
| Vertical | 13° | |
| Diagonal | 22° | |
| iFoV | 0.47mRad | |
| Min. Object Distance | 36m(118.11ft) | |
| Focus Control | Fixed |
Operational
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Color Pallettes | Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Custom |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Temperature detection |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC | |
| Power Consumption | PoE | Max. 10W, typical 8.6W |
| 12VDC | Max. 9W, typical 7.5W | |
| 24VAC | Max. 10.5W, typical 8.9W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø101.97x401.8mm(4.01x15.82") | |
| Product Weight | 3175g(7.01lb) |
Certifications & Standards
| Environment | IEC 60529 IP66, NEMA 250 type 4X |
