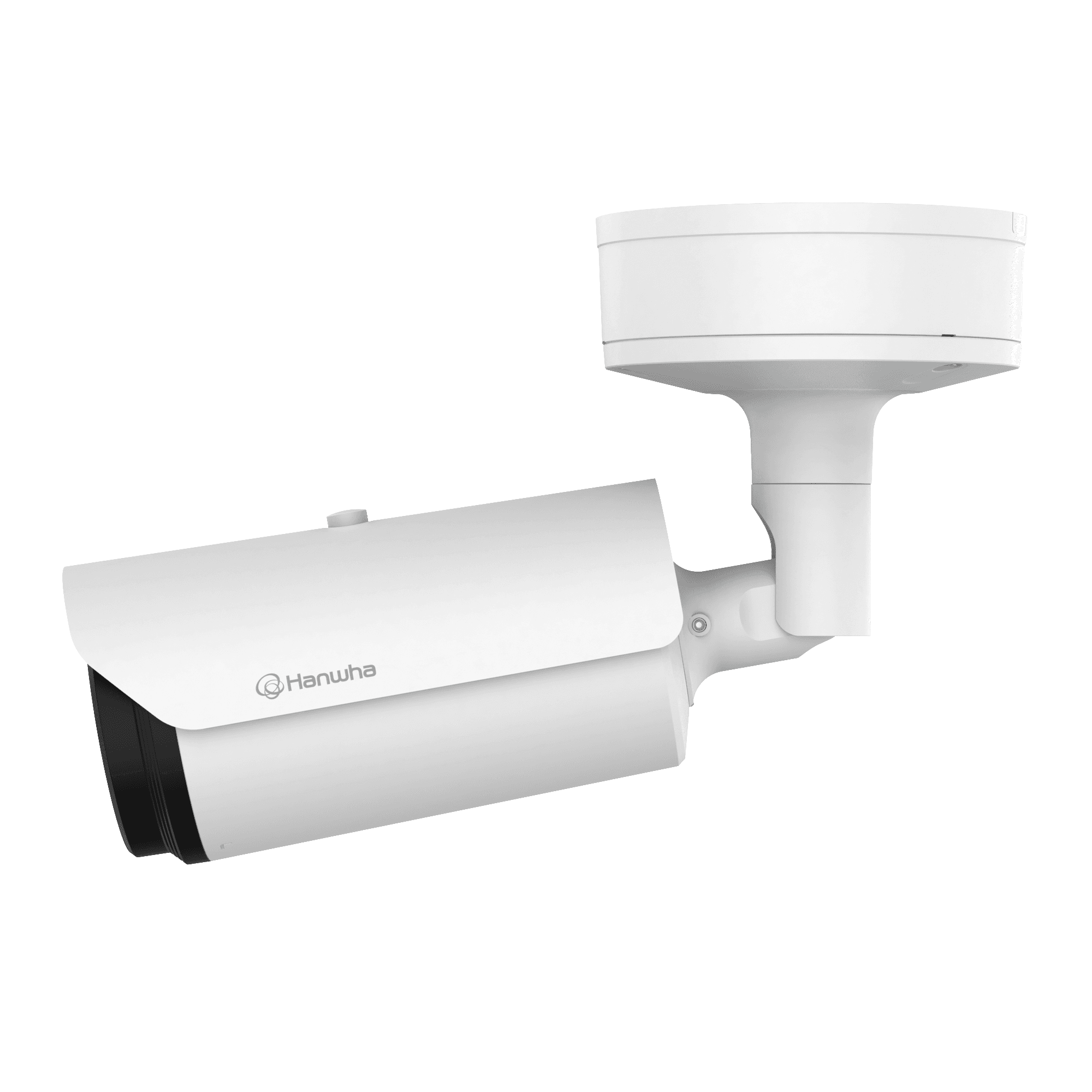

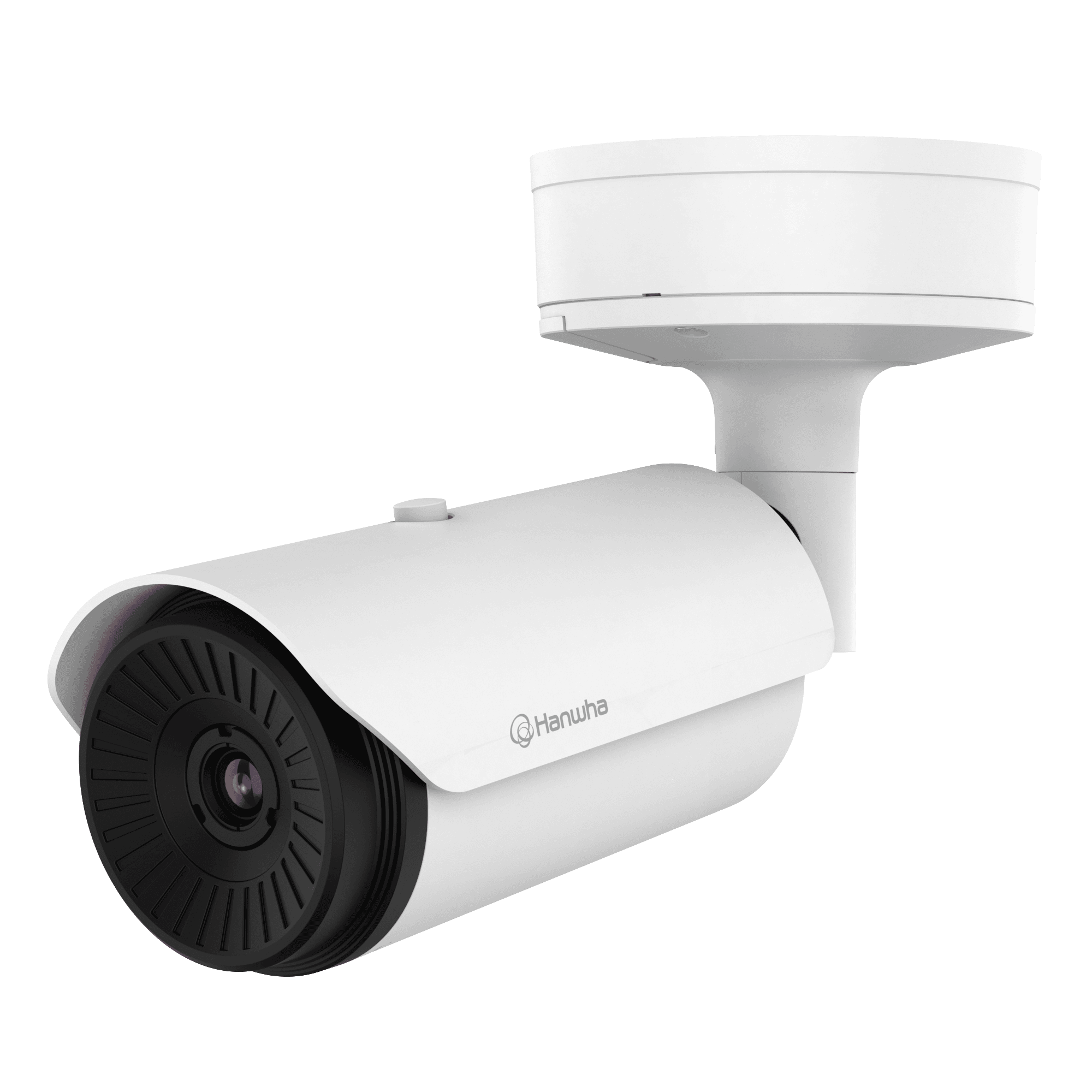

TNO-3030T
QVGA Thermal CameraKey Features
• Max. 320 x 240 resolution support
• Built-in 13.7mm fixed lens
• H.265, H.264, MJPEG codec
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Temperature detection, Shock detection
• Micro SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNO-3010T,TNO-3020T,TNO-3030T,TNO-3040T,TNO-3050T,TNO-L3030T_240628_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-3010T,TNO-3020T,TNO-3030T,TNO-3040T,TNO-3050T,TNO-L3030T_240628_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-3010T,TNO-3020T,TNO-3030T,TNO-3040T,TNO-3050T,TNO-L3030T_240628_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-3010T,TNO-3020T,TNO-3030T,TNO-3040T,TNO-3050T,TNO-L3030T_240628_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-3010T,TNO-3020T,TNO-3030T,TNO-3040T,TNO-3050T,TNO-L3030T_240628_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-3010T,TNO-3020T,TNO-3030T,TNO-3040T,TNO-3050T,TNO-L3030T_240628_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-3010T,TNO-3020T,TNO-3030T,TNO-3040T,TNO-3050T,TNO-L3030T_240628_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNO-3010T,TNO-3020T,TNO-3030T,TNO-3040T,TNO-3050T,TNO-L3030T_240628_TR.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNO-L3030TTNO-3040TTNO3010TTNO-3020TTNO-3030T_221115_Common.dxf | 2026-08-06 | |
| CAD | CAD_TNO-L3030TTNO-3040TTNO3010TTNO-3020TTNO-3030T_221115_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNO-3030T_191014_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_TNO-3030T_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNO-3030T_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNO-3030T_230224_EN_EMC_CE,UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNO-3030T_230224_EN_FCC.pdf | 2026-08-06 | |
| Certification | Certification_TNO-3030T_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_TNO-3030T_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TNO-3030T_230315_KO_KC(SAFETY).pdf | 2026-08-06 | |
| Certification | Certification_TNO-3030T_230315_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TNO-3030T_230321_KO_KC(EMC).pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNO-3030T_2.11.13_20260608_R38.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNO-3030T_210802_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNO-3030T_20260806_EN_133248.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_TNO-3030T_200814_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_TNO-3030T_200814_Common_mm.rfa | 2026-08-06 |
Quick Guide
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNO-3010TTNO-3020TTNO-3030T_20221116_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNO-3010TTNO-3020TTNO-3030T_20221116_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNO-3010TTNO-3020TTNO-3030T_20221116_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNO-4050T%2CTNO-4051T%2CTNO-3040T%2CTNO-3050T%2CTNO-3030T%2CTNO-3020T_250718_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Type | Uncooled micro bolometer (320x240) |
| Resolution | 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Spectral Range | 8~14㎛ | |
| NETD | ≤60mK | |
| Pixel Size | 12㎛ | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 13.7 | |
| Max Aperture Ratio (F number) | Wide | 1.0 |
| Angular Field of View | Horizontal | 16° |
| Vertical | 12° | |
| Diagonal | 20° | |
| iFoV | 0.87mRad | |
| Min. Object Distance | 8m(26.25ft) | |
| Focus Control | Fixed |
Operational
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Color Pallettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Temperature detection |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC | |
| Power Consumption | PoE | Max. 8.7W, typical 7.5W |
| 12VDC | Max. 7.8W, typical 6.7W | |
| 24VAC | Max. 9.2W, typical 8.0W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø147.51x375.3mm(5.81x14.78") | |
| Product Weight | 2512g(5.538lb) |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X |
Video
| Imaging Device | Type | Uncooled micro bolometer (320x240) |
| Resolution | 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Spectral Range | 8~14㎛ | |
| NETD | ≤60mK | |
| Pixel Size | 12㎛ | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 13.7 | |
| Max Aperture Ratio (F number) | Wide | 1.0 |
| Angular Field of View | Horizontal | 16° |
| Vertical | 12° | |
| Diagonal | 20° | |
| iFoV | 0.87mRad | |
| Min. Object Distance | 8m(26.25ft) | |
| Focus Control | Fixed |
Operational
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Color Pallettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Temperature detection |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC | |
| Power Consumption | PoE | Max. 8.7W, typical 7.5W |
| 12VDC | Max. 7.8W, typical 6.7W | |
| 24VAC | Max. 9.2W, typical 8.0W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø147.51x375.3mm(5.81x14.78") | |
| Product Weight | 2512g(5.538lb) |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X |
