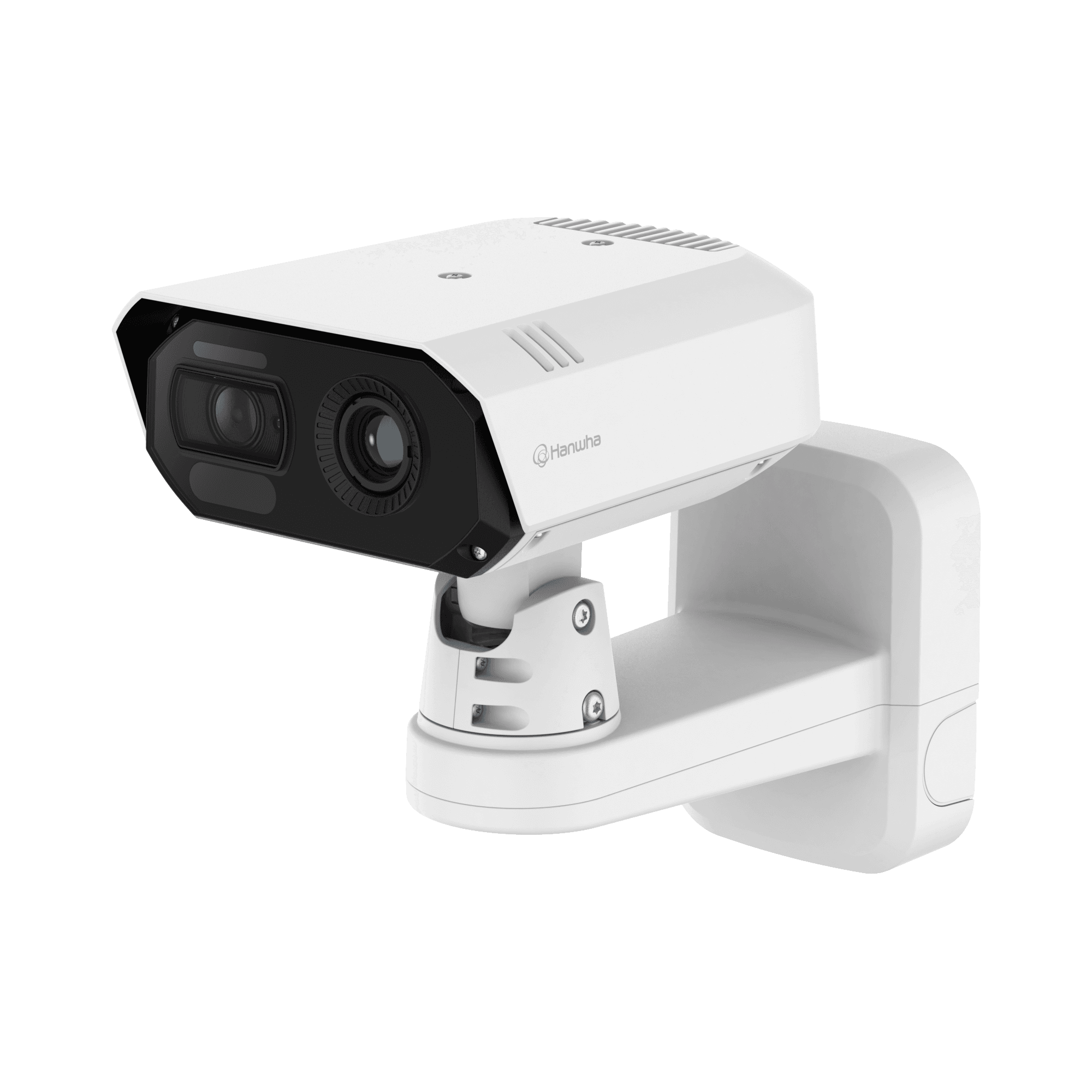

TNM-C4942TDR
Bi-spectrum AI IR Thermal CameraKey Features
• VGA Thermal Image Resolution
• 8MP Visible Image Resolution
• Temparature Detection Range : -20 ~ 130°C
• Abnormal Temperature Detection
• Max. Framerate 8fps
• AI available for both visible and thermal image
• Monitoring potential risk caused by heat
• FIPS 140-2 Level 2
• NEMA4X, NEMA TS 2
Downloads
View Selection
Manuals
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNM-C4940TDTNM-C4950TDTNM-C4960TDTNM-C4940TDRTNM-C4942TDR_221228_Common.dxf | 2026-08-06 | |
| CAD | CAD_TNM-C4940TDTNM-C4950TDTNM-C4960TDTNM-C4940TDRTNM-C4942TDR_221228_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNM-C4942TDR_231025_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231025_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231025_EN_EMC_CE,UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231025_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231025_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231027_KO_KC(Safety).pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231027_KO_Report_KC(Safety).pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231029_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231106_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231106_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231106_KO_Report_KC(TEL).pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_231025_EN_FCC-IC.pdf | 2026-08-06 | |
| Certification | Certification_TNM-C4942TDR_240124_EN_NEMA-TS-22.2.72.2.82.2.9.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNM-C4942TDR_2.21.02_20250912_R216.zip | 2026-08-06 | |
| Firmware | WiseAI_v_AA_TNM-C494XTDR_1_00_00_20240206.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNM-C4942TDR_240307_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNM-C4942TDR_20260806_EN_190846.pdf | 2026-08-06 |
Quick Guide
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNM-C4942TDRTNM-C4940TDR_20240306_EN-1.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNM-C4940TDRTNM-C4942TDR_231017_EN.txt | 2026-08-06 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation%20Guide%20Sheet_TNM-C4942TDR_260618_Common.pdf | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | - | - | 1/1.8" |
| Type | - | Uncooled micro bolometer (640x480) | CMOS | |
| Resolution | - | 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | 3840x2160, 3072x1728, 2688x1520, 2592x1944, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | - | 8fps | 30fps/25fps(60Hz/50Hz) |
| MJPEG | - | 3fps | 1fps | |
| Others | - | Max. 15fps when both channel AI on | Max. 15fps when both channel AI on | |
| Spectral Range | - | 8~14㎛ | - | |
| NETD | - | ≤60mK | - | |
| Pixel Size | - | 12㎛ | - | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | - | - | 0.06 |
| BW(1/30sec, 30IRE) | - | - | 0.004 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. | - | - |
Lens
| Focal Length (mm) | - | 9.1 | 4.4~9.3 | |
| Max Aperture Ratio (F number) | Wide | - | 1.0 | 1.3 |
| Tele | - | - | 2.15 | |
| Angular Field of View | Horizontal | - | 50° | 112°(Wide)~47°(Tele) |
| Vertical | - | 37° | 58°(Wide)~26°(Tele) | |
| Diagonal | - | 64° | 138°(Wide)~54°(Tele) | |
| iFoV | - | 1.319 mRad | - | |
| Min. Object Distance | - | 3.5m(11.48ft) | 1.75m(5.74ft) | |
| Focus Control | - | Fixed | Simple focus |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | -170° ~ +170° | - | - |
| Tilt | -40° ~ 50° | - | - | |
| Sequence | Preset(255ea) | - | - |
Operational
| Day & Night | - | - | Auto(ICR) | |
| Backlight Compensation | - | - | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | - | - | 120 | |
| Digital Noise Reduction | - | - | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | - | - | Support(built-in gyro sensor) | |
| Gain Control | - | - | Low, Middle, High | |
| White Balance | - | - | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | - | - | Support | |
| Electronic Shutter | Mode | - | - | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | - | - | 1/5~1/12,000sec | |
| Light Viewable Length | IR | - | - | 30m(98.42ft) |
| IR Wavelength | - | - | 850nm |
Analytics
| Classified Object Type | - | Person, Vehicle | Person, Face, Vehicle, License plate | |
| Attributes | Vehicle | - | - | Type(car, bus, truck, motorcycle, bicycle) |
| Thumbnail | - | BestShot | BestShot | |
| Analytics Events | Based on AI Engine | - | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Normal | - | Motion detection, Temperature detection | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear) |
Radiometry
| Temperature Detect Range | - | -20°C~130°C | - | |
| Temperature Accuracy | - | ±5°C(≤100°C), ±20%(>100°C) | - | |
| Temperature Detection ROI Zones | Quantity | - | 10ea | - |
| Shape / Option | - | Polygonal | - | |
| Hybrid Pallettes | - | Support | - | |
| Spot Temperature Reading | - | Support | - | |
| ROI Condition Monitoring | - | Above, Below, Increase, Decrease | - |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | - | - | |
| Video Compression | H.265/H.264: Main/High, MJPEG | - | - | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | - | - | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | - | - | |
| Streaming | Unicast | Up to 6 users | - | - |
| Multicast | Support | - | - | |
| Multiple Streaming | Up to 3 profiles | - | - | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast) | - | - | |
| Application Programming Interface | ONVIF | S, T, M | - | - |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | - | - |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | - | - | |
| User authentication | Digest authentication | - | - | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | - | - | |
| Secure Communication | HTTPS, WSS(WebSocket Secure) | - | - | |
| Access Control | IP-based access control | - | - | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | - | - | |
| Audit | Access / System / Event Log management | - | - | |
| Device ID | Device certificate(Hanwha Vision Root CA) | - | - | |
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) | - | - | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 | - | - |
General
| Memory | RAM | 4GB | - | - |
| Flash | 512MB | - | - | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) | - | - |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) | - | - |
| Humidity | 0~95% RH(non-condensing) | - | - | |
| Others | Start up should be done at above -30°C | - | - | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) | - | - |
| Humidity | 0~90% RH(non-condensing) | - | - | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | - | - | |
| Power Consumption | PoE | Max. 25.5W, Typ 16.0W | - | - |
| 12VDC | Max. 21.5W, Typ 14.0W | - | - |
Mechanical
| Color | White | - | - | |
| Material | Aluminum | - | - | |
| RAL Code | RAL9003 | - | - | |
| Product Dimensions | 353.4(W)x287.5(H)x191.2(D)mm(13.92x11.32x7.53") | - | - | |
| Product Weight | 4.53kg(9.99lb) | - | - |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | - | - | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | - | - | |
| Environment | IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X | - | - |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | - | - | 51.7m(169.94ft) |
| Tele | - | - | 174.5m(572.64ft) | |
| Observe (63PPM/ 19PPF) | Wide | - | - | 20.7m(67.85ft) |
| Tele | - | - | 69.8m(229.06ft) | |
| Recognize (125PPM/ 38PPF) | Wide | - | - | 10.3m(33.93ft) |
| Tele | - | - | 34.9m(114.53ft) | |
| Identify (250PPM/ 76PPF) | Wide | - | - | 5.2m(16.96ft) |
| Tele | - | - | 17.5m(57.26ft) |
DRI (Johnson's Criteria)
| Detection | Person(1.67PPM) | - | 412m(1,351ft) | - |
| Vehicle(0.65PPM) | - | 1,052m(3,452ft) | - | |
| Recognition | Person(6.67PPM) | - | 103m(338ft) | - |
| Vehicle(2.61PPM) | - | 263m(863ft) | - | |
| Identification | Person(13.33PPM) | - | 51m(169ft) | - |
| Vehicle(5.22PPM) | - | 132m(432ft) | - |
