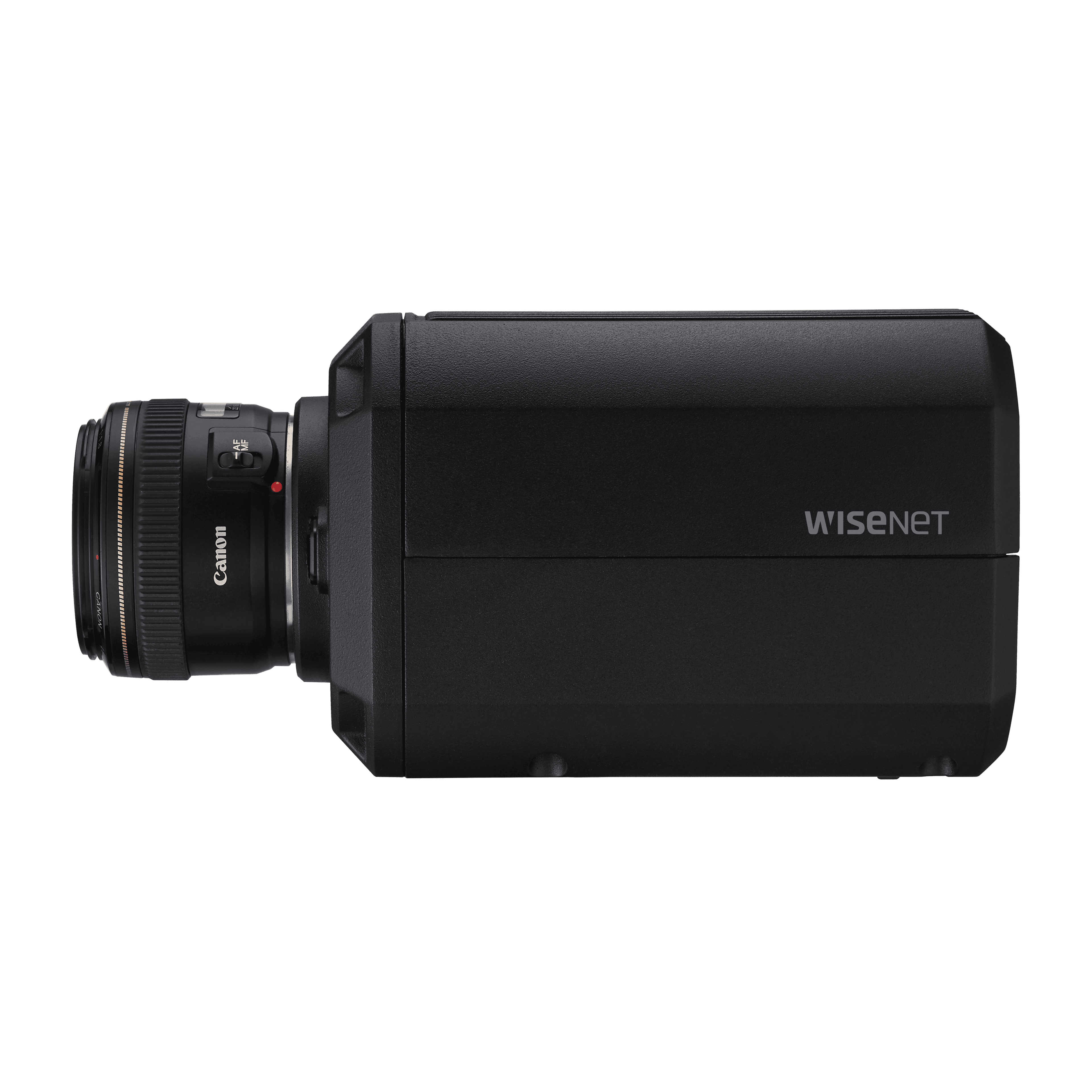

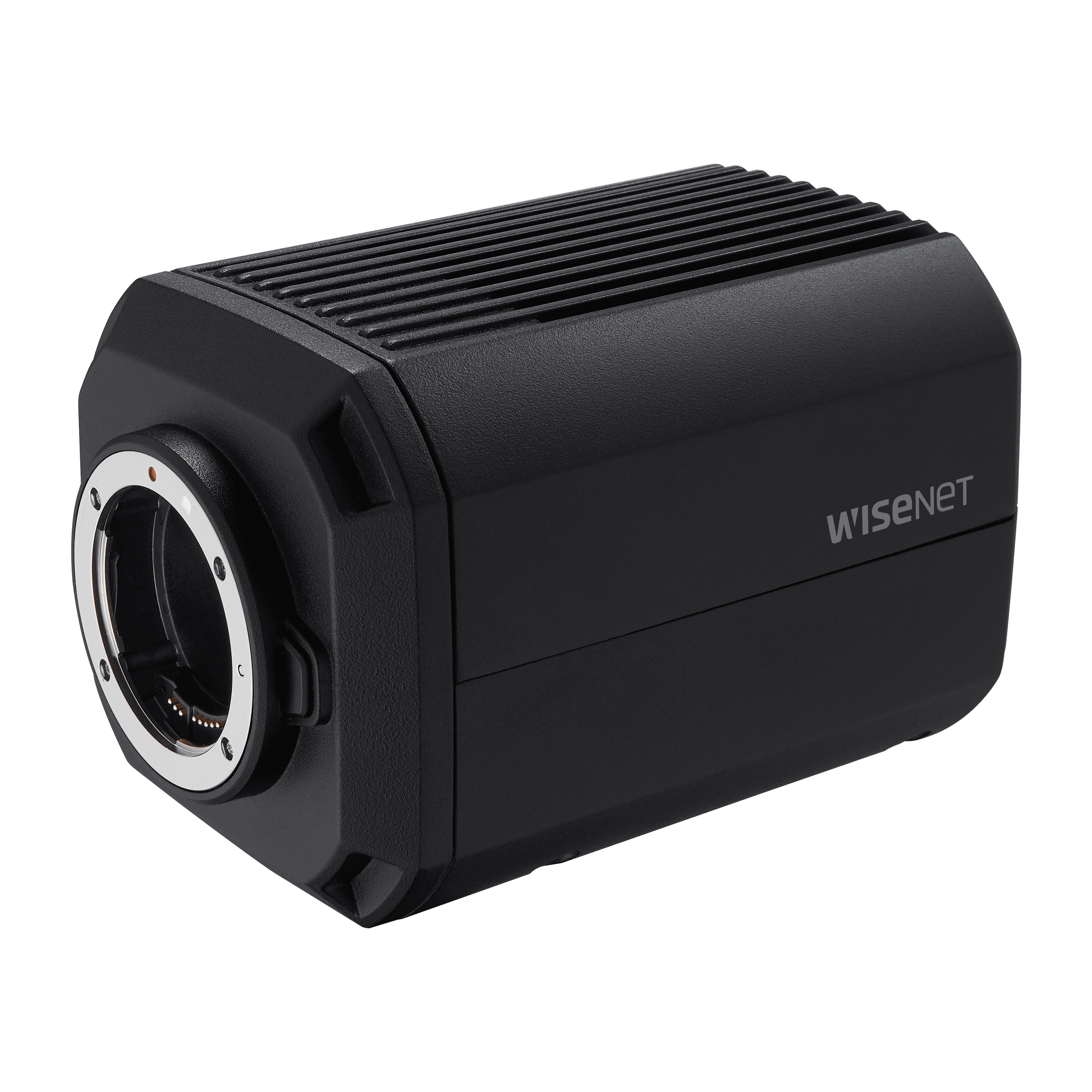

TNB-9000
8K Box CameraKey Features
• 43.3mm full-frame CMOS Image Sensor
• Max.15fps@8K, 20fps@24MP, 30fps@15MP, 60fps@4K
• Compatible with Canon EF mount Lens
• Intelligent video analytics based on AI (Object detection/classification, Attribute, BestShot)
• HDMI (1080p 30fps) Video Output
• H.265/H.264 : Main/High, MJPEG
• Single Micro SD slot (Up to 256GB)
• WiseStreamⅡ support
• RJ-45, SFP slot(100/1000Mbps)
• HPoE(IEEE802.3bt, Class5), 12VDC
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNB-9000_240702_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_TNB-9000_240702_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_TNB-9000_240702_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_TNB-9000_240702_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_TNB-9000_240702_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNB-9000_240702_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_TNB-9000_240702_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_TNB-9000_240702_TR.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNB-9000_191218.dxf | 2026-08-06 | |
| CAD | CAD_TNB-9000_191218.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TNB-9000_200121_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_TNB-9000_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNB-9000_230224_EN_DOC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TNB-9000_230224_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TNB-9000_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_TNB-9000_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TNB-9000_230315_KO_KC(SAFEY).pdf | 2026-08-06 | |
| Certification | Certification_TNB-9000_230315_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TNB-9000_230321_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TNB-9000_230224_EN_FCC-IC.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TNB-9000_1.41.01_20200609_R216.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNB-9000_200831_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNB-9000_20260806_EN_145127.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_TNB-9000_200814_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_TNB-9000_200814_Common_mm.rfa | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TNB-9000_240702_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNB-9000_240702_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNB-9000_240702_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNB-9000_240702_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNB-9000_240702_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNB-9000_240702_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNB-9000_240702_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNB-9000_240702_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNB-9000_240702_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNB-9000_240702_TR.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNB-9000_200214_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNB-9000_200214_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_TNB-9000_200214_FR.pdf | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | Diagonal 43.3mm Full-frame |
| Type | CMOS | |
| Resolution | 7680x4320, 7360x4128, 6016x4008, 6016x3384, 5472x3648, 4768x3184, 4608x2592, 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | 15fps@32MP(8K)(Mode 0) / 20fps@24MP(Mode 1) / 30fps@15MP(Mode 2) / 60fps@8MP(4K)(Mode 3) |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.015 |
| BW(1/30sec, 30IRE) | 0.0015 | |
| Video Out | HDMI: 1080p@30/25fps(60/50Hz) |
Lens
| Focus Control | Simple focus | |
| Lens Type | Canon EF mount | |
| Mount Type | Canon EF mount | |
| Optional Lens | Canon 24mm f1.4L Auto-Iris (EF 24mm f/1.4L II USM), Canon 35mm f1.4L Auto-Iris (EF 35mm f/1.4L II USM), Canon 50mm f1.4 Auto-Iris (EF 50mm f/1.4 USM), Canon 85mm f1.2L Auto-Iris (EF 85mm f/1.2L II USM), Canon 100mm f2.0 Auto-Iris (EF 100mm f/2 USM), Canon 70-200mm f2.8L Auto-Iris Vari Focal (EF 70-200mm f/2.8L USM) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, DWDR | |
| Digital Noise Reduction | SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 1/5~1/12,000sec | |
| Digital PTZ | Support | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Glasses | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear) |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T), SFP | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API) |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | 0°C~+45°C(+32°F~+113°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -40°C~+65°C(-40°F~+149°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE++(IEEE802.3bt, Class5), 12VDC | |
| Power Consumption | PoE | Max 30W, typical 20W |
| 12VDC | Max 26W, typical 18W |
Mechanical
| Color | Black | |
| Material | Aluminum | |
| Product Dimensions | 120(W)x118.1(H)x179(D)mm | |
| Product Weight | 2,100g(4.55lb) |
Video
| Imaging Device | Size | Diagonal 43.3mm Full-frame |
| Type | CMOS | |
| Resolution | 7680x4320, 7360x4128, 6016x4008, 6016x3384, 5472x3648, 4768x3184, 4608x2592, 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | 15fps@32MP(8K)(Mode 0) / 20fps@24MP(Mode 1) / 30fps@15MP(Mode 2) / 60fps@8MP(4K)(Mode 3) |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.015 |
| BW(1/30sec, 30IRE) | 0.0015 | |
| Video Out | HDMI: 1080p@30/25fps(60/50Hz) |
Lens
| Focus Control | Simple focus | |
| Lens Type | Canon EF mount | |
| Mount Type | Canon EF mount | |
| Optional Lens | Canon 24mm f1.4L Auto-Iris (EF 24mm f/1.4L II USM), Canon 35mm f1.4L Auto-Iris (EF 35mm f/1.4L II USM), Canon 50mm f1.4 Auto-Iris (EF 50mm f/1.4 USM), Canon 85mm f1.2L Auto-Iris (EF 85mm f/1.2L II USM), Canon 100mm f2.0 Auto-Iris (EF 100mm f/2 USM), Canon 70-200mm f2.8L Auto-Iris Vari Focal (EF 70-200mm f/2.8L USM) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, DWDR | |
| Digital Noise Reduction | SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 1/5~1/12,000sec | |
| Digital PTZ | Support | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Glasses | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear) |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T), SFP | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API) |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | 0°C~+45°C(+32°F~+113°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -40°C~+65°C(-40°F~+149°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE++(IEEE802.3bt, Class5), 12VDC | |
| Power Consumption | PoE | Max 30W, typical 20W |
| 12VDC | Max 26W, typical 18W |
Mechanical
| Color | Black | |
| Material | Aluminum | |
| Product Dimensions | 120(W)x118.1(H)x179(D)mm | |
| Product Weight | 2,100g(4.55lb) |
