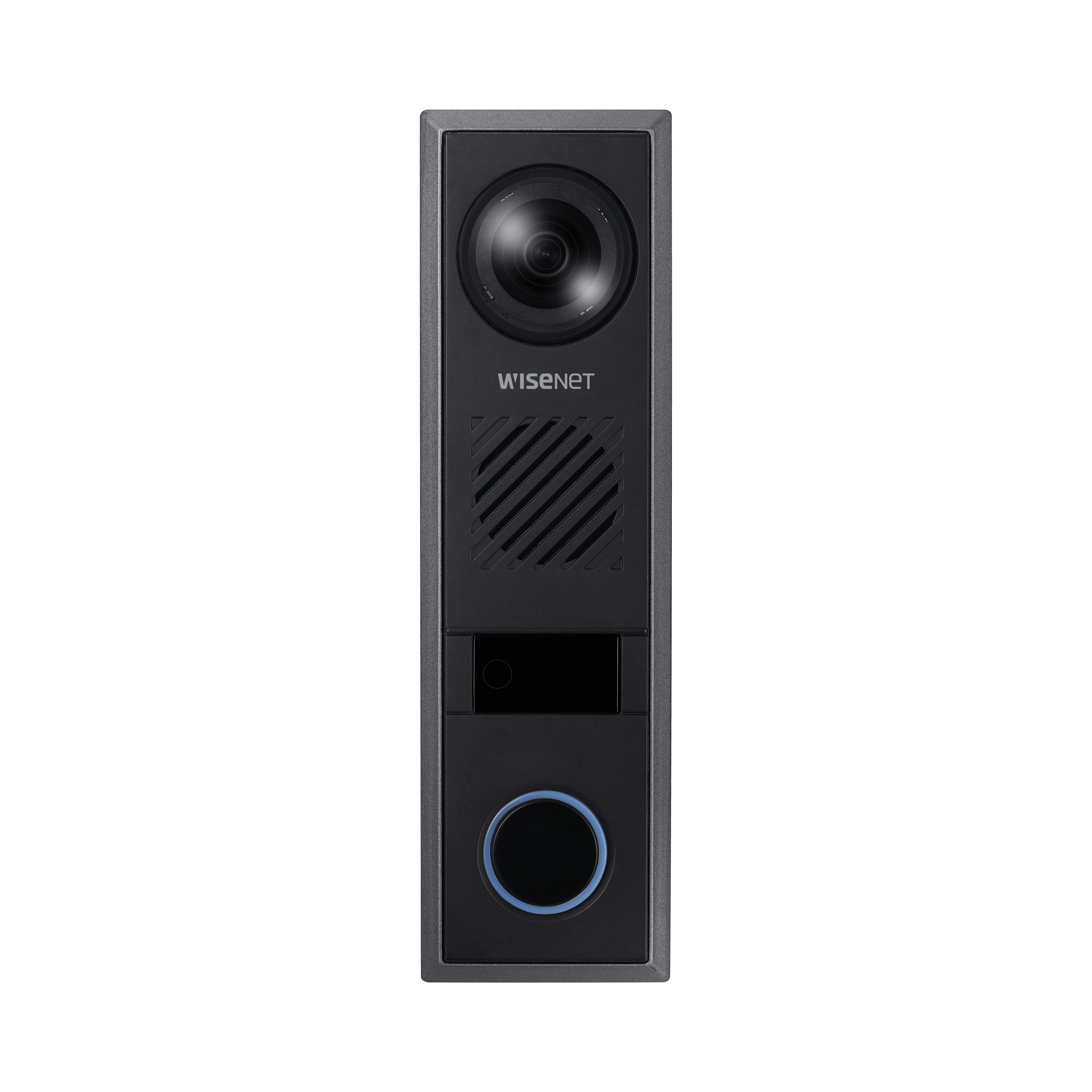

TID-600R
2MP IntercomKey Features
- 1/2.8” 2MP sensor
- 1.6mm fixed lens : HFoV 180°, VFoV 114°
- IR viewable length 5m
- Built-in mic and speaker : 85dB speaker out at 0.5m
- Echo cancellation and noise reduction
- Touchless call, Built-in tamper switch
- SIP 2.0 support
- MicroSD 1slot, PoE/12VDC
- Max. 550mA relay out with 2A 12VDC adapter
- IP65, IK08, NEMA4X
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TID-600R_241014_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_TID-600R_241014_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_TID-600R_241014_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_TID-600R_241014_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_TID-600R_241014_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_TID-600R_241014_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_TID-600R_241014_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_TID-600R_241014_TR.pdf | 2026-08-06 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_TID-600R_211102_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TID-600R_210430_Common.dxf | 2026-08-06 | |
| CAD | CAD_TID-600R_210430_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_TID-600R_210611_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_TID-600R_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_TID-600R_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TID-600R_230224_EN_EMC_CE,UKCA.pdf | 2026-08-06 | |
| Certification | Certification_TID-600R_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_TID-600R_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_TID-600R_230315_KO_Report_KC(TEL).pdf | 2026-08-06 | |
| Certification | Certification_TID-600R_230321_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_TID-600R_230224_EN_FCC-IC.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | TID-600R_2.12.03_20260416_R4.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TID-600R_210917_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TID-600R_20260806_EN_180239.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TID-600R_241112_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TID-600R_241112_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TID-600R_241112_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TID-600R_241112_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TID-600R_241112_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TID-600R_241112_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TID-600R_241112_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TID-600R_241112_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TID-600R_241112_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TID-600R_241112_TR.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TID-600R_20210903_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_TID-600R_20210903_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_TID-600R_20210903_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TID-600R_210526_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.018 |
| BW(1/30sec, 30IRE) | 0.0018 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 1.6 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 180° |
| Vertical | 114° | |
| Diagonal | 180° | |
| Min. Object Distance | 0.3m(0.98ft) | |
| Focus Control | Fixed |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Alarm Interface | In/Out | Input 2ea / Output 1ea |
| Others | Relay out, Tampering switch, Touchless call | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, Audio clip playback | |
| Audio Streaming | Two-way/one-way selectable, Full duplex, Echo cancellation, Noise reduction | |
| Audio In | Built-in mic | |
| Audio Out | Built-in speaker | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 5m(16.40ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz, Opus 8/16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), PPPoE, SIP 2.0(RFC 3261 and companion RFCs), PIM-SM | |
| SIP support (VoIP, Peer-to-peer, SIP/PBX integration) | Tested with Cisco, Grandstream, Yealink VoIP phones and Asterisk PBX software | |
| Application Programming Interface | ONVIF | S, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 2GB |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+55°C(-58°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max 12.95W, typical 9.1W |
| 12VDC | Max 17.7W, typical 7W |
Mechanical
| Color | Dark grey | |
| Material | Aluminum | |
| RAL Code | RAL7022 | |
| Product Dimensions | 49(W)x165(H)x48(D)mm(1.93x6.50x1.89") | |
| Product Weight | 490g(1.08lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Environment | IEC 62262 IK08, NEMA 250 type 4X, IEC 60529 IP65 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 20.72m(67.98ft) |
| Observe (63PPM/ 19PPF) | Wide | 8.29m(27.20ft) |
| Recognize (125PPM/ 38PPF) | Wide | 4.14m(13.58ft) |
| Identify (250PPM/ 76PPF) | Wide | 2.07m(6.79ft) |
