SPP-C00402EP

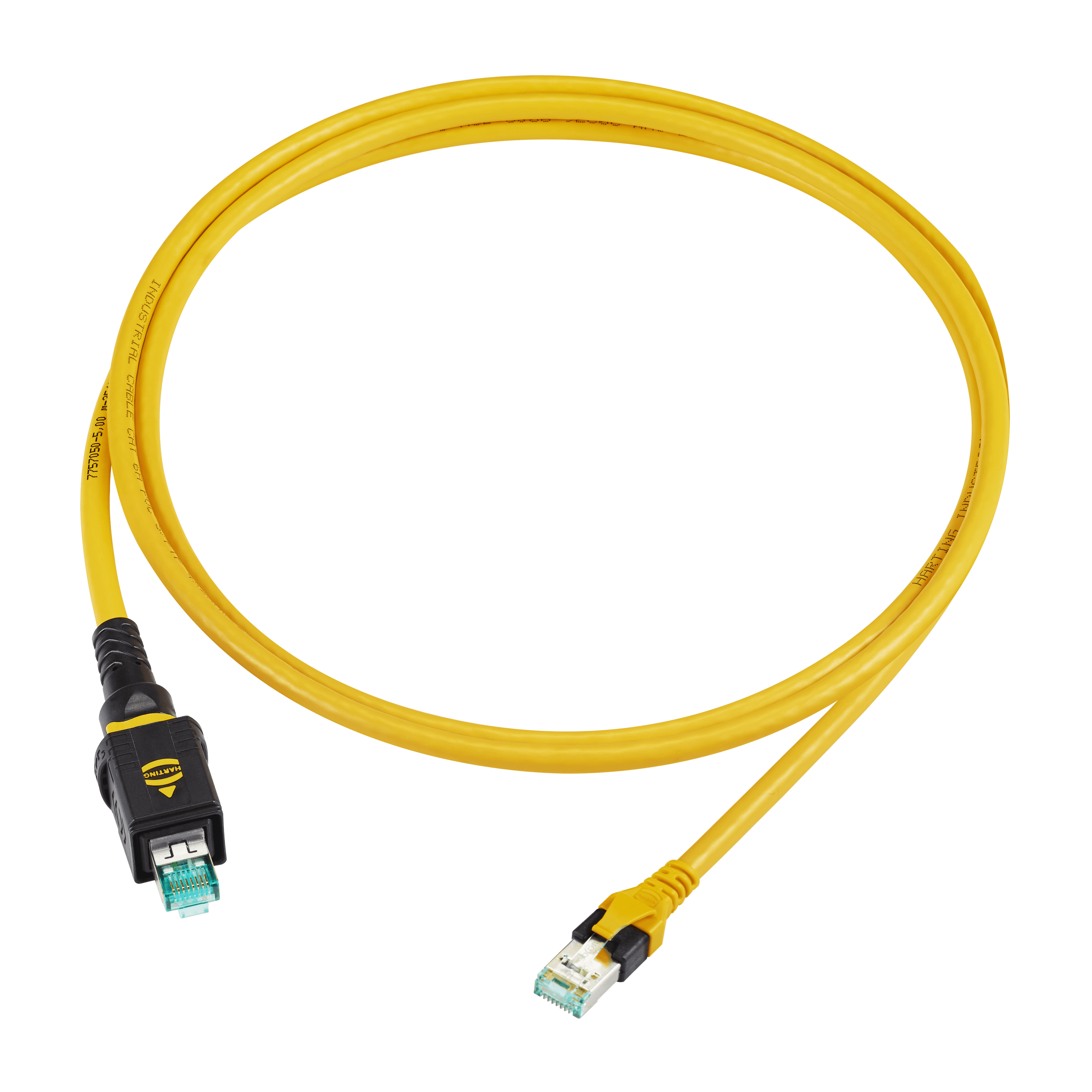

Cable with push-pull connectors (2M)Key Features
- 2m RJ45 Push-pull ruggedized Cable
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPP-C00402EP%2CSPP-C00405EP%2CSPP-C00410EP_251215_Common.pdf | 2026-10-30 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPP-C00402EP_20260219_EN_163137.pdf | 2026-10-30 |
Specifications
Environmental
| Operating Temperature / Humidity | -50°C~+60°C(-58°F~+140°F)/0~100% RH(condensing) | |
| Storage Temperature / Humidity | -50°C~+50°C(-58°F~+122°F)/0~100% RH(condensing) | |
| Certification | IP66, IP68(Dedicated Camera Connection Requirements) |
Mechanical
| Color | Black, Yellow | |
| Material | Thermoplastic, Copper Alloy | |
| Product dimensions / weight | 2m(78.74")/128g(0.28lb) | |
| Supported products | TNP-A6550RW, TNP-A6550RWB, TNP-A7430RW, TNP-A7430RWB, TNP-A9430RW, TNP-A9430RWB |
Cable
| Cable Length | 2m |
Environmental
| Operating Temperature / Humidity | -50°C~+60°C(-58°F~+140°F)/0~100% RH(condensing) | |
| Storage Temperature / Humidity | -50°C~+50°C(-58°F~+122°F)/0~100% RH(condensing) | |
| Certification | IP66, IP68(Dedicated Camera Connection Requirements) |
Mechanical
| Color | Black, Yellow | |
| Material | Thermoplastic, Copper Alloy | |
| Product dimensions / weight | 2m(78.74")/128g(0.28lb) | |
| Supported products | TNP-A6550RW, TNP-A6550RWB, TNP-A7430RW, TNP-A7430RWB, TNP-A9430RW, TNP-A9430RWB |
Cable
| Cable Length | 2m |
