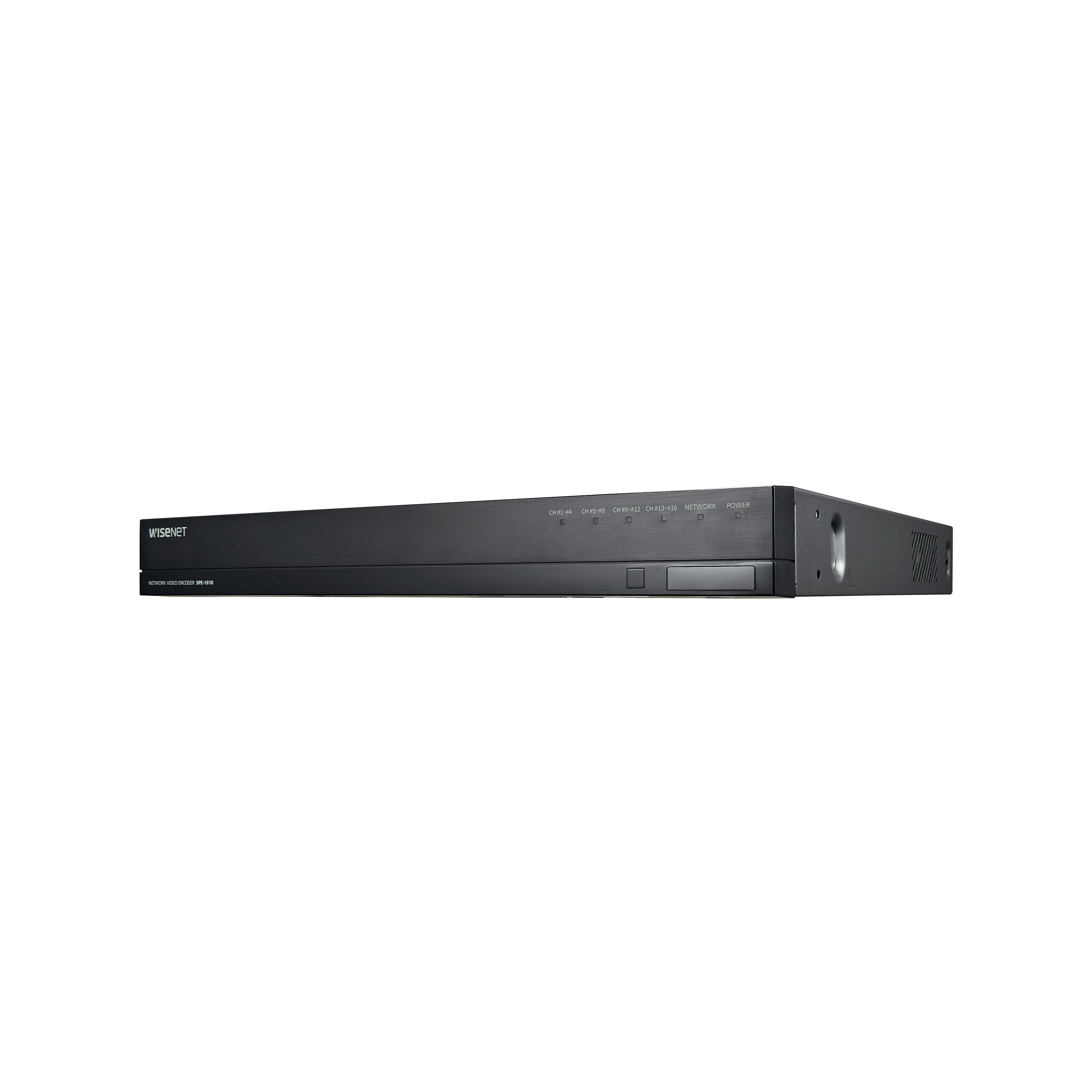

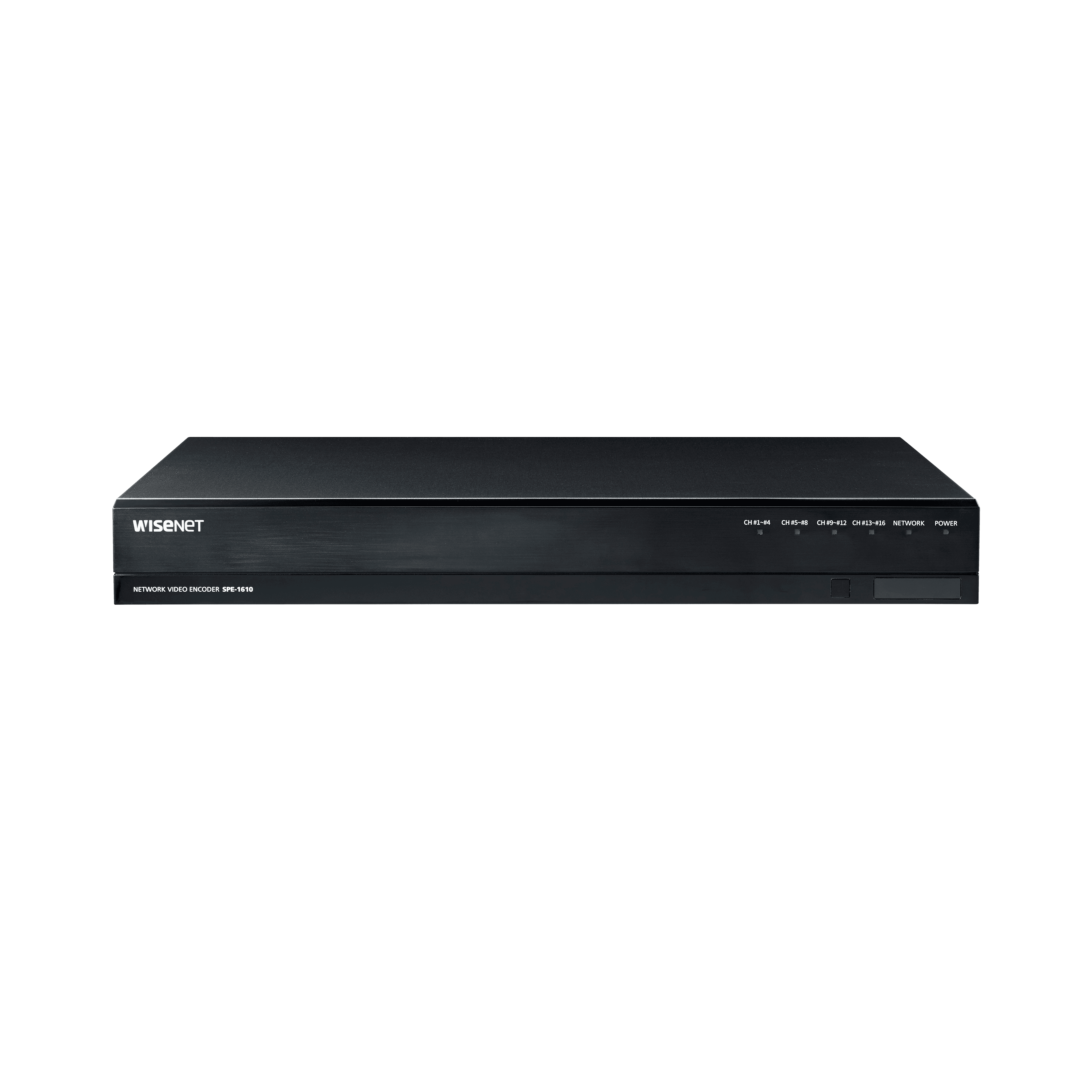

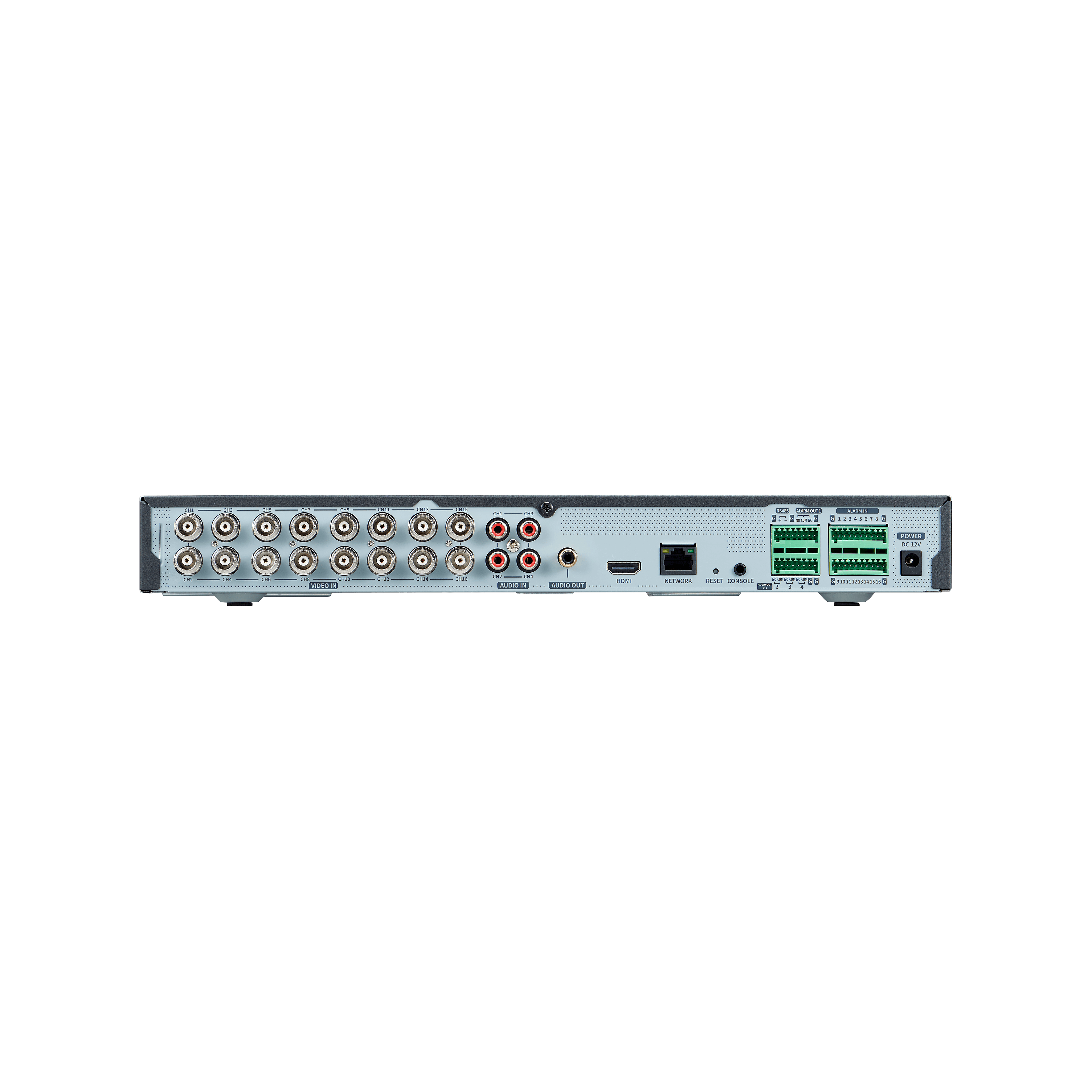

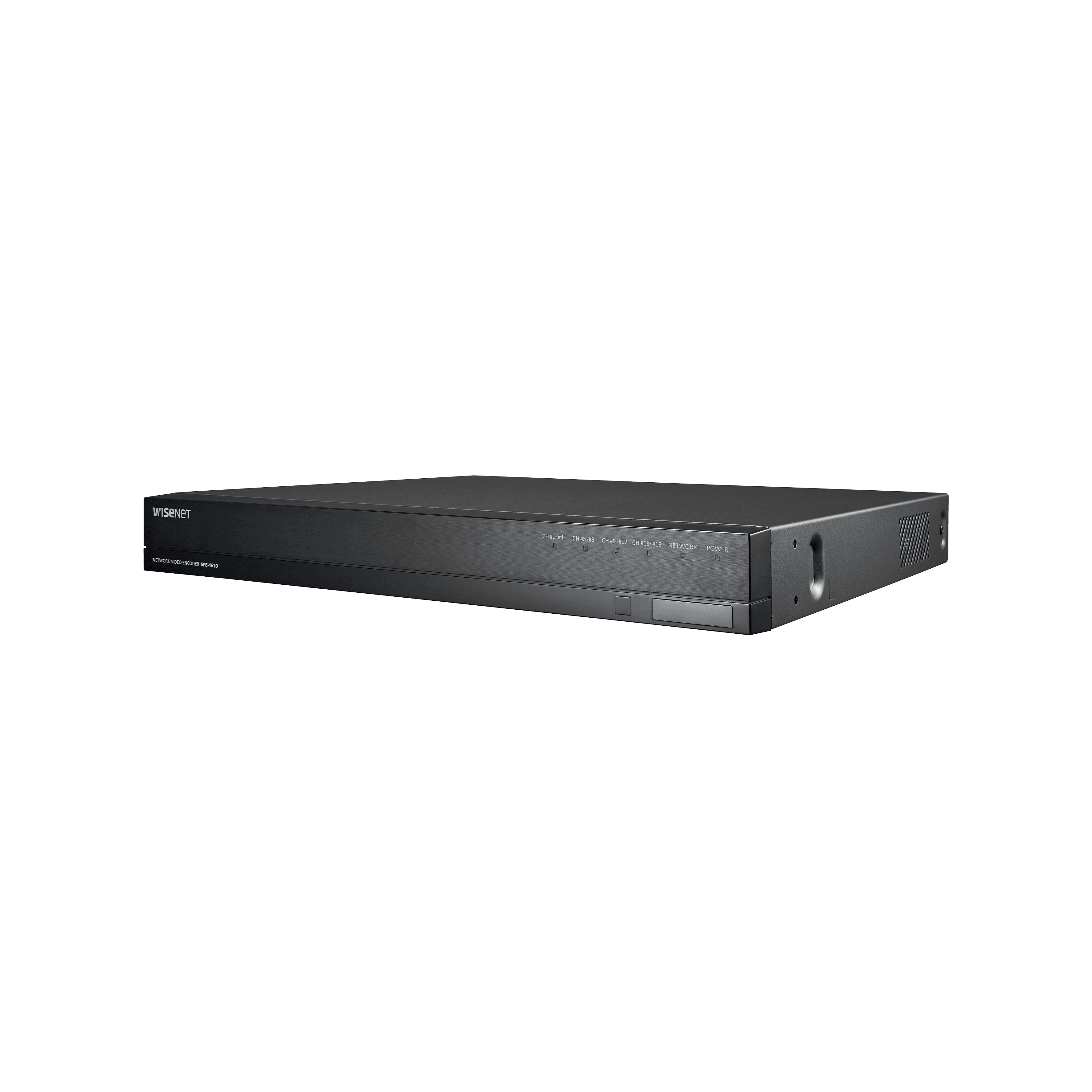

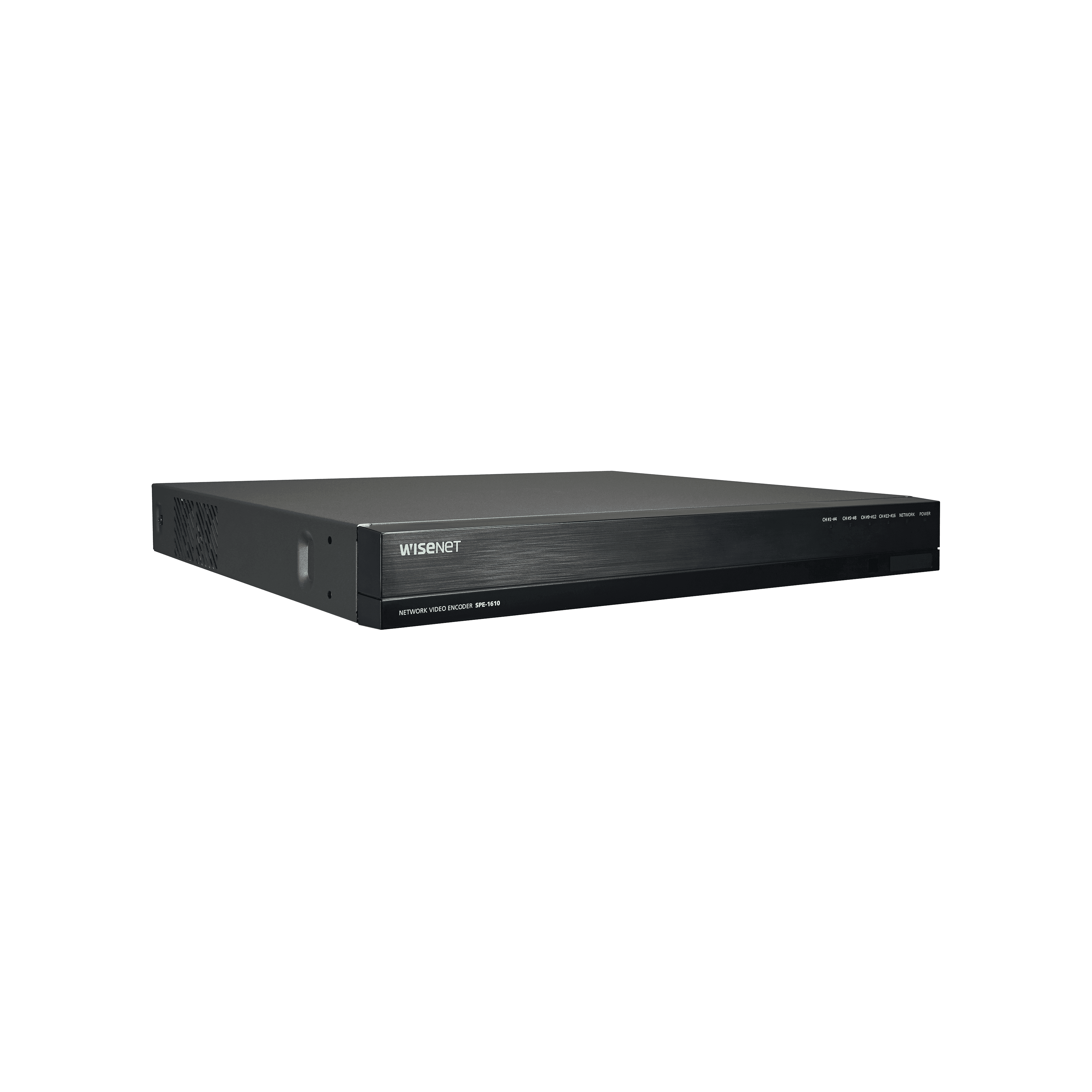

SPE-1610Discontinued
16CH H.264 Video EncoderKey Features
• Max. 4MP resolution
• Max. 15fps@4MP, 30fps@1080p
• H.264, MJPEG codec support
• Multiple streaming (up to 3 profiles per CH)
• 10/100/1000 Base-T
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPE-410SPE-1610_200218_DE.pdf | 2026-04-19 | |
| Manuals | Manuals_SPE-410SPE-1610_200218_EN.pdf | 2026-04-19 | |
| Manuals | Manuals_SPE-410SPE-1610_200218_ES.pdf | 2026-04-19 | |
| Manuals | Manuals_SPE-410SPE-1610_200218_FR.pdf | 2026-04-19 | |
| Manuals | Manuals_SPE-410SPE-1610_200218_IT.pdf | 2026-04-19 | |
| Manuals | Manuals_SPE-410SPE-1610_200218_PL.pdf | 2026-04-19 | |
| Manuals | Manuals_SPE-410SPE-1610_200218_PT.pdf | 2026-04-19 | |
| Manuals | Manuals_SPE-410SPE-1610_200218_RU.pdf | 2026-04-19 | |
| Manuals | Manuals_SPE-410SPE-1610_200218_SV.pdf | 2026-04-19 | |
| Manuals | Manuals_SPE-410SPE-1610_200218_TR.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SPE-1610_180320.dxf | 2026-04-19 | |
| CAD | CAD_SPE-1610_180320.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SPE-1610_180219_EN_FCC,IC.pdf | 2026-04-19 | |
| Certification | Certification_SPE-1610_180405_EN_UL.pdf | 2026-04-19 | |
| Certification | Certification_SPE-1610_180419_KO_KC.pdf | 2026-04-19 | |
| Certification | Certification_SPE-1610_180419_KO_Report_KC.pdf | 2026-04-19 | |
| Certification | Certification_SPE-1610_190516_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SPE-1610_190516_EN_EMC_CE.pdf | 2026-04-19 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | spe1610_1.31_200310_1706.zip | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_SPE-1610_191113_EN.docx | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPE-1610_20250906_EN_071932.pdf | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_CS.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_DE.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_EN.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_ES.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_FR.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_IT.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_NL.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_PL.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_PT.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_RU.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_SV.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPE-410SPE-1610_190524_TR.pdf | 2026-04-19 |
Specifications
Video
| Input Channel | 16CH BNC, 1.0 Vp-p / 75Ω composite NTSC/PAL | |
| Input Signal & Resolution | CVBS, AHD(1, 2&4MP), CVI(1 & 2MP), TVI(1 & 2MP) Auto / Detection | |
| Video Out | 1 HDMI OUT (16 multi Image, 1920x1080) |
Operational
| Motion Detection | Off / On | |
| Privacy Masking | Off / On (4ea rectangular zones) | |
| De-Interlacing | Support | |
| Alarm I/O | 16 Input / 4 Output | |
| Alarm Trigger | Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect | |
| Alarm Events | File Upload Via FTP, E-mail | |
| Audio I/O | 4 Line Input / 1 Line Output | |
| Remote Control Interface | 1ea RS-485(Half Duplex) | |
| RS-485 Protocol | SAMSUNG-T, PELCO-P/D | |
| Coaxial Control | NTSC/PAL : Pelco-C (Coaxitron), AHD : ACP (AHD Coax protocol) |
Network
| Ethernet | 1 RJ-45 10/100/1000 Base-T | |
| Video Compression Format | H.265, H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG | |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1280x720, 928x480(N), 928x240(N), 704x480(N), 704x240(N), 640x368, 352x240(N) 928x576(P), 928*288(P), 704x576(P), 704x288(P), 640x368, 352x288(P) | |
| Max. Framerate | - Main Stream 4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P) - Sub Stream WD1/4CIF : 12fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH(N), 25fps/CH(P) - MJPEG : 2fps @ 1920x1080, 1280x720, 960H, D1 | |
| Bitrate Control Method | H.264 : CBR or VBR, MJPEG : CBR | |
| Streaming Capability | Multiple Streaming (Up to 3 Profiles per channel) | |
| Audio Compression | G.711 u-law | |
| IP | IPv4, IPv6 | |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour | |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast | |
| Max. User Access | 48 users(4 Users/CH) at Unicast Mode | |
| Webpage Language | English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek | |
| Web Viewer | Supported OS : Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12, Non-plugin WebViewer Supported Browser : Google Chrome 54, MS Edge 38, IE11, Mozilla Firefox 49 (Windows 64bit only), Apple Safari 9 (Mac OS X only) | |
| Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) | |
| Compatabile Software & Recorder | SmartViewer, SSM, NVR(Hanwha Techwin, P/X/Q/L series) |
Environmental
| Operating Temperature / Humidity | -10°C ~ +45°C / 20% ~ 80% RH (-10°C ~ +40°C when installed in RACK) |
Electrical
| Input Voltage / Current | DC12V | |
| Power Consumption | MAX : 24W (12V, 2A) |
Mechanical
| Color/Metal | Black / Metal | |
| Dimension(WxHxD) | 370.0 x 47.5 x 330.9mm (14.57" x 1.87" x 13.03") | |
| Weight | 2.25kg (4.96 lb) |
Video
| Input Channel | 16CH BNC, 1.0 Vp-p / 75Ω composite NTSC/PAL | |
| Input Signal & Resolution | CVBS, AHD(1, 2&4MP), CVI(1 & 2MP), TVI(1 & 2MP) Auto / Detection | |
| Video Out | 1 HDMI OUT (16 multi Image, 1920x1080) |
Operational
| Motion Detection | Off / On | |
| Privacy Masking | Off / On (4ea rectangular zones) | |
| De-Interlacing | Support | |
| Alarm I/O | 16 Input / 4 Output | |
| Alarm Trigger | Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect | |
| Alarm Events | File Upload Via FTP, E-mail | |
| Audio I/O | 4 Line Input / 1 Line Output | |
| Remote Control Interface | 1ea RS-485(Half Duplex) | |
| RS-485 Protocol | SAMSUNG-T, PELCO-P/D | |
| Coaxial Control | NTSC/PAL : Pelco-C (Coaxitron), AHD : ACP (AHD Coax protocol) |
Network
| Ethernet | 1 RJ-45 10/100/1000 Base-T | |
| Video Compression Format | H.265, H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG | |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1280x720, 928x480(N), 928x240(N), 704x480(N), 704x240(N), 640x368, 352x240(N) 928x576(P), 928*288(P), 704x576(P), 704x288(P), 640x368, 352x288(P) | |
| Max. Framerate | - Main Stream 4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P) - Sub Stream WD1/4CIF : 12fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH(N), 25fps/CH(P) - MJPEG : 2fps @ 1920x1080, 1280x720, 960H, D1 | |
| Bitrate Control Method | H.264 : CBR or VBR, MJPEG : CBR | |
| Streaming Capability | Multiple Streaming (Up to 3 Profiles per channel) | |
| Audio Compression | G.711 u-law | |
| IP | IPv4, IPv6 | |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour | |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast | |
| Max. User Access | 48 users(4 Users/CH) at Unicast Mode | |
| Webpage Language | English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek | |
| Web Viewer | Supported OS : Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12, Non-plugin WebViewer Supported Browser : Google Chrome 54, MS Edge 38, IE11, Mozilla Firefox 49 (Windows 64bit only), Apple Safari 9 (Mac OS X only) | |
| Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) | |
| Compatabile Software & Recorder | SmartViewer, SSM, NVR(Hanwha Techwin, P/X/Q/L series) |
Environmental
| Operating Temperature / Humidity | -10°C ~ +45°C / 20% ~ 80% RH (-10°C ~ +40°C when installed in RACK) |
Electrical
| Input Voltage / Current | DC12V | |
| Power Consumption | MAX : 24W (12V, 2A) |
Mechanical
| Color/Metal | Black / Metal | |
| Dimension(WxHxD) | 370.0 x 47.5 x 330.9mm (14.57" x 1.87" x 13.03") | |
| Weight | 2.25kg (4.96 lb) |
