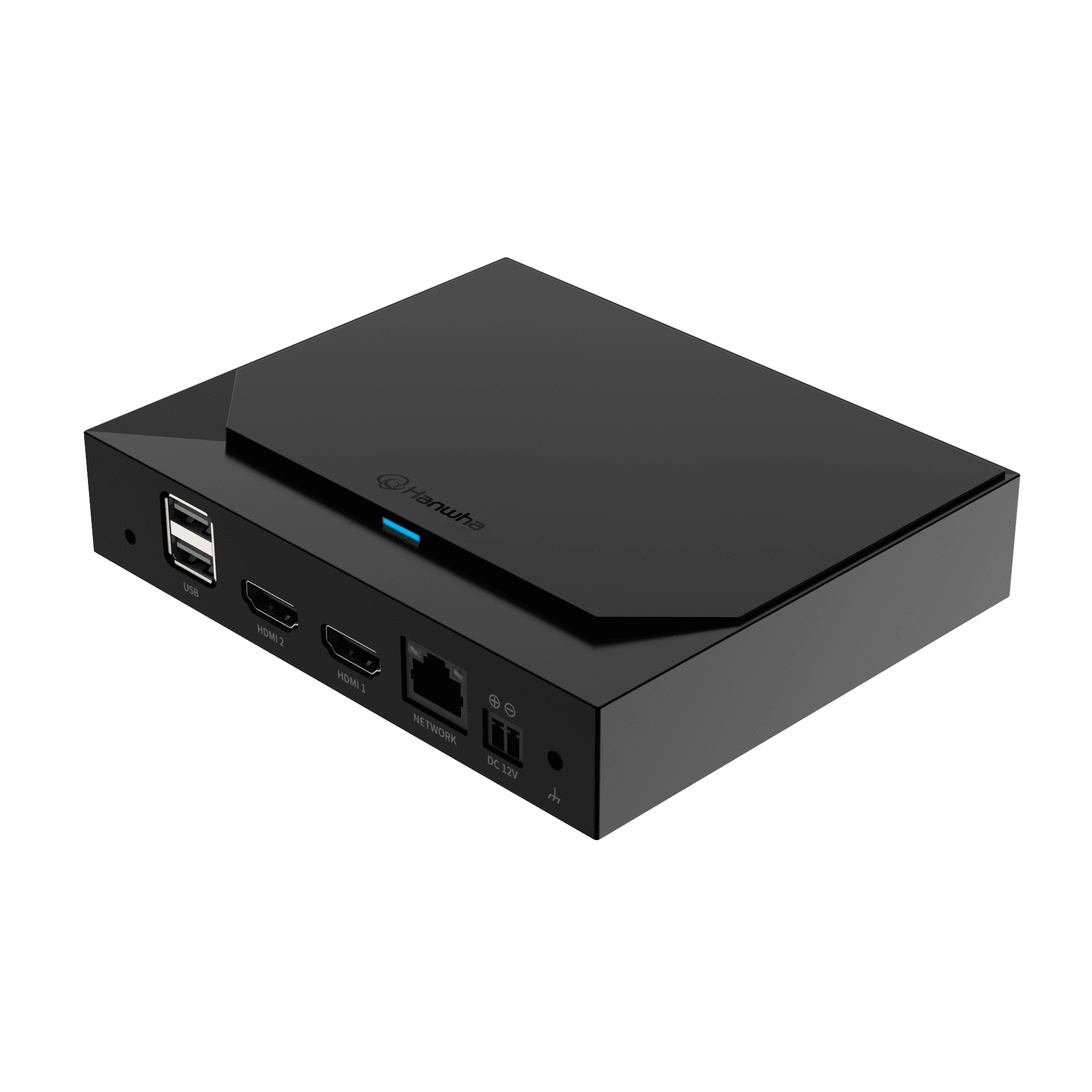

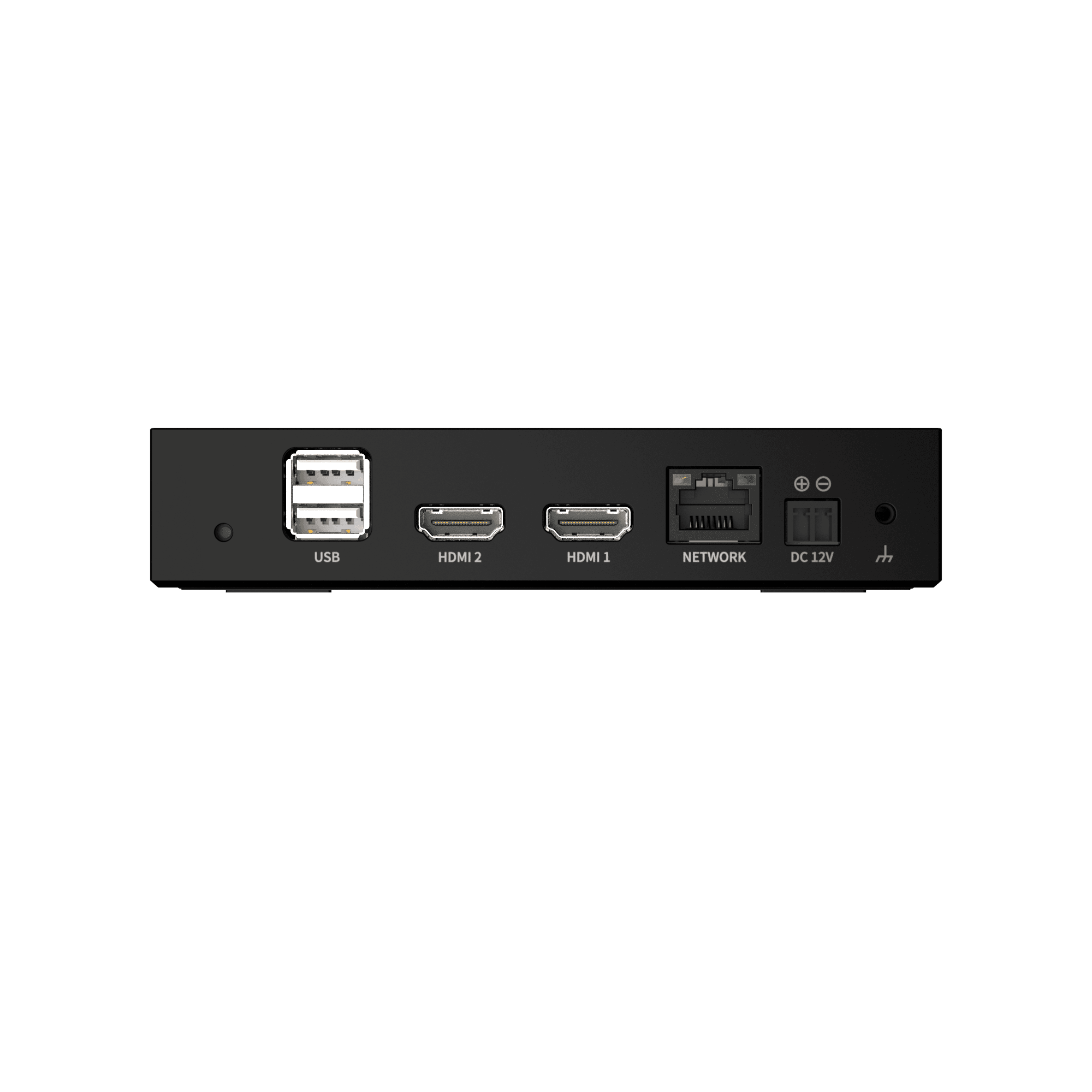

SPD-152
1 Monitor DecoderKey Features
• Max 64ch, 8M@60fps decoding performance
• Dual HDMI display port(HDMI#1 UHD, HDMI#2 FHD)
• Various installation : Monitor-Back and Pole mount
• ONVIF, SUNAPI, RTSP
• PoE and DC 12V Dual power
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPD-152_250213_DE.pdf | 2026-04-19 | |
| Manuals | Manuals_SPD-152_250213_EN.pdf | 2026-04-19 | |
| Manuals | Manuals_SPD-152_250213_ES.pdf | 2026-04-19 | |
| Manuals | Manuals_SPD-152_250213_FR.pdf | 2026-04-19 | |
| Manuals | Manuals_SPD-152_250213_IT.pdf | 2026-04-19 | |
| Manuals | Manuals_SPD-152_250213_NL.pdf | 2026-04-19 | |
| Manuals | Manuals_SPD-152_250213_PL.pdf | 2026-04-19 | |
| Manuals | Manuals_SPD-152_250213_PT.pdf | 2026-04-19 | |
| Manuals | Manuals_SPD-152_250213_TR.pdf | 2026-04-19 | |
| Manuals | Manuals_SPD-152_250213_VI.pdf | 2026-04-19 | |
| Manuals | Manuals_SPD-152_250213_ZH.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SPD-152_191202_Common.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SPD-152_220901_KO_Report_KC(TEL).pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_221012_KO_SDoC_KC.pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_221019_EN_UL.pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_221208_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_221208_EN_DoC_UKCA.pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_221208_EN_EMC_CE(+UKCA).pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_221208_EN_RCM.pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_221208_EN_VCCI.pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_221209_KO_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_221209_KO_Report_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_221208_EN_FCC-IC.pdf | 2026-04-19 | |
| Certification | Certification_SPD-152_230410_EN_EMC_CEEN-50121-4.pdf | 2026-04-19 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | SPD-152_5.35.32_260206155528.zip | 2026-06-25 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPD-152_20250906_EN_072421.pdf | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SPD-152_230616_CS.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPD-152_230616_DE.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPD-152_230616_EN.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPD-152_230616_ES.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPD-152_230616_FR.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPD-152_230616_IT.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPD-152_230616_NL.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPD-152_230616_PL.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPD-152_230616_PT.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPD-152_230616_TR.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SPD-152_230616_ZH.pdf | 2026-04-19 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_SPD-152_241220_EN.txt | 2026-04-19 |
Specifications
System
| CPU | Embded CPU | |
| Operating System | Embedded Linux | |
| Video Output | HDMI#1 | 1EA (up-to 4K), Audio support |
| HDMI#2 | 1EA (up-to 1080p), Audio not support | |
| Video-out Format | 3840 X 2160@30Hz (HDMI#1) 2560 X 1440@30Hz (HDMI#1) 1920 X 1080@60Hz (HDMI#1, HDMI#2) 1280 X 1024@60Hz (HDMI#1, HDMI#2) 1280 X 720@60Hz (HDMI#1, HDMI#2) | |
| External | Ethernet | 1EA (10/100/1000BASE-T) |
| USB | 2EA(USB 2.0) | |
| LED | Power, Network | |
| Network | Bandwidth | Max. 150Mbps |
Environmental
| Operating Temperature | 0°C to +40°C (32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 12VDC, PoE (IEEE802.3af) | |
| Power Consumption | Max. 11.0W (12V DC), Max. 12.95W (PoE) |
Mechanical
| Color / Material | Black / Metal & Plastic | |
| Dimension(WxHxD) | 140.0 x 29.5 x 115.4mm(5.51 x 1.16 x 4.54") | |
| Weight | 260g (0.58 lb) |
Software
| Video | Codec | H.265/H.264/MJPEG |
| Max. Decoding Performance | 8M@60fps, 12ch*2MP@30fps | |
| Division/Monitor | Clone mode : (HDMI#1) Max. 64, Expand mode : (HDMI#1) Max. 36, (HDMI#2) Max. 25 | |
| Layout | Up to 20, Sequence support | |
| Audio | Codec | G.711 / G.726 / AAC |
| Management | Local UI, Web-Viewer, SSM | |
| Time Setting | NTP/Manual | |
| Export/Import | Configuration Export/Import | |
| Log | Max. 100,000 (System log) | |
| Protocol | RTP, RTSP, HTTP, CGI (SUNAPI), ONVIF | |
| Security | IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Techwin Root CA), Signed firmware |
System
| CPU | Embded CPU | |
| Operating System | Embedded Linux | |
| Video Output | HDMI#1 | 1EA (up-to 4K), Audio support |
| HDMI#2 | 1EA (up-to 1080p), Audio not support | |
| Video-out Format | 3840 X 2160@30Hz (HDMI#1) 2560 X 1440@30Hz (HDMI#1) 1920 X 1080@60Hz (HDMI#1, HDMI#2) 1280 X 1024@60Hz (HDMI#1, HDMI#2) 1280 X 720@60Hz (HDMI#1, HDMI#2) | |
| External | Ethernet | 1EA (10/100/1000BASE-T) |
| USB | 2EA(USB 2.0) | |
| LED | Power, Network | |
| Network | Bandwidth | Max. 150Mbps |
Environmental
| Operating Temperature | 0°C to +40°C (32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 12VDC, PoE (IEEE802.3af) | |
| Power Consumption | Max. 11.0W (12V DC), Max. 12.95W (PoE) |
Mechanical
| Color / Material | Black / Metal & Plastic | |
| Dimension(WxHxD) | 140.0 x 29.5 x 115.4mm(5.51 x 1.16 x 4.54") | |
| Weight | 260g (0.58 lb) |
Software
| Video | Codec | H.265/H.264/MJPEG |
| Max. Decoding Performance | 8M@60fps, 12ch*2MP@30fps | |
| Division/Monitor | Clone mode : (HDMI#1) Max. 64, Expand mode : (HDMI#1) Max. 36, (HDMI#2) Max. 25 | |
| Layout | Up to 20, Sequence support | |
| Audio | Codec | G.711 / G.726 / AAC |
| Management | Local UI, Web-Viewer, SSM | |
| Time Setting | NTP/Manual | |
| Export/Import | Configuration Export/Import | |
| Log | Max. 100,000 (System log) | |
| Protocol | RTP, RTSP, HTTP, CGI (SUNAPI), ONVIF | |
| Security | IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Techwin Root CA), Signed firmware |
