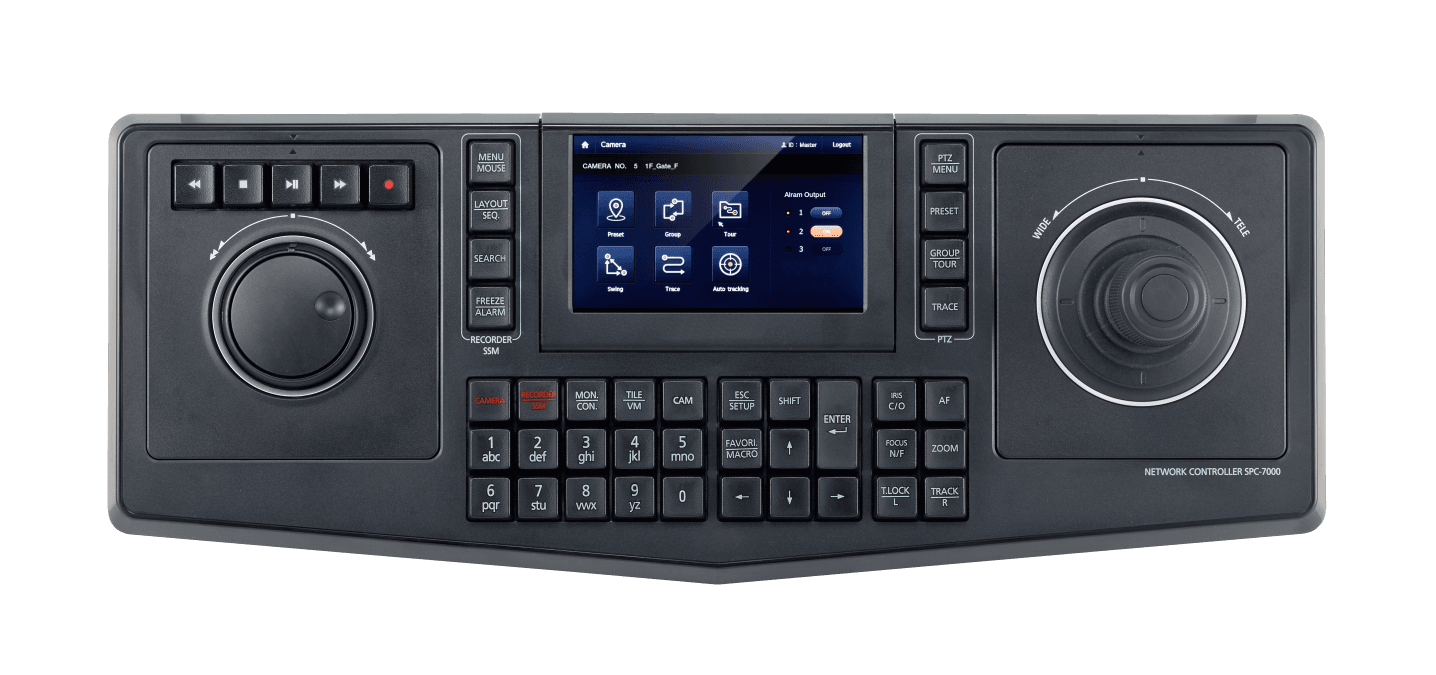

SPC-7000
System Control KeyboardKey Features
• 5" TFT touch LCD
• Network/Analog cameras / SSM / DVR control
• User-friendly design and easy-to-use keypad
• 3 Axis joystick to control PTZ function
• Detachable joystick / jogshuttle for universe use (Right / Left hand use)
• USB interface support (1ea for SSM, 1ea for image snapshot / Upgrade)
• Fast camera-tile mapping, Config import / export
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPC-7000_230620_DE.pdf | 2026-04-19 | |
| Manuals | Manuals_SPC-7000_230620_EN.pdf | 2026-04-19 | |
| Manuals | Manuals_SPC-7000_230620_ES.pdf | 2026-04-19 | |
| Manuals | Manuals_SPC-7000_230620_FR.pdf | 2026-04-19 | |
| Manuals | Manuals_SPC-7000_230620_IT.pdf | 2026-04-19 | |
| Manuals | Manuals_SPC-7000_230620_PL.pdf | 2026-04-19 | |
| Manuals | Manuals_SPC-7000_230620_TR.pdf | 2026-04-19 | |
| Manuals | Manuals_SPC-7000_230620_ZH.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SPC-7000_20180423.dxf | 2026-04-19 | |
| CAD | SPC-7000_APPEARANCE_160720.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SPC-7000_230224_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SPC-7000_230224_EN_DoC_UKCA.pdf | 2026-04-19 | |
| Certification | Certification_SPC-7000_230224_EN_EMC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SPC-7000_230224_EN_FCC.pdf | 2026-04-19 | |
| Certification | Certification_SPC-7000_230224_EN_IC.pdf | 2026-04-19 | |
| Certification | Certification_SPC-7000_230224_EN_RCM.pdf | 2026-04-19 | |
| Certification | Certification_SPC-7000_230224_EN_VCCI.pdf | 2026-04-19 | |
| Certification | Certification_SPC-7000_230315_KO_Report_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_SPC-7000_230321_KO_KC(EMC).pdf | 2026-04-19 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | spc7000_v2.24_250605173512.zip | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | SPC-7000_AE_160817.doc | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPC-7000_20250906_EN_103948.pdf | 2026-04-19 |
Specifications
Communication
| Control Equipment | Network Camera / SSM / Analog Camera / DVR | |
| Interface | Ethernet (Network camera), USB (SSM) 1ea, USB 1ea (Upgrade, Config import/export, Image snapshot), RS-485/422 (Analog Camera ,DVR) 1ea, RS-485/422 (Cascade among controllers) 1ea | |
| Interface Protocol | Ethernet | SUNAPI |
| USB | Dedicated | |
| RS-485/422 | SRD, Pelco-D/P, Panasonic, Vicon, AD, Honeywell, Bosch, Elmo, GE, Samsung-T/E | |
| Units to Control | Network Camera : Max. 255ea, SSM : 1ea, Analog Camera / DVR : Max. 255ea | |
| Baud Rate (RS-485/422) | 2400 ~ 57,600bps | |
| Network Protocol | TCP, HTTP, DHCP, IPv4 |
Operational
| LCD Display | 5" TFT LCD | |
| Joystick | 3 Axis twist zoom | |
| Jog Shuttle | SSM / DVR playback control |
Control
| Camera | Pan / Tilt / Zoom, Focus, Auto focus, Preset, Group, Tour, Swing, Trace, Auto tracking, Alarm off/on, Freeze | |
| Video Wall | Camera-tile (Channel) mapping, Layout (Display division mode) change | |
| Recorder | Recording / Playback control, Alarm off, Menu | |
| Device Management | Built-in device registration / Modification on LCD | |
| User Management | Admin + 9 operators | |
| Import / Export | Configuration import / export |
Miscellaneous
| Video Snapshot | Still image (Network camera) export using USB memory | |
| Input | Alphabet input (Virtual keyboard) | |
| Language | English, Spanish, French, Italian, German, Turkish, Polish, Russian, Korean, Chinese, Japanese |
Environmental
| Operating Temperature | 0°C ~ 40°C (+32°F ~ +104°F) | |
| Operating humidity | 20% ~ 85% |
Electrical
| Input Voltage | 12V DC | |
| Power Consumption | Max. 6.4W |
Mechanical
| Dimensions (WxhxD) | 459.1x59.1x177.9mm (18.07"x2.33"x 7") | |
| Weight | 1.5Kg (3.3 lb) |
Communication
| Control Equipment | Network Camera / SSM / Analog Camera / DVR | |
| Interface | Ethernet (Network camera), USB (SSM) 1ea, USB 1ea (Upgrade, Config import/export, Image snapshot), RS-485/422 (Analog Camera ,DVR) 1ea, RS-485/422 (Cascade among controllers) 1ea | |
| Interface Protocol | Ethernet | SUNAPI |
| USB | Dedicated | |
| RS-485/422 | SRD, Pelco-D/P, Panasonic, Vicon, AD, Honeywell, Bosch, Elmo, GE, Samsung-T/E | |
| Units to Control | Network Camera : Max. 255ea, SSM : 1ea, Analog Camera / DVR : Max. 255ea | |
| Baud Rate (RS-485/422) | 2400 ~ 57,600bps | |
| Network Protocol | TCP, HTTP, DHCP, IPv4 |
Operational
| LCD Display | 5" TFT LCD | |
| Joystick | 3 Axis twist zoom | |
| Jog Shuttle | SSM / DVR playback control |
Control
| Camera | Pan / Tilt / Zoom, Focus, Auto focus, Preset, Group, Tour, Swing, Trace, Auto tracking, Alarm off/on, Freeze | |
| Video Wall | Camera-tile (Channel) mapping, Layout (Display division mode) change | |
| Recorder | Recording / Playback control, Alarm off, Menu | |
| Device Management | Built-in device registration / Modification on LCD | |
| User Management | Admin + 9 operators | |
| Import / Export | Configuration import / export |
Miscellaneous
| Video Snapshot | Still image (Network camera) export using USB memory | |
| Input | Alphabet input (Virtual keyboard) | |
| Language | English, Spanish, French, Italian, German, Turkish, Polish, Russian, Korean, Chinese, Japanese |
Environmental
| Operating Temperature | 0°C ~ 40°C (+32°F ~ +104°F) | |
| Operating humidity | 20% ~ 85% |
Electrical
| Input Voltage | 12V DC | |
| Power Consumption | Max. 6.4W |
Mechanical
| Dimensions (WxhxD) | 459.1x59.1x177.9mm (18.07"x2.33"x 7") | |
| Weight | 1.5Kg (3.3 lb) |
