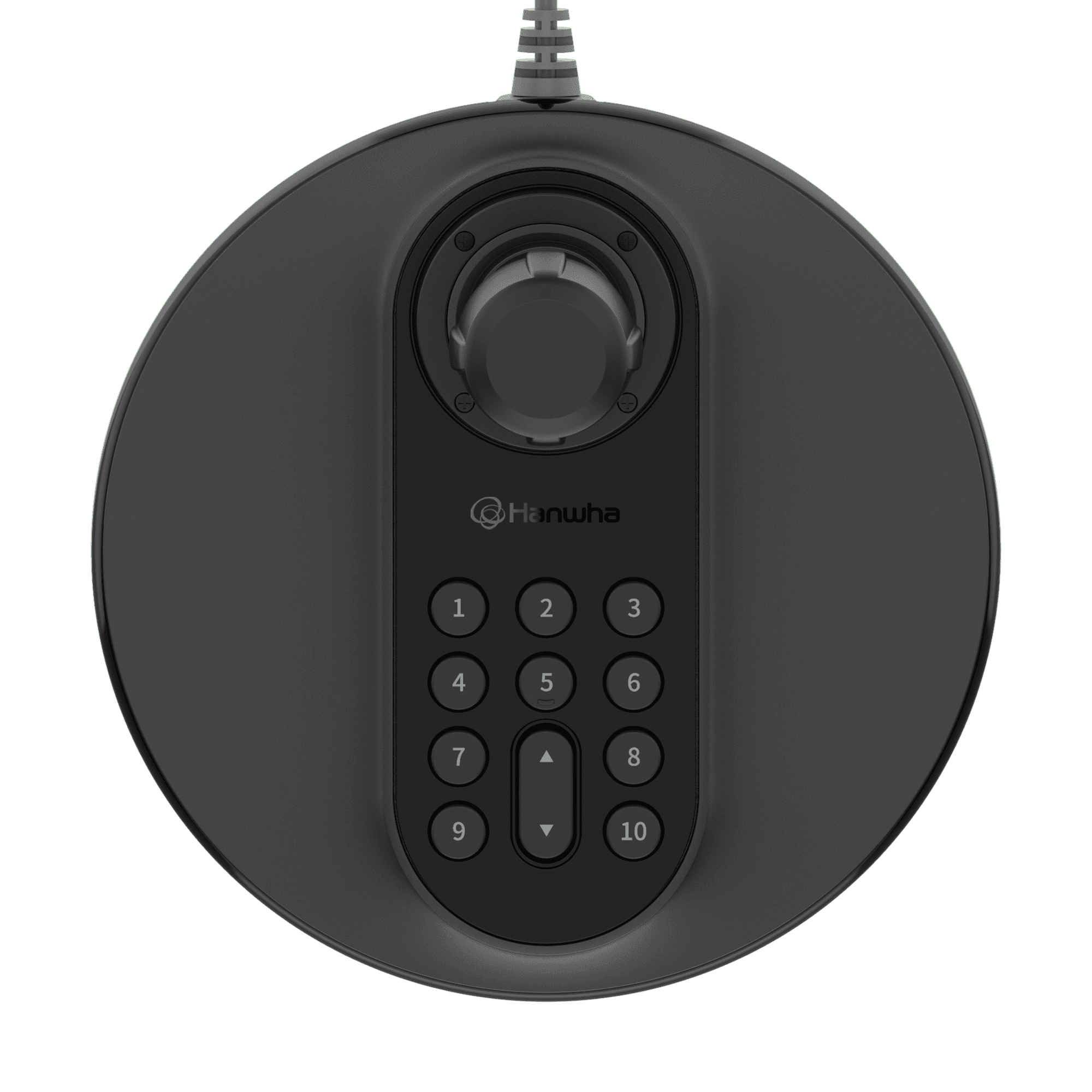

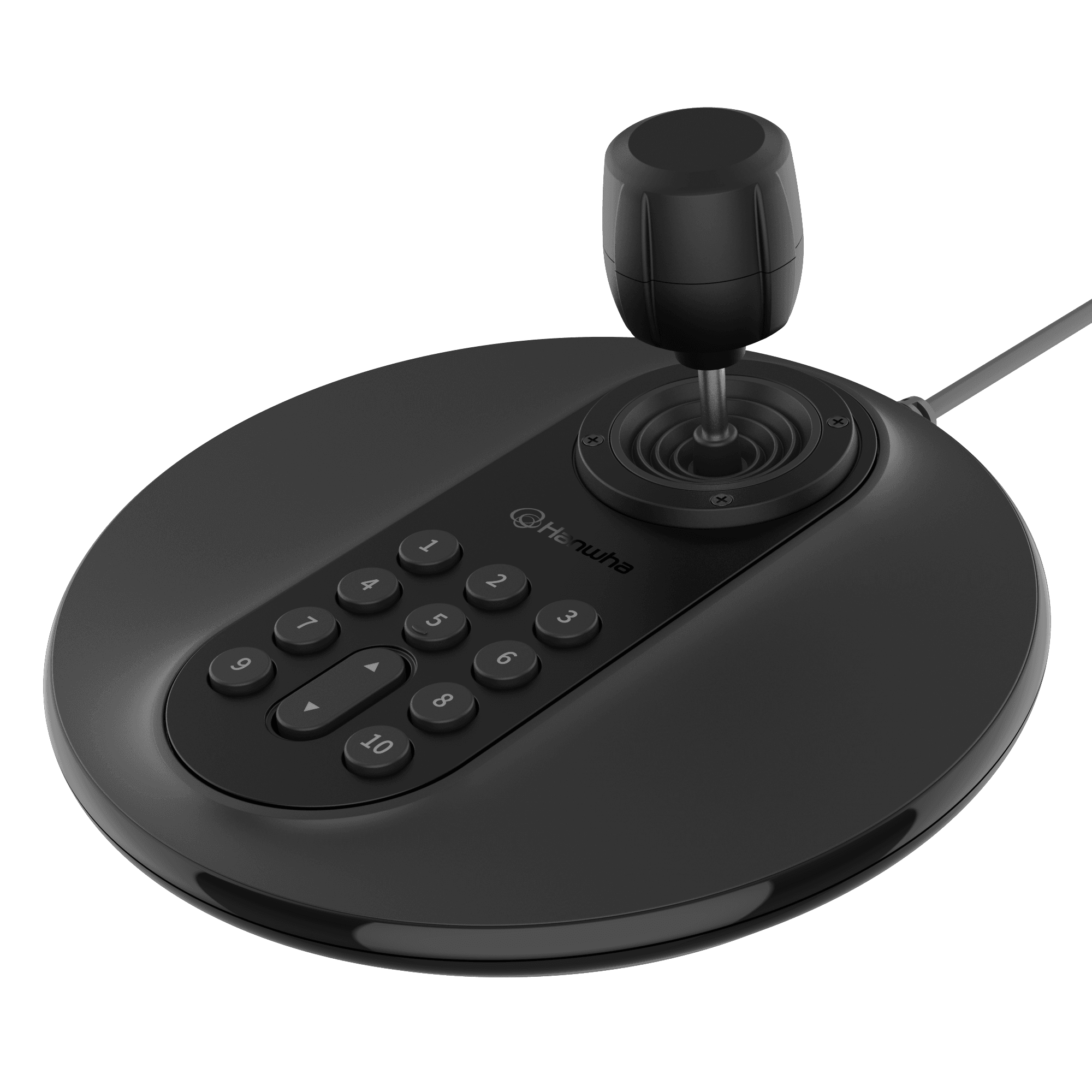

SPC-2001
ControllerKey Features
• Superior system compatibility by CMS (SSM, Wisenet Viewer) using PC
• 3D joystick control
• Quick and easy installation
• Hall-effect 3 Axis
※ Please refer to the Manual of the product to be connected for detailed
functions
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPC-2001_230206_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SPC-2001_130631_Common.dwg | 2026-04-19 | |
| CAD | CAD_SPC-2001_130631_Common.dxf | 2026-04-19 | |
| CAD | CAD_SPC-2001_240115_EN.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SPC-2001_230218_EN_UL.pdf | 2026-04-19 | |
| Certification | Certification_SPC-2001_230321_KO_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_SPC-2001_230612_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SPC-2001_230612_EN_DoC_UKCA.pdf | 2026-04-19 | |
| Certification | Certification_SPC-2001_230612_EN_EMC_CE,UKCA.pdf | 2026-04-19 | |
| Certification | Certification_SPC-2001_230612_EN_FCC,IC.pdf | 2026-04-19 | |
| Certification | Certification_SPC-2001_230612_EN_RCM.pdf | 2026-04-19 | |
| Certification | Certification_SPC-2001_230612_EN_VCCI.pdf | 2026-04-19 | |
| Certification | Certification_SPC-2001_230612_KO_Report_KC(EMC).pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPC-2001_20250906_EN_103734.pdf | 2026-04-19 |
Specifications
Communication
| Interface | 4-pin USB Type A Port |
Operational
| Joystick | Hall-effect 3 Axis | |
| Button | 12ea |
Performance
| Range of Movement | X/Y-Axis | -28° ~ +28° |
| Z Axis | -23.5° ~ +23.5° | |
| Center | Two Spring, Two Directions | |
| Minimum Power | 0.109 [N·m] | |
| Operating Power | 0.151 [N·m] | |
| Maximum Power | 0.169 [N·m] |
Environmental
| Operating Temperature | 0℃ to +40℃ (20% ~ 85% RH) |
Electrical
| Operating Voltage | (DC 5 [V]), Vdd = 5 [V] (±0.5 [V]) via USB | |
| Operating Current | 50 [mA] |
Mechanical
| Dimensions (WxhxD) | 182x182x106mm | |
| Weight | 405g |
Materials
| Housing | ABS | |
| Handle | Poly Carbonate | |
| Cover | Rubber (Button) | |
| Shaft | SUM24L + Ni plating | |
| Cable Length | 2 [m] | |
| Color | Black |
Software
| Drivers | Standard DirectX Drivers (DirectInput) |
Communication
| Interface | 4-pin USB Type A Port |
Operational
| Joystick | Hall-effect 3 Axis | |
| Button | 12ea |
Performance
| Range of Movement | X/Y-Axis | -28° ~ +28° |
| Z Axis | -23.5° ~ +23.5° | |
| Center | Two Spring, Two Directions | |
| Minimum Power | 0.109 [N·m] | |
| Operating Power | 0.151 [N·m] | |
| Maximum Power | 0.169 [N·m] |
Environmental
| Operating Temperature | 0℃ to +40℃ (20% ~ 85% RH) |
Electrical
| Operating Voltage | (DC 5 [V]), Vdd = 5 [V] (±0.5 [V]) via USB | |
| Operating Current | 50 [mA] |
Mechanical
| Dimensions (WxhxD) | 182x182x106mm | |
| Weight | 405g |
Materials
| Housing | ABS | |
| Handle | Poly Carbonate | |
| Cover | Rubber (Button) | |
| Shaft | SUM24L + Ni plating | |
| Cable Length | 2 [m] | |
| Color | Black |
Software
| Drivers | Standard DirectX Drivers (DirectInput) |
