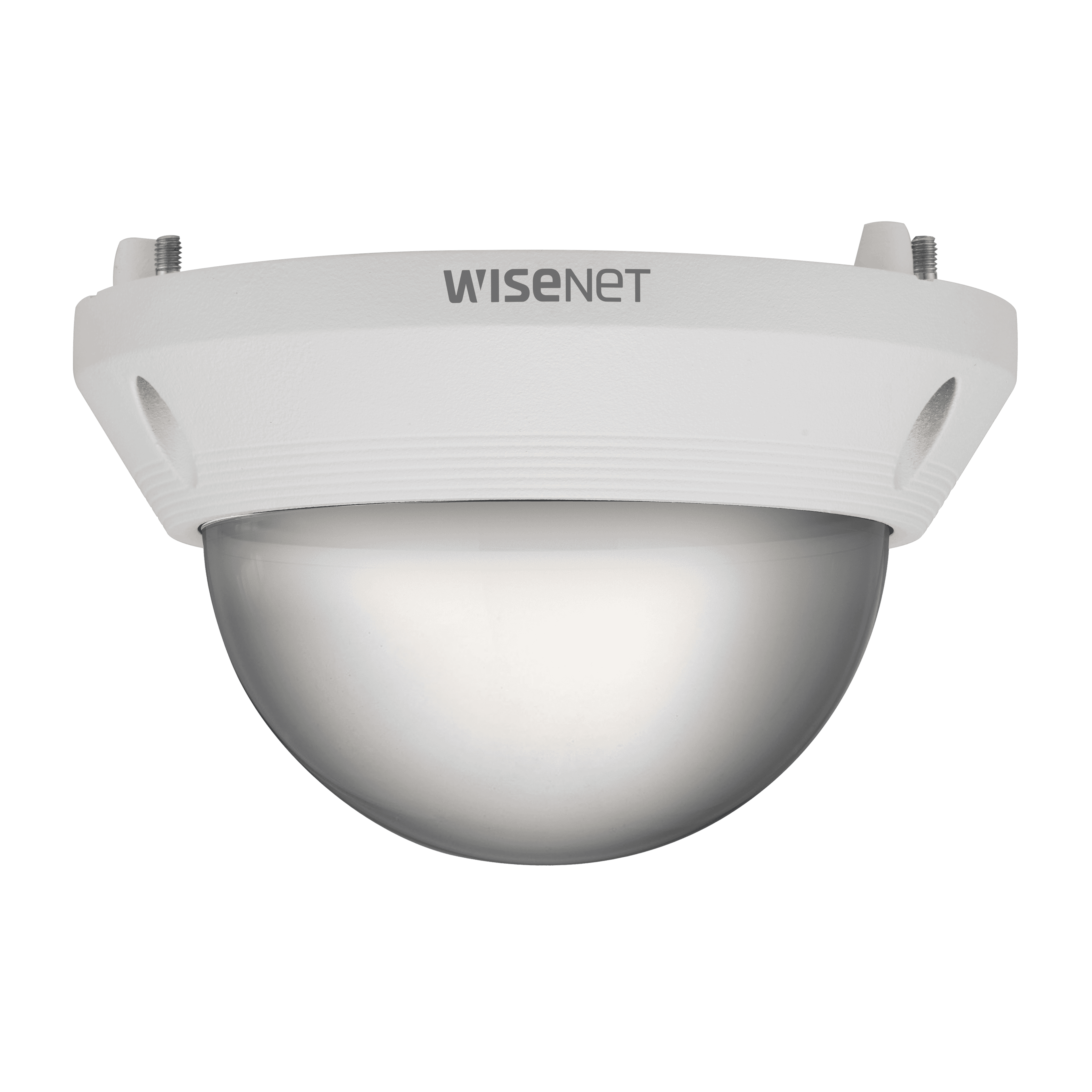

SPB-VAW72
Dome CoverKey Features
- Material : Base Top(Aluminum), Cover Glass(Poly Carbonate)
- Weight : 229g
- Color : White
- Dimensions : Ø137 x 88.4mm (Ø5.39” x 3.48”)
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPB-VAW72_191025_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SPB-VAW72_200428.dxf | 2026-04-19 | |
| CAD | CAD_SPB-VAW72_200428.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPB-VAW72_20260223_EN_155038.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SPB-VAW72_200610_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SPB-VAW72_200610_Common_mm.rfa | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø137x88.4mm / 229g | |
| Supported products | QNV-6082R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø137x88.4mm / 229g | |
| Supported products | QNV-6082R ※ For further compatible models, please visit our website or use Toolbox |
