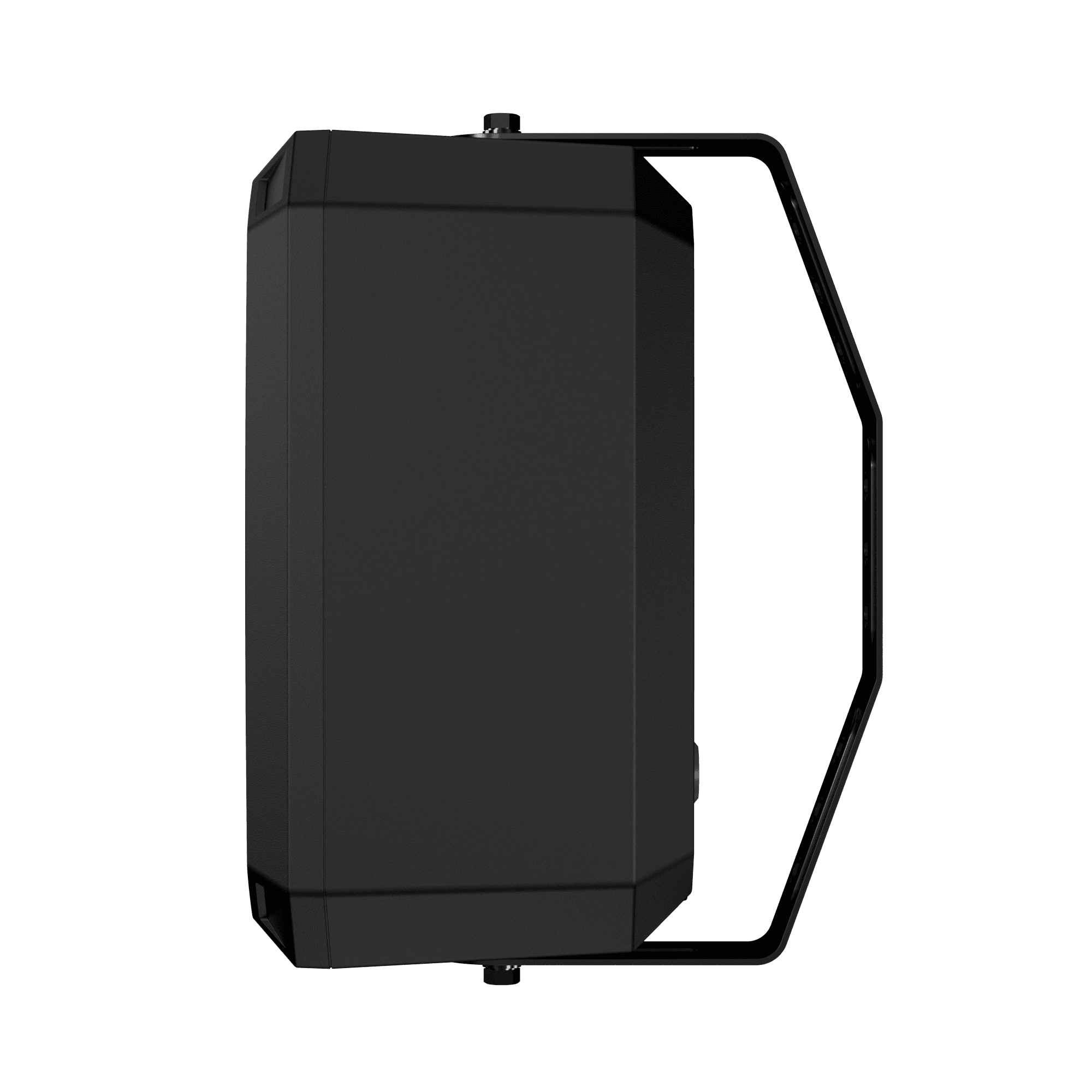

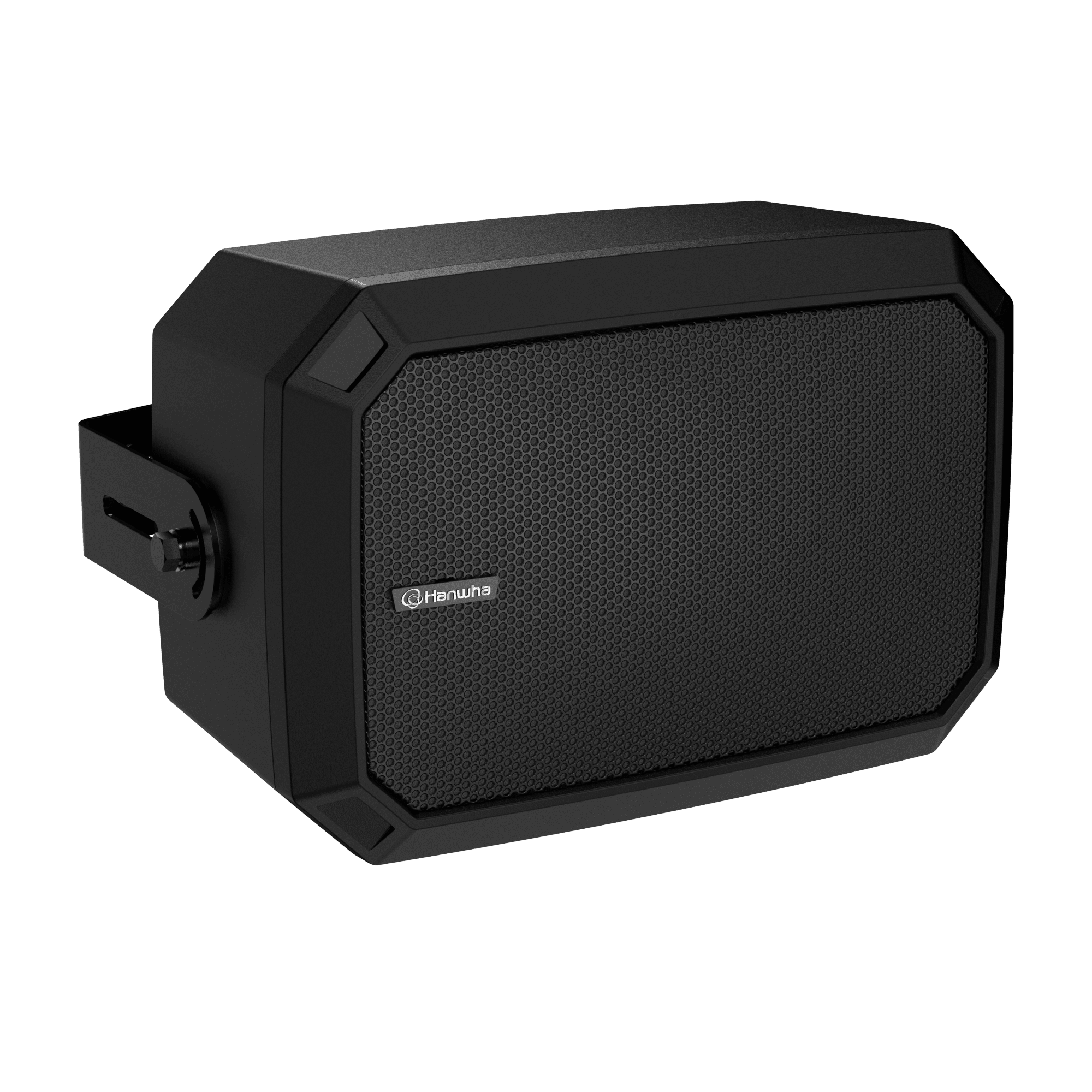

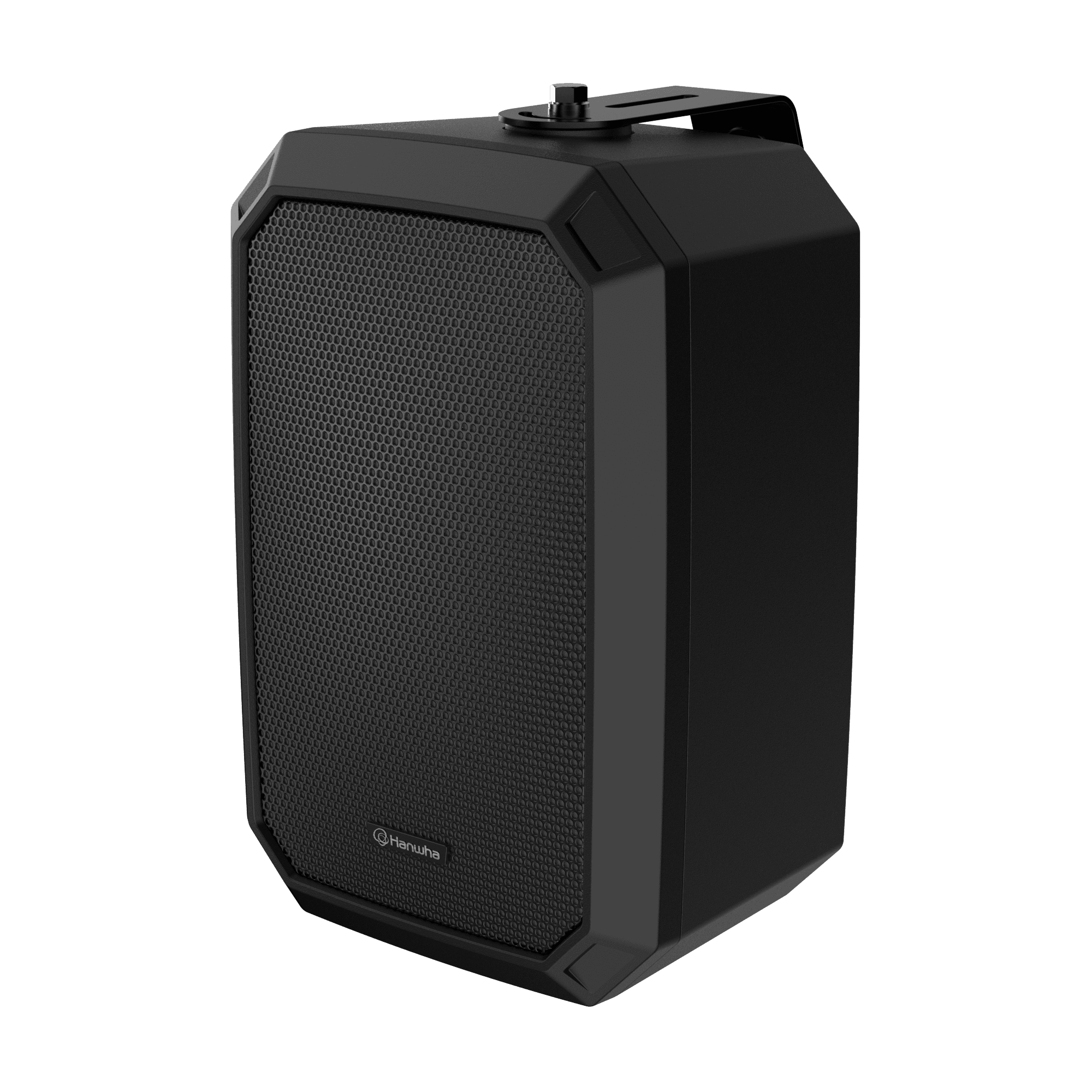

SPA-W100B
IP Wall SpeakerKey Features
• Output Level: +6dBV ± 3dB
• Frequency Response: 20Hz ~ 20kHz
• Amplifier: Built in 10W Class D
• Power: PoE (IEEE 802.3 af type 1 Class 3), PoE+(IEEE 802.3 at type 2 Class 4)
• Internal Memory: 1 GBytes
• Max. Sound Pressure Level: 101dB
• Frequency Range (-10dB): 120Hz~20kHz
• Sensitivity (1Watt): 90dB
• IP Code: IP54
• Supported Protocol: IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP, SNMP(v3)
• TTS: English(US, UK), German, French, Spanish, Russian
• Audio Mornitoring: Speaker, Connection test
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPA-W100B,SPA-W100W,SPA-H100B,SPA-H100W,SPA-P100B,SPA-P100W_250516_EN.pdf | 2026-07-07 | |
| Manuals | Manuals_SPA-C100B%2CSPA-C100W%2CSPA-C110B%2CSPA-C110W%2CSPA-W100B%2CSPA-W100W_251226_FR.pdf | 2026-07-07 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_WAMS_230202_EN-1.pdf | 2026-07-07 | |
| Brochures | Brochures_IP-Audio-System_230412_EN.pdf | 2026-07-07 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SPA-W100_210902_Common.pdf | 2026-07-07 | |
| CAD | CAD_SPA-W100B,SPA-W100W,SPA-W200B,SPA-W200W_240314_Common.dwg | 2026-07-07 | |
| CAD | CAD_SPA-W100_210829_Common.dwg | 2026-07-07 | |
| CAD | CAD_SPA-W100BSPA-W100WSPA-W200BSPA-W200W_240314_Common.pdf | 2026-07-07 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SPA-W100B_220420_EN_UL.pdf | 2026-07-07 | |
| Certification | Certification_SPA-W100B_230224_EN_DoC_CE.pdf | 2026-07-07 | |
| Certification | Certification_SPA-W100B_230224_EN_DoC_UKCA.pdf | 2026-07-07 | |
| Certification | Certification_SPA-W100B_230224_EN_EMC_CE(+UKCA).pdf | 2026-07-07 | |
| Certification | Certification_SPA-W100B_230224_EN_FCC,IC.pdf | 2026-07-07 | |
| Certification | Certification_SPA-W100B_230224_EN_RCM.pdf | 2026-07-07 | |
| Certification | Certification_SPA-W100B_230224_EN_VCCI.pdf | 2026-07-07 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | ip_speaker_ver3.4.5.42.zip | 2026-07-07 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_SPA-W100B_230614_EN.docx | 2026-07-07 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPA-W100B_20260306_EN_125636.pdf | 2026-07-07 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SPA-W100BSPA-W100WSPA-W200BSPA-W200W_240417_Common.pdf | 2026-07-07 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_SPA-H100SPA-H200SPA-P100SPA-P200SPA-W100SPA-W200_250430_EN.txt | 2026-07-07 |
Specifications
Product
| IP Audio Type | IP Wall Speaker |
Line Ouput
| Output Level | +6 dBV ±3 dB | |
| Frequency Response | 20Hz~20kHz | |
| THD + N Ration (AES17LPF) | Less than 0.1% | |
| S/N Ration (20kHz LPF, A-WTD) | Greater than 91 dB |
Amplifier
| Description | Built in 10W Class D |
Network
| Ethernet | 10/100 Base-T |
Memory
| Internal Memory | 1 GBytes | |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
Contact
| Contact Input. Dry contact | One Channel | |
| Contact Output. Dry contact (NO) | One channel |
General
| Operating Temperature | -20°~+50°C(-4°F~+122°F) | |
| Operating Humidity | 10~85%RH(Non-Condensing) | |
| IP Code | IP54 | |
| Weight | 2.5Kg (5.5lb) | |
| Size | 170(W) x 250(H) x 134(D)mm | |
| Color | Black | |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : KC 62368-1, UL 62368-1, CAN/CSA 62368-1 |
Power
| PoE | PoE (IEEE 802.3 af type 1 Class 3) | |
| PoE+ | (IEEE 802.3 at type 2 Class 4) | |
| Power | N/A |
Audio
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16kHz up to 48 kHz |
Speaker
| Speaker Component | 2 Way 5" LF Drive & 0.5" HF Driver. Passive type | |
| Max. Sound Pressure Level (PoE) | 97 dB | |
| Max. Sound Pressure Level (PoE+) | 101 dB | |
| Frequency Range (-10 dB) | 120 Hz~20 kHz | |
| Sensitivity (1 Watt) | 91 dB | |
| Coverage Pattern | (HxV) : 180° X 120° (1 kHz) / 120° X 70°(4 kHz) |
Network Protocol
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) | |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S | |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 255 Groups | |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 | |
| TTS | English (US, UK), German, Spanish, Russian | |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) | |
| Event & Preset | Virtual Contact, Dry contact | |
| Functional Monitoring | Connection verification, Built-in system logging |
Product
| IP Audio Type | IP Wall Speaker |
Line Ouput
| Output Level | +6 dBV ±3 dB | |
| Frequency Response | 20Hz~20kHz | |
| THD + N Ration (AES17LPF) | Less than 0.1% | |
| S/N Ration (20kHz LPF, A-WTD) | Greater than 91 dB |
Amplifier
| Description | Built in 10W Class D |
Network
| Ethernet | 10/100 Base-T |
Memory
| Internal Memory | 1 GBytes | |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
Contact
| Contact Input. Dry contact | One Channel | |
| Contact Output. Dry contact (NO) | One channel |
General
| Operating Temperature | -20°~+50°C(-4°F~+122°F) | |
| Operating Humidity | 10~85%RH(Non-Condensing) | |
| IP Code | IP54 | |
| Weight | 2.5Kg (5.5lb) | |
| Size | 170(W) x 250(H) x 134(D)mm | |
| Color | Black | |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : KC 62368-1, UL 62368-1, CAN/CSA 62368-1 |
Power
| PoE | PoE (IEEE 802.3 af type 1 Class 3) | |
| PoE+ | (IEEE 802.3 at type 2 Class 4) | |
| Power | N/A |
Audio
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16kHz up to 48 kHz |
Speaker
| Speaker Component | 2 Way 5" LF Drive & 0.5" HF Driver. Passive type | |
| Max. Sound Pressure Level (PoE) | 97 dB | |
| Max. Sound Pressure Level (PoE+) | 101 dB | |
| Frequency Range (-10 dB) | 120 Hz~20 kHz | |
| Sensitivity (1 Watt) | 91 dB | |
| Coverage Pattern | (HxV) : 180° X 120° (1 kHz) / 120° X 70°(4 kHz) |
Network Protocol
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) | |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S | |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 255 Groups | |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 | |
| TTS | English (US, UK), German, Spanish, Russian | |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) | |
| Event & Preset | Virtual Contact, Dry contact | |
| Functional Monitoring | Connection verification, Built-in system logging |
