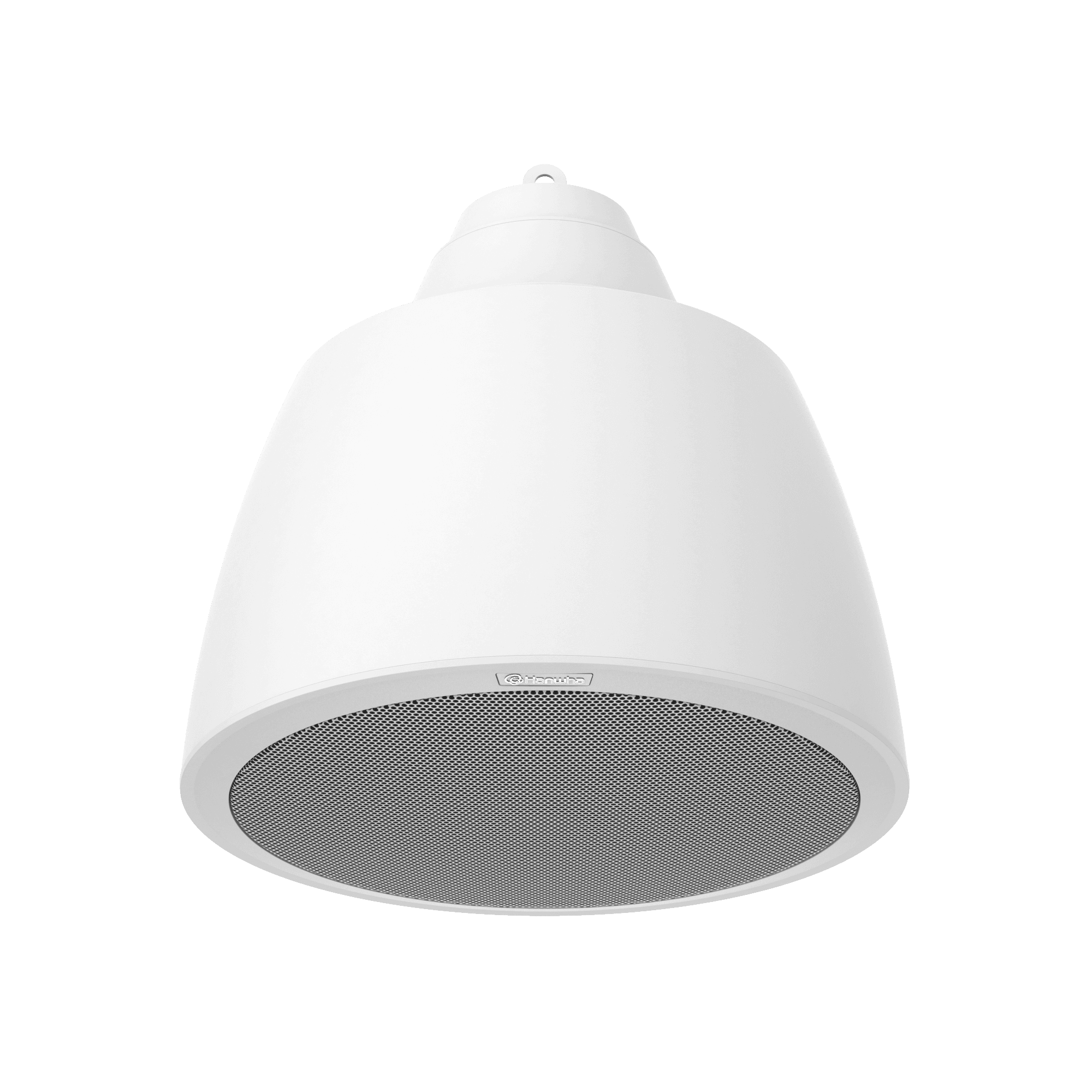

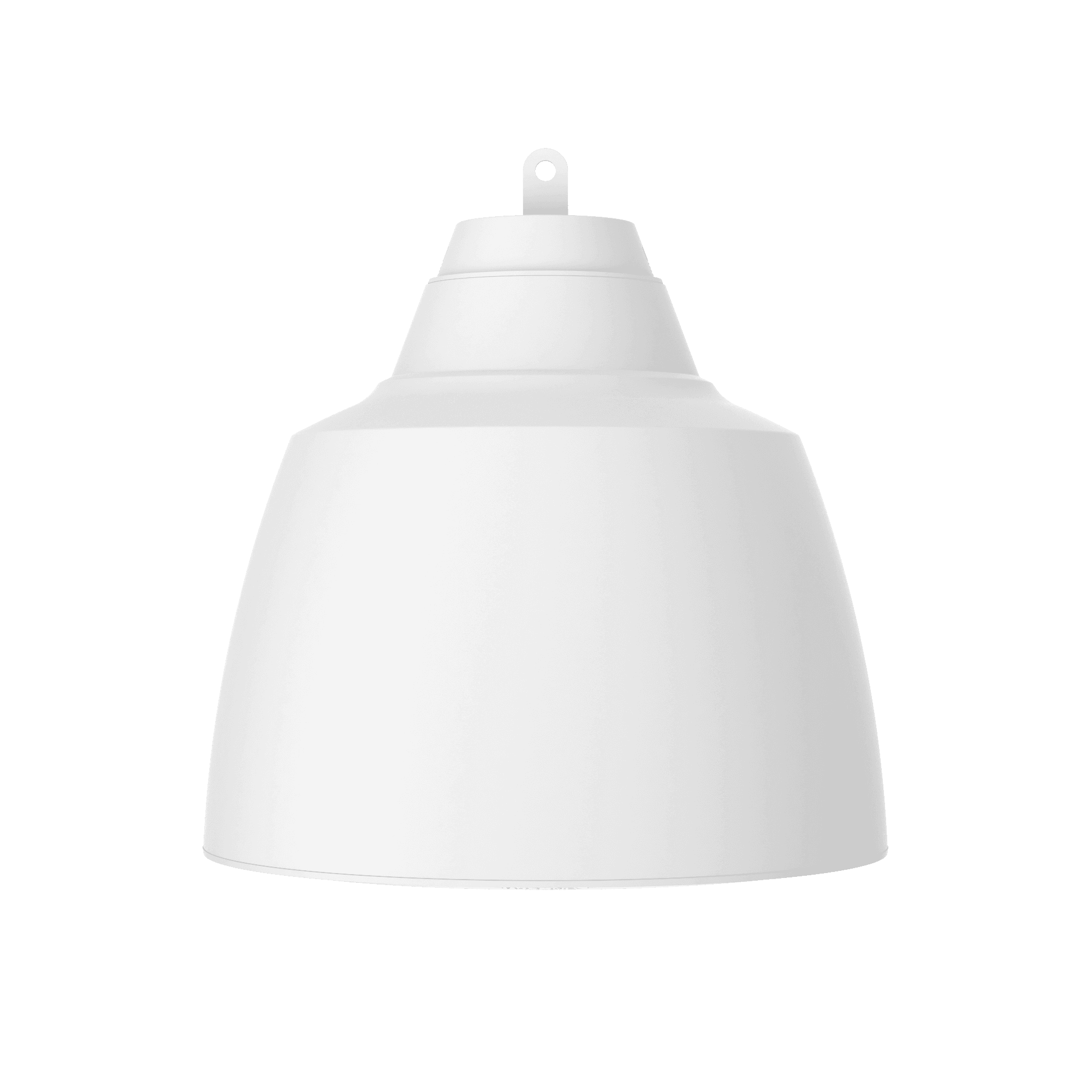

SPA-P100W
IP Pendant SpeakerKey Features
- 101dB Max. Sound Pressure Level
- Built in 10W Class D Amplifier
- 91dB Sensitivity
- 130Hz ~ 20kHz Frequency Response
- PoE (IEEE 802.3 at type 1 Class 3), PoE+ (IEEE 802 3 at type 2 Class 4)
- Internal Memory: 1 GB
- Frequency Range (-10dB): 120Hz~20kHz
- Audio Monitoring: Speaker test by graphic level meter (Built in test tool)
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPA-W100B,SPA-W100W,SPA-H100B,SPA-H100W,SPA-P100B,SPA-P100W_250516_EN.pdf | 2026-07-14 | |
| Manuals | Manuals_SPA-D1000%2CSPA-H100B%2CSPA-H100W%2CSPA-P100B%2CSPA-P100W_251226_FR.pdf | 2026-07-14 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_IP-Audio-System_230412_EN.pdf | 2026-07-14 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SPA-P100_230510_Common.dwg | 2026-07-14 | |
| CAD | CAD_SPA-P100_230510_Common.pdf | 2026-07-14 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SPA-P100W_221208_EN_UL.pdf | 2026-07-14 | |
| Certification | Certification_SPA-P100W_230224_EN_DoC_CE.pdf | 2026-07-14 | |
| Certification | Certification_SPA-P100W_230224_EN_DoC_UKCA.pdf | 2026-07-14 | |
| Certification | Certification_SPA-P100W_230224_EN_EMC_CE(+UKCA).pdf | 2026-07-14 | |
| Certification | Certification_SPA-P100W_230224_EN_FCC,IC.pdf | 2026-07-14 | |
| Certification | Certification_SPA-P100W_230224_EN_RCM.pdf | 2026-07-14 | |
| Certification | Certification_SPA-P100W_230224_EN_VCCI.pdf | 2026-07-14 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | ip_speaker_ver3.4.5.42.zip | 2026-07-14 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_SPA-P100W_230614_EN.docx | 2026-07-14 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPA-P100W_20260306_EN_125934.pdf | 2026-07-14 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SPA-P100BSPA-P100WSPA-P200BSPA-P200W_240417_Common.pdf | 2026-07-14 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_SPA-H100SPA-H200SPA-P100SPA-P200SPA-W100SPA-W200_250430_EN.txt | 2026-07-14 |
Specifications
Product
| IP Audio Type | IP Pendant Speaker |
Amplifier
| Description | Built in 10W Class D |
Network
| Ethernet | 10/100 Base-T |
Memory
| Internal Memory | 1 GBytes | |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
Contact
| Contact Input. Dry contact | One Channel | |
| Contact Output. Dry contact (NO) | One channel |
General
| Operating Temperature | -20°~+50°C(-4°F~+122°F) | |
| Operating Humidity | 10~85%RH(Non-Condensing) | |
| IP Code | N/A | |
| Weight | 2.1Kg (4.63lb) | |
| Size | ø269*256(H)mm | |
| Color | White | |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : UL 2043, UL 62368-1, CAN/CSA 62368-1 |
Power
| PoE | PoE (IEEE 802.3 af type 1 Class 3) | |
| PoE+ | (IEEE 802.3 at type 2 Class 4) |
Embeded MIC
| Input Sensitivity | Sound Level Meter | |
| Frequency Response | Sound Level Meter |
Audio
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16kHz up to 48 kHz |
Speaker
| Speaker Component | 2 Way 8" LF Drive & 2" HF Driver. Passive type | |
| Max. Sound Pressure Level (PoE) | 97 dB | |
| Max. Sound Pressure Level (PoE+) | 101 dB | |
| Frequency Range (-10 dB) | 130Hz~20kHz | |
| Sensitivity (1 Watt) | 91 dB | |
| Coverage Pattern | (HxV) : 130°(1kHz) / 60°(4kHz) |
Network Protocol
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) | |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S | |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 | |
| TTS | English (US, UK), German, French, Spanish, Russian | |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) | |
| Event & Preset | Virtual Contact, Dry contact | |
| Functional Monitoring | Connection verification, Built-in system logging |
Product
| IP Audio Type | IP Pendant Speaker |
Amplifier
| Description | Built in 10W Class D |
Network
| Ethernet | 10/100 Base-T |
Memory
| Internal Memory | 1 GBytes | |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
Contact
| Contact Input. Dry contact | One Channel | |
| Contact Output. Dry contact (NO) | One channel |
General
| Operating Temperature | -20°~+50°C(-4°F~+122°F) | |
| Operating Humidity | 10~85%RH(Non-Condensing) | |
| IP Code | N/A | |
| Weight | 2.1Kg (4.63lb) | |
| Size | ø269*256(H)mm | |
| Color | White | |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : UL 2043, UL 62368-1, CAN/CSA 62368-1 |
Power
| PoE | PoE (IEEE 802.3 af type 1 Class 3) | |
| PoE+ | (IEEE 802.3 at type 2 Class 4) |
Embeded MIC
| Input Sensitivity | Sound Level Meter | |
| Frequency Response | Sound Level Meter |
Audio
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16kHz up to 48 kHz |
Speaker
| Speaker Component | 2 Way 8" LF Drive & 2" HF Driver. Passive type | |
| Max. Sound Pressure Level (PoE) | 97 dB | |
| Max. Sound Pressure Level (PoE+) | 101 dB | |
| Frequency Range (-10 dB) | 130Hz~20kHz | |
| Sensitivity (1 Watt) | 91 dB | |
| Coverage Pattern | (HxV) : 130°(1kHz) / 60°(4kHz) |
Network Protocol
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) | |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S | |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 | |
| TTS | English (US, UK), German, French, Spanish, Russian | |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) | |
| Event & Preset | Virtual Contact, Dry contact | |
| Functional Monitoring | Connection verification, Built-in system logging |
