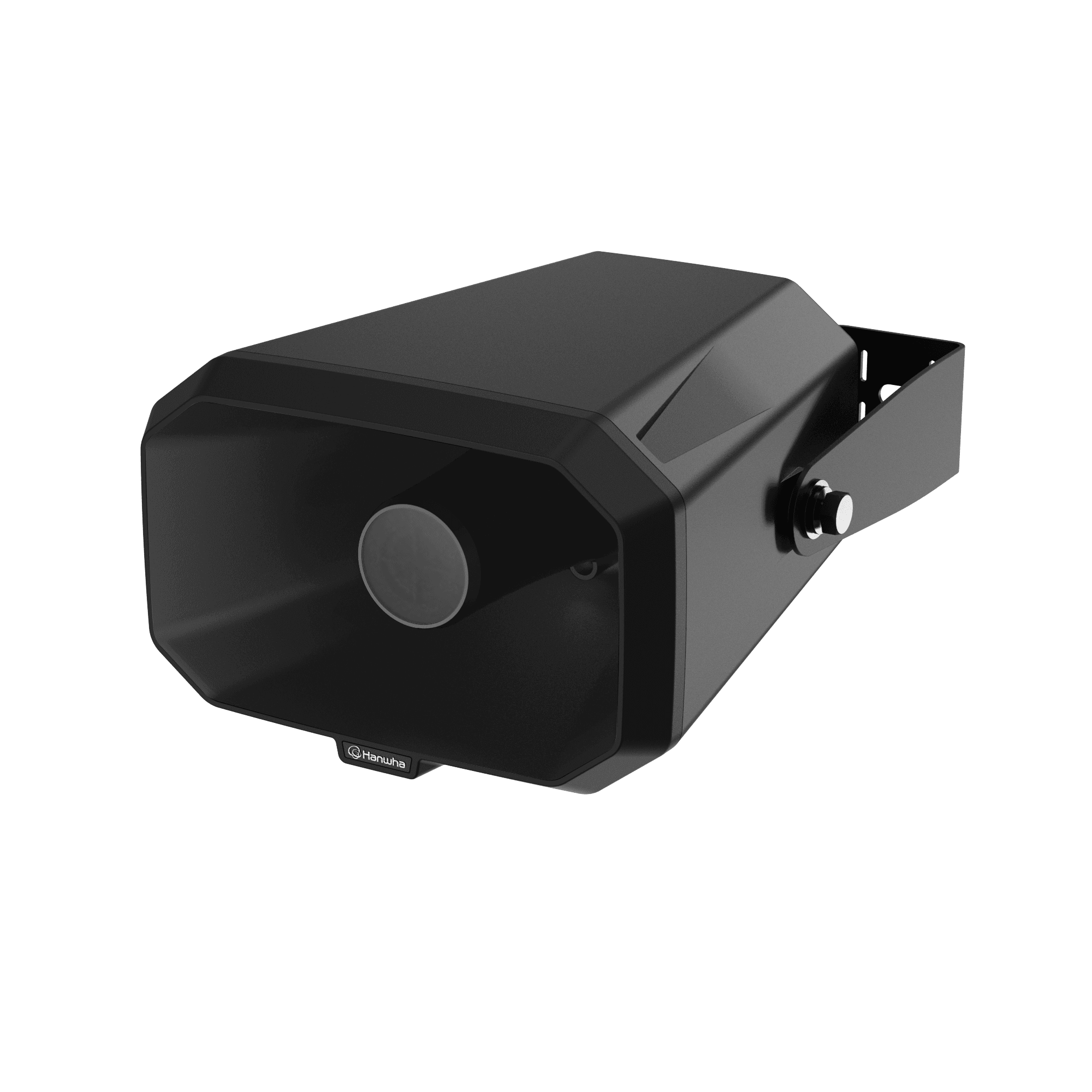

SPA-H100B
IP Horn SpeakerKey Features
- 124dB Max. Sound Pressure Level
- Built in 10W Class D Amplifier
- 111dB Sensitivty
- 650Hz ~ 5.3kHz Frequency Response
- Power: PoE (IEEE 802.3 at type 1 Class 3), PoE+ (IEEE 802.3 at type 2 Class 4)
- Internal Memory: 1 GB
- IP66 rated for outdoor use
- Supported Protocols: IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP,UDP, DHCP, ARP, ICMP, SNMP(v3)
- TTS: English (US, UK), German, French, Spanish, Russian
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPA-W100B,SPA-W100W,SPA-H100B,SPA-H100W,SPA-P100B,SPA-P100W_250516_EN.pdf | 2026-07-07 | |
| Manuals | Manuals_SPA-D1000%2CSPA-H100B%2CSPA-H100W%2CSPA-P100B%2CSPA-P100W_251226_FR.pdf | 2026-07-07 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_IP-Audio-System_230412_EN.pdf | 2026-07-07 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SPA-H100_230510_Common.dwg | 2026-07-07 | |
| CAD | CAD_SPA-H100_230510_Common.pdf | 2026-07-07 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SPA-H100W_230223_EN_UL.pdf | 2026-07-07 | |
| Certification | Certification_SPA-H100W_230224_EN_DoC_CE.pdf | 2026-07-07 | |
| Certification | Certification_SPA-H100W_230224_EN_DoC_UKCA.pdf | 2026-07-07 | |
| Certification | Certification_SPA-H100W_230224_EN_EMC_CE(+UKCA).pdf | 2026-07-07 | |
| Certification | Certification_SPA-H100W_230224_EN_FCC,IC.pdf | 2026-07-07 | |
| Certification | Certification_SPA-H100W_230224_EN_RCM.pdf | 2026-07-07 | |
| Certification | Certification_SPA-H100W_230224_EN_VCCI.pdf | 2026-07-07 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | ip_speaker_ver3.4.5.42.zip | 2026-07-07 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_SPA-H100B_230614_EN.docx | 2026-07-07 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPA-H100B_20260306_EN_130223.pdf | 2026-07-07 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SPA-H100BSPA-H100WSPA-H200BSPA-H200W_240411_Common.pdf | 2026-07-07 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_SPA-H100SPA-H200SPA-P100SPA-P200SPA-W100SPA-W200_250430_EN.txt | 2026-07-07 |
Specifications
Product
| IP Audio Type | IP Horn Speaker |
Amplifier
| Description | Built in 10W Class D |
Network
| Ethernet | 10/100 Base-T |
Memory
| Internal Memory | 1 GBytes |
Contact
| Contact Input. Dry contact | One Channel | |
| Contact Output. Dry contact (NO) | One channel |
General
| Operating Temperature | -40°C~+55°C(-40°F~+131°F) (Cold start : -35°C/-31°F) | |
| Operating Humidity | 10~85%RH(Non-Condensing) | |
| IP Code | IP66 | |
| Weight | 3.7Kg (8.16lb) | |
| Size | 241(W) x 155(H) x 307(D)mm | |
| Color | Black | |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : UL 62368-1, CAN/CSA 62368-1 |
Power
| PoE | PoE (IEEE 802.3 af type 1 Class 3) | |
| PoE+ | (IEEE 802.3 at type 2 Class 4) | |
| Power | N/A |
Embeded MIC
| Input Sensitivity | Sound Level Meter | |
| Frequency Response | Sound Level Meter |
Audio
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16kHz up to 48 kHz |
Speaker
| Speaker Component | 1" HF Driver. Dome type | |
| Max. Sound Pressure Level (PoE) | 121 dB | |
| Max. Sound Pressure Level (PoE+) | 124 dB | |
| Frequency Range (-10 dB) | 650 Hz ~ 5.3 kHz | |
| Sensitivity (1 Watt) | 111 dB | |
| Coverage Pattern | (HxV) : 130° X 160° (1 kHz) / 30° X 50°(1 kHz) |
Network Protocol
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) | |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S | |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 20 Zone Control (Unicast), Up to 255 Groups | |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 | |
| TTS | English (US, UK), German, French, Spanish, Russian | |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) | |
| Event & Preset | Virtual Contact, Dry contact | |
| Functional Monitoring | Connection verification, Built-in system logging |
Product
| IP Audio Type | IP Horn Speaker |
Amplifier
| Description | Built in 10W Class D |
Network
| Ethernet | 10/100 Base-T |
Memory
| Internal Memory | 1 GBytes |
Contact
| Contact Input. Dry contact | One Channel | |
| Contact Output. Dry contact (NO) | One channel |
General
| Operating Temperature | -40°C~+55°C(-40°F~+131°F) (Cold start : -35°C/-31°F) | |
| Operating Humidity | 10~85%RH(Non-Condensing) | |
| IP Code | IP66 | |
| Weight | 3.7Kg (8.16lb) | |
| Size | 241(W) x 155(H) x 307(D)mm | |
| Color | Black | |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : UL 62368-1, CAN/CSA 62368-1 |
Power
| PoE | PoE (IEEE 802.3 af type 1 Class 3) | |
| PoE+ | (IEEE 802.3 at type 2 Class 4) | |
| Power | N/A |
Embeded MIC
| Input Sensitivity | Sound Level Meter | |
| Frequency Response | Sound Level Meter |
Audio
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16kHz up to 48 kHz |
Speaker
| Speaker Component | 1" HF Driver. Dome type | |
| Max. Sound Pressure Level (PoE) | 121 dB | |
| Max. Sound Pressure Level (PoE+) | 124 dB | |
| Frequency Range (-10 dB) | 650 Hz ~ 5.3 kHz | |
| Sensitivity (1 Watt) | 111 dB | |
| Coverage Pattern | (HxV) : 130° X 160° (1 kHz) / 30° X 50°(1 kHz) |
Network Protocol
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) | |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S | |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 20 Zone Control (Unicast), Up to 255 Groups | |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 | |
| TTS | English (US, UK), German, French, Spanish, Russian | |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) | |
| Event & Preset | Virtual Contact, Dry contact | |
| Functional Monitoring | Connection verification, Built-in system logging |
