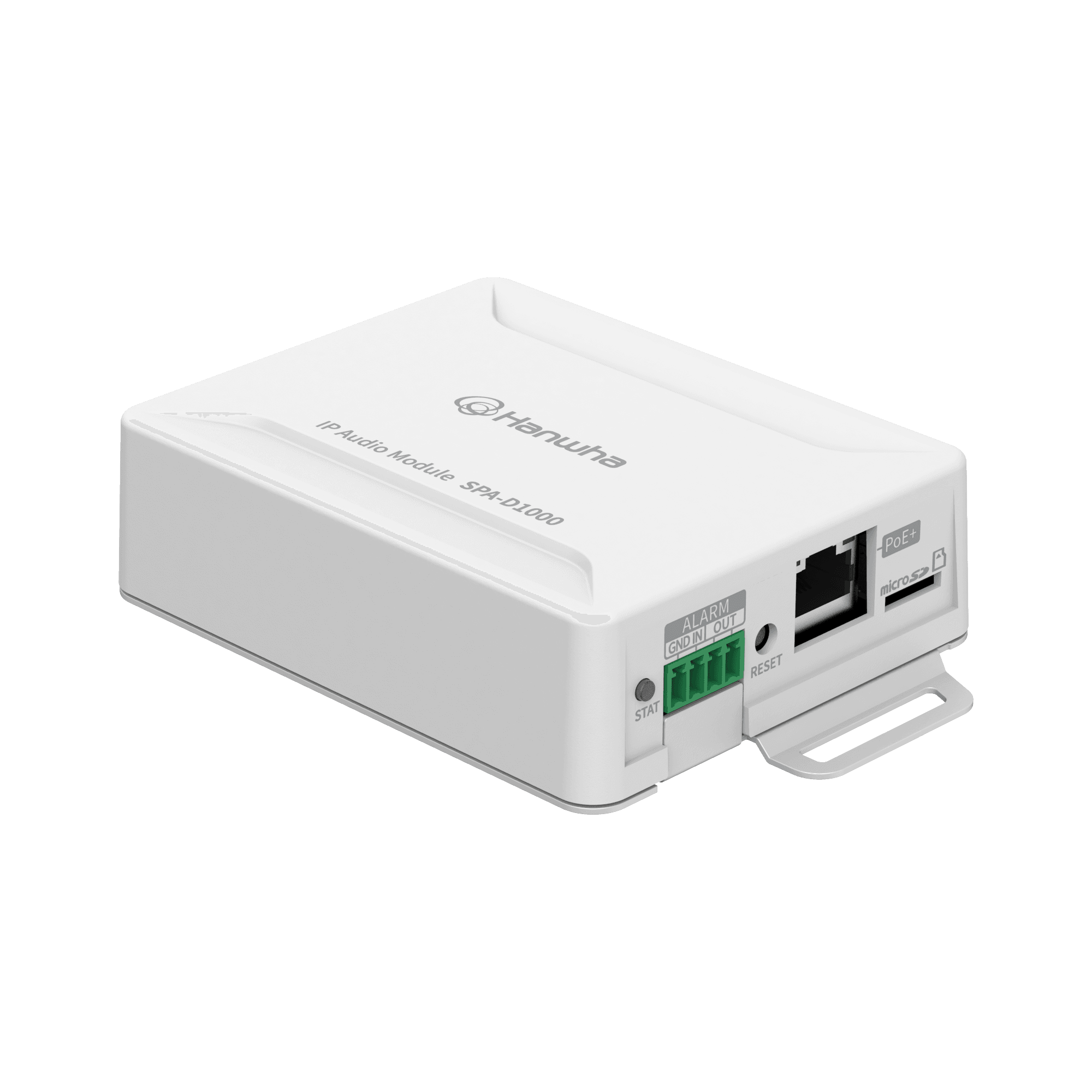

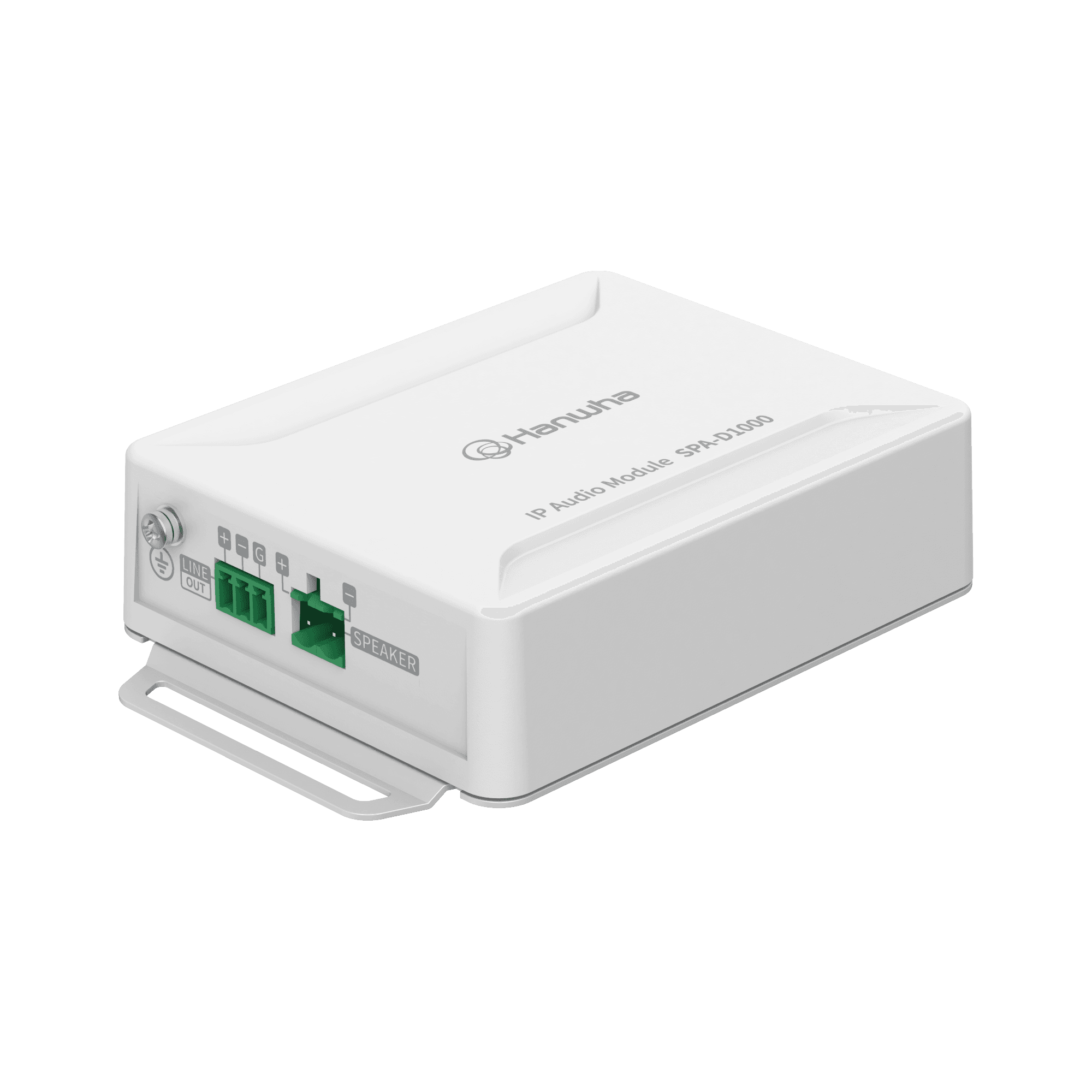

SPA-D1000
IP Audio ModuleKey Features
- Output Level: +6dBV ± 3dB
- Frequency Response: 20Hz ~ 20kHz
- Amplifier: Built in 10W Class D
- Power: PoE (IEEE 802.3 af type 1 Class 3), PoE+(IEEE 802.3 at type 2 Class 4)
- Internal Memory: 1 GBytes
- Supported Protocol: IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP, SNMP(v3)
- TTS: English(US, UK), German, French, Spanish, Russian
- Audio Mornitoring: Speaker, Connection test
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPA-C100B,SPA-C100W,SPA-C110B,SPA-C110W,SPA-D1000_250516_EN.pdf | 2026-07-15 | |
| Manuals | Manuals_SPA-D1000%2CSPA-H100B%2CSPA-H100W%2CSPA-P100B%2CSPA-P100W_251226_FR.pdf | 2026-07-15 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_WAMS_230202_EN-1.pdf | 2026-07-15 | |
| Brochures | Brochures_IP-Audio-System_230412_EN.pdf | 2026-07-15 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SPA-D1000_210829_Common.dwg | 2026-07-15 | |
| CAD | CAD_SPA-D1000_210902_Common.pdf | 2026-07-15 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SPA-D1000_230224_EN_DoC_CE.pdf | 2026-07-15 | |
| Certification | Certification_SPA-D1000_230224_EN_DoC_UKCA.pdf | 2026-07-15 | |
| Certification | Certification_SPA-D1000_230224_EN_EMC_CE(+UKCA).pdf | 2026-07-15 | |
| Certification | Certification_SPA-D1000_230224_EN_FCC,IC.pdf | 2026-07-15 | |
| Certification | Certification_SPA-D1000_230224_EN_RCM.pdf | 2026-07-15 | |
| Certification | Certification_SPA-D1000_230224_EN_VCCI.pdf | 2026-07-15 | |
| Certification | Certification_SPA-D1000_230315_KO_Report_KC(EMC).pdf | 2026-07-15 | |
| Certification | Certification_SPA-D1000_230321_KO_KC(EMC).pdf | 2026-07-15 | |
| Certification | Certification_SPA-D1000_230403_KO_SDoC_KC.pdf | 2026-07-15 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | ip_speaker_ver3.4.5.42.zip | 2026-07-15 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_SPA-D1000_241210_EN.docx | 2026-07-15 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPA-D1000_20260604_EN_092407.pdf | 2026-07-15 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SPA-D1000SPA-D2000_240419_Common.pdf | 2026-07-15 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_SPA-C100SPA-C110SPA-C200SPA-D1000SPA-D2000_250430_EN.txt | 2026-07-15 |
Specifications
Product
| IP Audio Type | IP Audio Module |
Line Ouput
| Output Level | +6 dBV ±3 dB | |
| Frequency Response | 20Hz~20kHz | |
| THD + N Ration (AES17LPF) | Less than 0.1% | |
| S/N Ration (20kHz LPF, A-WTD) | Greater than 91 dB |
Amplifier
| Description | Built in 10W Class D |
Network
| Ethernet | 10/100 Base-T |
Memory
| Internal Memory | 1 GBytes | |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
Contact
| Contact Input. Dry contact | One Channel | |
| Contact Output. Dry contact (NO) | One channel |
General
| Operating Temperature | -20°~+50°C(-4°F~+122°F) | |
| Operating Humidity | 10~85%RH(Non-Condensing) | |
| IP Code | N/A | |
| Weight | 0.24Kg (0.53lb) | |
| Size | 123(W)*80(H)*30.6(W)mm | |
| Color | White | |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : KC 62368-1, UL 62368-1, CAN/CSA 62368-1 |
Power
| PoE | PoE (IEEE 802.3 af type 1 Class 3) | |
| PoE+ | (IEEE 802.3 at type 2 Class 4) |
Embeded MIC
| Input Sensitivity | Sound Level Meter | |
| Frequency Response | Sound Level Meter |
Audio
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16kHz up to 48 kHz |
Network Protocol
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) | |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S | |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 20 Zone Control (Unicast), Up to 255 Groups | |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 | |
| TTS | English (US, UK), German, French, Spanish, Russian | |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) | |
| Event & Preset | Virtual Contact, Dry contact | |
| Functional Monitoring | Connection verification, Built-in system logging |
Product
| IP Audio Type | IP Audio Module |
Line Ouput
| Output Level | +6 dBV ±3 dB | |
| Frequency Response | 20Hz~20kHz | |
| THD + N Ration (AES17LPF) | Less than 0.1% | |
| S/N Ration (20kHz LPF, A-WTD) | Greater than 91 dB |
Amplifier
| Description | Built in 10W Class D |
Network
| Ethernet | 10/100 Base-T |
Memory
| Internal Memory | 1 GBytes | |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
Contact
| Contact Input. Dry contact | One Channel | |
| Contact Output. Dry contact (NO) | One channel |
General
| Operating Temperature | -20°~+50°C(-4°F~+122°F) | |
| Operating Humidity | 10~85%RH(Non-Condensing) | |
| IP Code | N/A | |
| Weight | 0.24Kg (0.53lb) | |
| Size | 123(W)*80(H)*30.6(W)mm | |
| Color | White | |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : KC 62368-1, UL 62368-1, CAN/CSA 62368-1 |
Power
| PoE | PoE (IEEE 802.3 af type 1 Class 3) | |
| PoE+ | (IEEE 802.3 at type 2 Class 4) |
Embeded MIC
| Input Sensitivity | Sound Level Meter | |
| Frequency Response | Sound Level Meter |
Audio
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16kHz up to 48 kHz |
Network Protocol
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) | |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S | |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 20 Zone Control (Unicast), Up to 255 Groups | |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 | |
| TTS | English (US, UK), German, French, Spanish, Russian | |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) | |
| Event & Preset | Virtual Contact, Dry contact | |
| Functional Monitoring | Connection verification, Built-in system logging |
