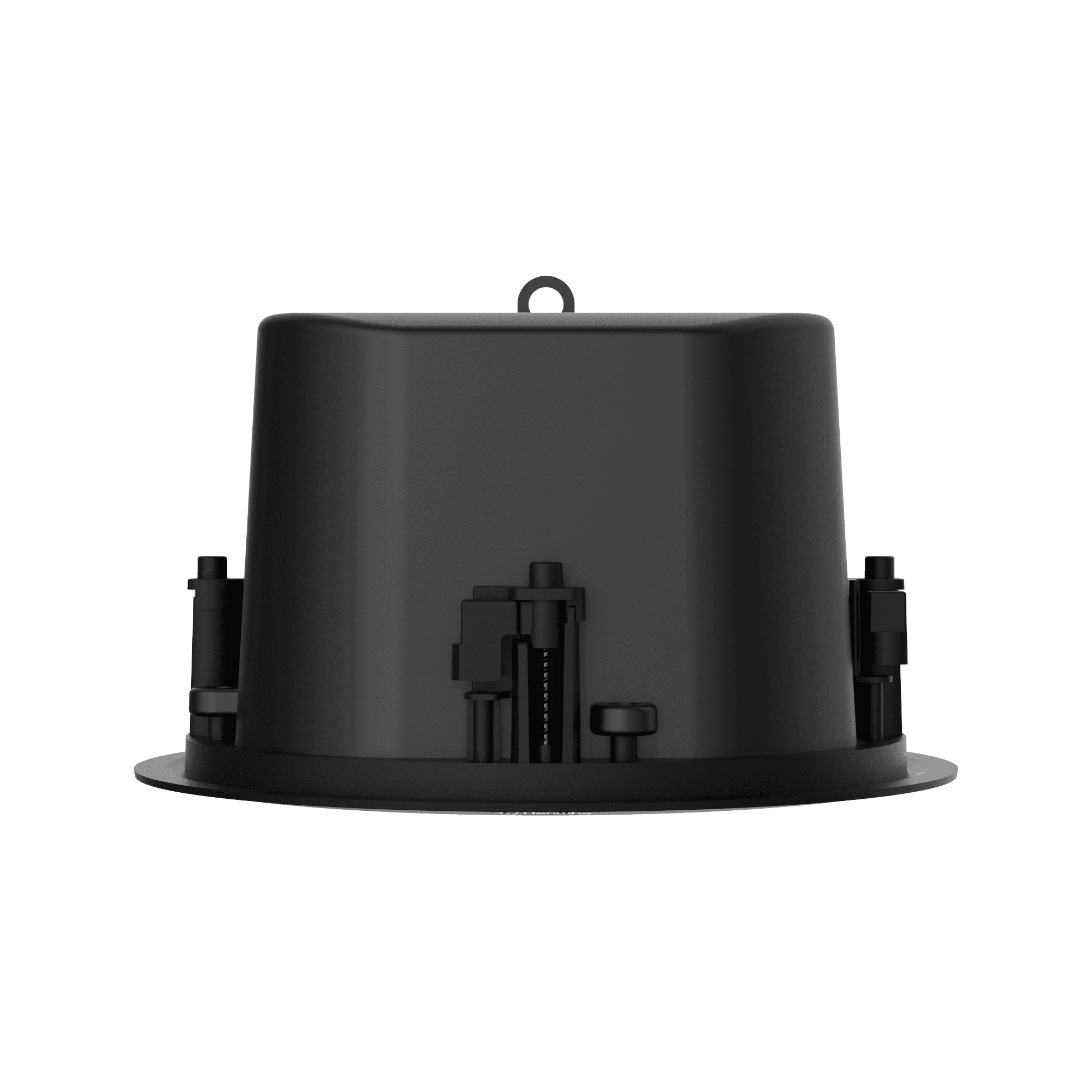

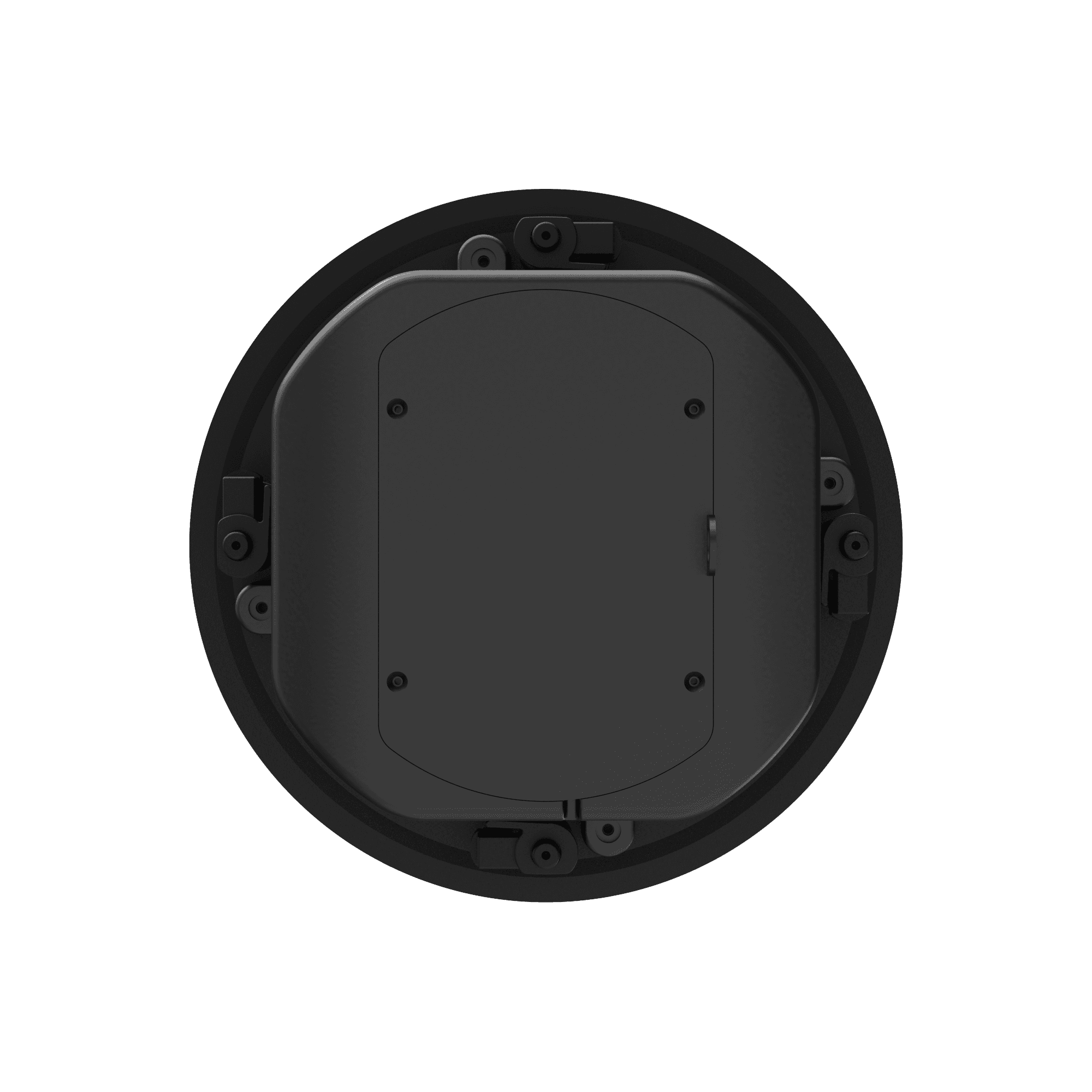

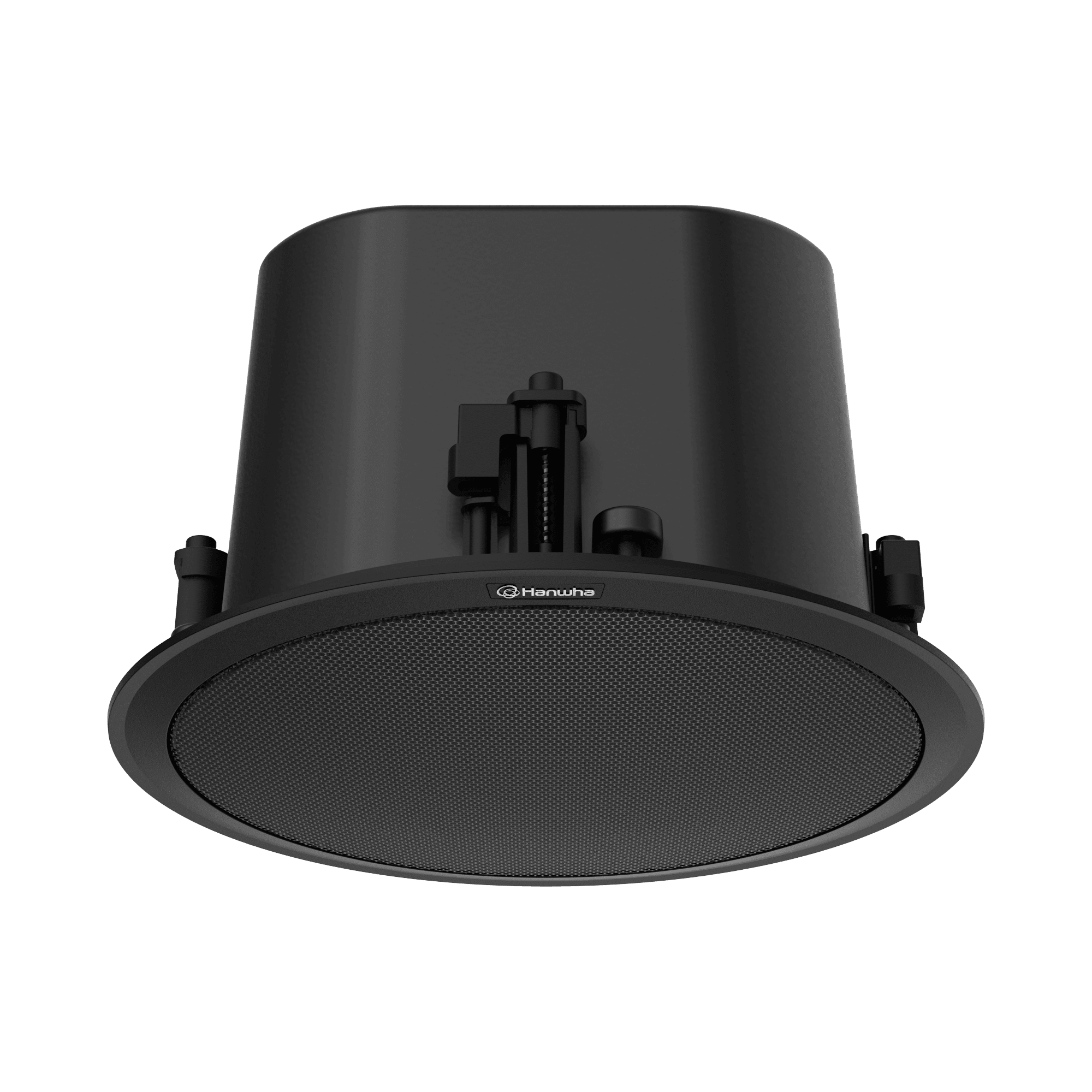

SPA-C110B
IP Ceiling SpeakerKey Features
- 100dB Max. Sound Pressure Level
- Built in 10W Class D Amplifier
- 90dB Sensitivity
- 20Hz ~ 20kHz Frequency Response
- PoE (IEEE 802.3 at type 1 Class 3), PoE+ (IEEE 802 3 at type 2 Class 4)
- Internal Memory: 1 GB
- Frequency Range (-10dB): 120Hz~20kHz
- Audio Monitoring: Speaker test by graphic level meter (Built in test tool)
- Plenum rated for in-ceiling use
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SPA-C100B,SPA-C100W,SPA-C110B,SPA-C110W,SPA-D1000_250516_EN.pdf | 2026-07-14 | |
| Manuals | Manuals_SPA-C100B%2CSPA-C100W%2CSPA-C110B%2CSPA-C110W%2CSPA-W100B%2CSPA-W100W_251226_FR.pdf | 2026-07-14 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SPA-C110_230510_Common.dwg | 2026-07-14 | |
| CAD | CAD_SPA-C110_230520_Common.pdf | 2026-07-14 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SPA-C110B_230204_EN_DoC_CE.pdf | 2026-07-14 | |
| Certification | Certification_SPA-C110B_230204_EN_DoC_UKCA.pdf | 2026-07-14 | |
| Certification | Certification_SPA-C110B_230204_EN_EMC_CE(UKCA).pdf | 2026-07-14 | |
| Certification | Certification_SPA-C110B_230204_EN_RCM.pdf | 2026-07-14 | |
| Certification | Certification_SPA-C110B_230221_EN_UL.pdf | 2026-07-14 | |
| Certification | Certification_SPA-C110B_230224_EN_FCC,IC.pdf | 2026-07-14 | |
| Certification | Certification_SPA-C110B_230224_EN_VCCI.pdf | 2026-07-14 | |
| Certification | Certification_SPA-C110B_230315_KO_Report_KC(EMC).pdf | 2026-07-14 | |
| Certification | Certification_SPA-C110B_230321_KO_KC(EMC).pdf | 2026-07-14 | |
| Certification | Certification_SPA-C110_230221_EN_UL.pdf | 2026-07-14 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | ip_speaker_ver3.4.5.42.zip | 2026-07-14 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_SPA-C110B_230614_EN.docx | 2026-07-14 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SPA-C110B_20260306_EN_125308.pdf | 2026-07-14 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SPA-C110BSPA-C110W_240417_Common.pdf | 2026-07-14 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_SPA-C100SPA-C110SPA-C200SPA-D1000SPA-D2000_250430_EN.txt | 2026-07-14 |
Specifications
Product
| IP Audio Type | IP Ceiling Speaker |
Line Ouput
| Output Level | +6 dBV ±3 dB | |
| Frequency Response | 20Hz~20kHz | |
| THD + N Ration (AES17LPF) | Less than 0.1% | |
| S/N Ration (20kHz LPF, A-WTD) | Greater than 91 dB |
Amplifier
| Description | Built in 10W Class D |
Network
| Ethernet | 10/100 Base-T |
Memory
| Internal Memory | 1 GBytes | |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
Contact
| Contact Input. Dry contact | One Channel | |
| Contact Output. Dry contact (NO) | One channel |
General
| Operating Temperature | -20°~+50°C(-4°F~+122°F) | |
| Operating Humidity | 10~85%RH(Non-Condensing) | |
| IP Code | N/A | |
| Weight | 2.7Kg (5.95lb) | |
| Size | ø269*156.5(H)mm | |
| Color | Black/White | |
| Certificate | EMC : FCC Part 15 Subpart B, ICES-003, Safety : UL 2043, UL 62368-1, CAN/CSA 62368-1 |
Speaker
| Speaker Component | 2 Way 8" LF Drive & 2" HF Driver. Passive type | |
| Max. Sound Pressure Level (PoE) | 96 dB | |
| Max. Sound Pressure Level (PoE+) | 100 dB | |
| Frequency Range (-10 dB) | 120 Hz~20 kHz | |
| Sensitivity (1 Watt) | 90 dB | |
| Coverage Pattern | (HxV) : 90° (1 kHz) / 60° (4 kHz) |
Network Protocol
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S | |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 20 Zone Control (Unicast), Up to 255 Groups | |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 | |
| TTS | English (US, UK), German, French, Spanish, Russian | |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) | |
| Event & Preset | Virtual Contact, Dry contact | |
| Functional Monitoring | Connection verification, Built-in system logging |
Product
| IP Audio Type | IP Ceiling Speaker |
Line Ouput
| Output Level | +6 dBV ±3 dB | |
| Frequency Response | 20Hz~20kHz | |
| THD + N Ration (AES17LPF) | Less than 0.1% | |
| S/N Ration (20kHz LPF, A-WTD) | Greater than 91 dB |
Amplifier
| Description | Built in 10W Class D |
Network
| Ethernet | 10/100 Base-T |
Memory
| Internal Memory | 1 GBytes | |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
Contact
| Contact Input. Dry contact | One Channel | |
| Contact Output. Dry contact (NO) | One channel |
General
| Operating Temperature | -20°~+50°C(-4°F~+122°F) | |
| Operating Humidity | 10~85%RH(Non-Condensing) | |
| IP Code | N/A | |
| Weight | 2.7Kg (5.95lb) | |
| Size | ø269*156.5(H)mm | |
| Color | Black/White | |
| Certificate | EMC : FCC Part 15 Subpart B, ICES-003, Safety : UL 2043, UL 62368-1, CAN/CSA 62368-1 |
Speaker
| Speaker Component | 2 Way 8" LF Drive & 2" HF Driver. Passive type | |
| Max. Sound Pressure Level (PoE) | 96 dB | |
| Max. Sound Pressure Level (PoE+) | 100 dB | |
| Frequency Range (-10 dB) | 120 Hz~20 kHz | |
| Sensitivity (1 Watt) | 90 dB | |
| Coverage Pattern | (HxV) : 90° (1 kHz) / 60° (4 kHz) |
Network Protocol
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S | |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 20 Zone Control (Unicast), Up to 255 Groups | |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 | |
| TTS | English (US, UK), German, French, Spanish, Russian | |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) | |
| Event & Preset | Virtual Contact, Dry contact | |
| Functional Monitoring | Connection verification, Built-in system logging |
