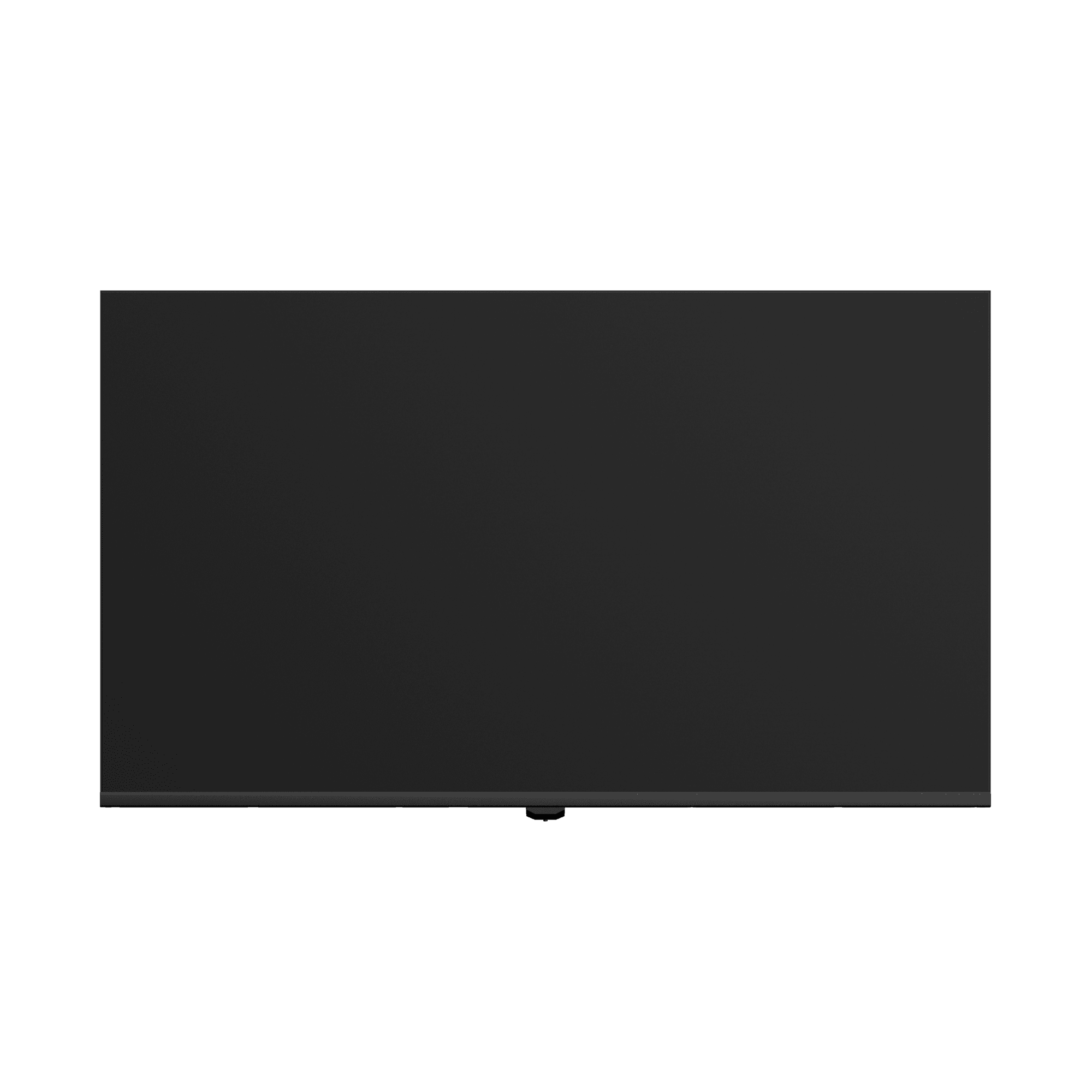

SMT-4345
43inch UHD monitor with two windows PIP/PBPKey Features
• 43 inch UHD Monitor, support up to 3840×2160@60Hz
• Brightness 300 cd/m², Contrast 1200:1
• Viewing Angle (H/V) : 178°/178°, Response Time : 8ms
• Video Input : HDMI(2), DP(1), two windows PIP/PBP
• Panel Life : 30,000 hours
• Designed and tested on 24/7 operation
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SMT-4345_260202_EN.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-4345_260220_DE.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-4345_260220_ES.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-4345_260220_FR.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-4345_260220_IT.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-4345_260220_PL.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-4345_260220_TR.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-4345_260220_ZH.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SMT-4345_250822_Common.dwg | 2026-04-19 | |
| CAD | CAD_SMT-4345_250822_Common.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SMT-4345_250627_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SMT-4345_250627_EN_DoC_UKCA.pdf | 2026-04-19 | |
| Certification | Certification_SMT-4345_250627_EN_EMC_CE%2CUKCA.pdf | 2026-04-19 | |
| Certification | Certification_SMT-4345_250627_EN_FCC%2CIC.PDF | 2026-04-19 | |
| Certification | Certification_SMT-4345_250721_EN_Report_UL.pdf | 2026-04-19 | |
| Certification | Certification_SMT-4345_250721_EN_UL.pdf | 2026-04-19 | |
| Certification | Certification_SMT-4345_250813_EN_CB.pdf | 2026-04-19 | |
| Certification | Certification_SMT-4345_250813_EN_Report_CB.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SMT-4345_20250929_EN_170956.pdf | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_SMT-4345_250827_CS.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_SMT-4345_250827_DE.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_SMT-4345_250827_EN.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_SMT-4345_250827_ES.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_SMT-4345_250827_FR.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_SMT-4345_250827_IT.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_SMT-4345_250827_NL.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_SMT-4345_250827_PL.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_SMT-4345_250827_TR.pdf | 2026-04-19 | |
| Quick Guide | Quick%20Guide_SMT-4345_250827_ZH.pdf | 2026-04-19 |
Specifications
Display
| Type | LED Monitor | |
| Screen Size | 43inch | |
| Max. Resolution | 3840x2160 | |
| Brightness | 300 cd/m² | |
| Contrast Ratio | 1200:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 1.07B | |
| Response Time | 8ms | |
| Panel Life | 30,000 hours |
Interface
| Video | Connectors | HDMI(2), DP(1), two windows PIP/PBP |
| HDMI | Connector | HDMI x 2 |
| Available Format | 640x480@60Hz, 800x600@56Hz/60Hz/72Hz/75Hz, 1024x768@60Hz/70Hz/75Hz, 1280x720@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz/75Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@50Hz/60Hz, 2560x1440@60Hz, 3840x2160@60Hz, 3840x2160P@30/50/60Hz, 720x480P@60Hz, 720x576P@50Hz, 1280x720P@50Hz, 1920x1080P@50/60Hz | |
| DP | Connector | DP |
| Available Format | 640x480@60Hz, 800x600@56Hz/60Hz/72Hz/75Hz, 1024x768@60Hz/70Hz/75Hz, 1280x1024@60Hz/75Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@50Hz/60Hz, 2560x1440@60Hz, 3840x2160@60Hz, 3840x2160P@30/50/60Hz, 720x480P@60Hz, 720x576P@50Hz, 1280x720P@50Hz, 1920x1080P@50/60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x720@60Hz | |
| Audio | Connector | Audio Out |
| Output Signal | Speakers : 6Ω 2W x 2 | |
| Application Support | Remote controller |
On Screen Display
| Functions | VESA™ DPMS Compatible | |
| Language | Korean, English, Pусский, Deutsch, Français, Español, Italiano, Português, Chinese (Simplified), Chinese (Traditional), Japanese, Arabic |
General
| Electrical | Input Voltage | AC 100 ~ 240V(50/60Hz) |
| Power Consumption | 85W | |
| Environmental | Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | Dimensions without Stand (WxHxD) | 954.9x570.3x79.8mm (37.6x22.5x3.2") |
| Weight | 5.8kg(12.8lb) | |
| Packing Dimension (WxHxD) | 1077x780x200mm (42.4x30.7x7.9") | |
| Packing Weight | 10.5kg(23.2lb) | |
| Cabinet Color | Black | |
| VESA Mounts Interface | 200x200mm |
Display
| Type | LED Monitor | |
| Screen Size | 43inch | |
| Max. Resolution | 3840x2160 | |
| Brightness | 300 cd/m² | |
| Contrast Ratio | 1200:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 1.07B | |
| Response Time | 8ms | |
| Panel Life | 30,000 hours |
Interface
| Video | Connectors | HDMI(2), DP(1), two windows PIP/PBP |
| HDMI | Connector | HDMI x 2 |
| Available Format | 640x480@60Hz, 800x600@56Hz/60Hz/72Hz/75Hz, 1024x768@60Hz/70Hz/75Hz, 1280x720@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz/75Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@50Hz/60Hz, 2560x1440@60Hz, 3840x2160@60Hz, 3840x2160P@30/50/60Hz, 720x480P@60Hz, 720x576P@50Hz, 1280x720P@50Hz, 1920x1080P@50/60Hz | |
| DP | Connector | DP |
| Available Format | 640x480@60Hz, 800x600@56Hz/60Hz/72Hz/75Hz, 1024x768@60Hz/70Hz/75Hz, 1280x1024@60Hz/75Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@50Hz/60Hz, 2560x1440@60Hz, 3840x2160@60Hz, 3840x2160P@30/50/60Hz, 720x480P@60Hz, 720x576P@50Hz, 1280x720P@50Hz, 1920x1080P@50/60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x720@60Hz | |
| Audio | Connector | Audio Out |
| Output Signal | Speakers : 6Ω 2W x 2 | |
| Application Support | Remote controller |
On Screen Display
| Functions | VESA™ DPMS Compatible | |
| Language | Korean, English, Pусский, Deutsch, Français, Español, Italiano, Português, Chinese (Simplified), Chinese (Traditional), Japanese, Arabic |
General
| Electrical | Input Voltage | AC 100 ~ 240V(50/60Hz) |
| Power Consumption | 85W | |
| Environmental | Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | Dimensions without Stand (WxHxD) | 954.9x570.3x79.8mm (37.6x22.5x3.2") |
| Weight | 5.8kg(12.8lb) | |
| Packing Dimension (WxHxD) | 1077x780x200mm (42.4x30.7x7.9") | |
| Packing Weight | 10.5kg(23.2lb) | |
| Cabinet Color | Black | |
| VESA Mounts Interface | 200x200mm |
