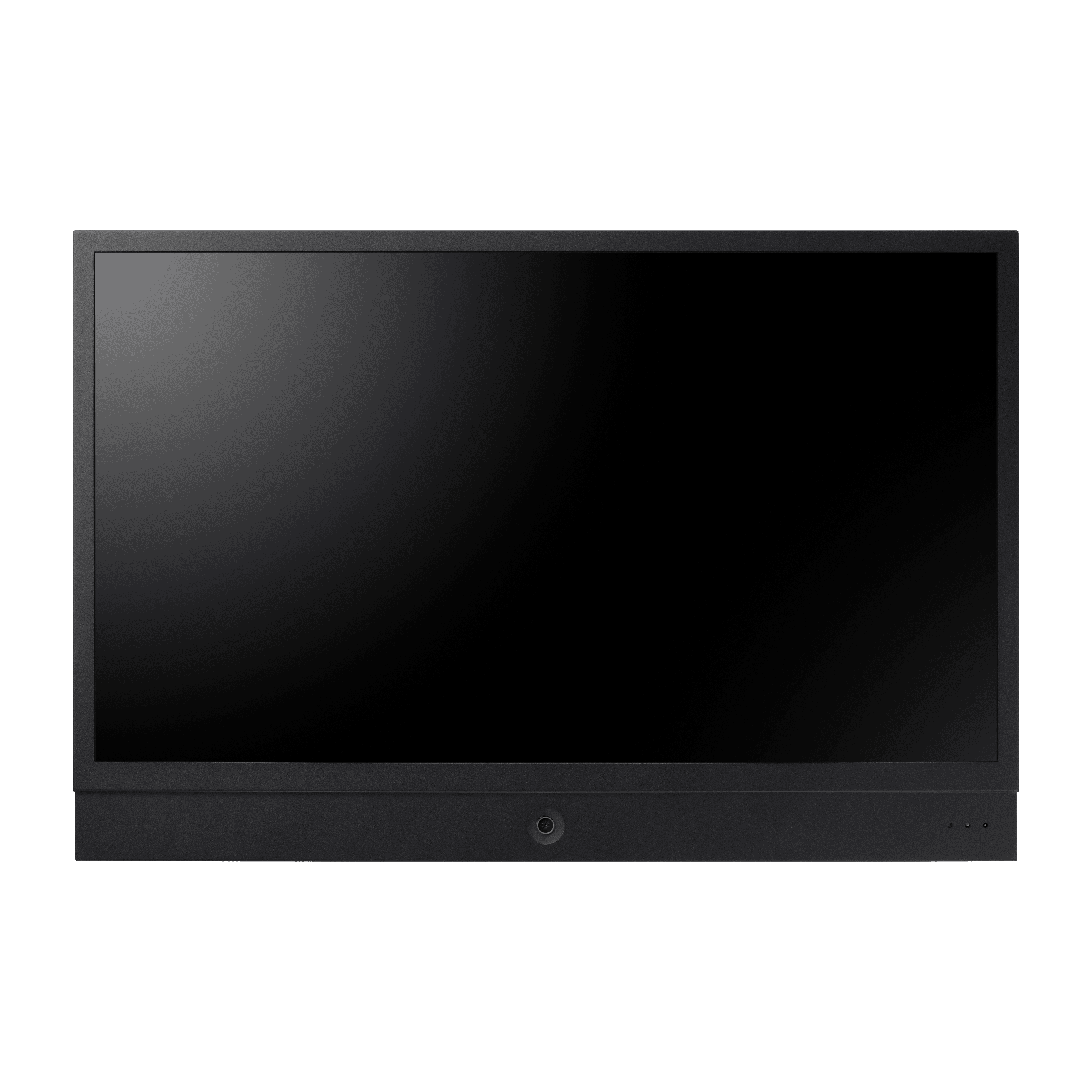

SMT-3231PV
32-inch AI PVM with PIP/PBP functionalityKey Features
• 2MP AI Camera, f1.6
• SUNAPI/Onvif Profile S/G/T/M
• AI Object Classification and Analytics
• Motion and event activated LED and audio alarm
• Landscape and Portrait modes
• “Picture In Picture (PIP)” and “Picture By Picture (PBP)” modes
• Face Detection box
• Image Slide Show (No additional storage is required)
• Customizable text overlay with default "Recording in progress“ message
• On-screen custom logo image
• Monitor management via WebUI (Power On/Off/Scheduling, Banner etc.)
• Steel cabinet
• Dual power HPoE and DC24V (adapters are not included)
* DC 24V Power Adapter (SPU-60240), HPoE Injector (SPO-8315)
• UL Listed
• NDAA Compliant
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SMT-3231PV%2CSMT-3221PV%2CSMT-2731PV%2CSMT-2721PV%2CSMT-2721PVW_251014_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SMT-3231PV_240702_Common.pdf | 2026-08-06 | |
| CAD | CAD_SMT-3231PV_240704_Common.dwg | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SMT-3231PV_231106_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_SMT-3231PV_231106_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_SMT-3231PV_231106_EN_EMC_CE,UKCA.pdf | 2026-08-06 | |
| Certification | Certification_SMT-3231PV_231106_EN_FCC,IC.pdf | 2026-08-06 | |
| Certification | Certification_SMT-3231PV_231117_EN_CB.pdf | 2026-08-06 | |
| Certification | Certification_SMT-3231PV_231117_EN_Report_CB.pdf | 2026-08-06 | |
| Certification | Certification_SMT-3231PV_231119_EN_UL.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | GenetecSecurityCenterSaaS_v_Q_AI_26_06_17_20260617.zip | 2026-08-06 | |
| Firmware | SMT-3231PV_2.23.10_20260624_R461.zip | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SMT-3231PV_20251107_EN_163202.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_SMT-3231PV%2CSMT-3221PV%2CSMT-2731PV%2CSMT-2721PV%2CSMT-2721PVW_251014_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_SMT-3231PV%2CSMT-3221PV%2CSMT-2731PV%2CSMT-2721PV%2CSMT-2721PVW_251014_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick%20Guide_SMT-3231PV%2CSMT-3221PV%2CSMT-2731PV%2CSMT-2721PV%2CSMT-2721PVW_251014_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNV-C8014RM%2CTNV-C8034RM%2CQNF-C9010%2CQNF-C9010V%2CSMT-3231PV%2CSMT-2731PV_260215_EN.txt | 2026-08-06 |
Specifications
Display
| Type | LED Monitor | |
| Screen Size | 32inch | |
| Max. Resolution | 1920x1080 | |
| Brightness | 400 cd/m² | |
| Contrast Ratio | 1300:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 16.7M | |
| Response Time | 25ms | |
| Panel Life | 30,000 hours |

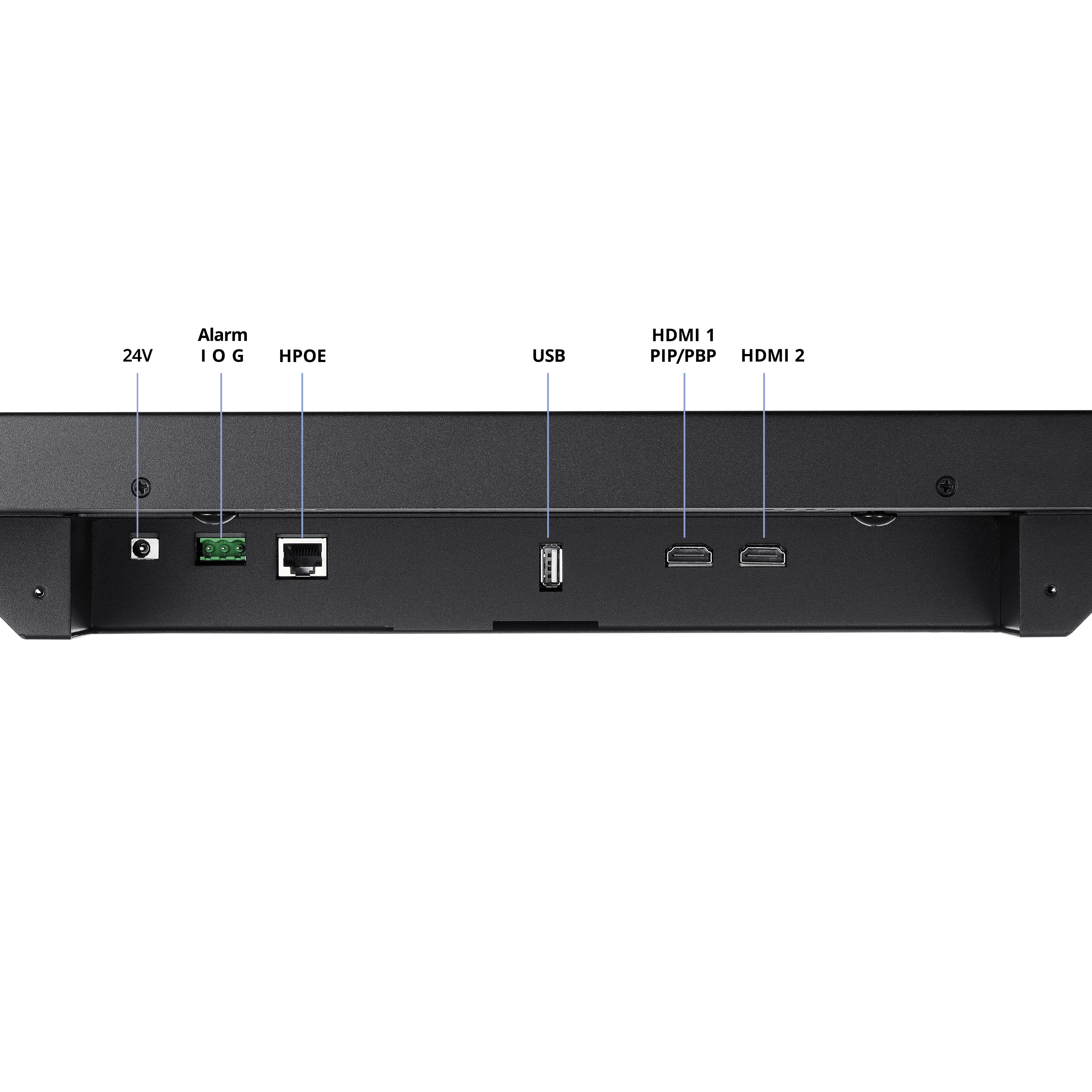

Interface
| Video | Connectors | Camera(Internal, PIP/PBP), HDMI#1(PIP/PBP), HDMI#2, * two windows PIP/PBP : Internal Camera and HDMI#1 |
| HDMI | Connector | HDMI x 2 |
| Available Format | 640x480@60Hz/72Hz/75Hz, 800x600@60Hz/72Hz/75Hz, 1024x768@60Hz/75Hz, 1280x1024@60Hz/75Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1280x720p@50Hz/60Hz | |
| Audio | Output Signal | Speakers : 8Ω 2W x 2 |
| Alarm | Alarm I/O | Input 1ea / Output 1ea |
| Network | Ethernet | 1 RJ-45 10/100BASE-T |
| General | Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
On Screen Display
| Functions | VESA™ DPMS Compatible | |
| Language | English, Spanish, French |
General
| Electrical | Input Voltage | DC24V, HPoE 802.3bt |
| Power Consumption | 56W | |
| Environmental | Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | Dimensions without Stand (WxHxD) | 734x490x68mm(28.9x19.3x2.7") |
| Weight | 12.4kg(27.3lb) | |
| Packing Dimension (WxHxD) | 891x648x213mm(35.1x25.5x8.4") | |
| Packing Weight | 13.8Kg(30.4lb) | |
| Cabinet Color | Black | |

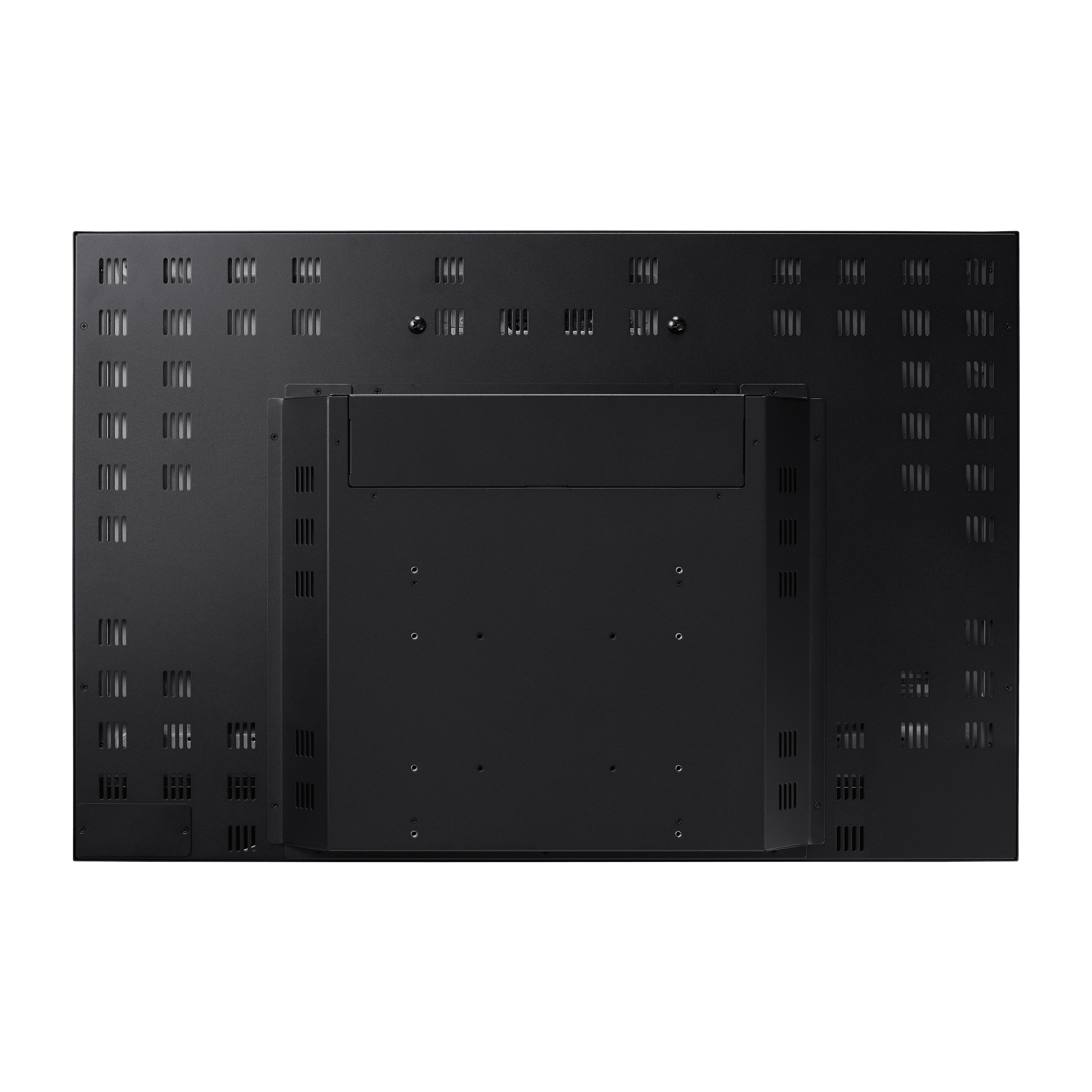

| VESA Mounts Interface | 100x100mm, 200x100mm, 200x200mm |
Camera
| Video | Imaging Device | 1/2.8" 2MP CMOS |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG: Max. 15fps/12fps(60Hz/50Hz) | |
| Min. Illumination | Color: 0.03Lux (F1.6, 1/30sec) | |
| Lens | Focal Length (Zoom Ratio) | 3.06mm fixed focal |
| Max. Aperture Ratio | F1.6 | |
| Angular Field of View | H: 107.7° / V: 59.0° / D: 126.7° | |
| Operational | Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) | |
| Motion Detection | 8ea, 8point Polygonal zones | |
| Privacy Masking | 32ea, 4point Quadrangle zones | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Classified object type: Person/Face, Attributes: Not support, Support DetectionShot, Analytics events based on AI engine, - Motion detection, Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear) | |
| Business Intelligence | People counting, Queue management, Heatmap based on AI engine | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | When alarm trigger occurred, - File upload(image) : e-mail/FTP, - Notification : e-mail, - Recording : SD/SDHC/SDXC or NAS recording at event triggers, - Alarm output, - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) | |
| Network | Smart Codec | WiseStreamⅢ |
| Application Programming Interface | ONVIF Profile S/G/T/M, SUNAPI(HTTP API) | |
| General | Memory | 2GB RAM, 1GB Flash |
| Security | OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack | |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) | |
| Access Control | Access control based on IP address | |
| Data Protect | Authentication information encryption, ZIP compression encryption | |
| Audit | User Access/System/Event log management | |
| Device ID | Device Certificate(Hanwha Private Root CA) | |
| Secure Storage | SDcard partition encrypt |
Display
| Type | LED Monitor | |
| Screen Size | 32inch | |
| Max. Resolution | 1920x1080 | |
| Brightness | 400 cd/m² | |
| Contrast Ratio | 1300:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 16.7M | |
| Response Time | 25ms | |
| Panel Life | 30,000 hours |
Interface
| Video | Connectors | Camera(Internal, PIP/PBP), HDMI#1(PIP/PBP), HDMI#2, * two windows PIP/PBP : Internal Camera and HDMI#1 |
| HDMI | Connector | HDMI x 2 |
| Available Format | 640x480@60Hz/72Hz/75Hz, 800x600@60Hz/72Hz/75Hz, 1024x768@60Hz/75Hz, 1280x1024@60Hz/75Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1280x720p@50Hz/60Hz | |
| Audio | Output Signal | Speakers : 8Ω 2W x 2 |
| Alarm | Alarm I/O | Input 1ea / Output 1ea |
| Network | Ethernet | 1 RJ-45 10/100BASE-T |
| General | Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
On Screen Display
| Functions | VESA™ DPMS Compatible | |
| Language | English, Spanish, French |
General
| Electrical | Input Voltage | DC24V, HPoE 802.3bt |
| Power Consumption | 56W | |
| Environmental | Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | Dimensions without Stand (WxHxD) | 734x490x68mm(28.9x19.3x2.7") |
| Weight | 12.4kg(27.3lb) | |
| Packing Dimension (WxHxD) | 891x648x213mm(35.1x25.5x8.4") | |
| Packing Weight | 13.8Kg(30.4lb) | |
| Cabinet Color | Black | |
| VESA Mounts Interface | 100x100mm, 200x100mm, 200x200mm |
Camera
| Video | Imaging Device | 1/2.8" 2MP CMOS |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG: Max. 15fps/12fps(60Hz/50Hz) | |
| Min. Illumination | Color: 0.03Lux (F1.6, 1/30sec) | |
| Lens | Focal Length (Zoom Ratio) | 3.06mm fixed focal |
| Max. Aperture Ratio | F1.6 | |
| Angular Field of View | H: 107.7° / V: 59.0° / D: 126.7° | |
| Operational | Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) | |
| Motion Detection | 8ea, 8point Polygonal zones | |
| Privacy Masking | 32ea, 4point Quadrangle zones | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Classified object type: Person/Face, Attributes: Not support, Support DetectionShot, Analytics events based on AI engine, - Motion detection, Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear) | |
| Business Intelligence | People counting, Queue management, Heatmap based on AI engine | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | When alarm trigger occurred, - File upload(image) : e-mail/FTP, - Notification : e-mail, - Recording : SD/SDHC/SDXC or NAS recording at event triggers, - Alarm output, - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) | |
| Network | Smart Codec | WiseStreamⅢ |
| Application Programming Interface | ONVIF Profile S/G/T/M, SUNAPI(HTTP API) | |
| General | Memory | 2GB RAM, 1GB Flash |
| Security | OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack | |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) | |
| Access Control | Access control based on IP address | |
| Data Protect | Authentication information encryption, ZIP compression encryption | |
| Audit | User Access/System/Event log management | |
| Device ID | Device Certificate(Hanwha Private Root CA) | |
| Secure Storage | SDcard partition encrypt |
